B1499

DTC B1499/99 Multiplex Communication Circuit

DESCRIPTION

DTC Detection Condition:

This DTC is displayed when communication fails.

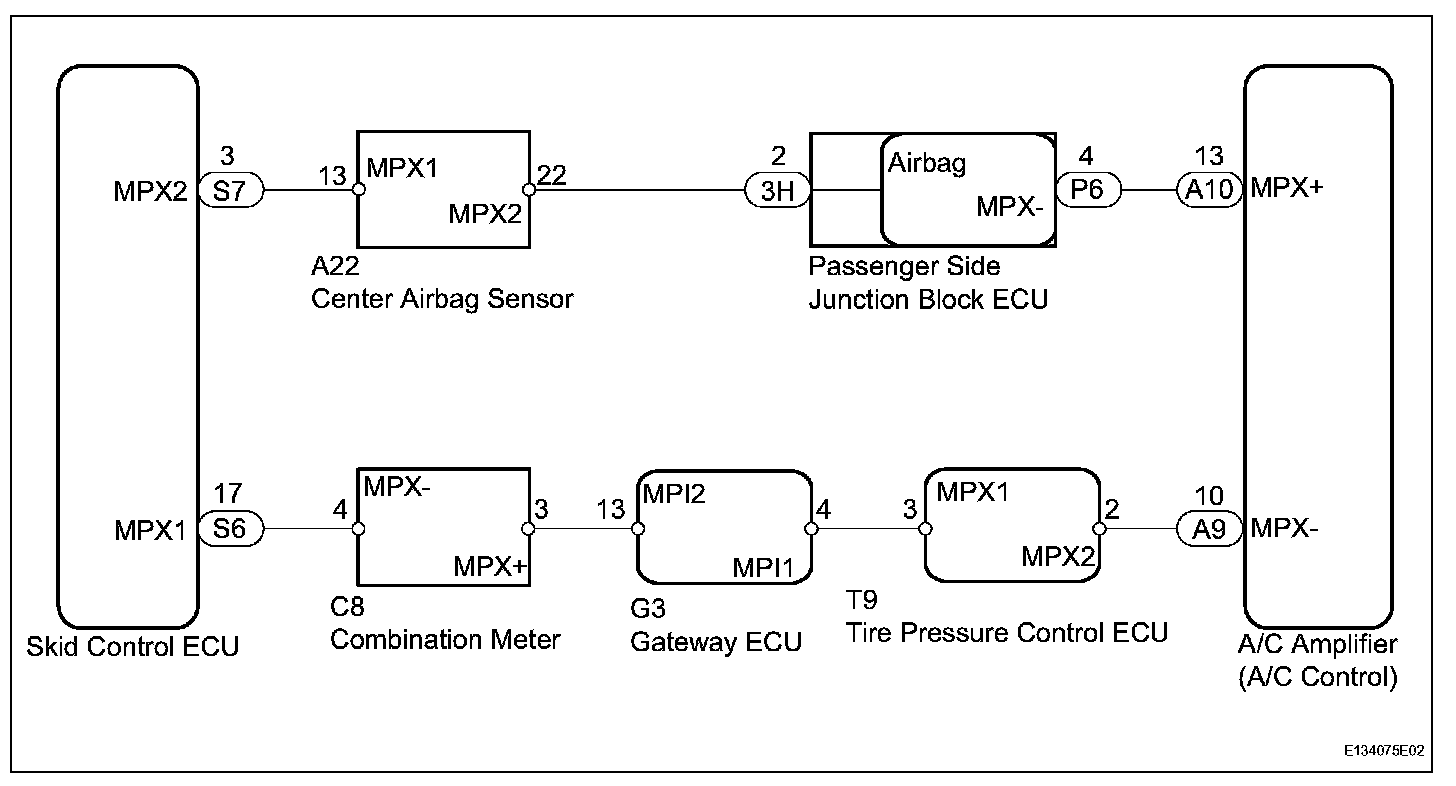

Wiring Diagram:

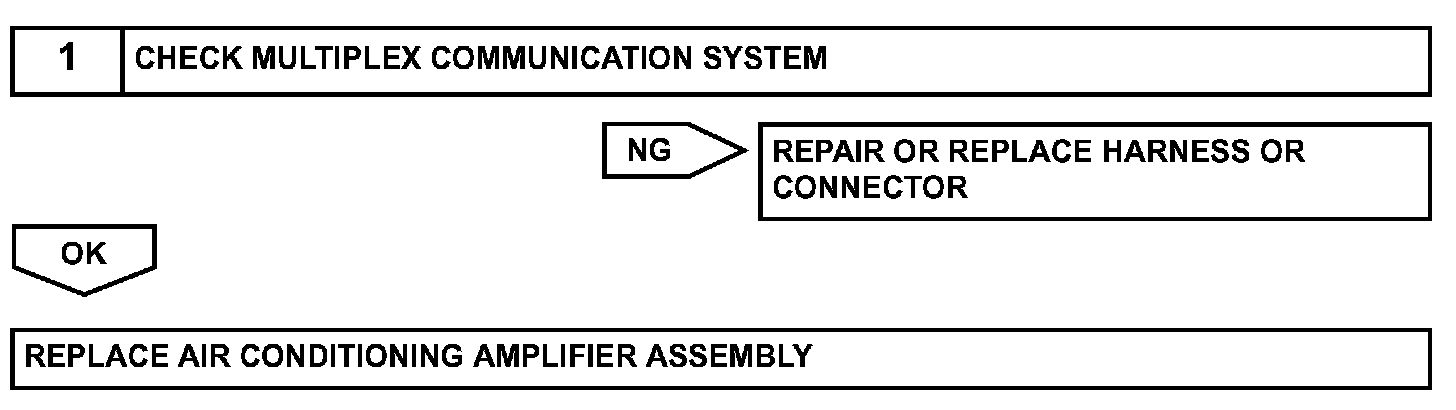

Step 1:

INSPECTION PROCEDURE
