B1442

DTC B1442/42 Air Inlet Damper Control Servo Motor Circuit

DESCRIPTION

DTC Detection Condition:

The recirculation damper servo is controlled by the A/C amplifier, and the A/C amplifier moves the recirculation damper servo to the desired position.

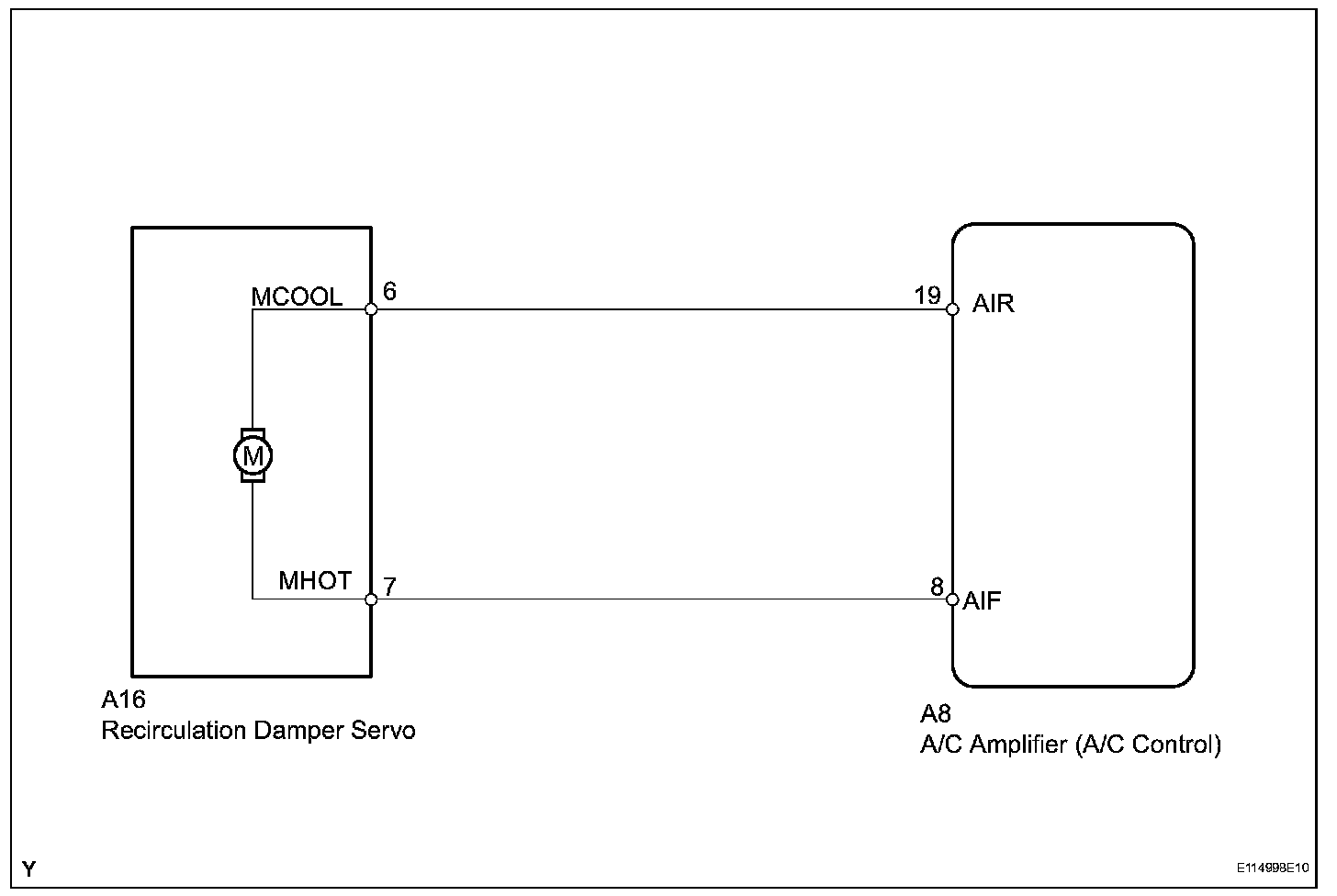

Wiring Diagram:

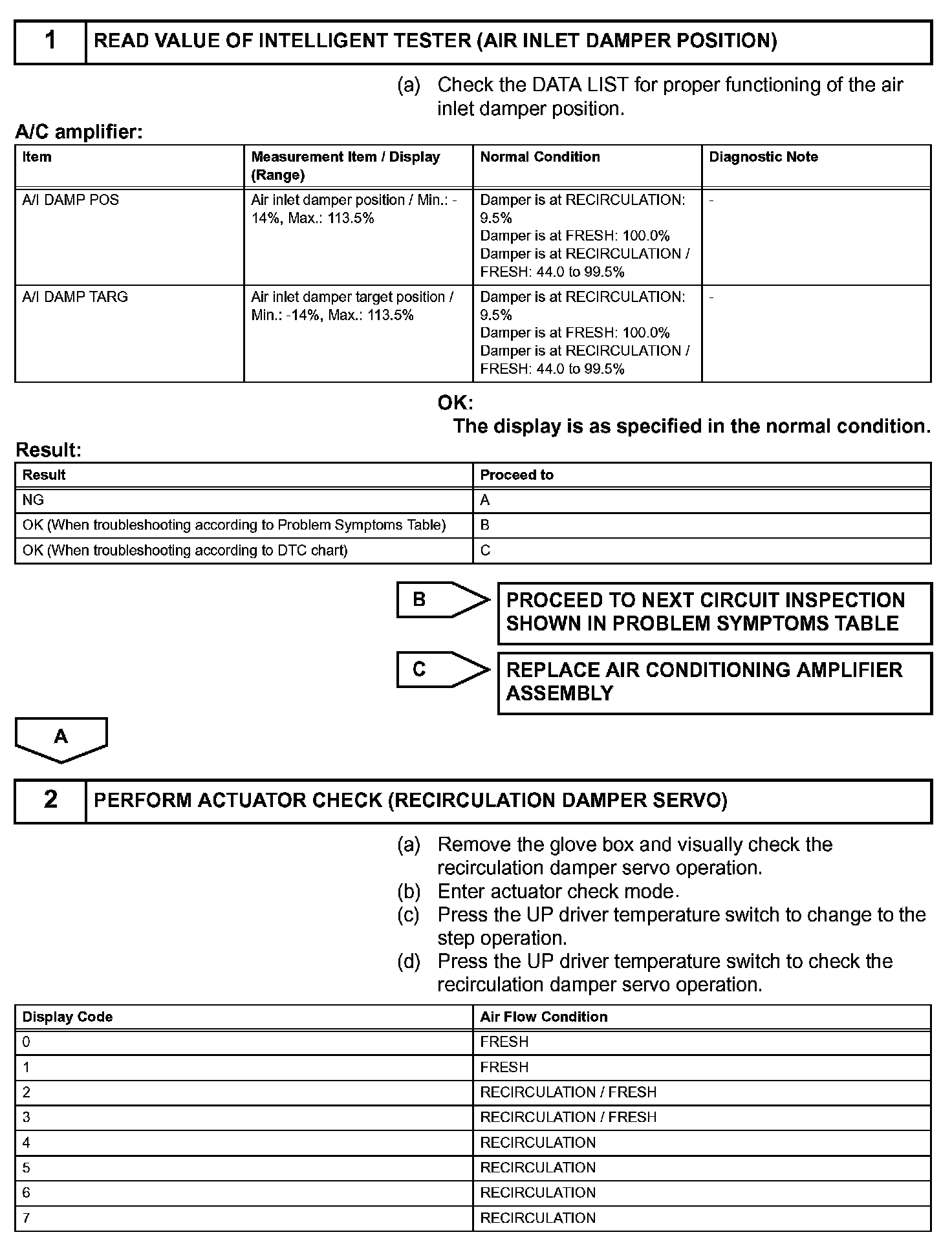

Step 1-2:

Step 2 (Continued):

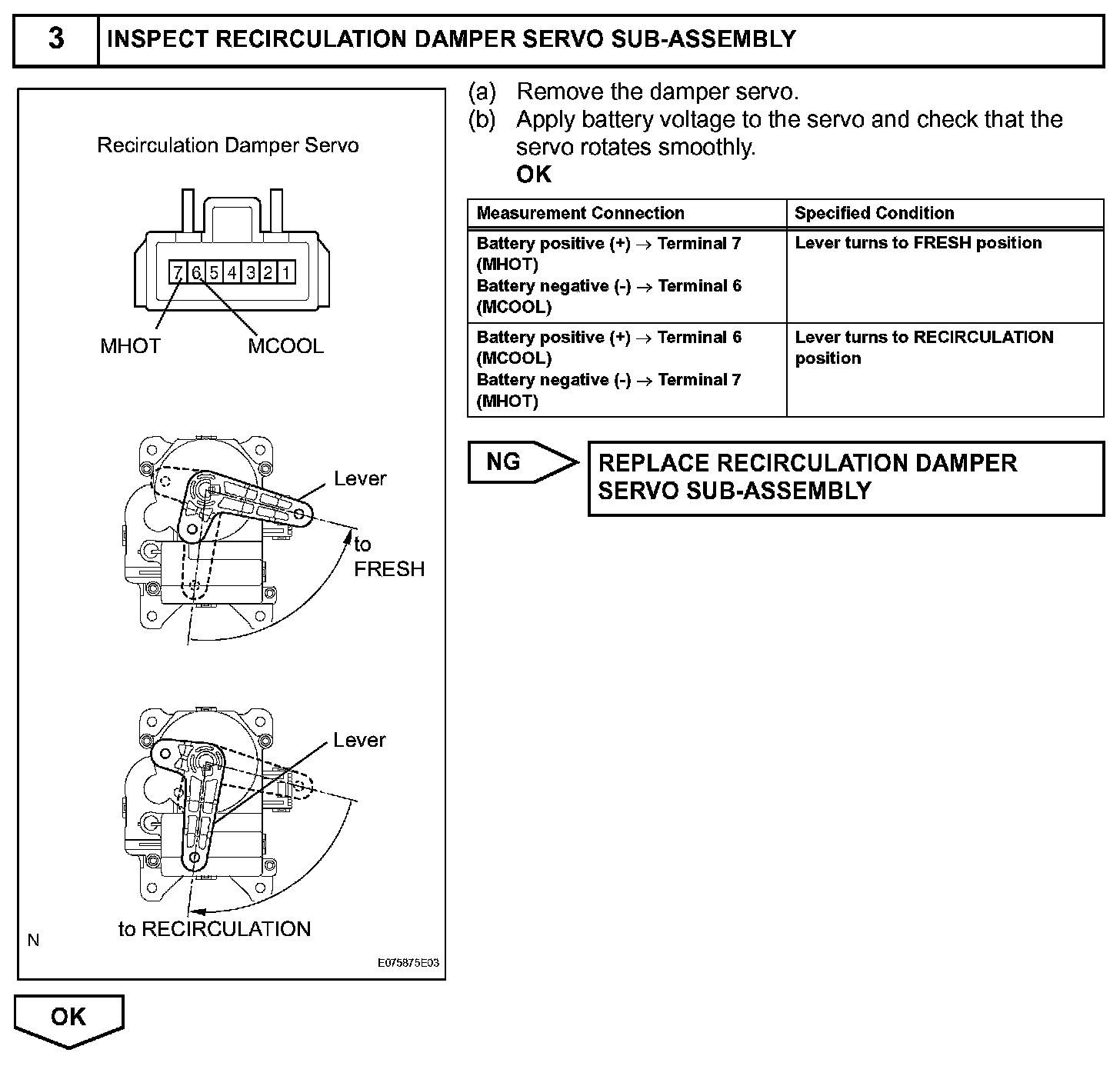

Step 3:

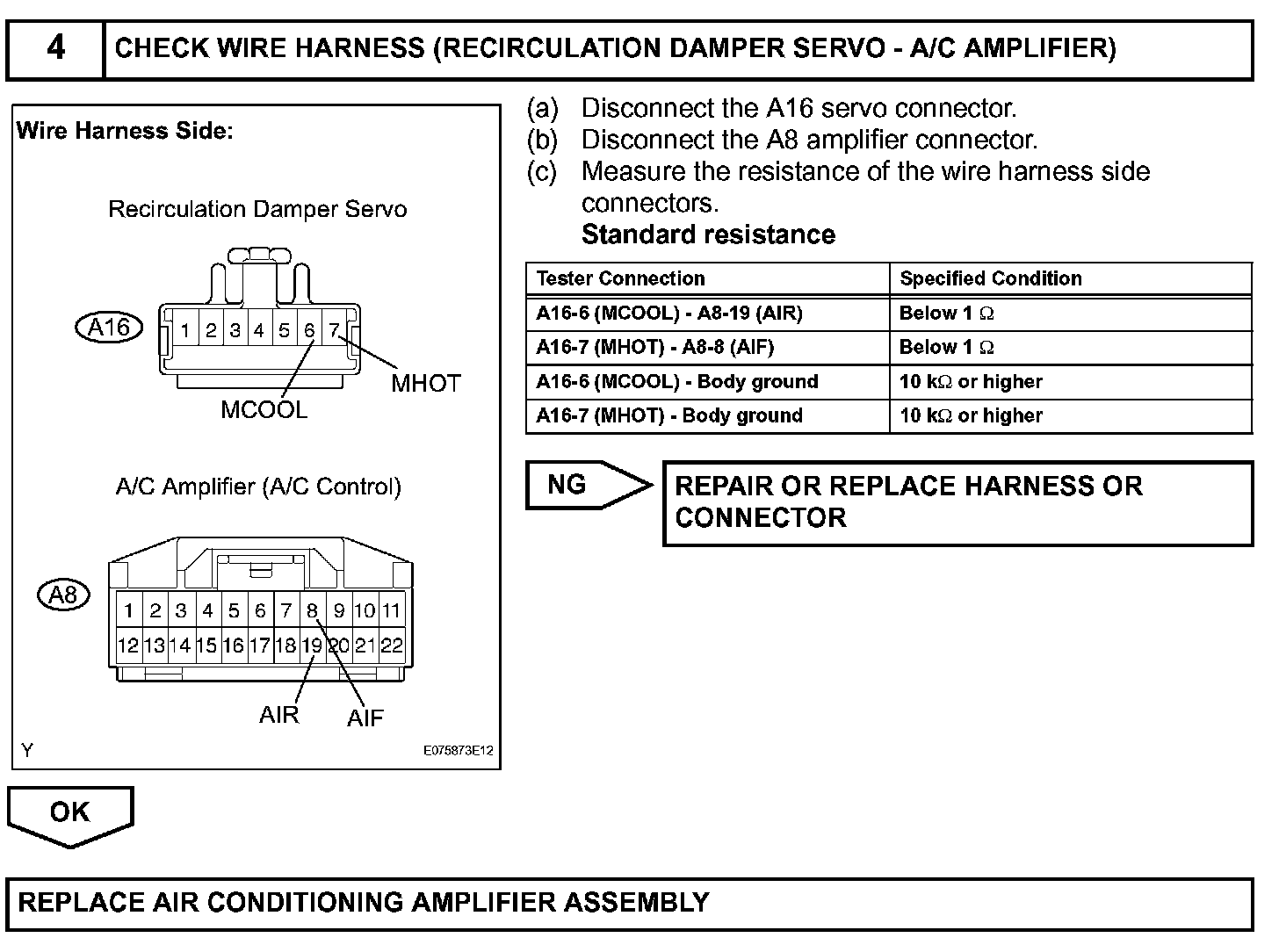

Step 4:

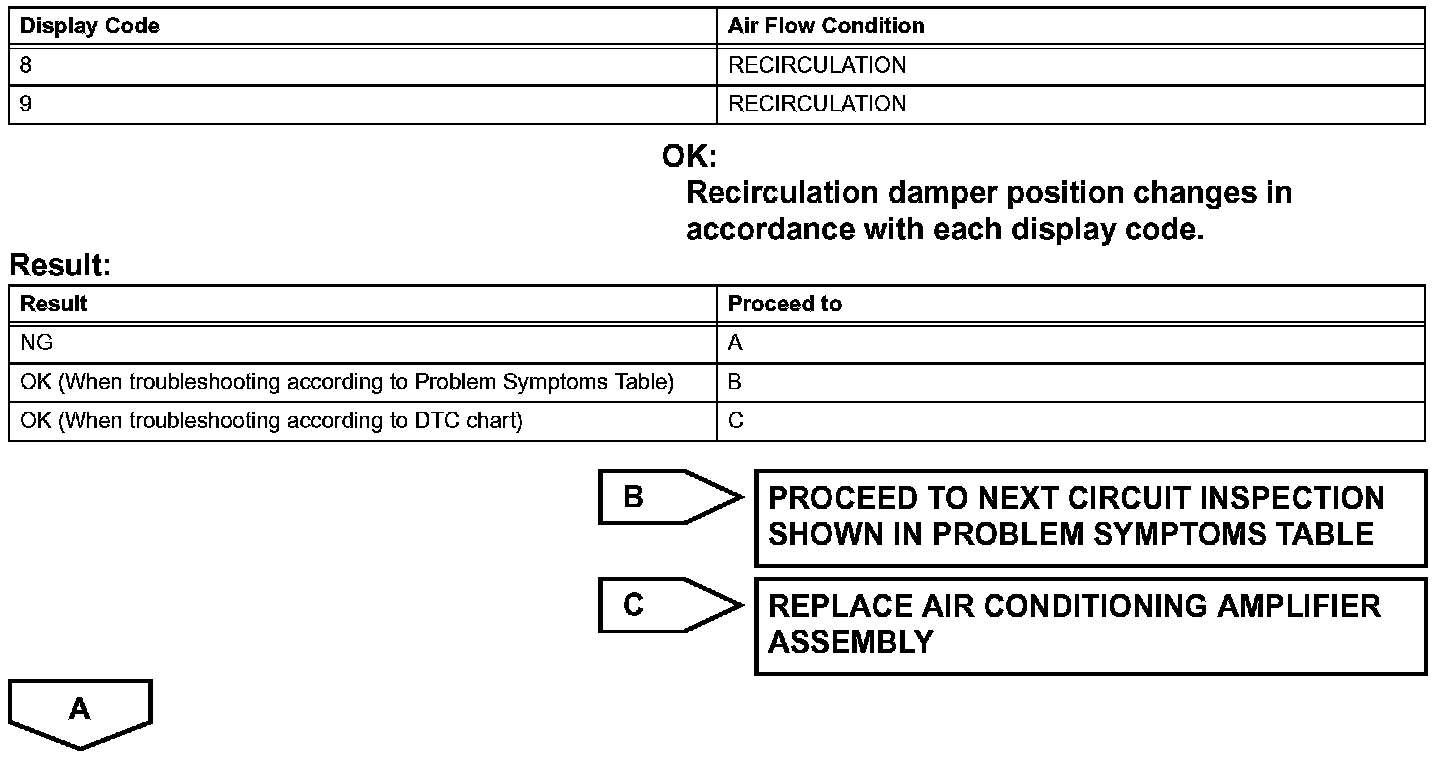

INSPECTION PROCEDURE
