B1432

DTC B1432/32 Air Inlet Damper Position Sensor Circuit

DESCRIPTION

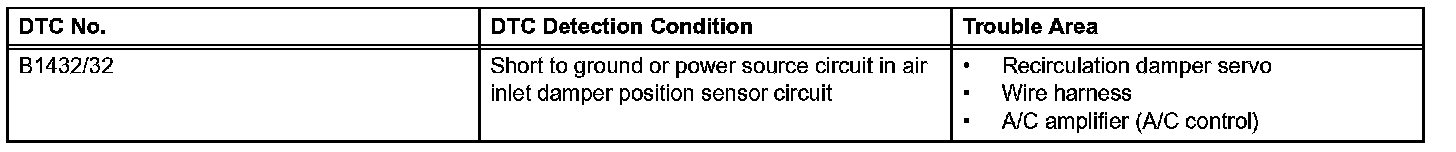

DTC Detection Condition:

This sensor detects the position of the recirculation damper servo and sends appropriate signals to the A/C amplifier. The position sensor is built into the recirculation damper servo.

Wiring Diagram:

Step 1:

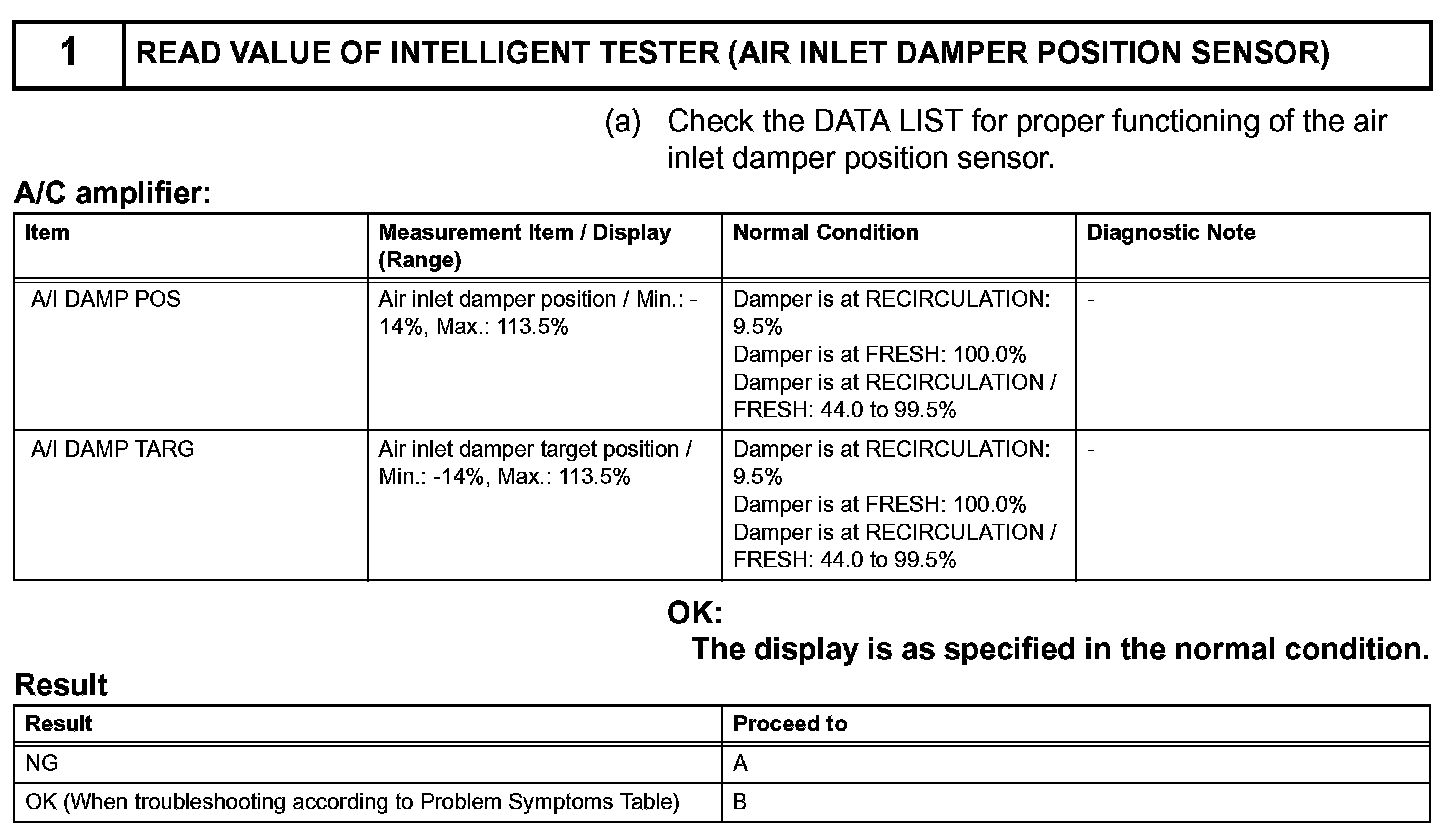

Step 1 (Continued)-2:

Step 3:

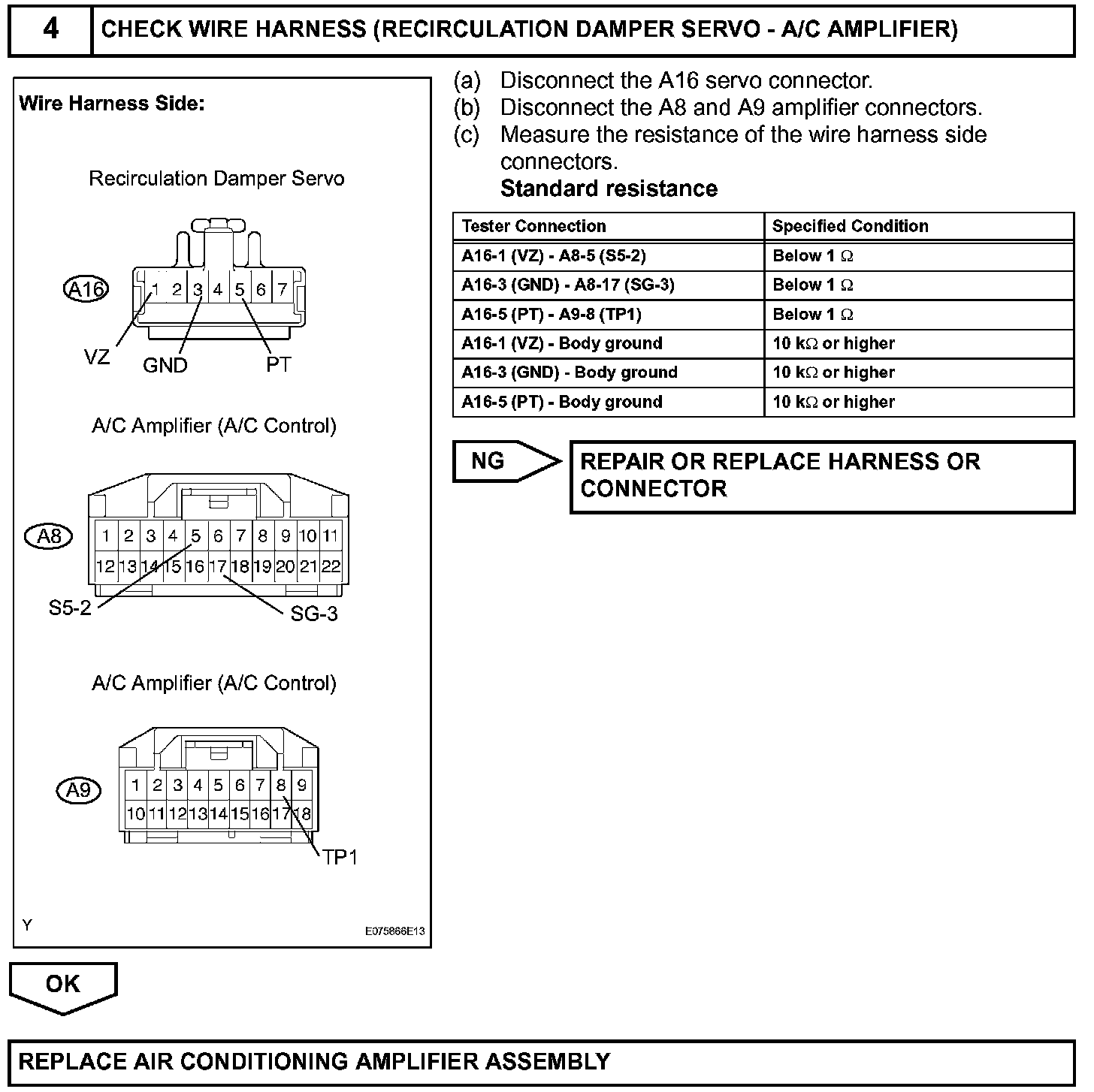

Step 4:

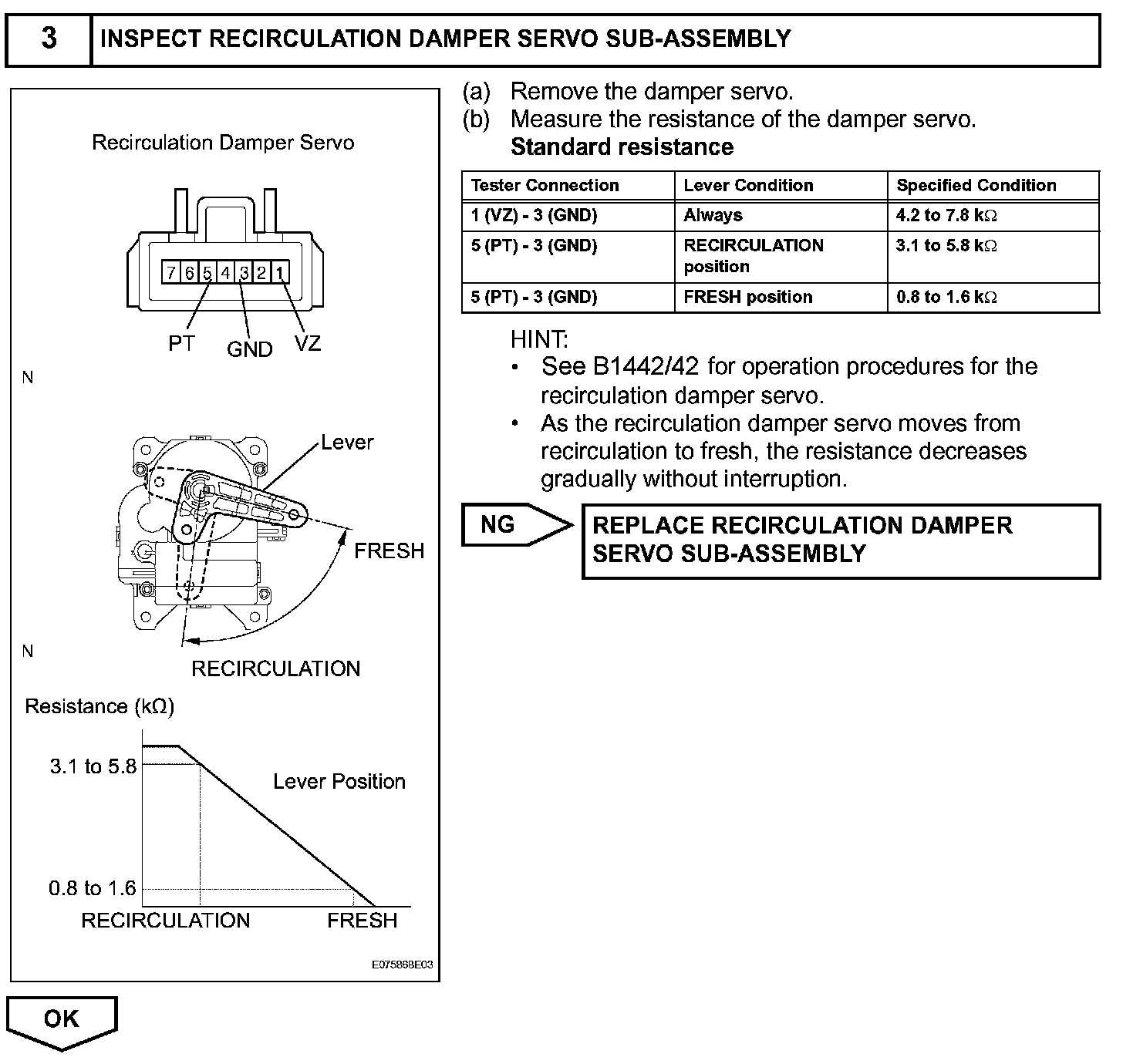

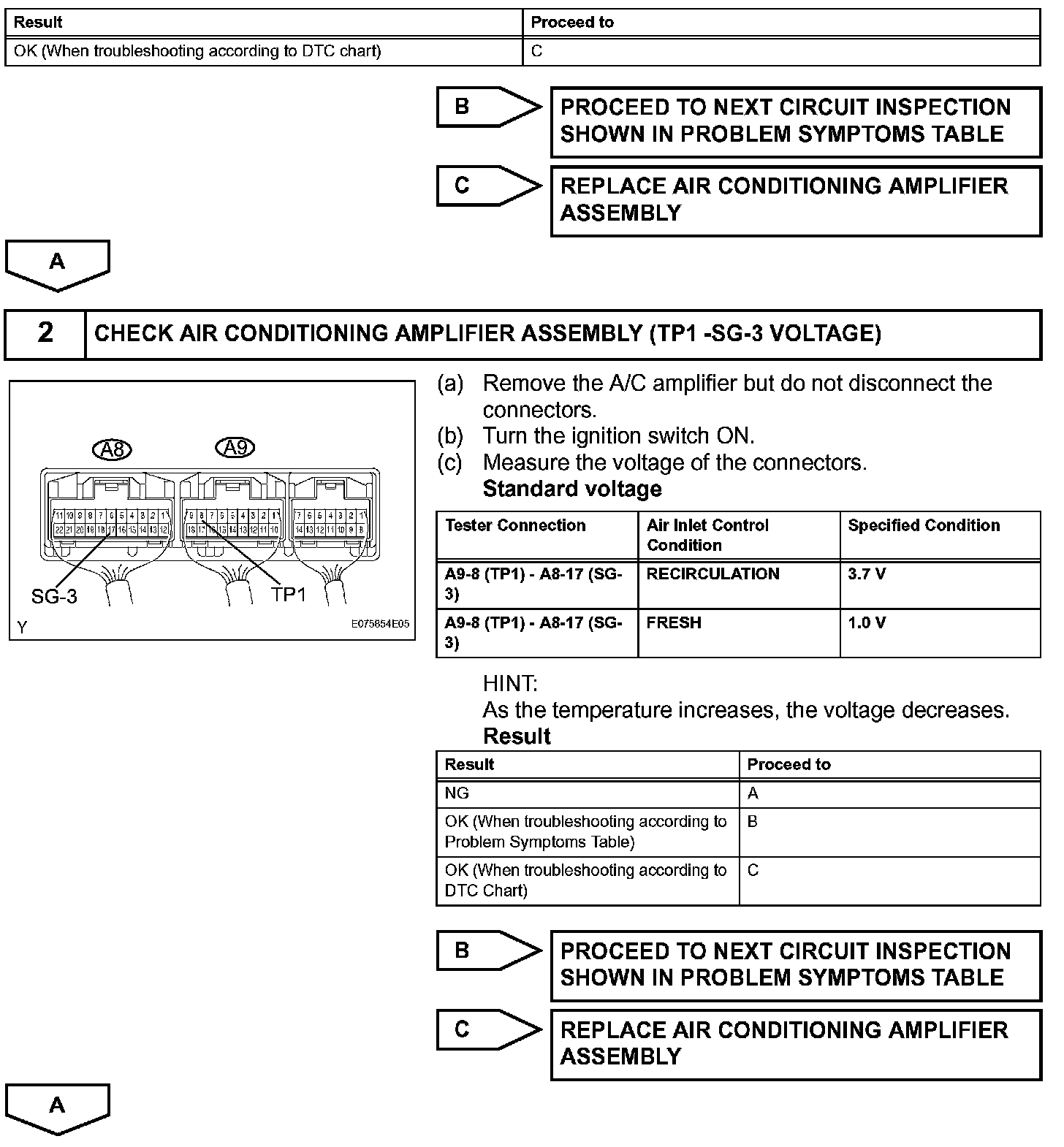

INSPECTION PROCEDURE
