B1431

DTC B1431/31 Air Mix Damper Position Sensor Circuit (Passenger Side)

DESCRIPTION

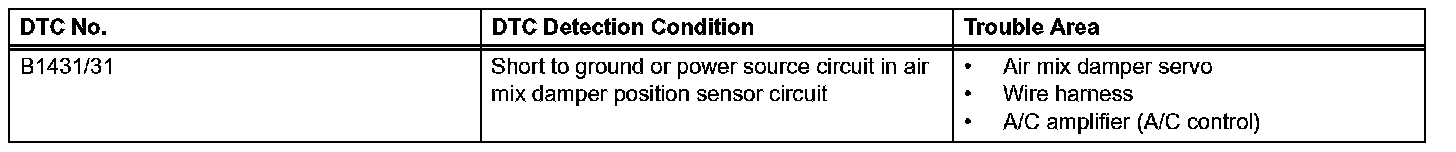

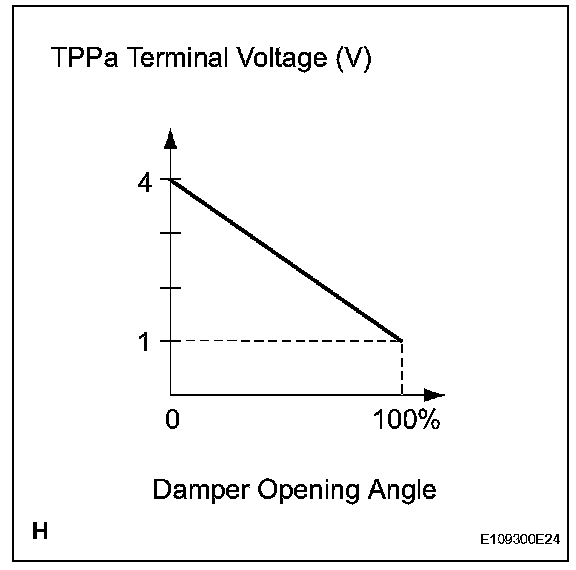

DTC Detection Condition:

This sensor detects the position of the air mix damper servo and sends appropriate signals to the A/C amplifier. The position sensor is built into the air mix damper servo.

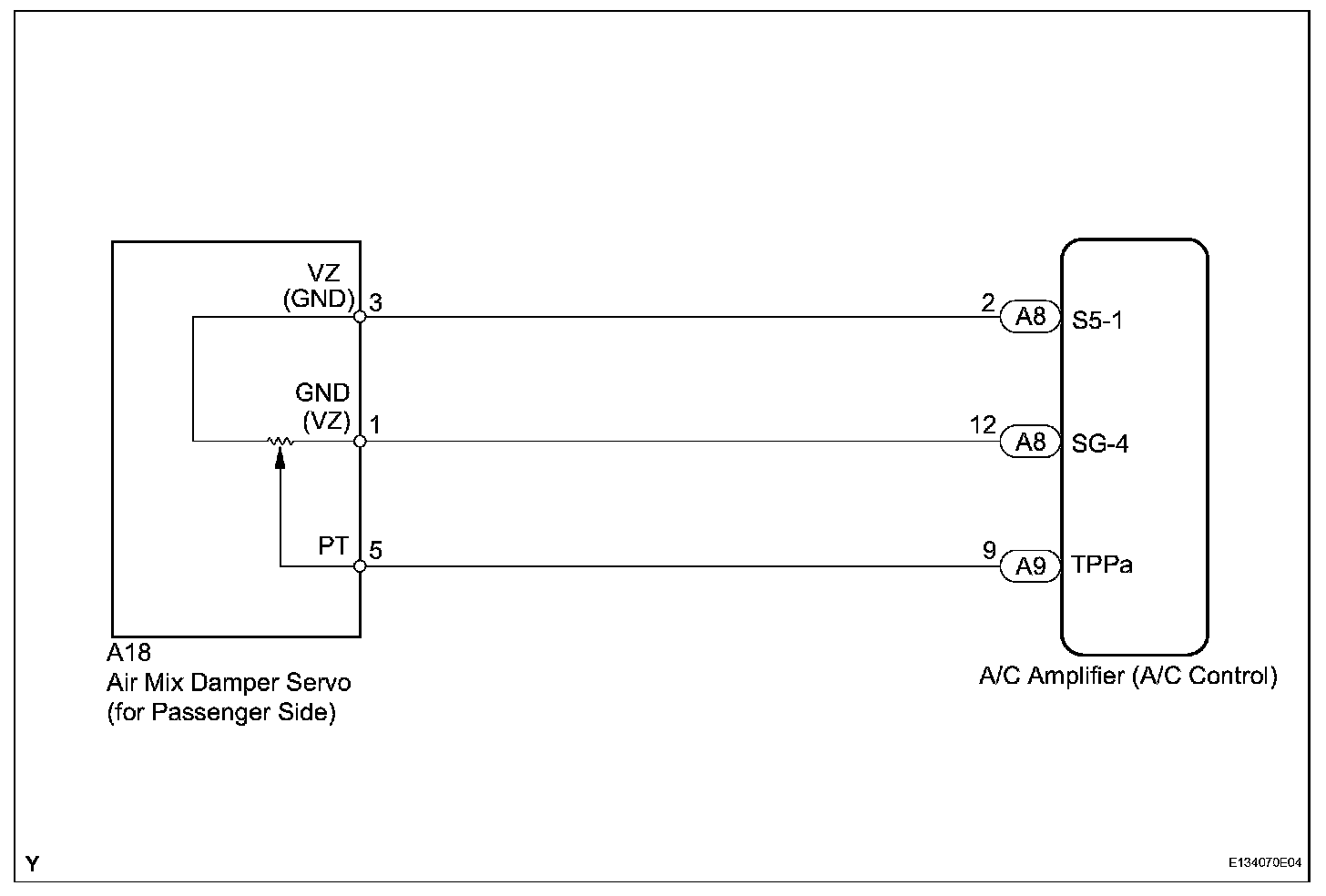

Wiring Diagram:

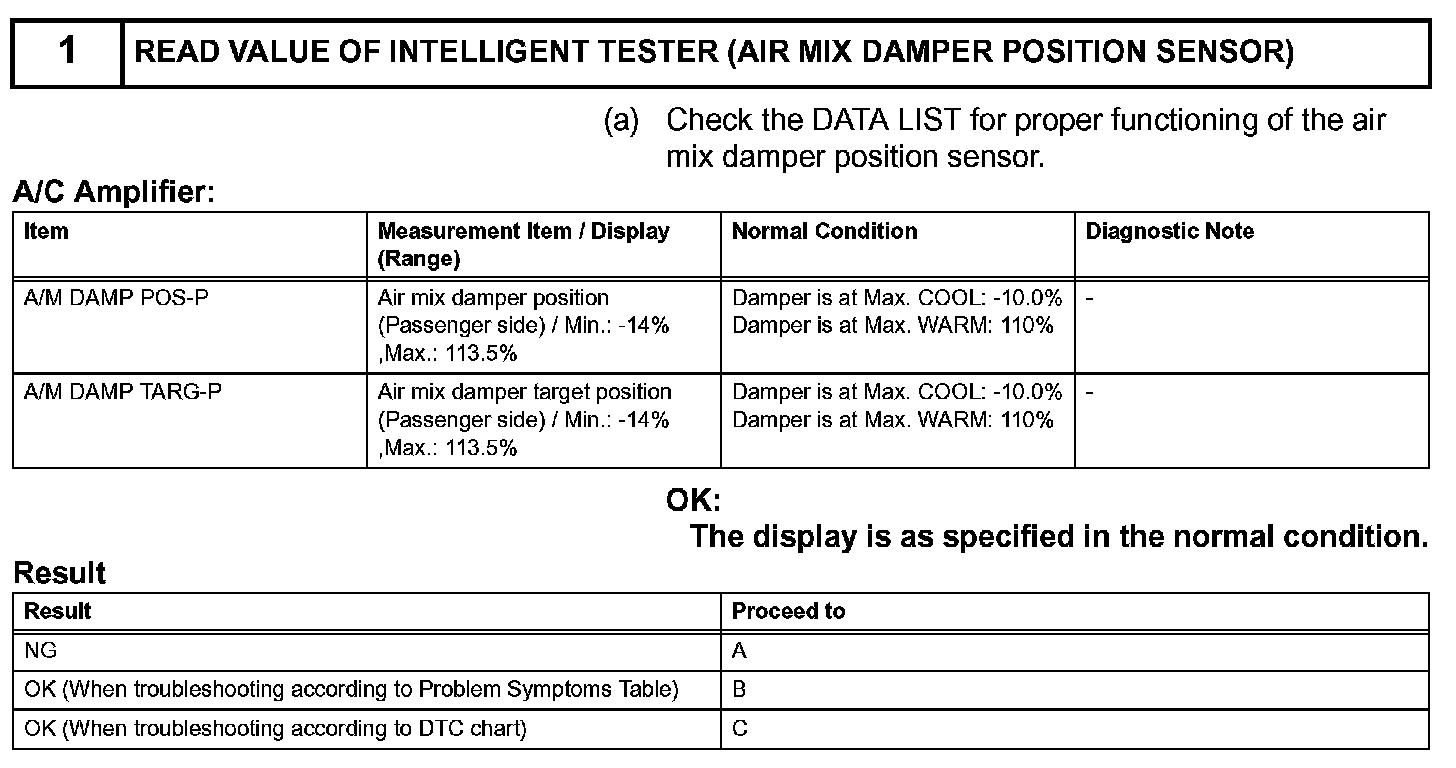

Step 1:

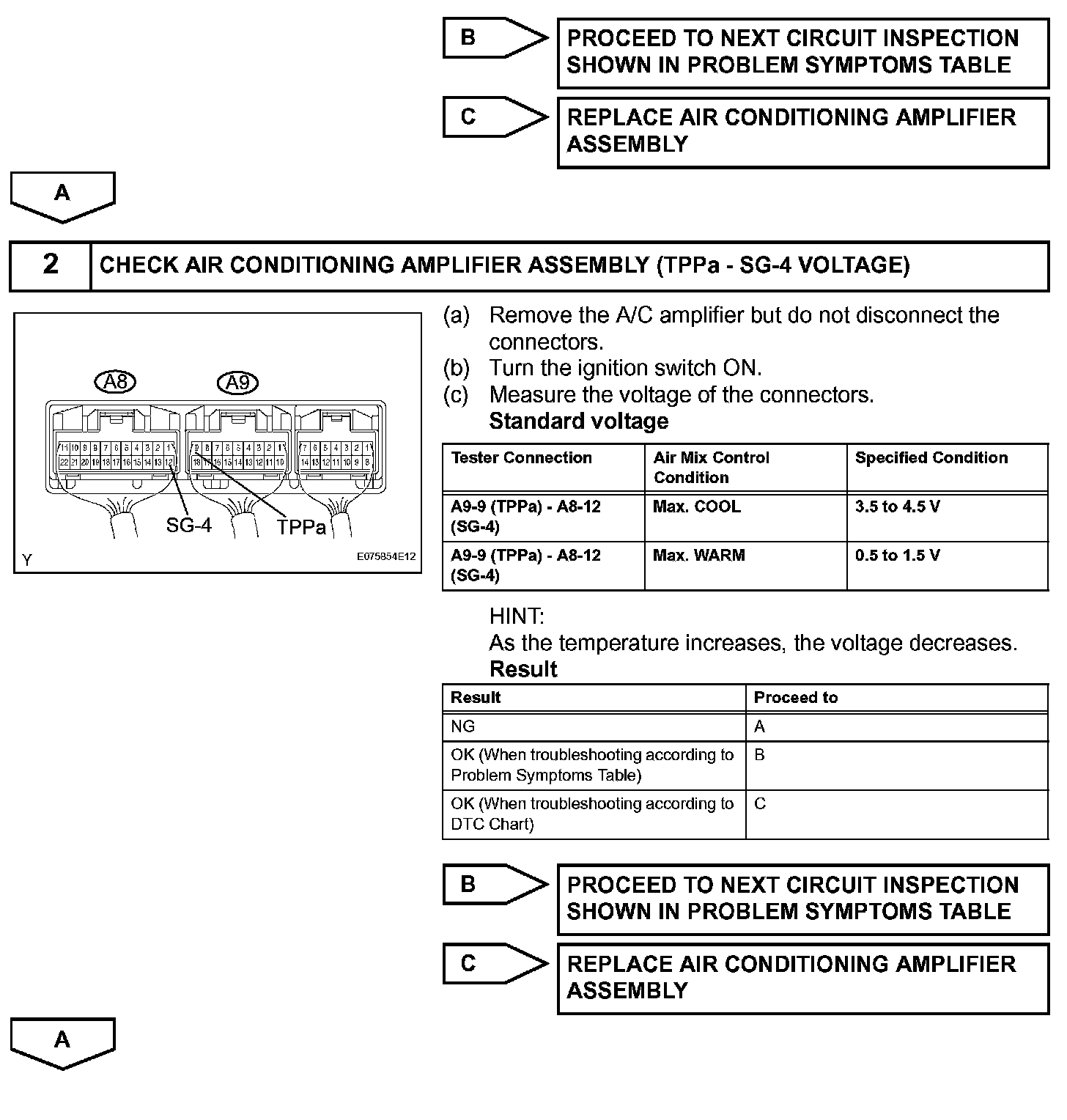

Step 1 (Continued)-2:

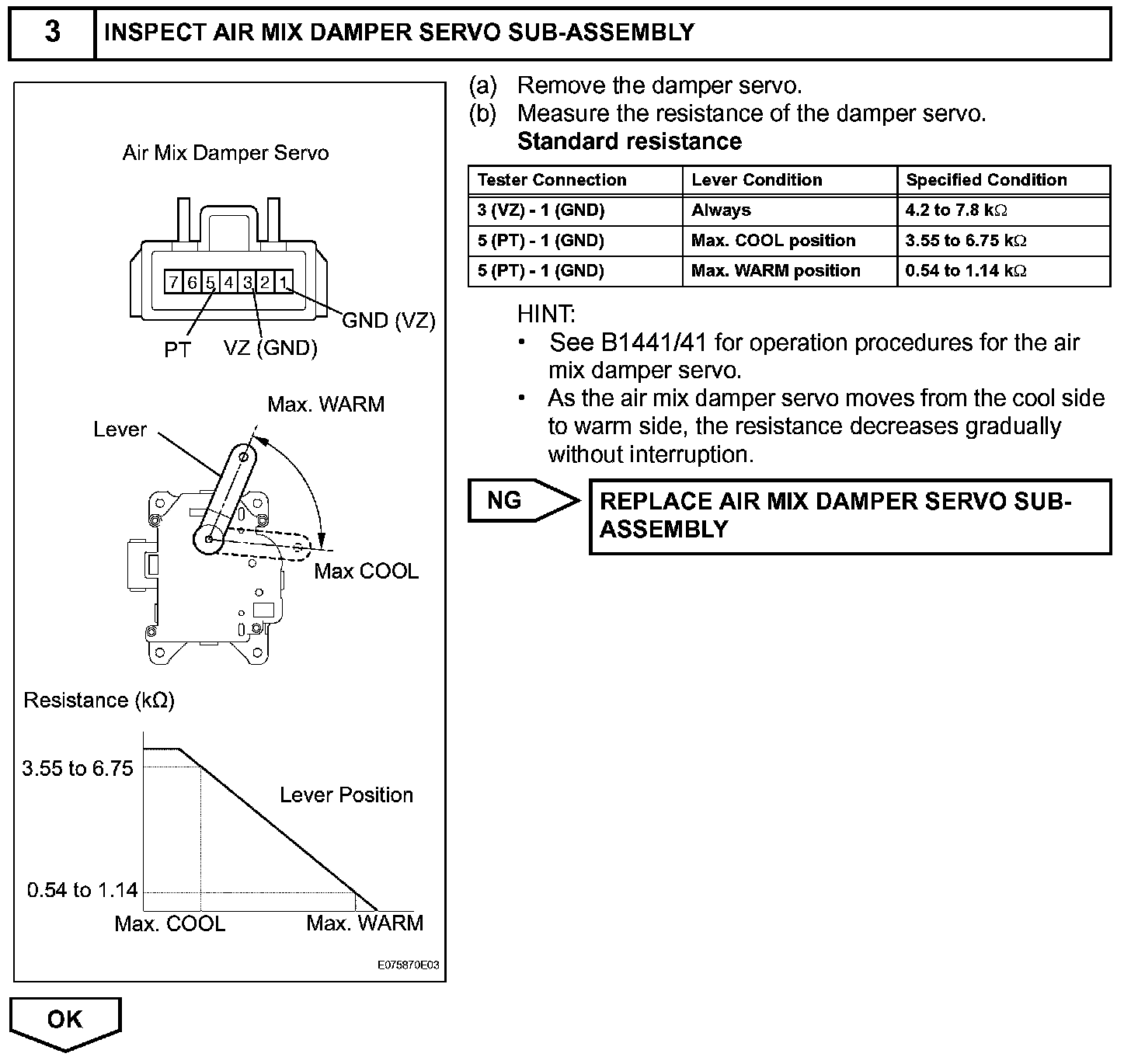

Step 3:

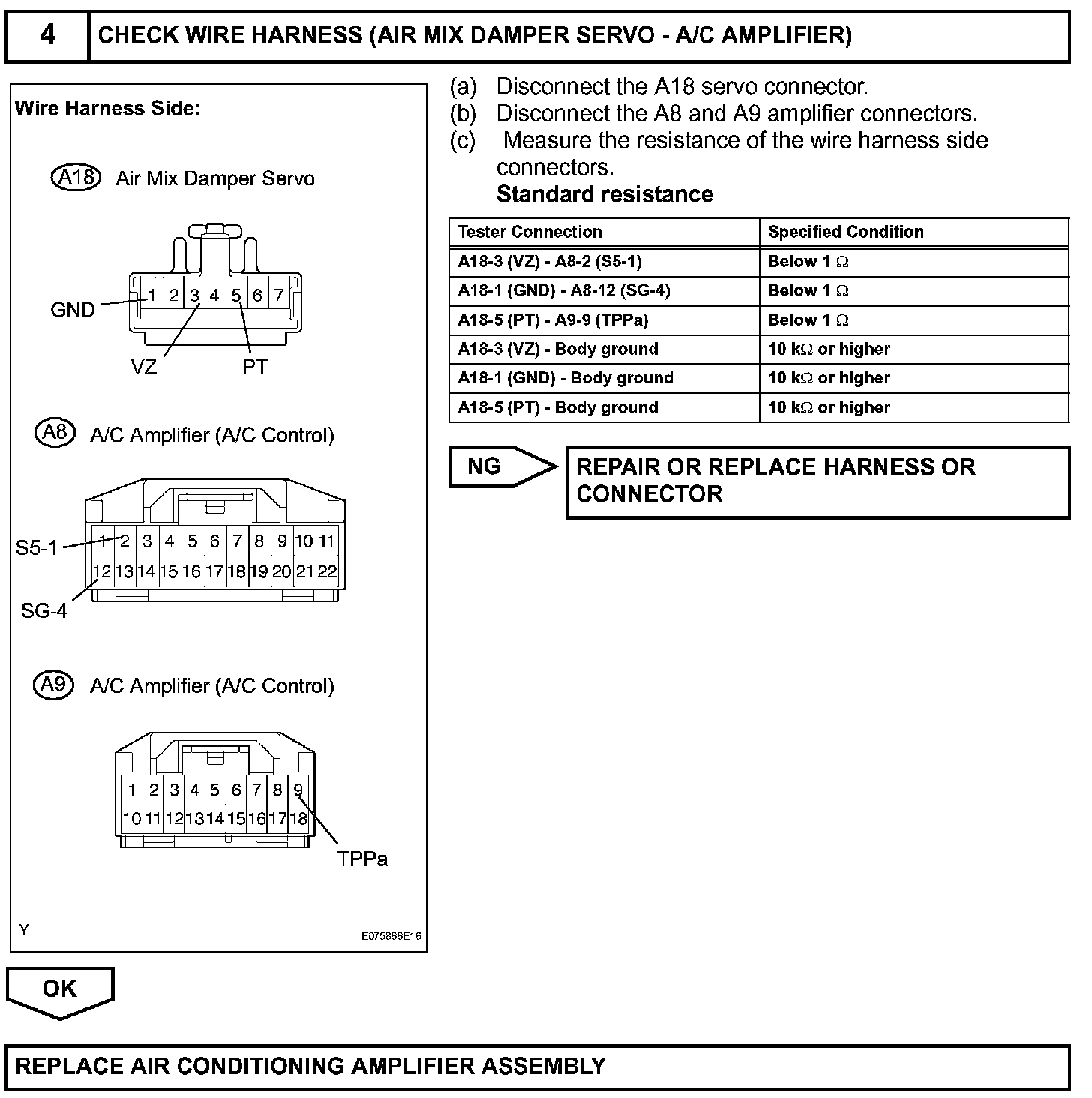

Step 4:

INSPECTION PROCEDURE
