B1424

DTC B1424/24 Solar Sensor Circuit (Driver Side)

DESCRIPTION

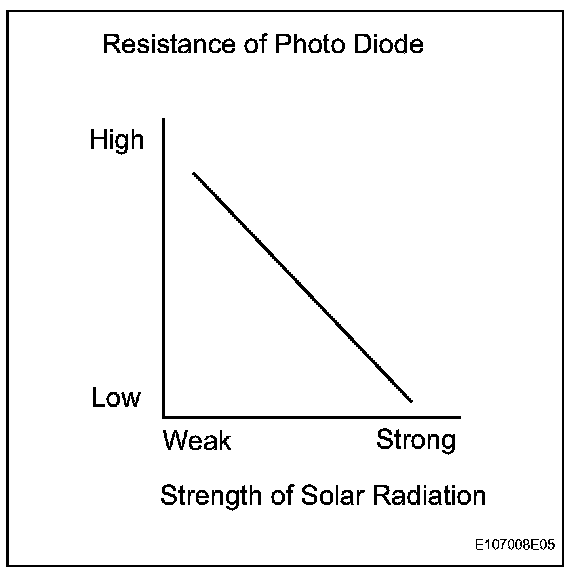

A photo diode in the automatic light control sensor detects solar radiation and sends appropriate signals to the A/C amplifier.

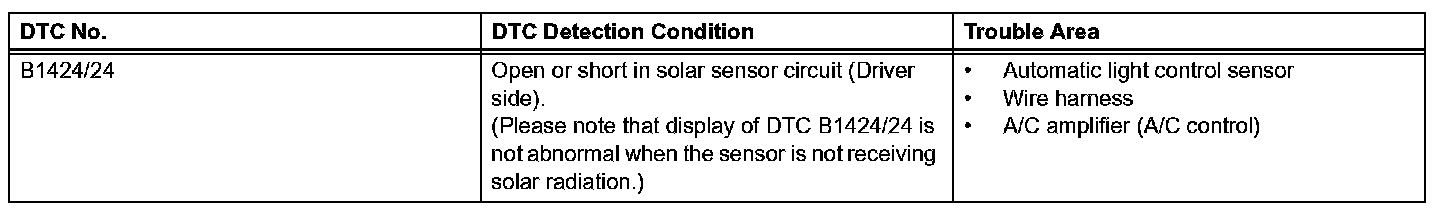

DTC Detection Condition:

HINT: When DTC B1424/24 is displayed simultaneously with DTC B1244, repair the malfunction indicated by DTC B1244 first.

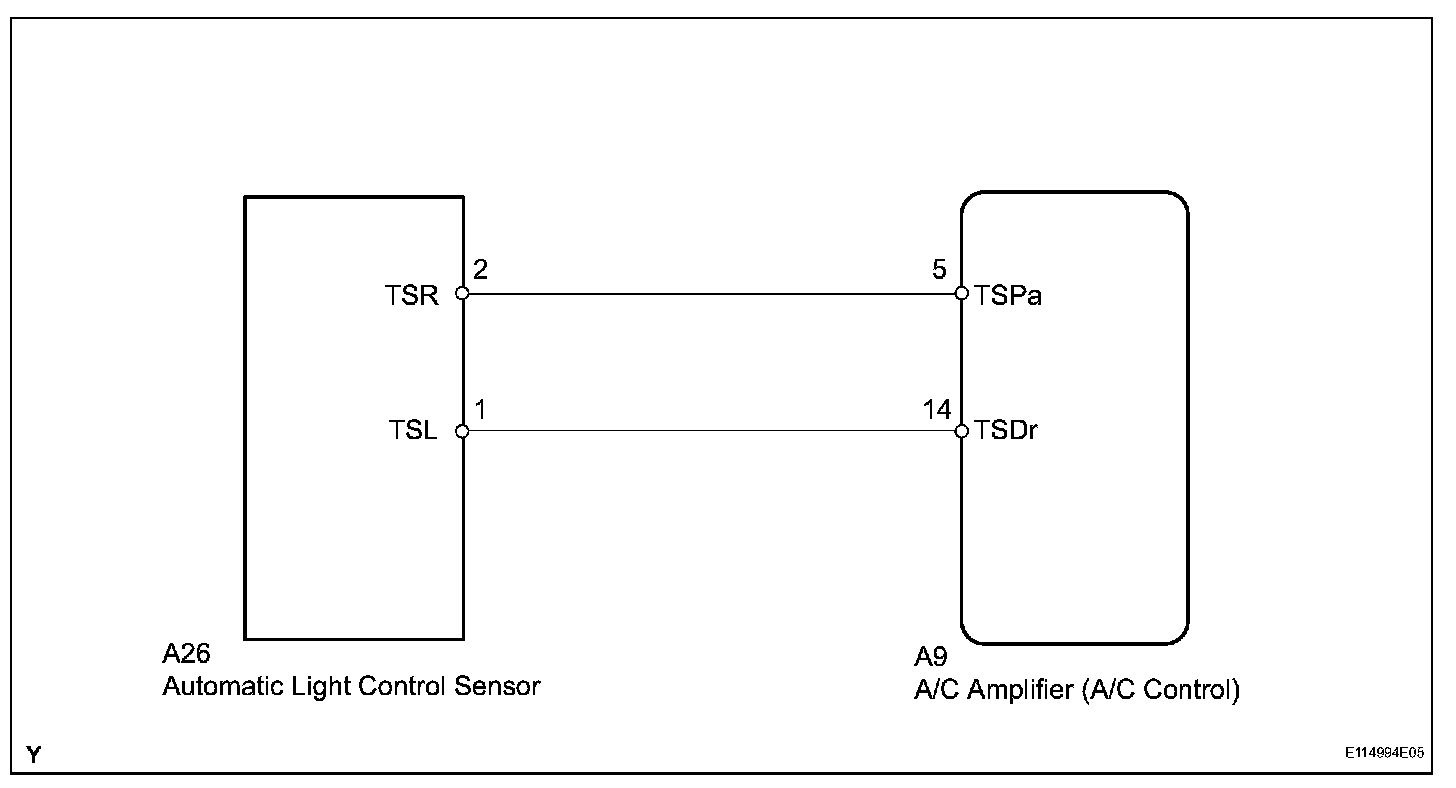

Wiring Diagram:

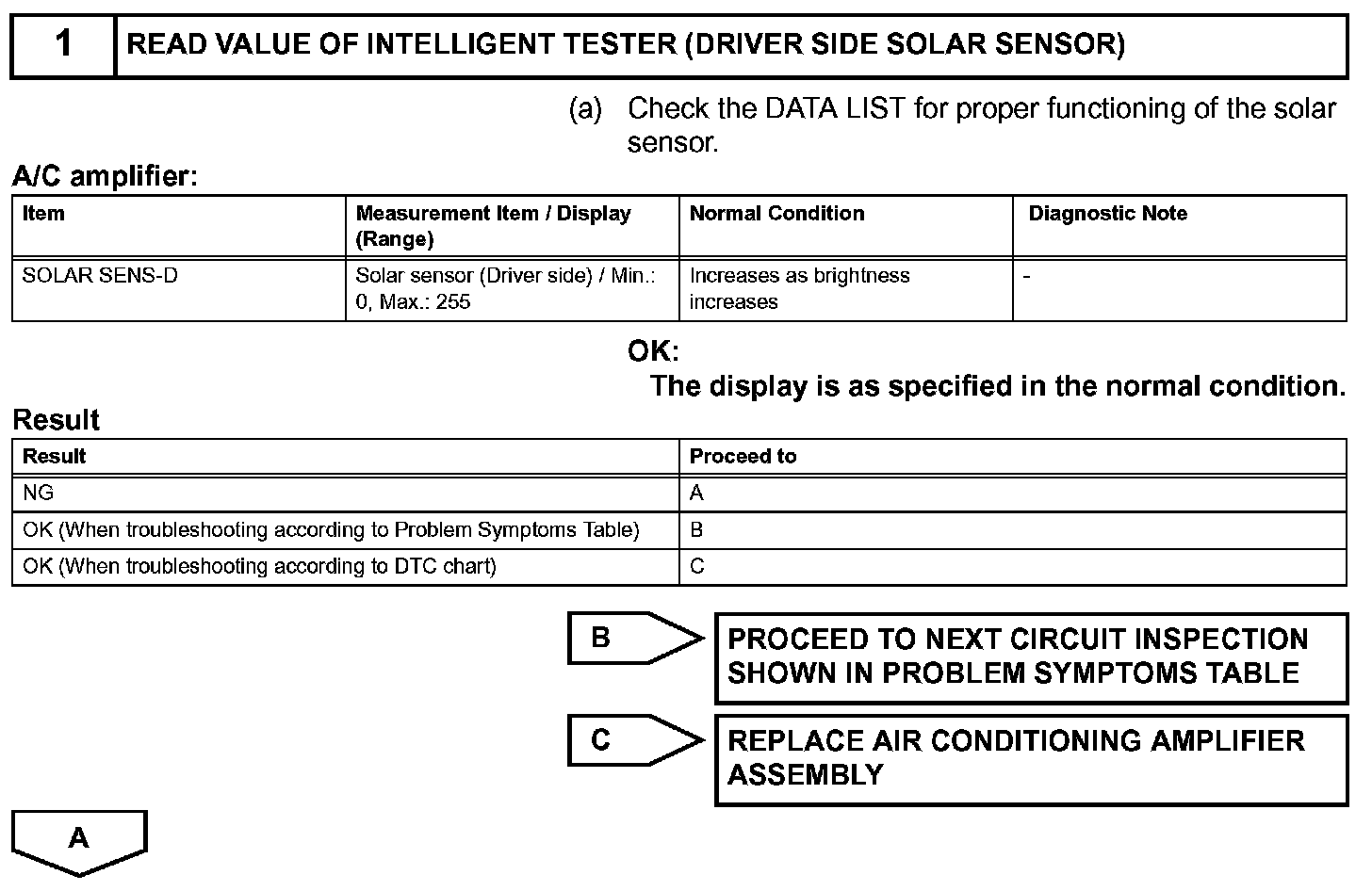

Step 1:

Step 2:

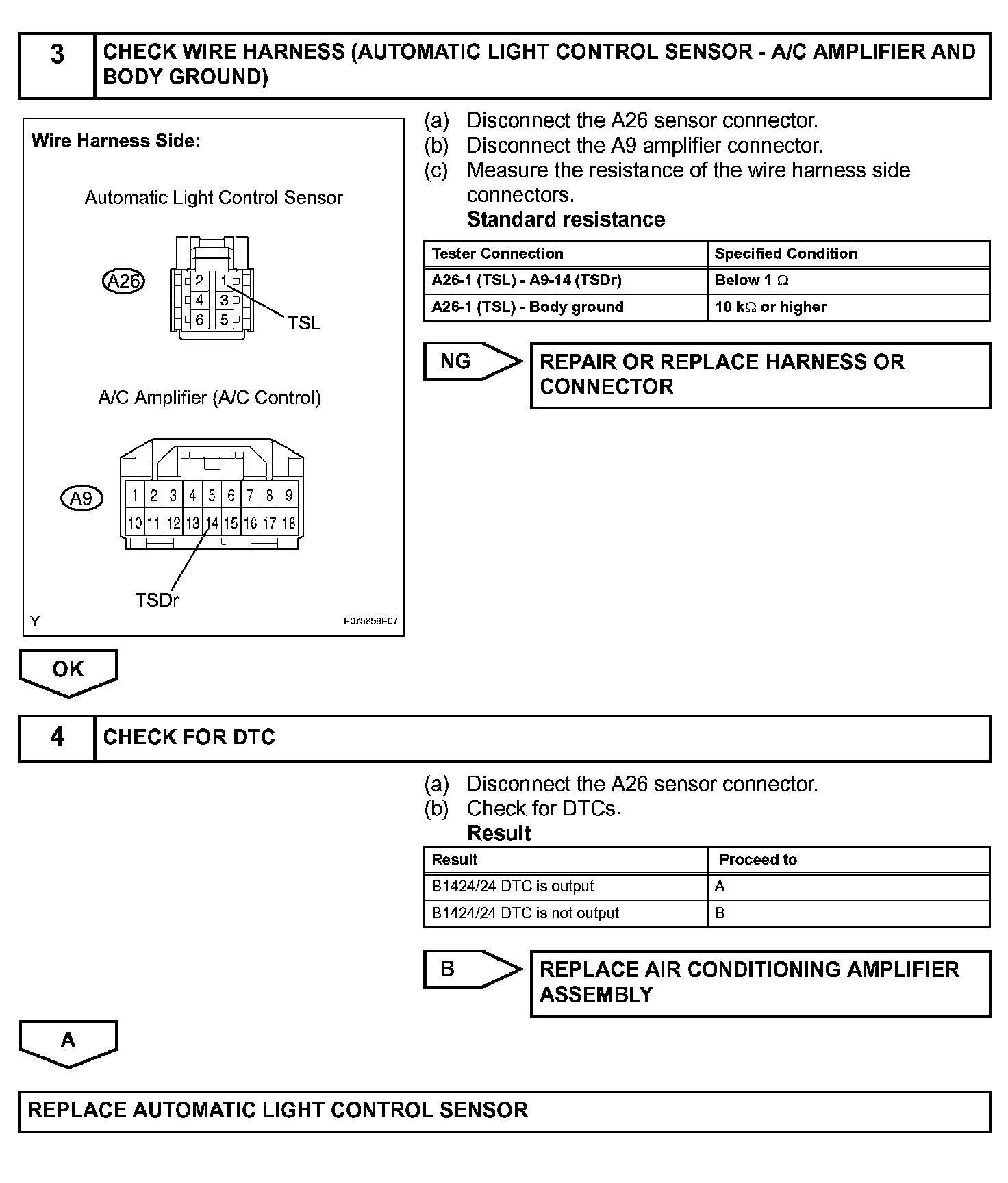

Step 3-4:

INSPECTION PROCEDURE
