DTC B1423/23 Pressure Sensor Circuit

DESCRIPTION

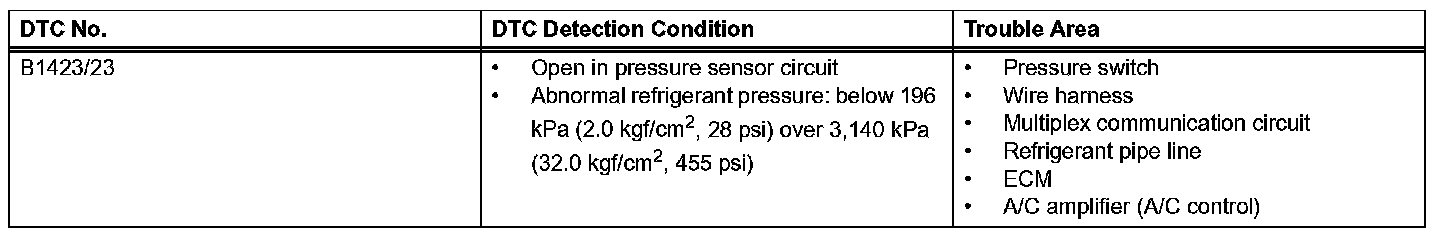

DTC Detection Condition:

The pressure switch sends appropriate signals to the ECM when the A/C refrigerant pressure drops too low or rises too high. When the ECM receives these signals, it signals to the A/C amplifier to turn the magnet clutch OFF.

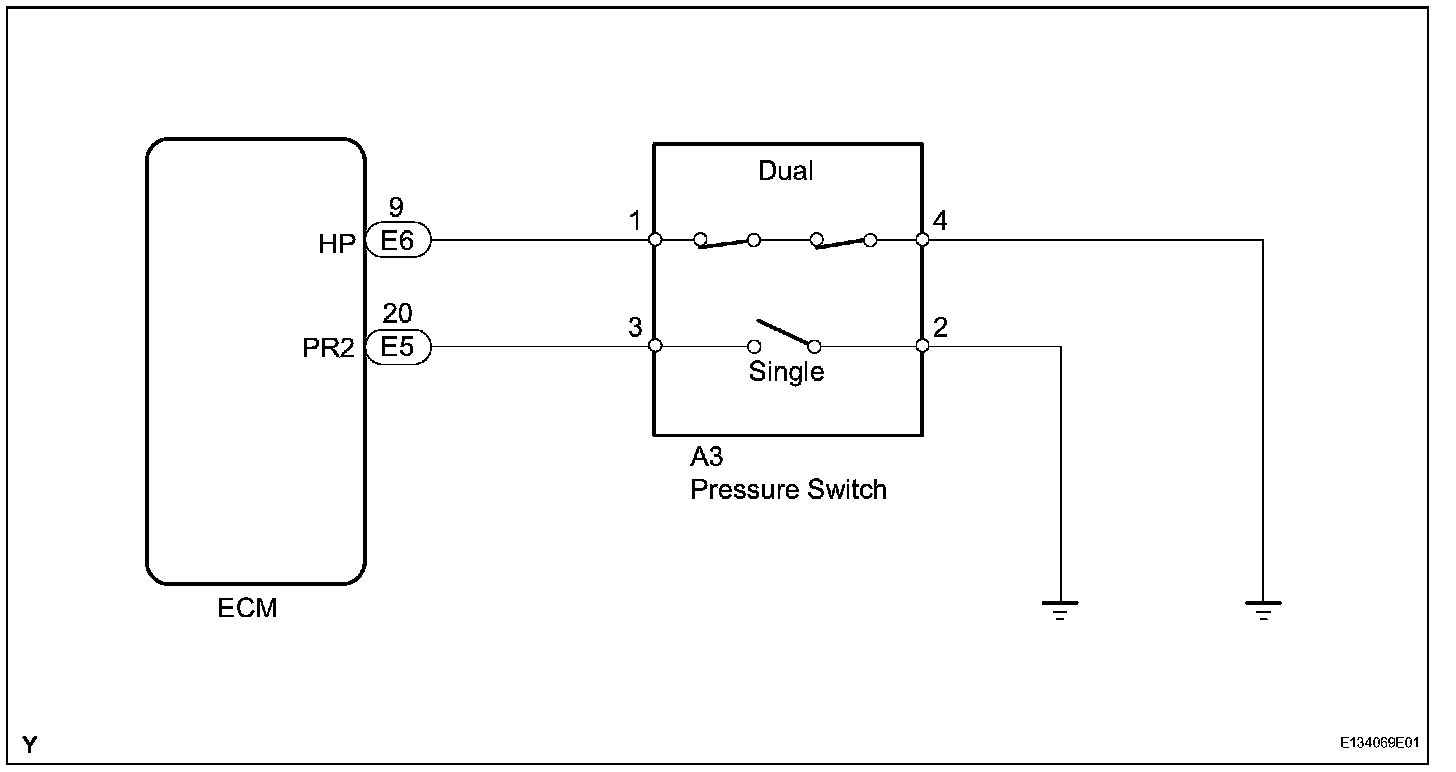

Wiring Diagram:

Step 1:

Step 1 (Continued):

Step 2:

Step 2 (Continued)-3:

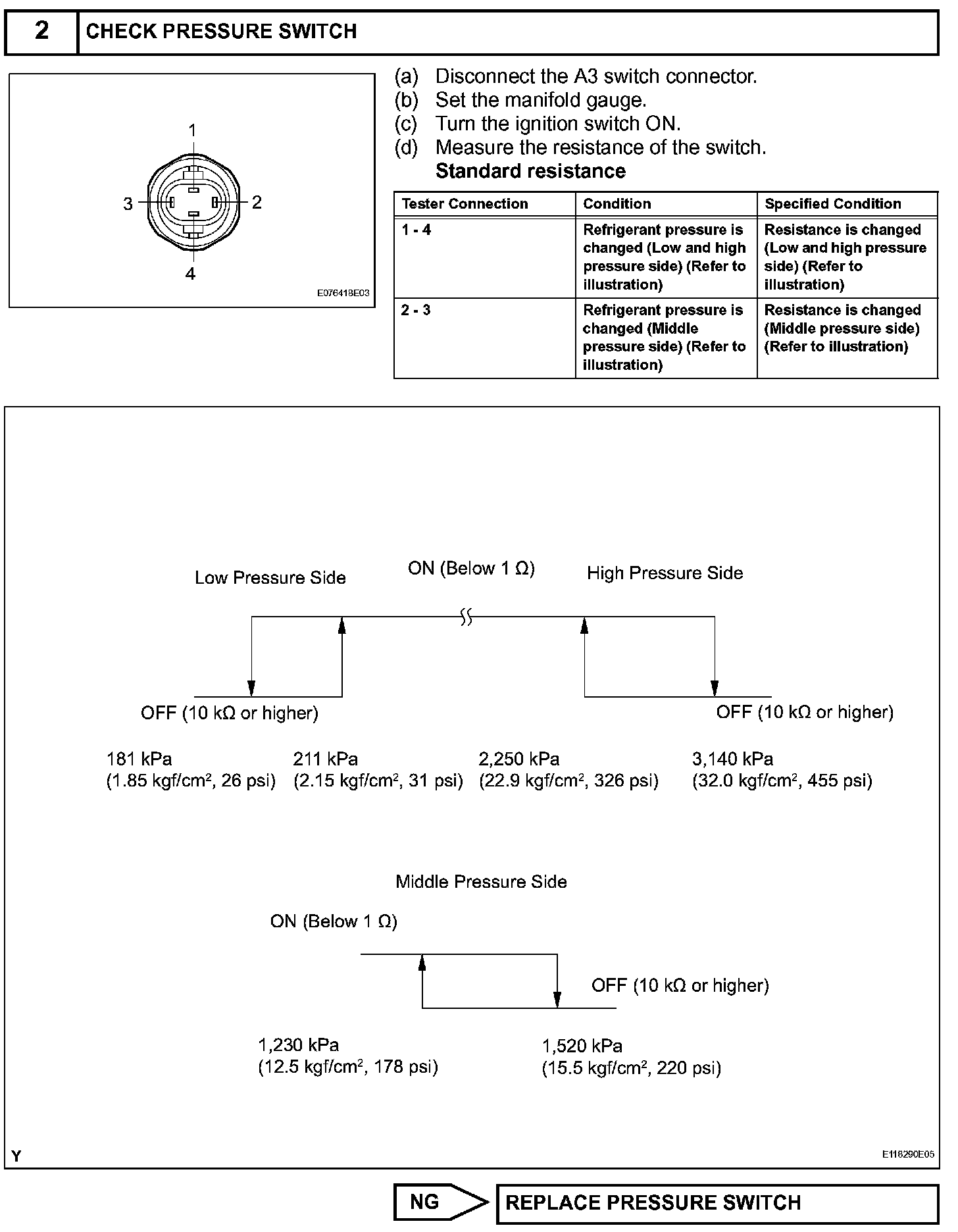

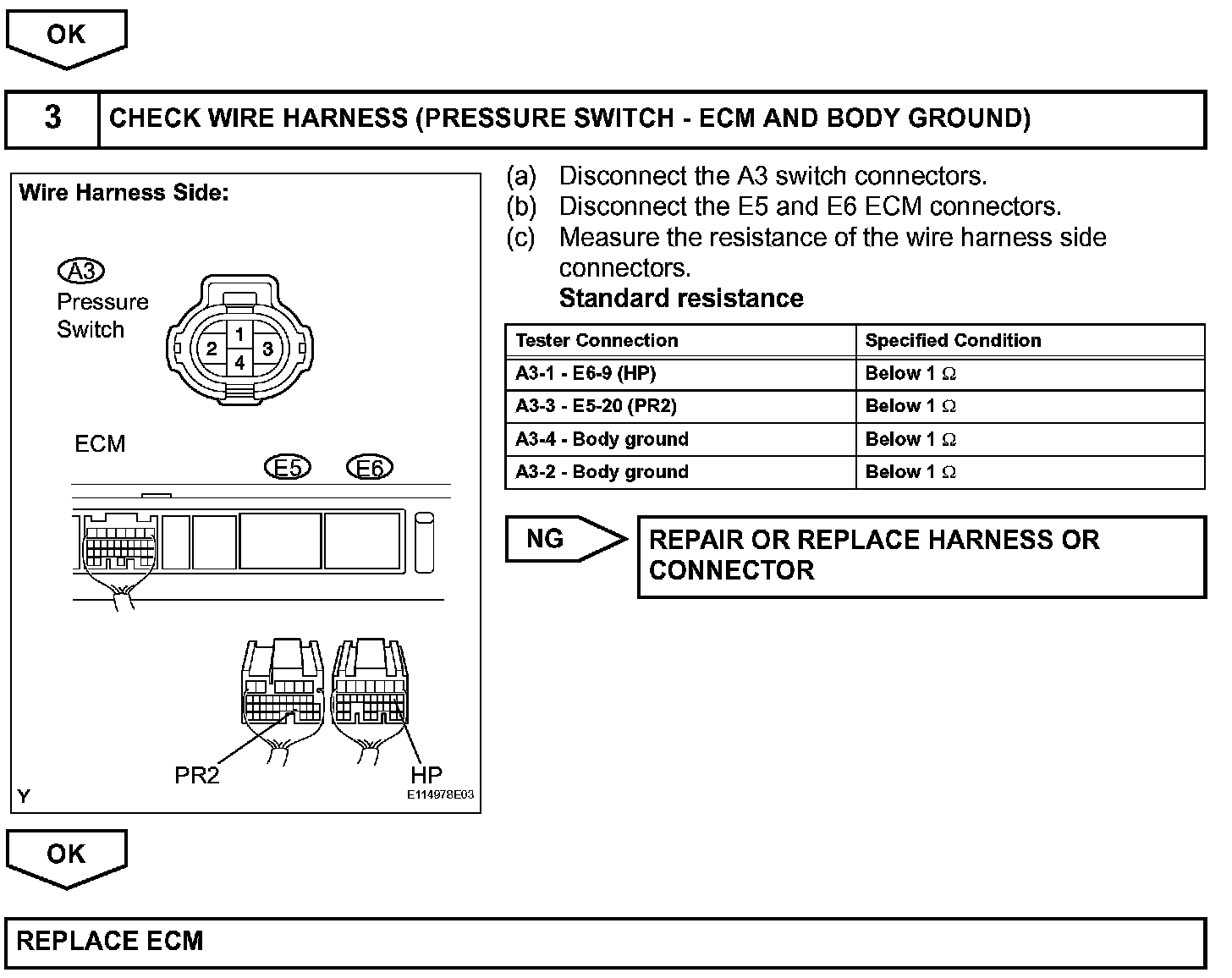

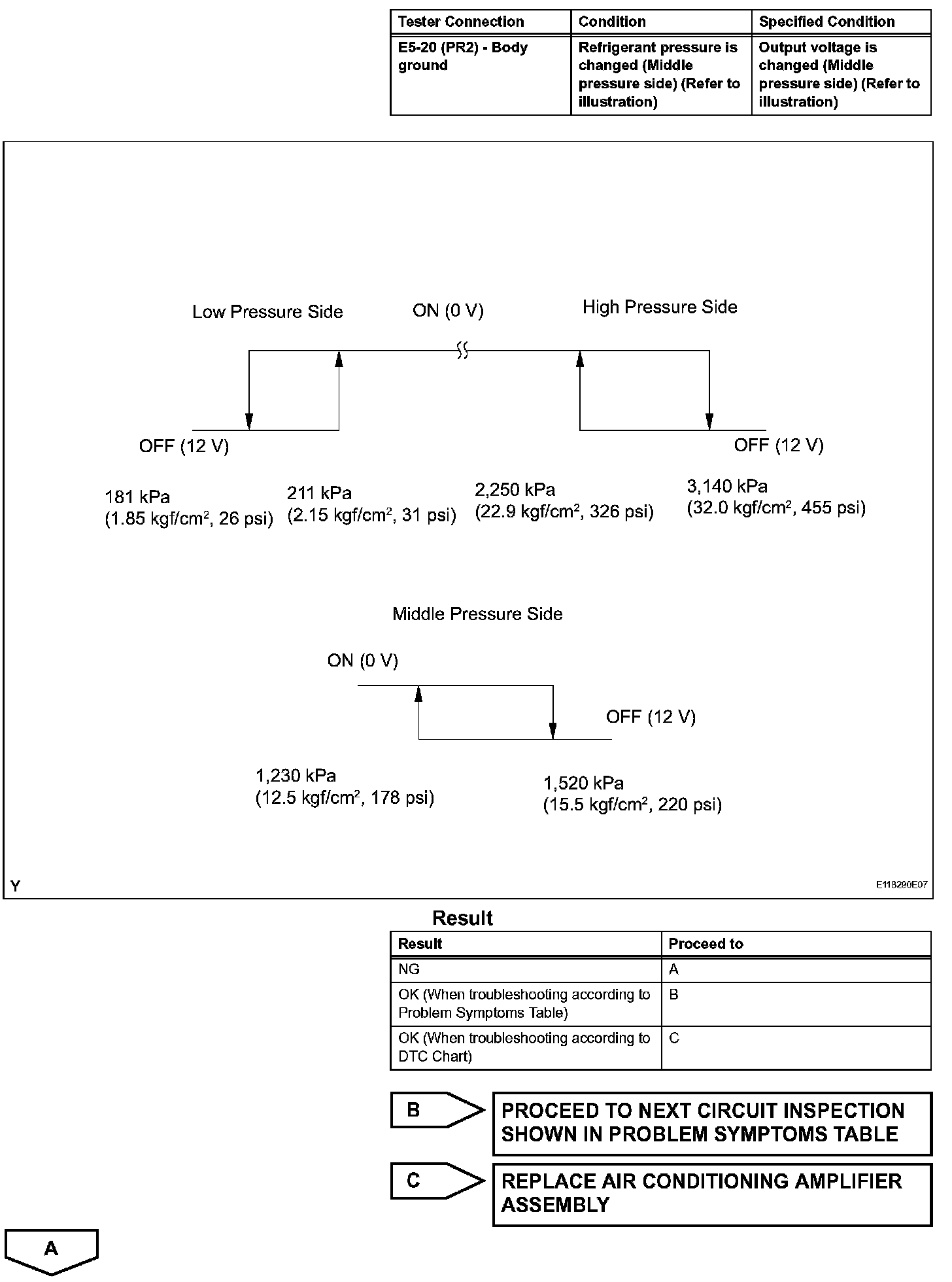

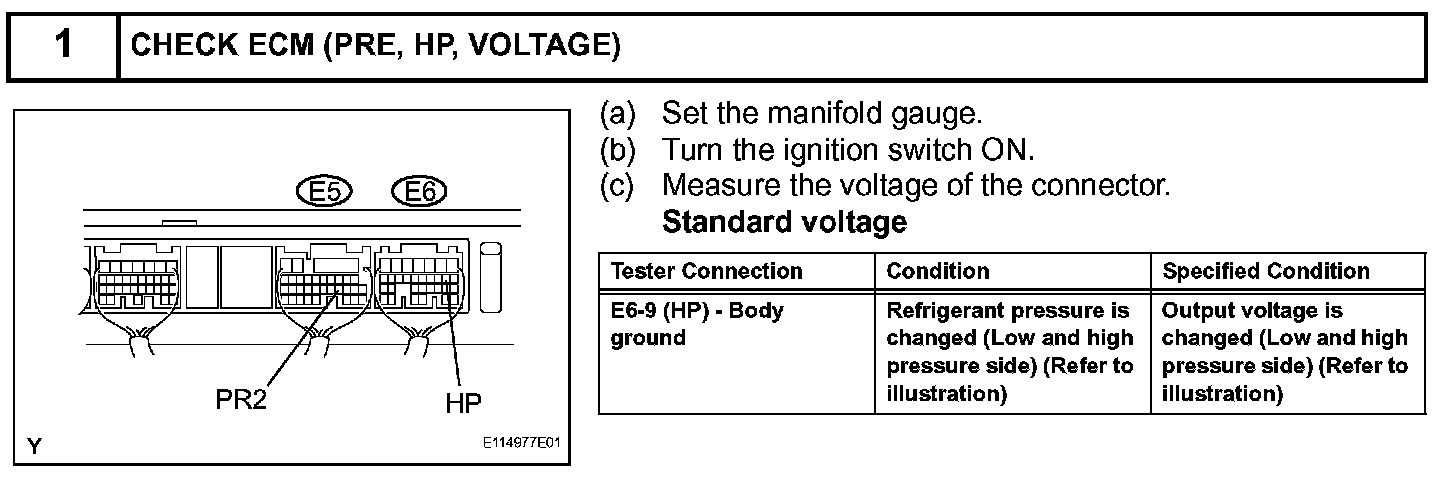

INSPECTION PROCEDURE
