B1418

DTC B1418/18 Exhaust Gas Sensor Circuit

DESCRIPTION

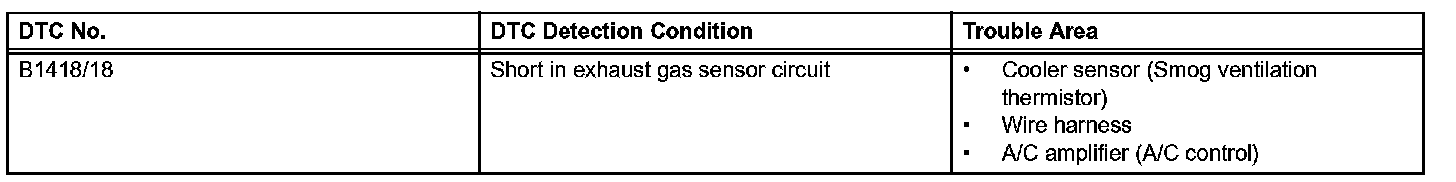

DTC Detection Condition:

This sensor detects the exhaust gas outside the vehicle and sends appropriate signals to the A/C amplifier.

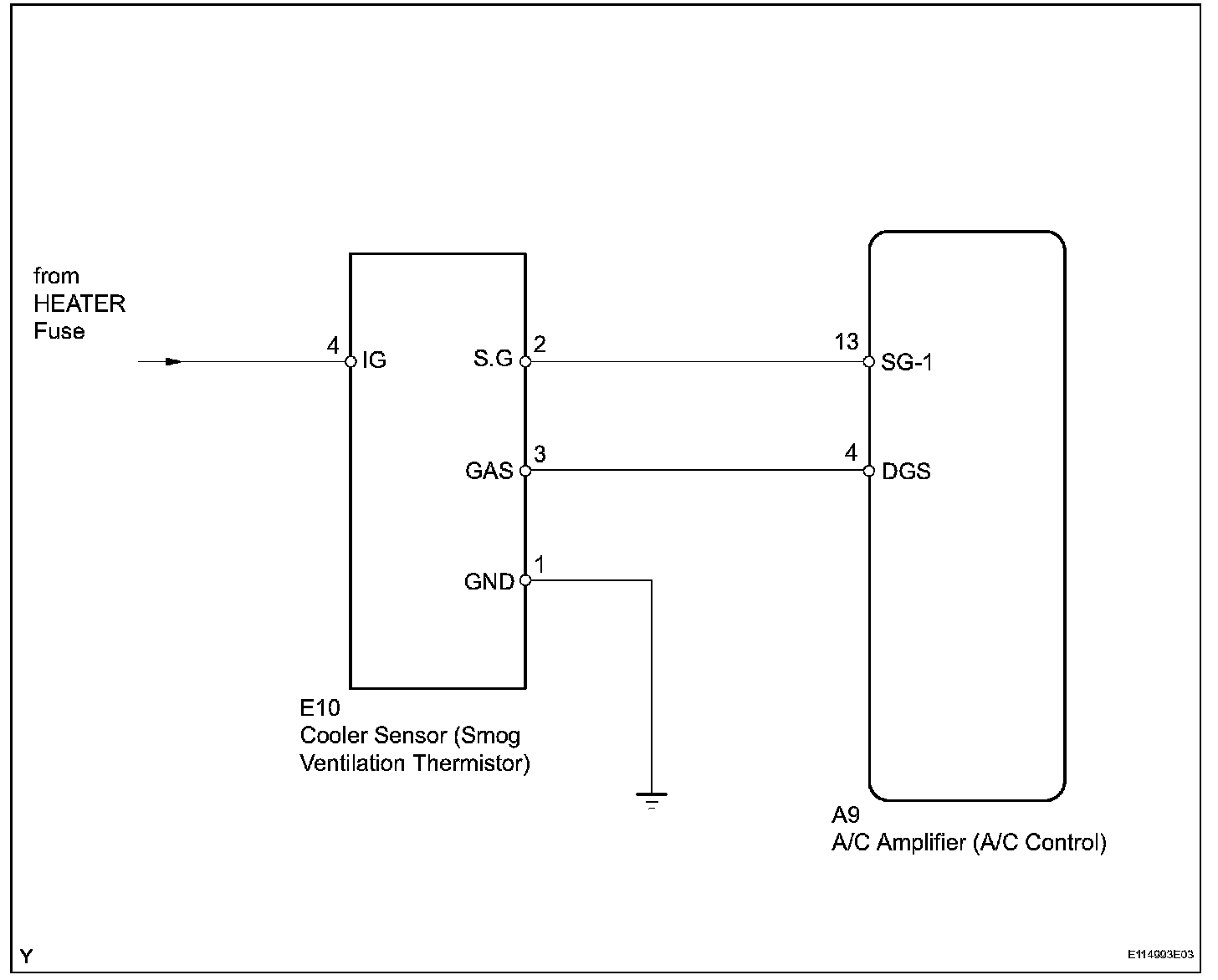

Wiring Diagram:

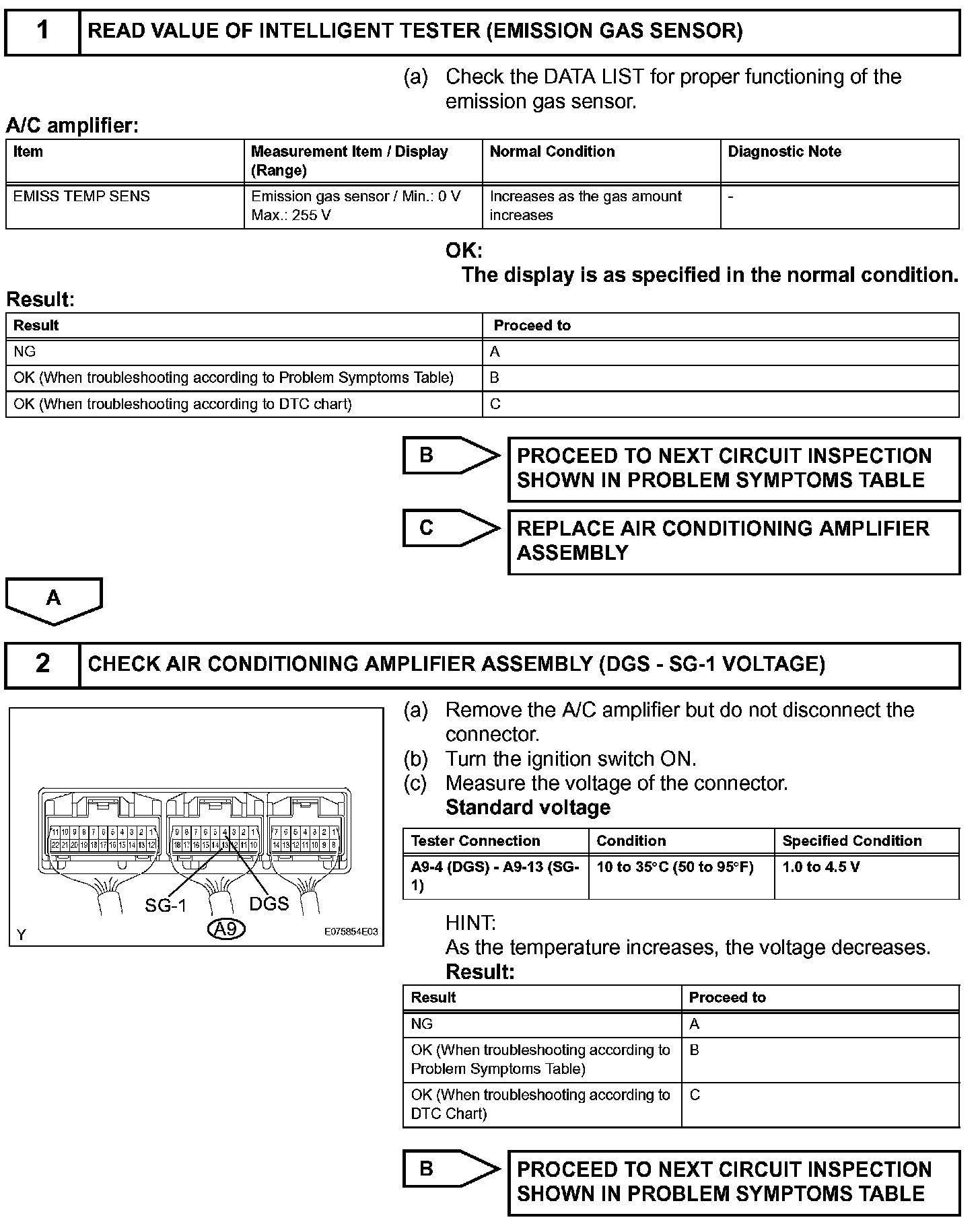

Step 1-2:

Step 2 (Continued)-3:

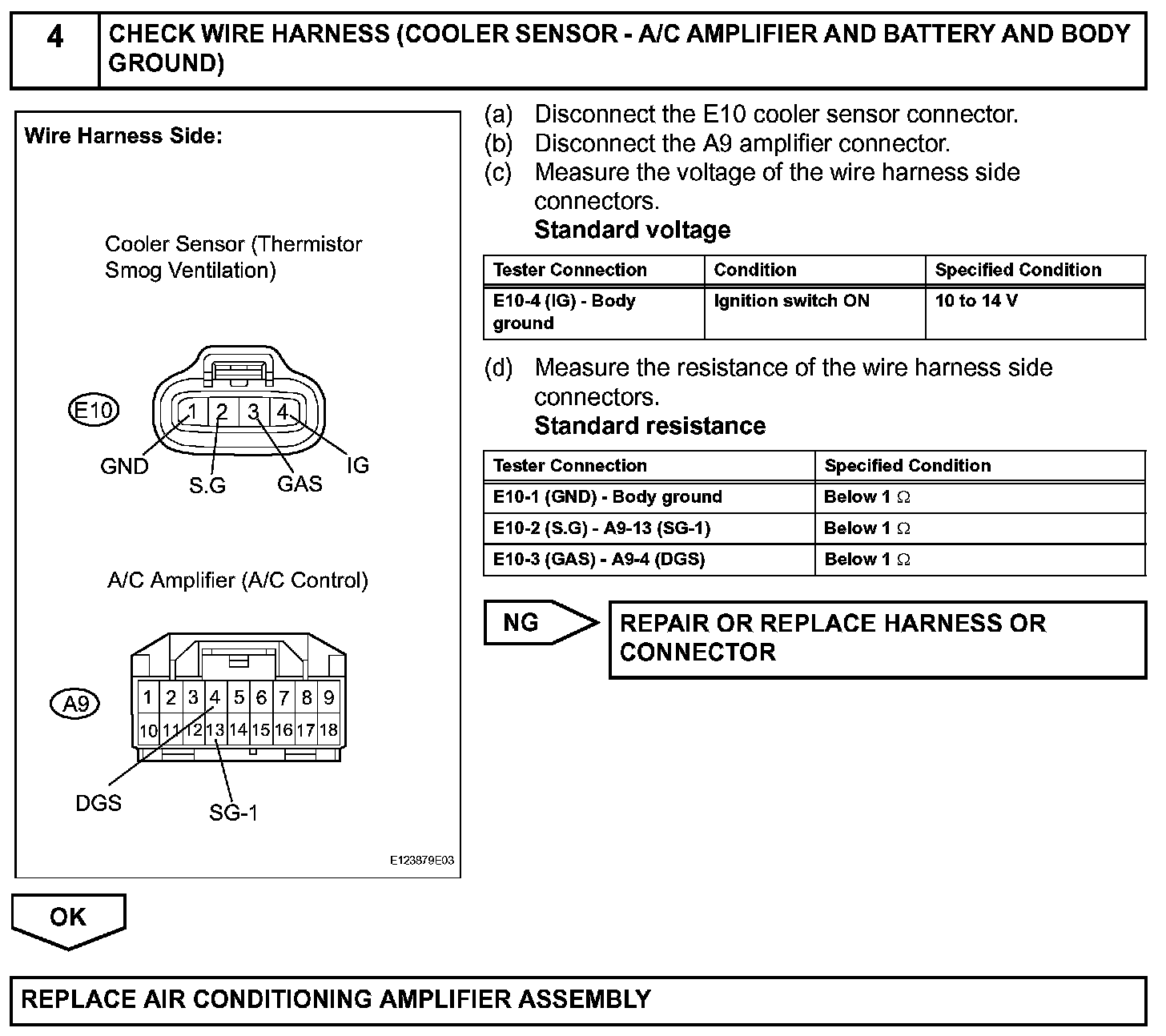

Step 4:

INSPECTION PROCEDURE
