B1413

DTC B1413/13 Evaporator Temperature Sensor Circuit

DESCRIPTION

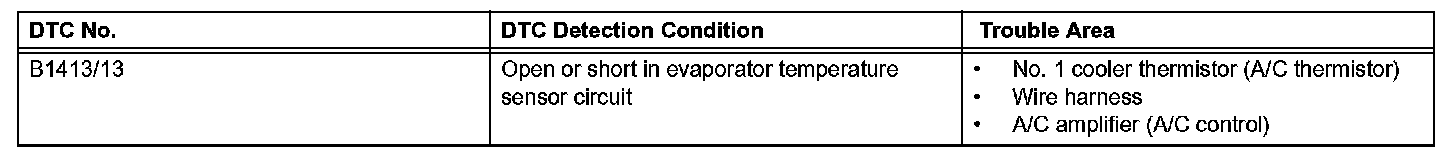

DTC Detection Condition:

This sensor detects the temperature inside the A/C radiator and sends appropriate signals to the A/C amplifier.

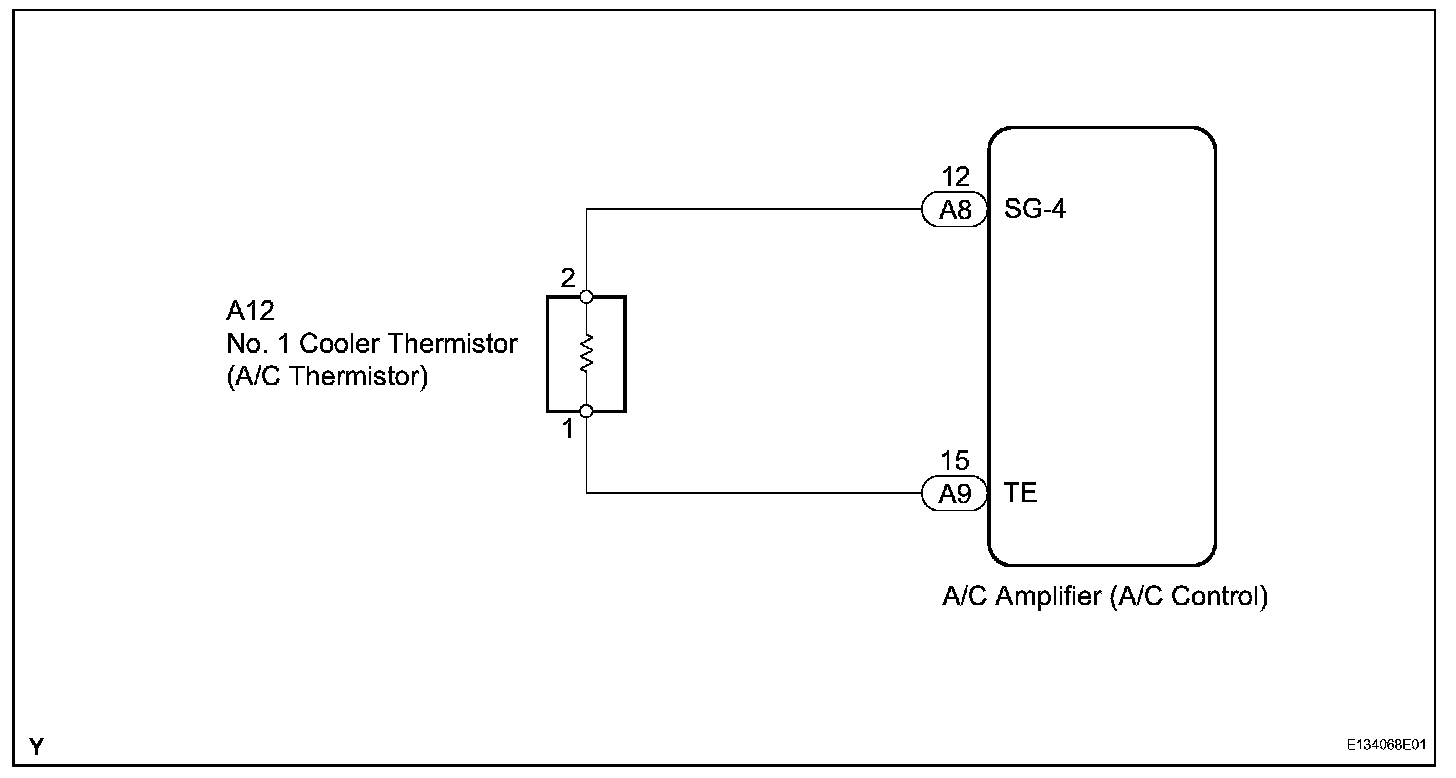

Wiring Diagram:

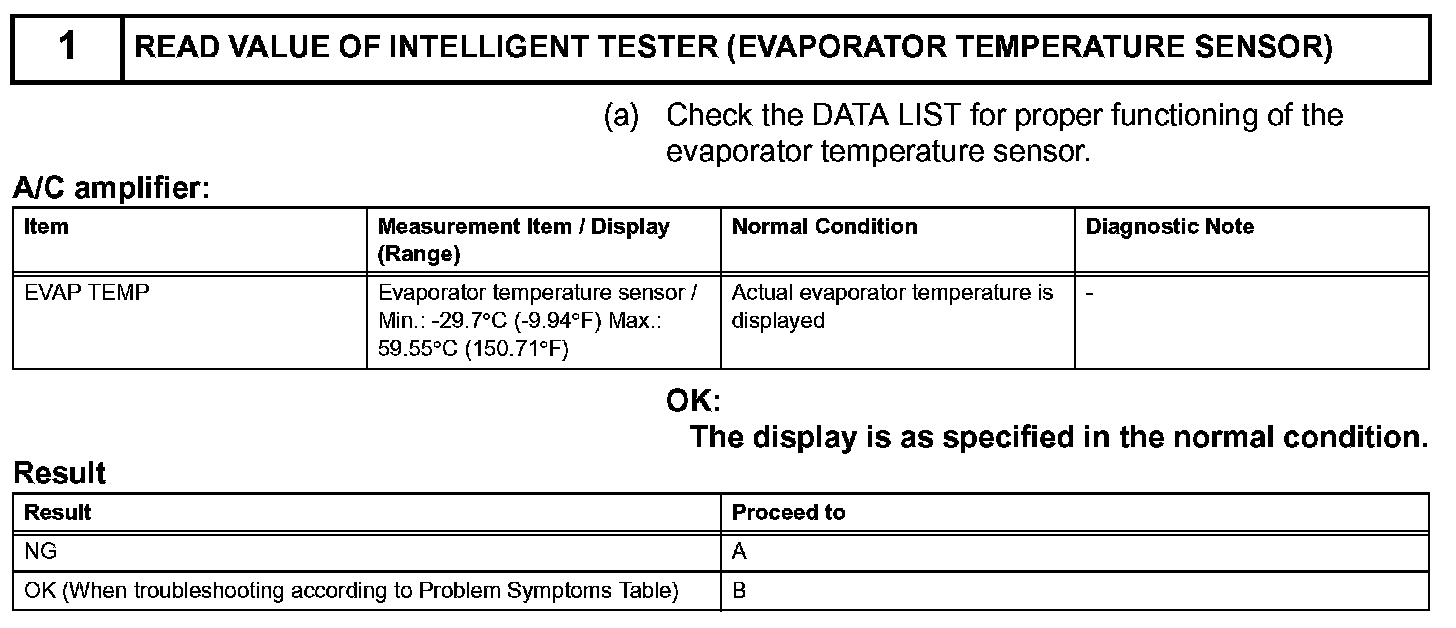

Step 1:

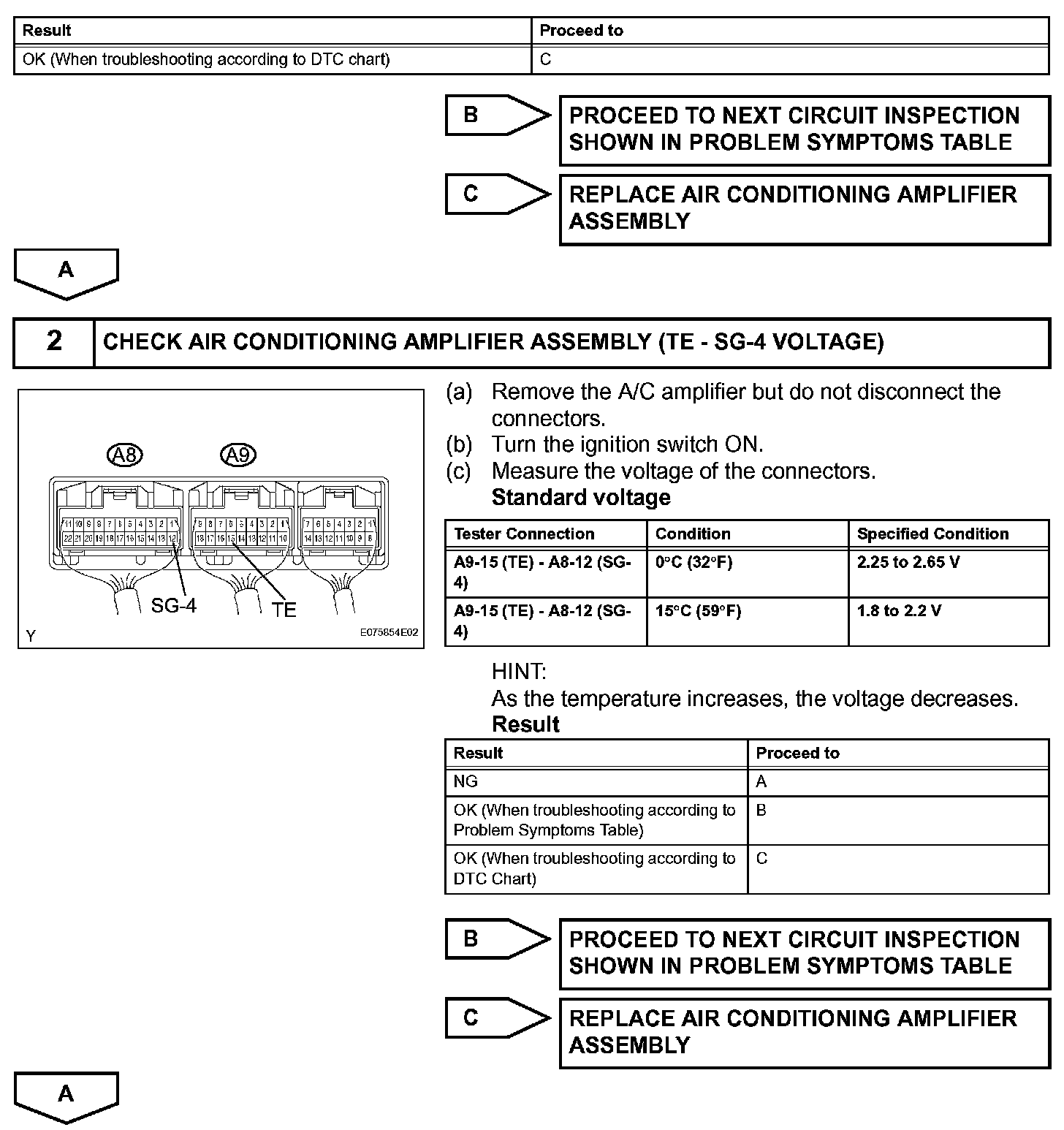

Step 1 (Continued)-2:

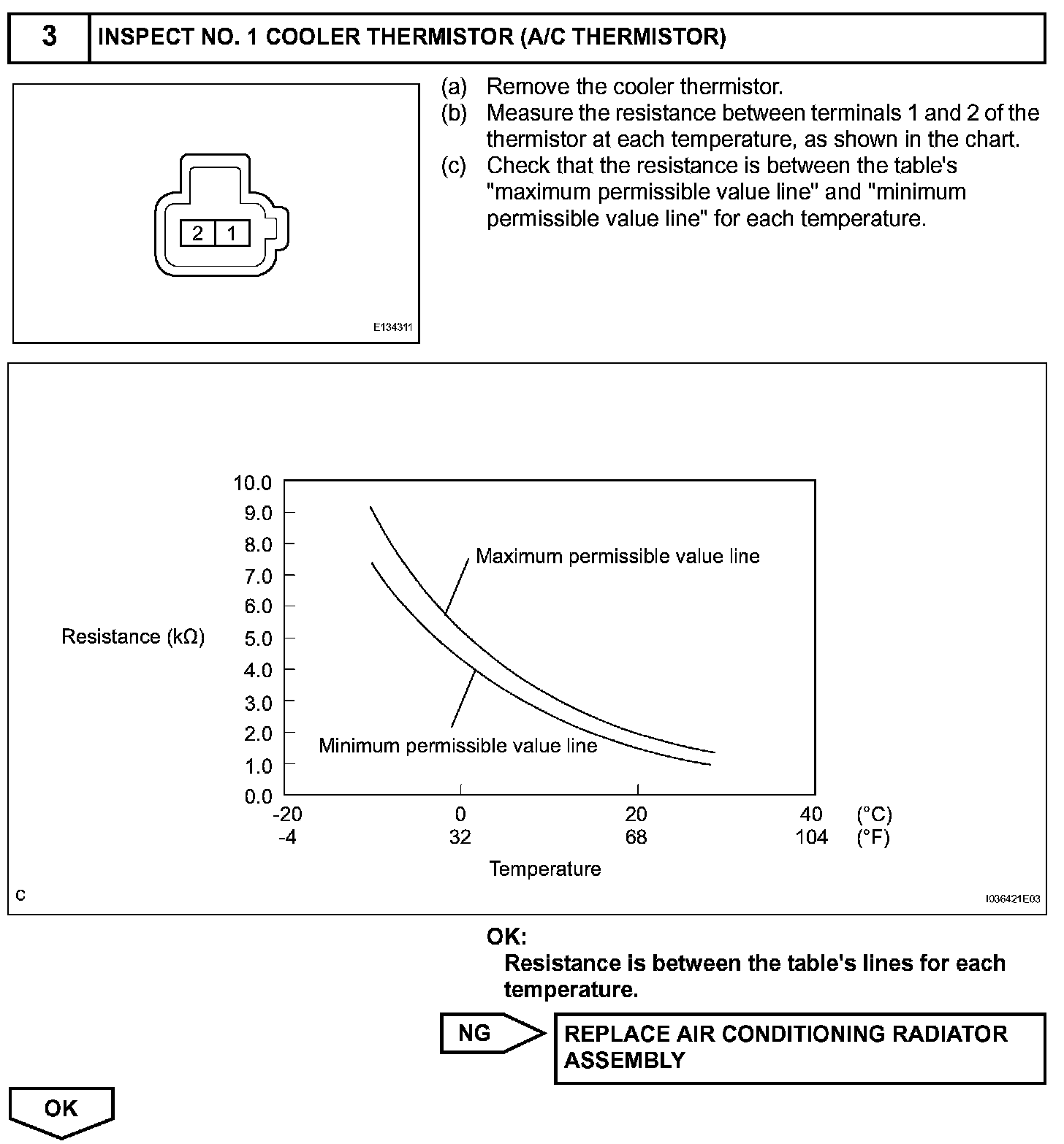

Step 3:

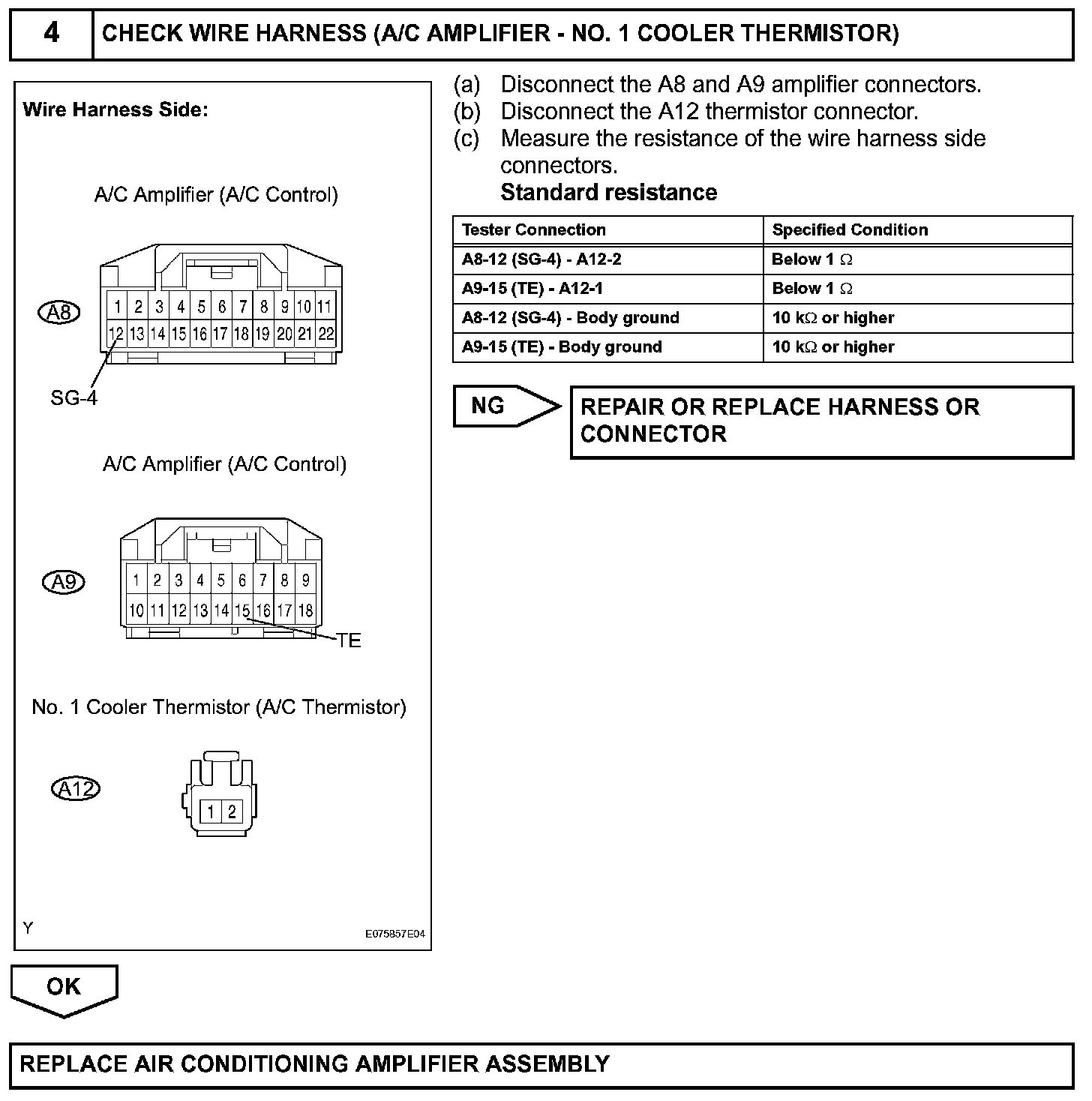

Step 4:

INSPECTION PROCEDURE
