B1412

DTC B1412/12 Ambient Temperature Sensor Circuit

DESCRIPTION

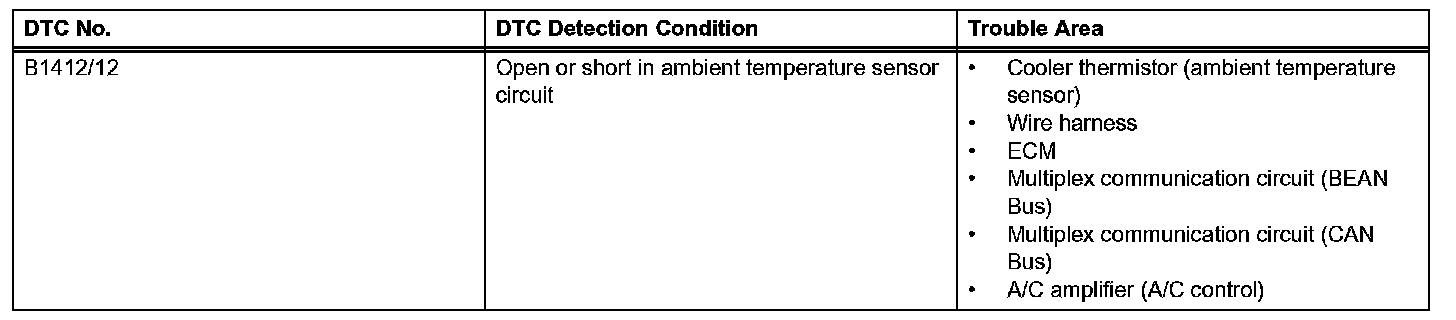

DTC Detection Condition:

This sensor detects the temperature outside the cabin and sends appropriate signals to the ECM.

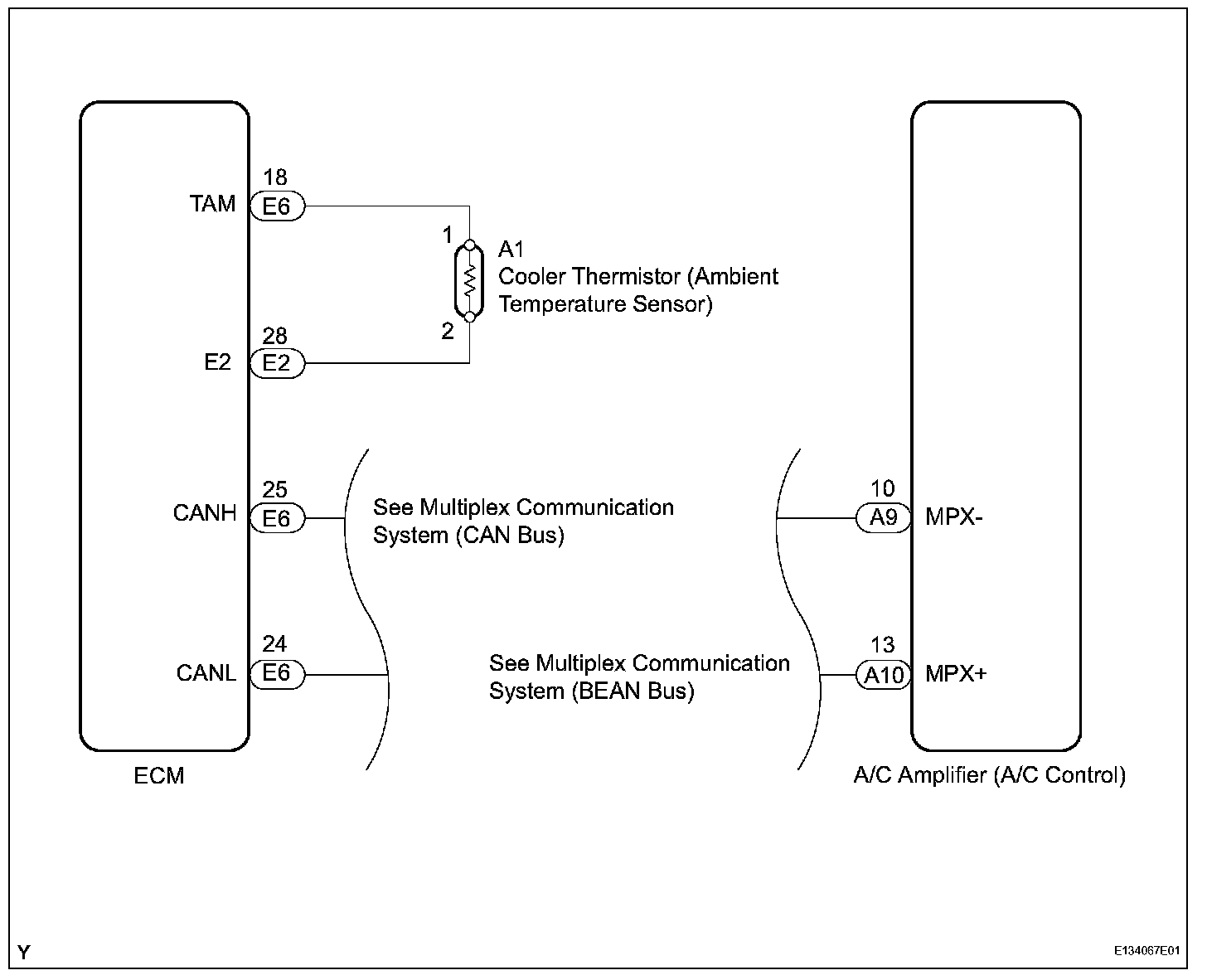

Wiring Diagram:

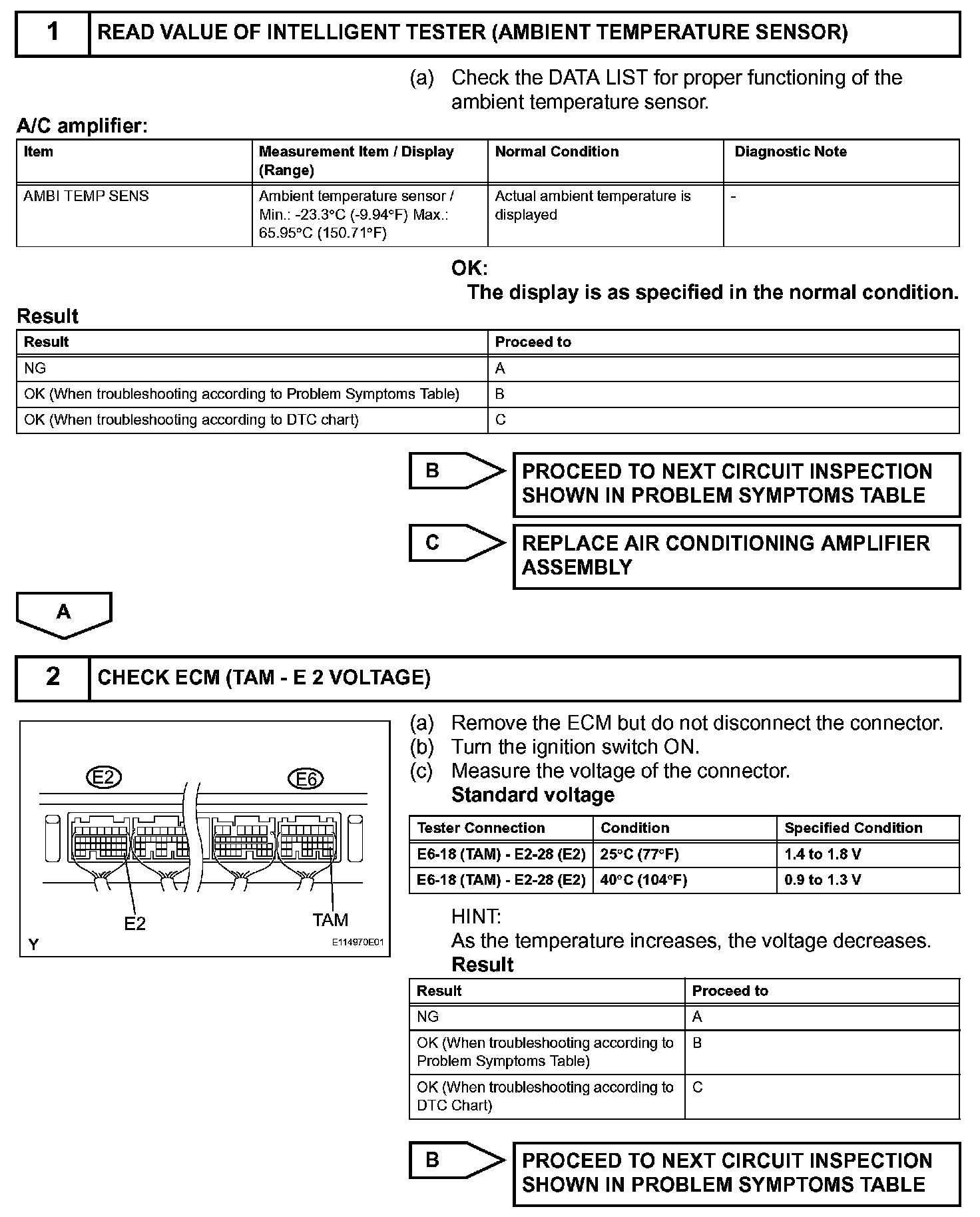

Step 1-2:

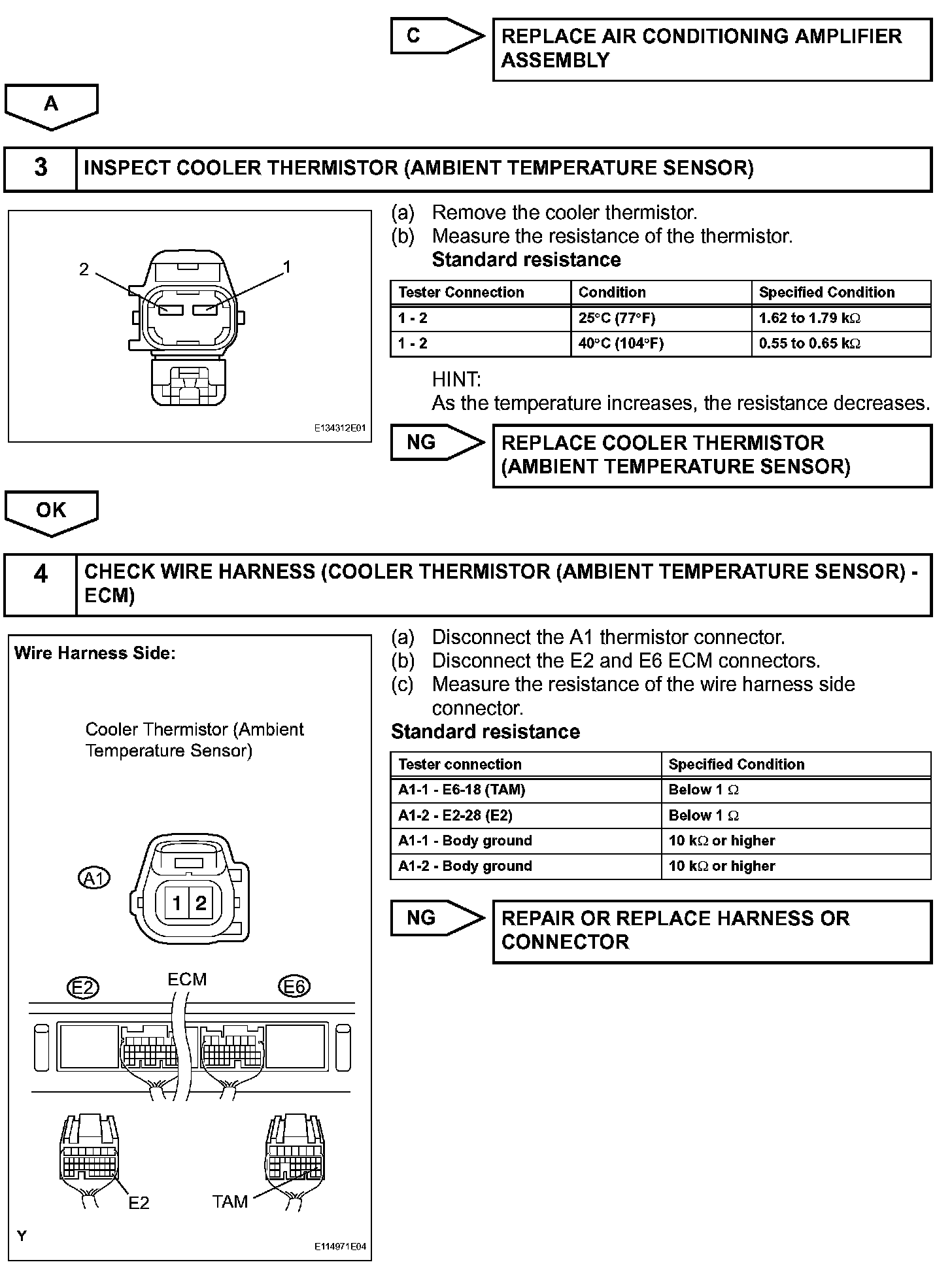

Step 2 (Continued)-4:

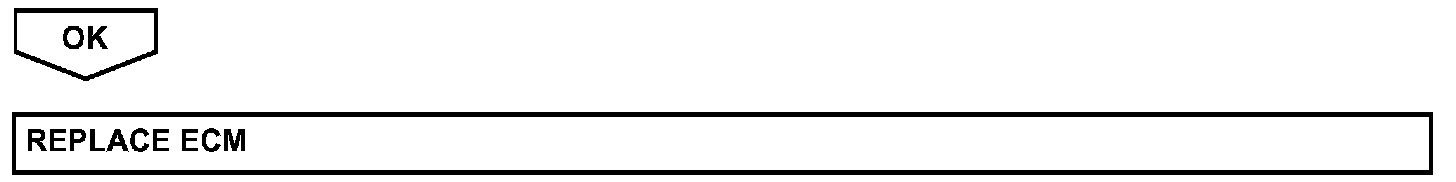

Step 4 (Continued):

INSPECTION PROCEDURE
