B1296

DTC B1296 Front Light ECU Communication Stop

DESCRIPTION

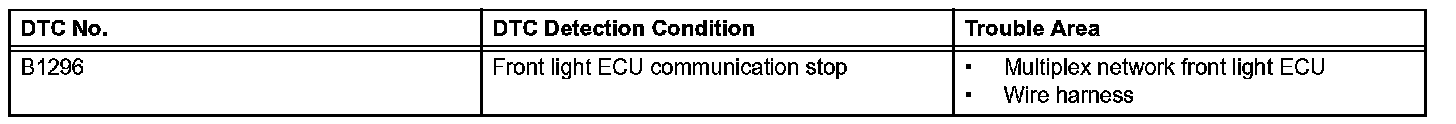

DTC Detection Condition:

This DTC is detected when communication between the multiplex network front light ECU and network gateway ECU stops for more than 10 seconds.

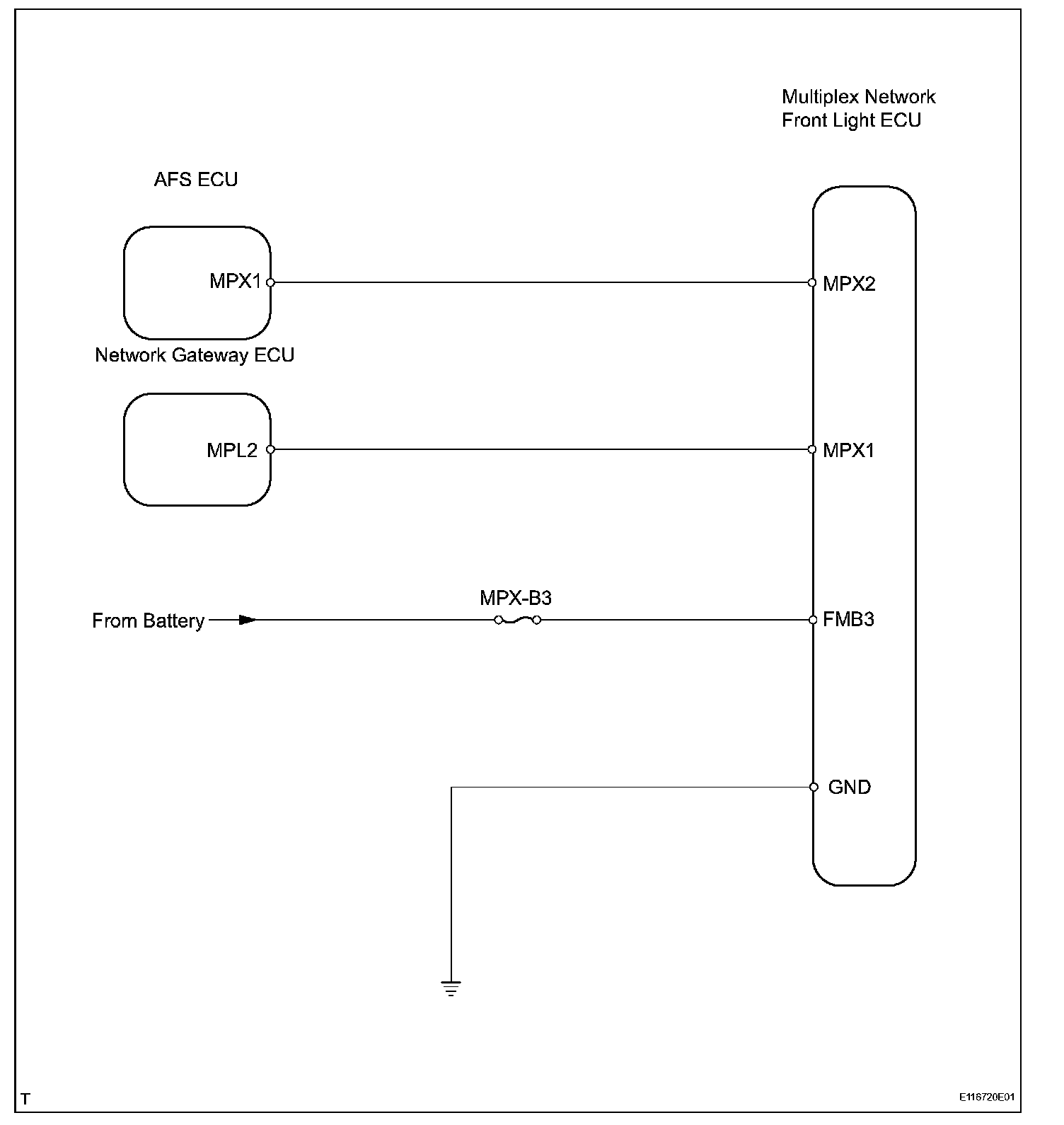

Wiring Diagram:

INSPECTION PROCEDURE

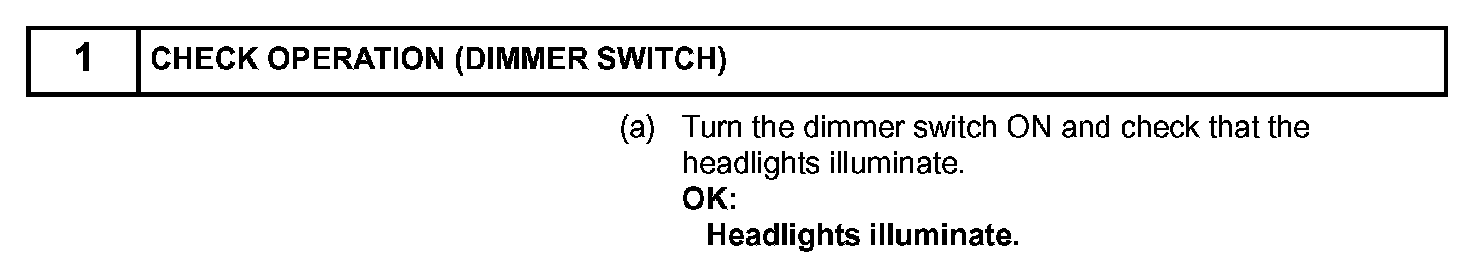

Step 1:

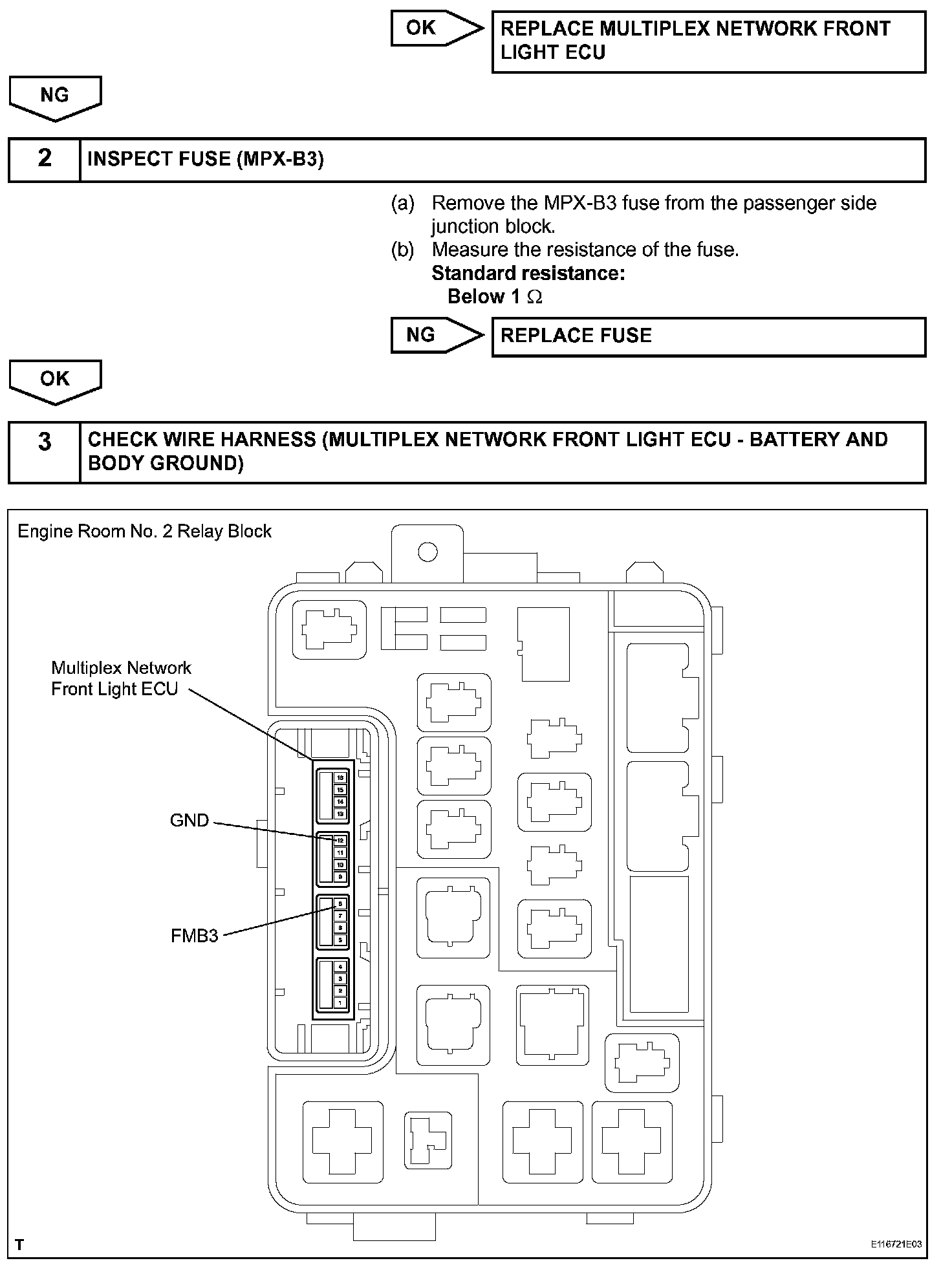

Step 1 (Continued)-3:

Step 3 (Continued):

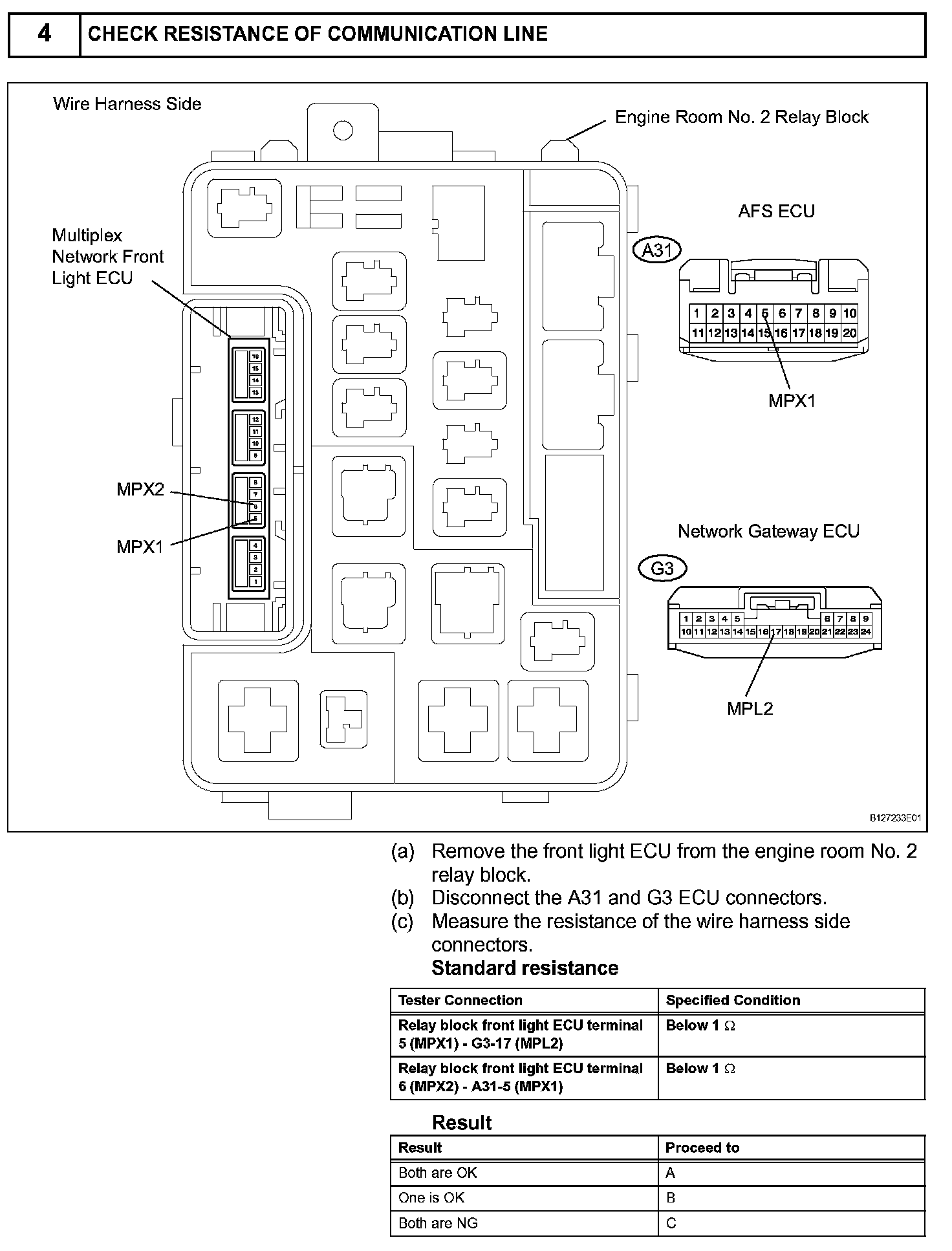

Step 4:

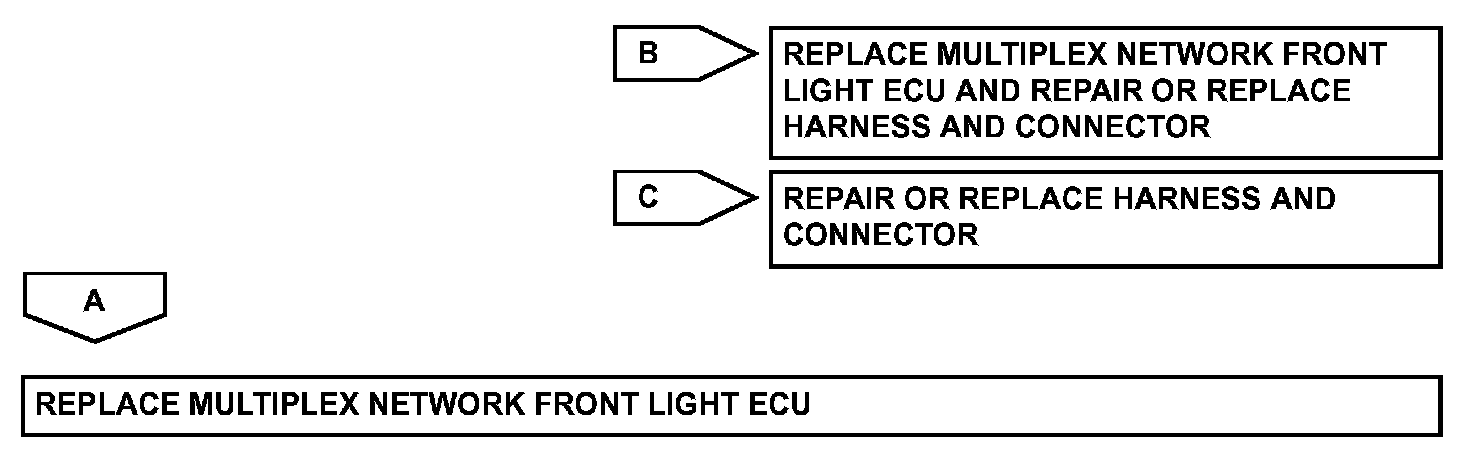

Step 4 (Continued):
