B1294

DTC B1294 Immobilizer ECU Communication Stop

DESCRIPTION

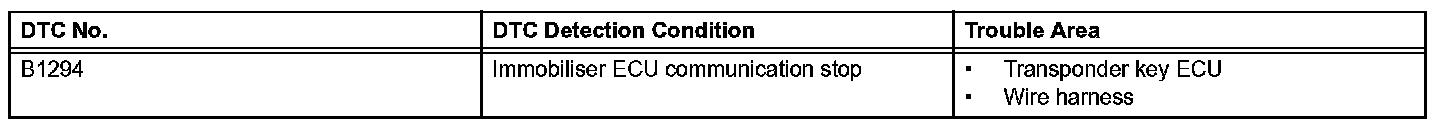

DTC Detection Condition:

This DTC is detected when communication between the transponder key ECU (immobilizer ECU) and network gateway ECU stops for more than 10 seconds.

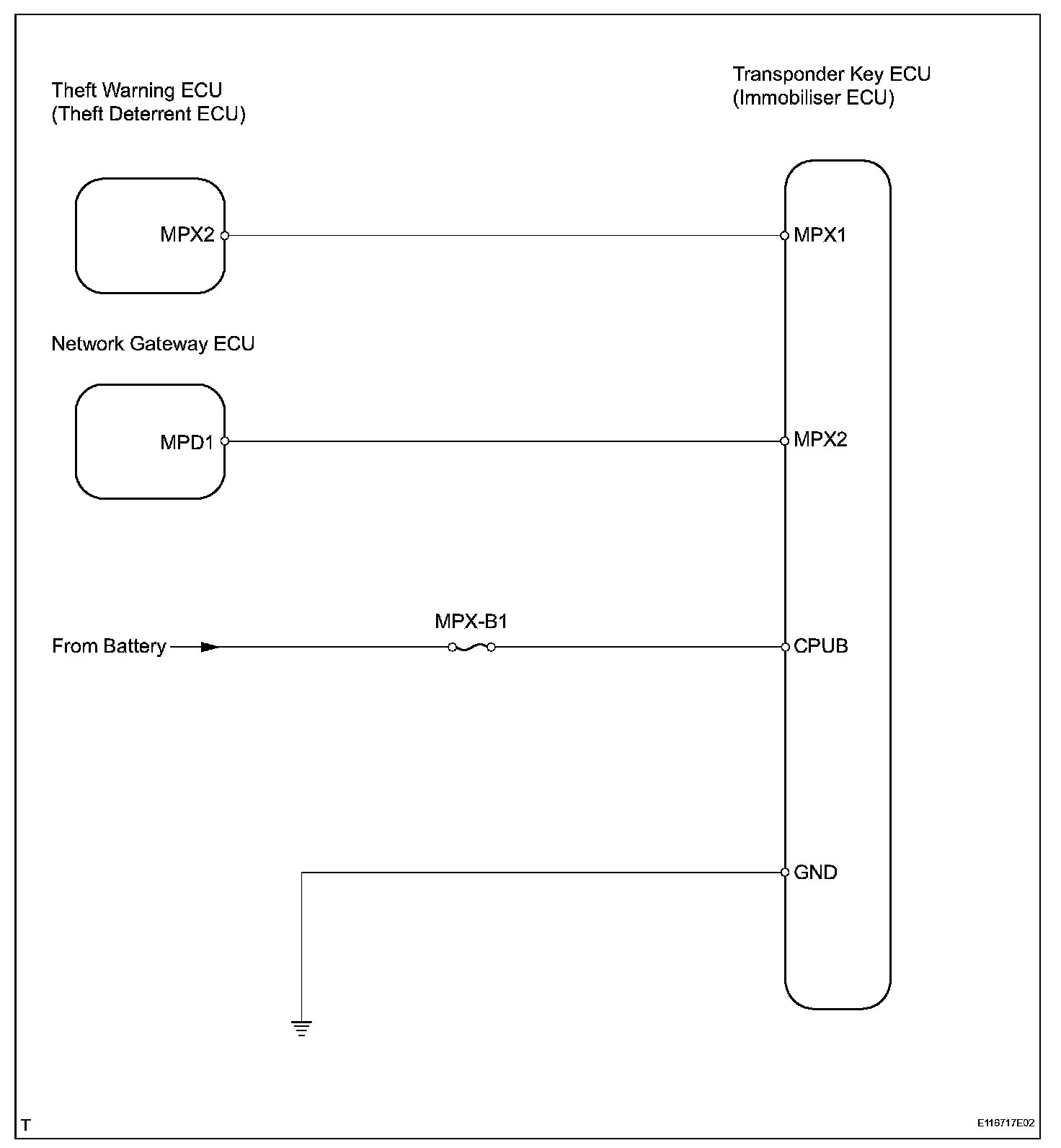

Wiring Diagram:

INSPECTION PROCEDURE

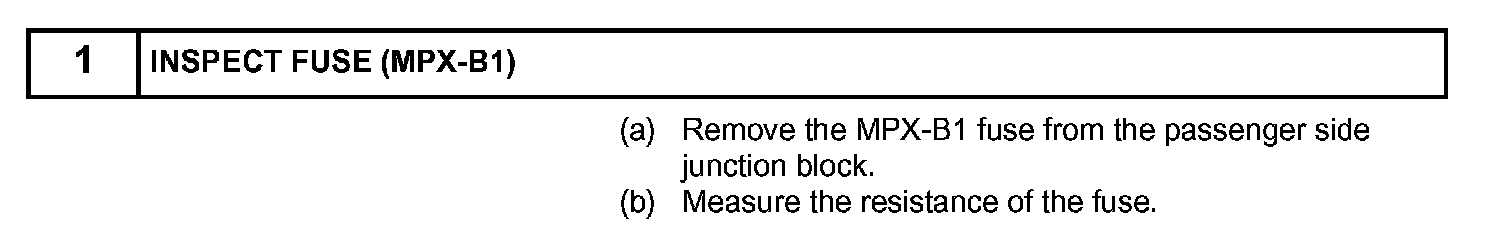

Step 1:

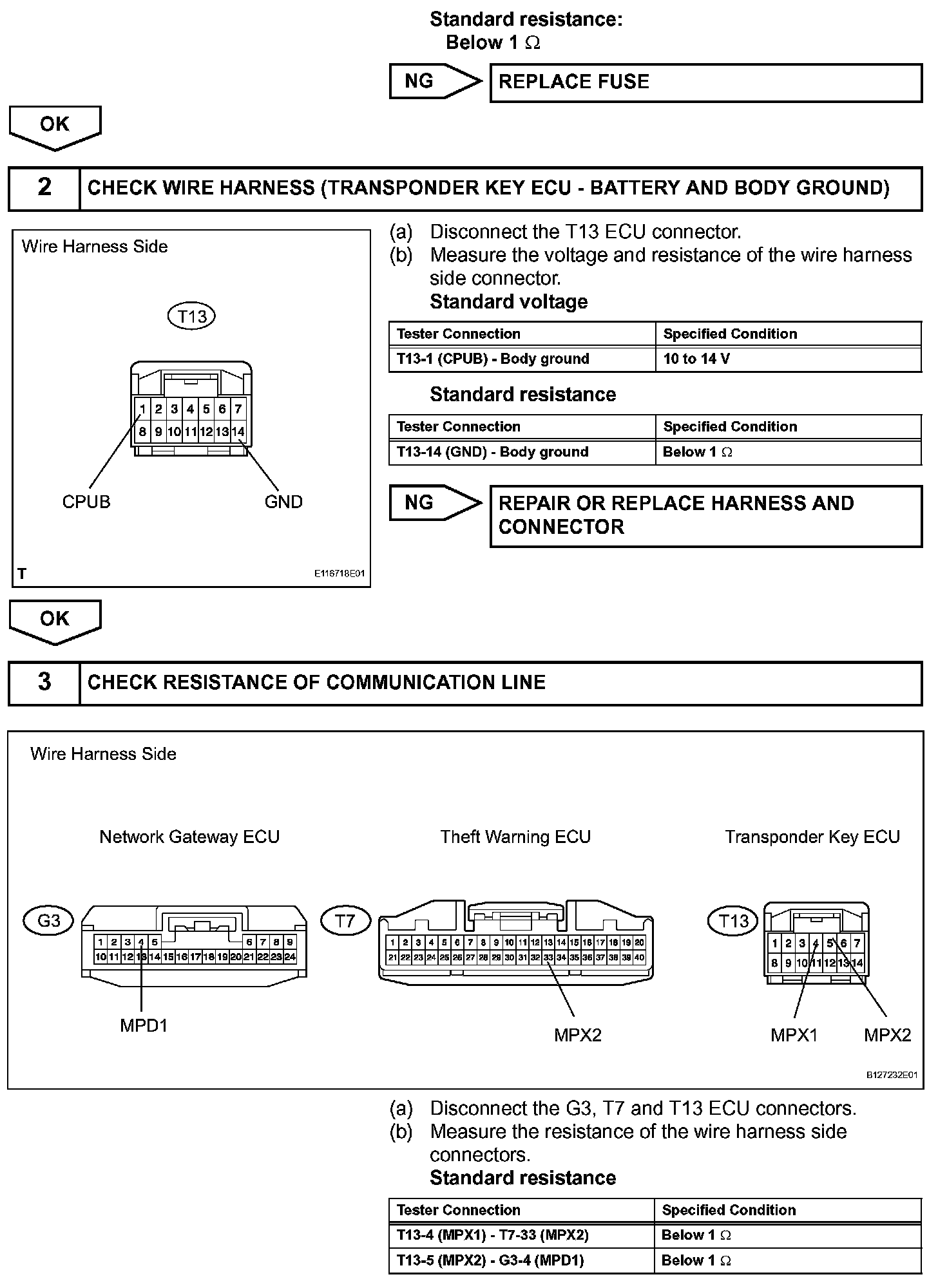

Step 1 (Continued)-3:

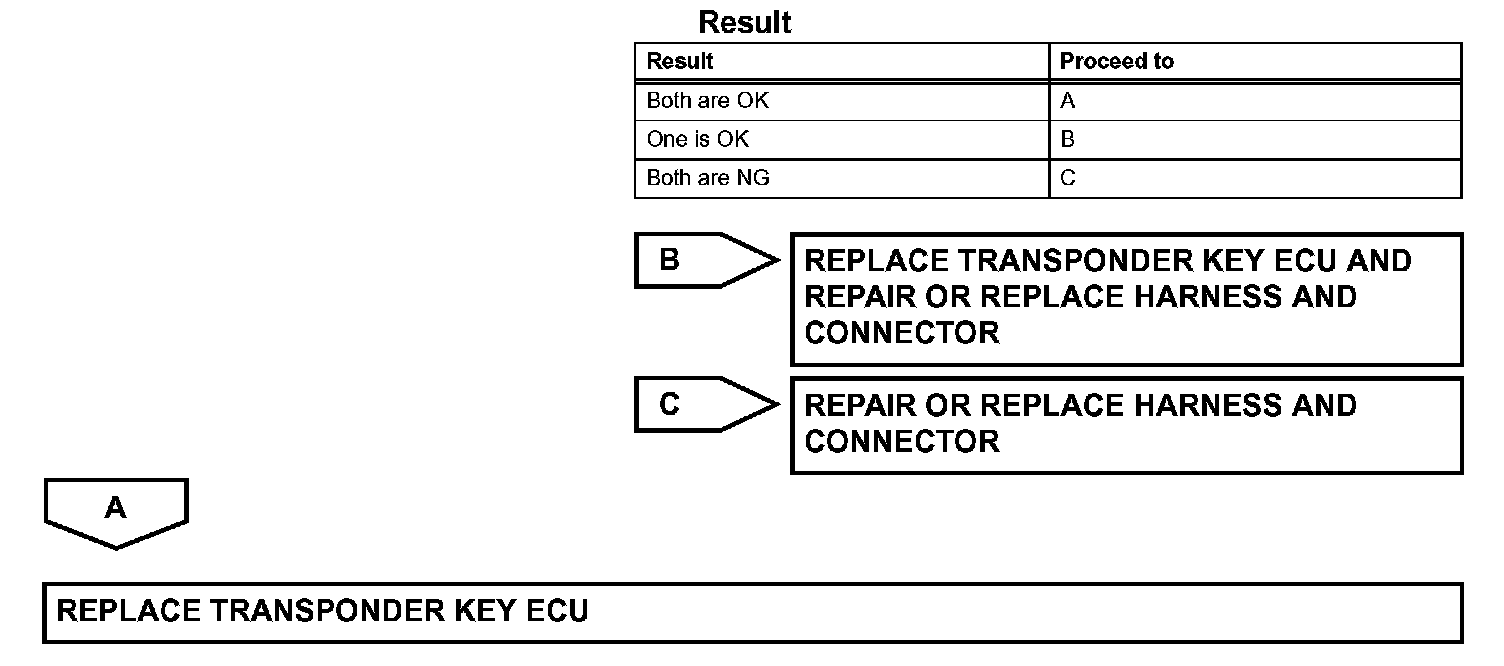

Step 3 (Continued):
