B1292

DTC B1291 Short to B+ in Light System Communication Bus Malfunction
DTC B1292 Short to GND in Light System Communication Bus Malfunction

DESCRIPTION

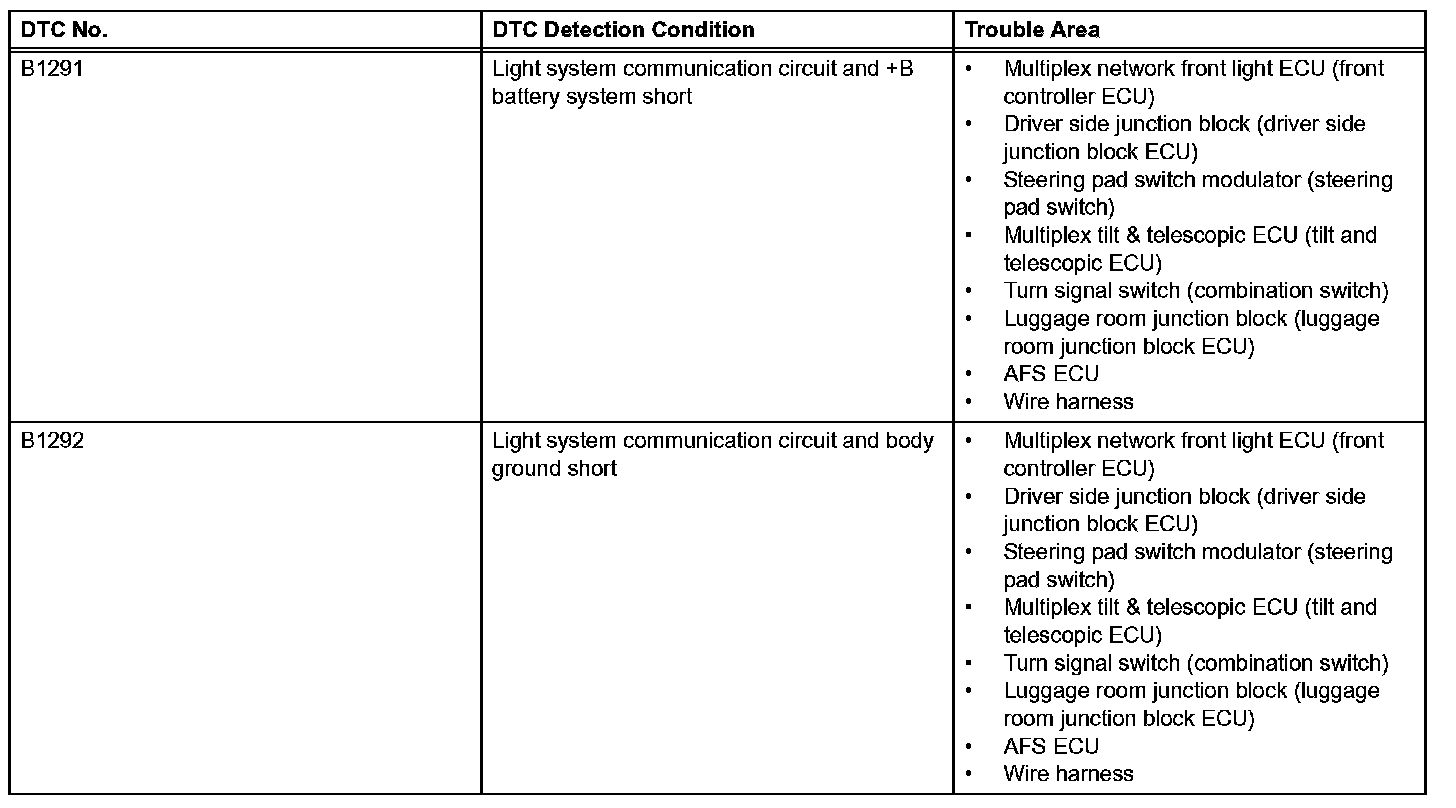

DTC Detection Condition:

DTC B1291 is detected when +B is short-circuited on the light system (steering column bus) communication bus, and DTC B1292 is detected when the body ground is short-circuited on the light system (steering column bus) communication bus. Detecting this condition will disable the light system communication bus (BEAN) and a DTC will be output.

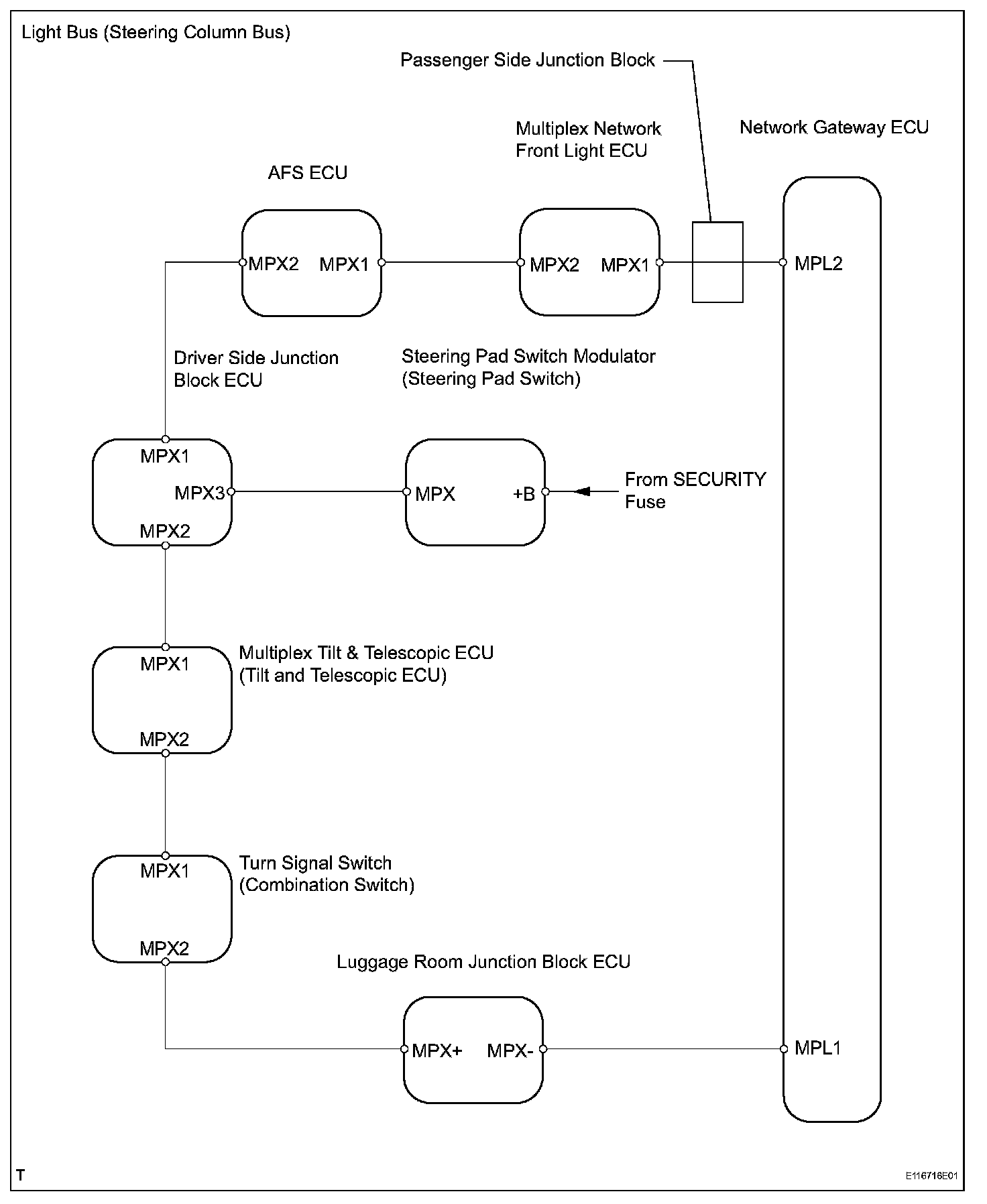

Wiring Diagram:

INSPECTION PROCEDURE

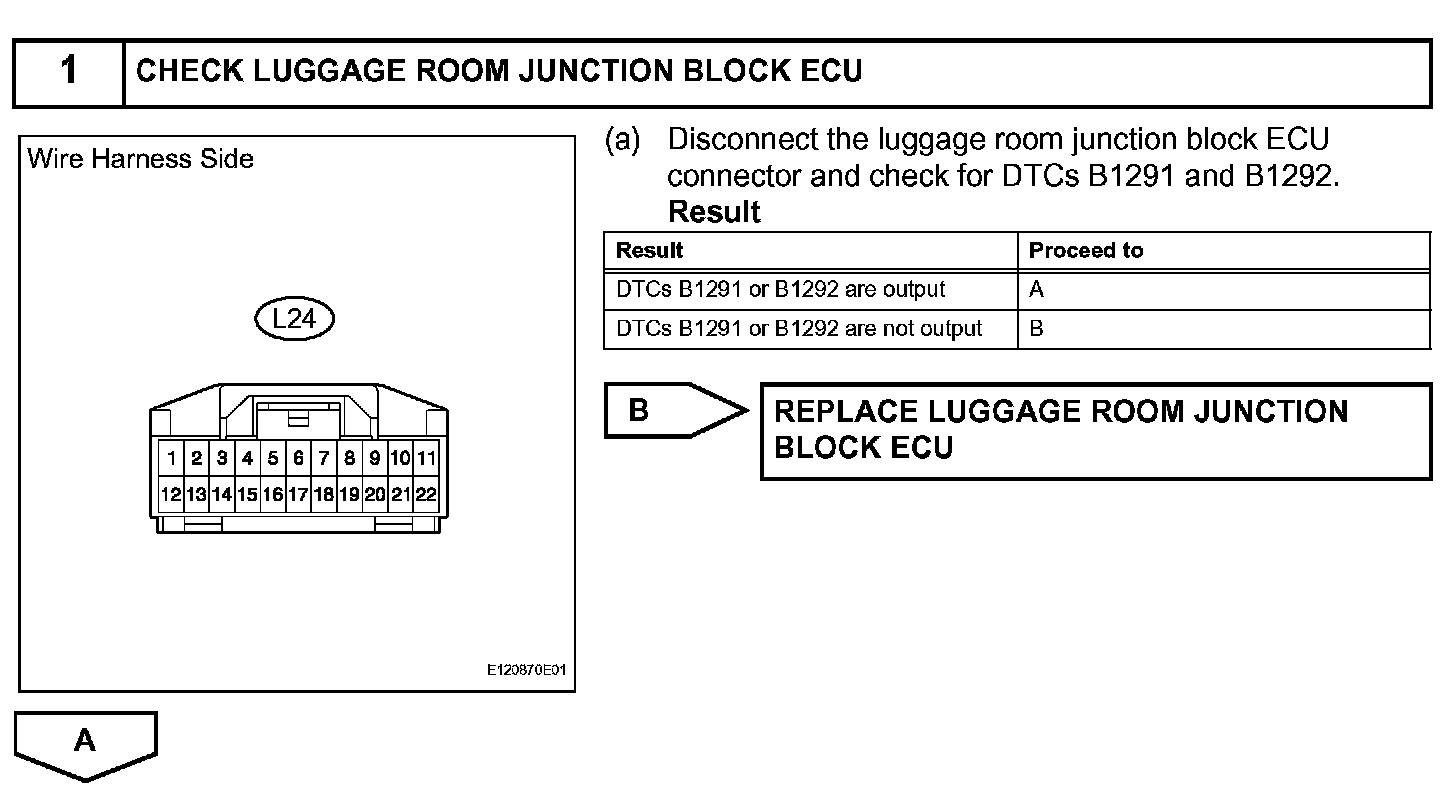

Step 1:

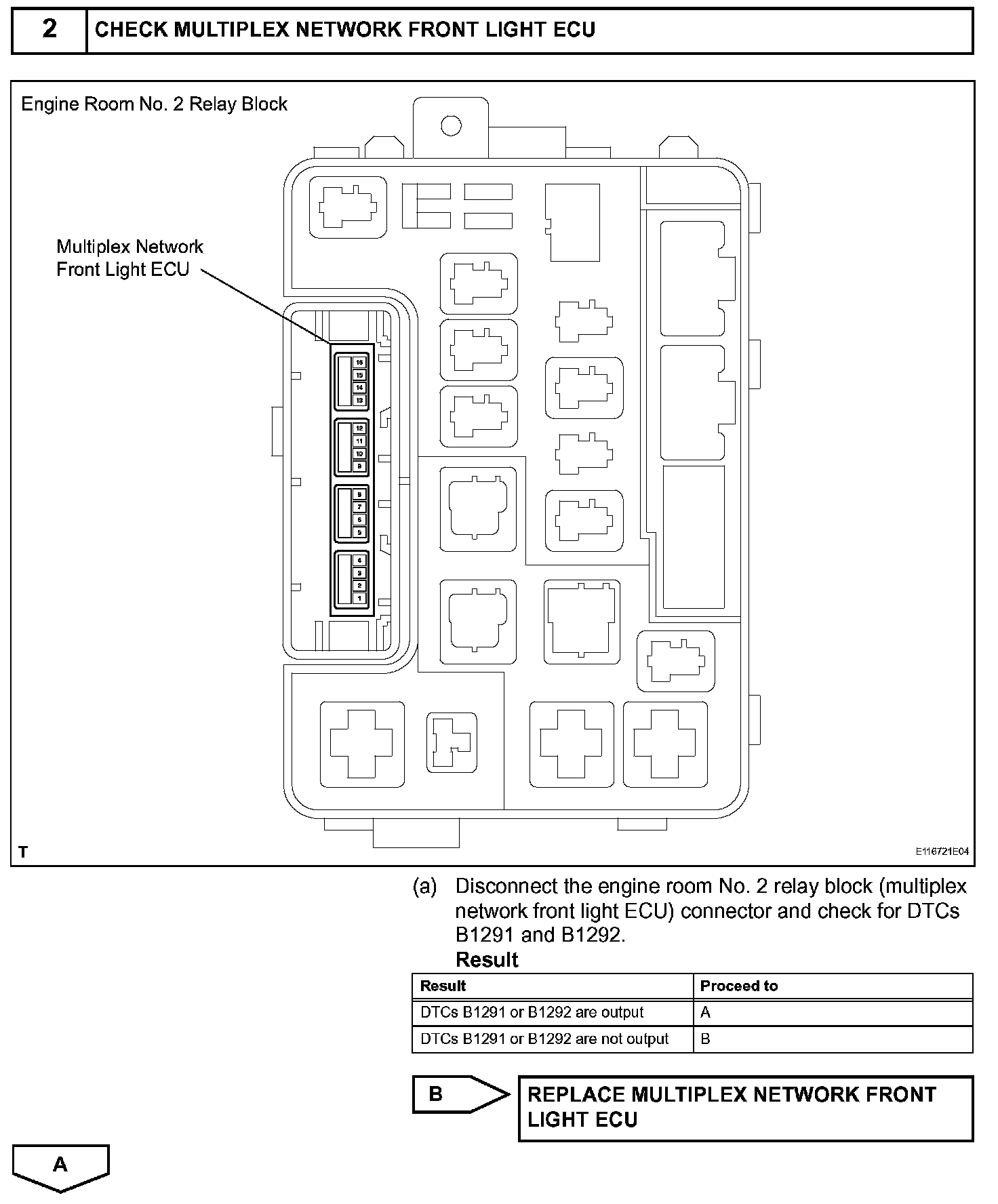

Step 2:

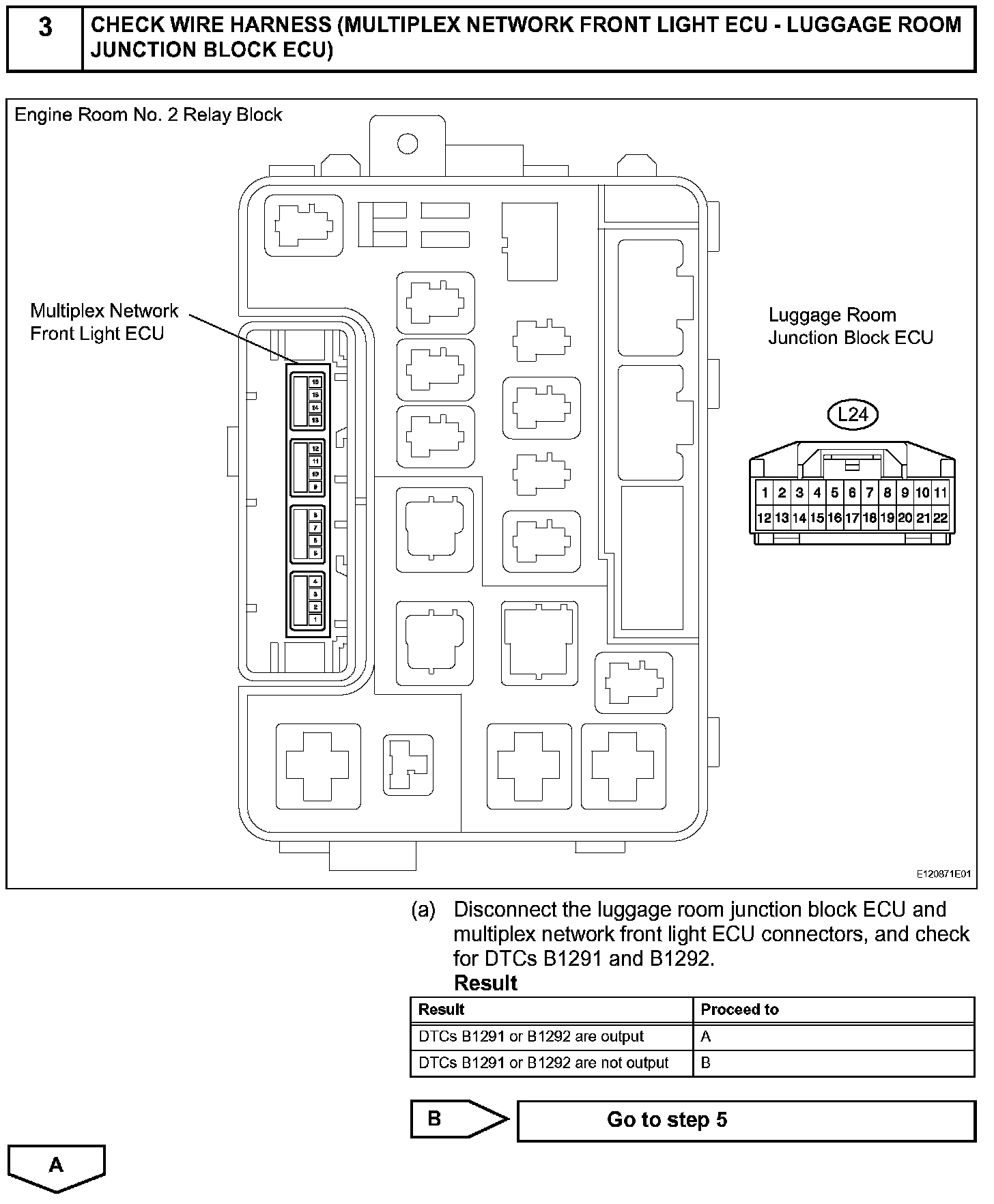

Step 3:

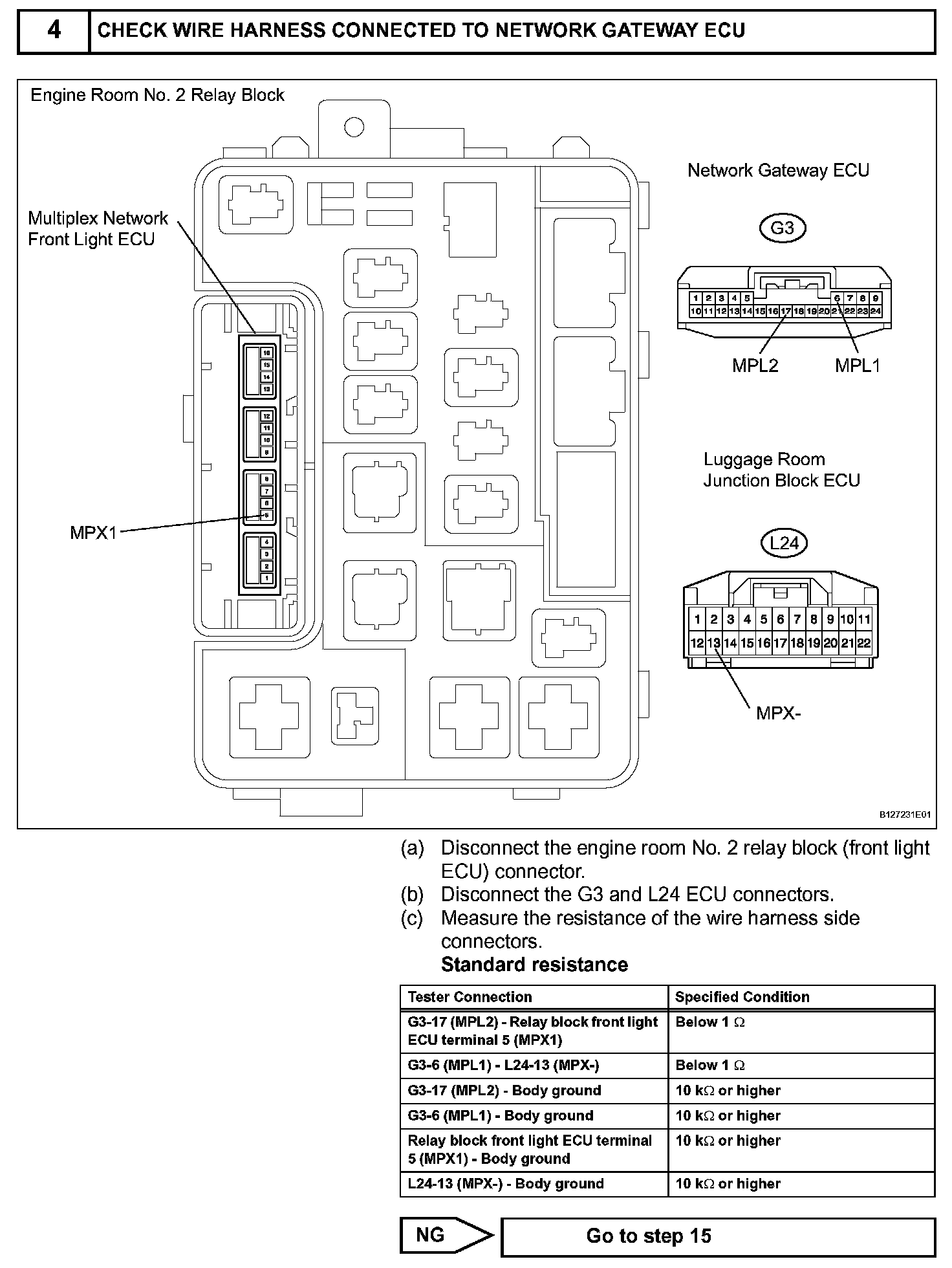

Step 4:

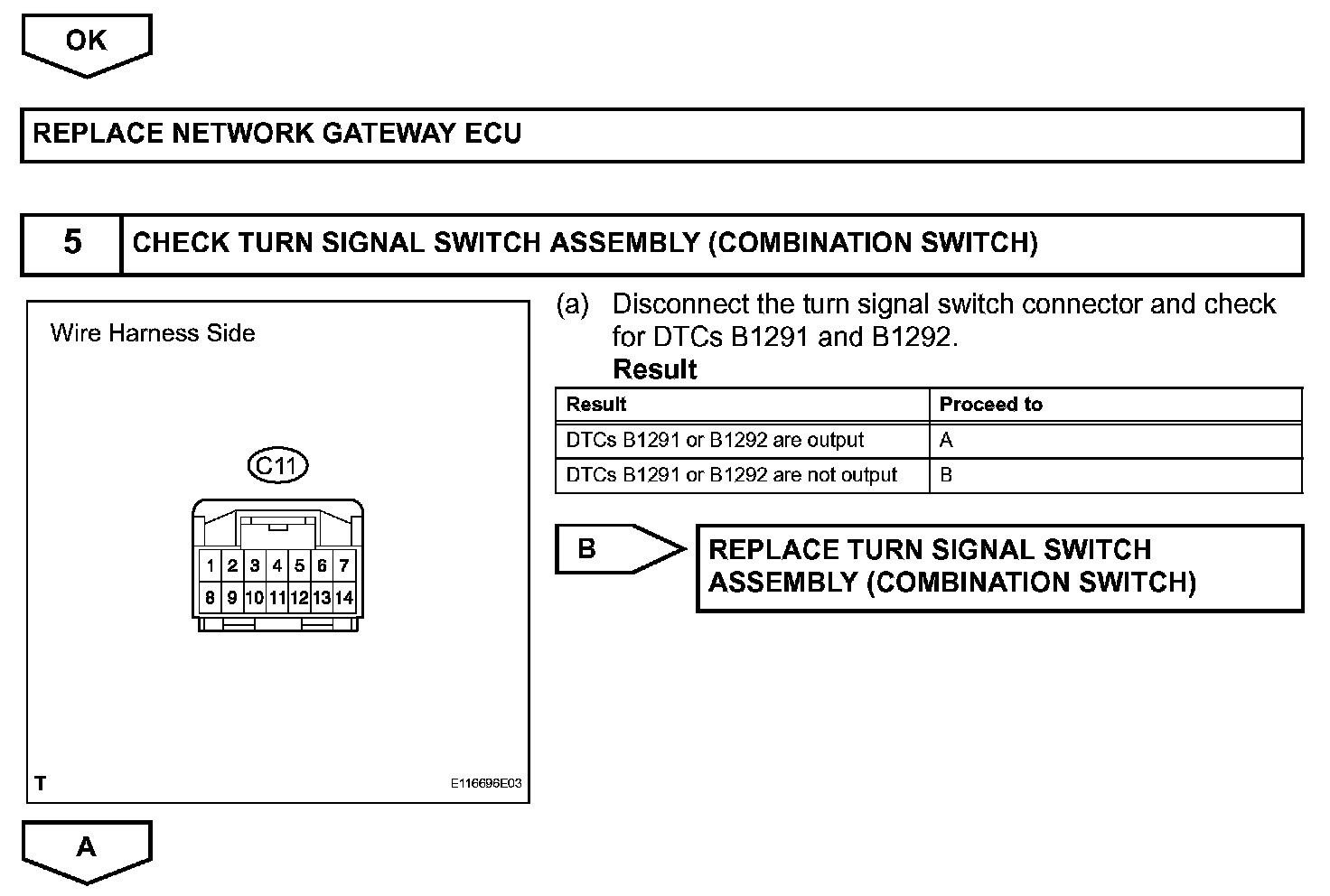

Step 4 (Continued)-5:

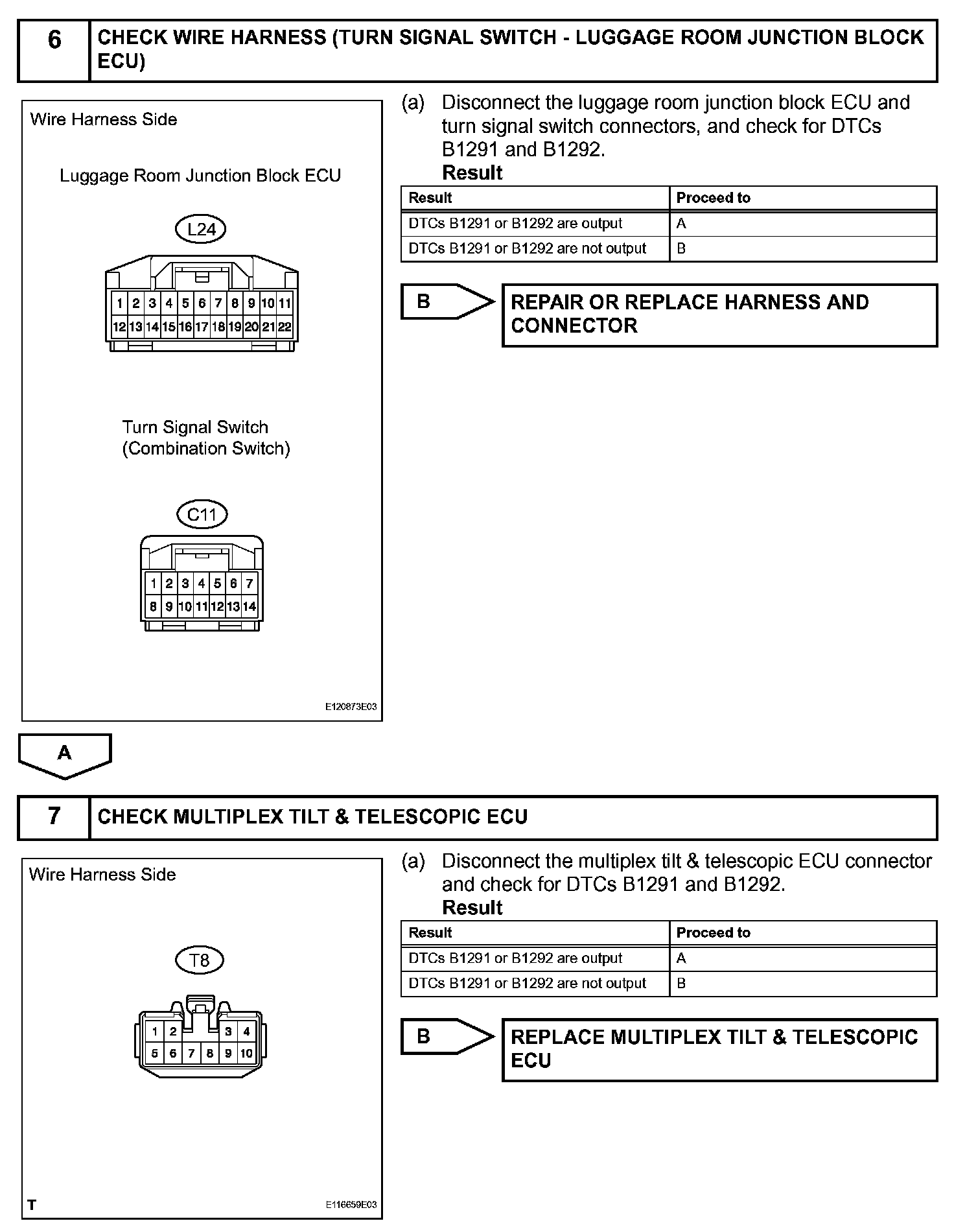

Step 6-7:

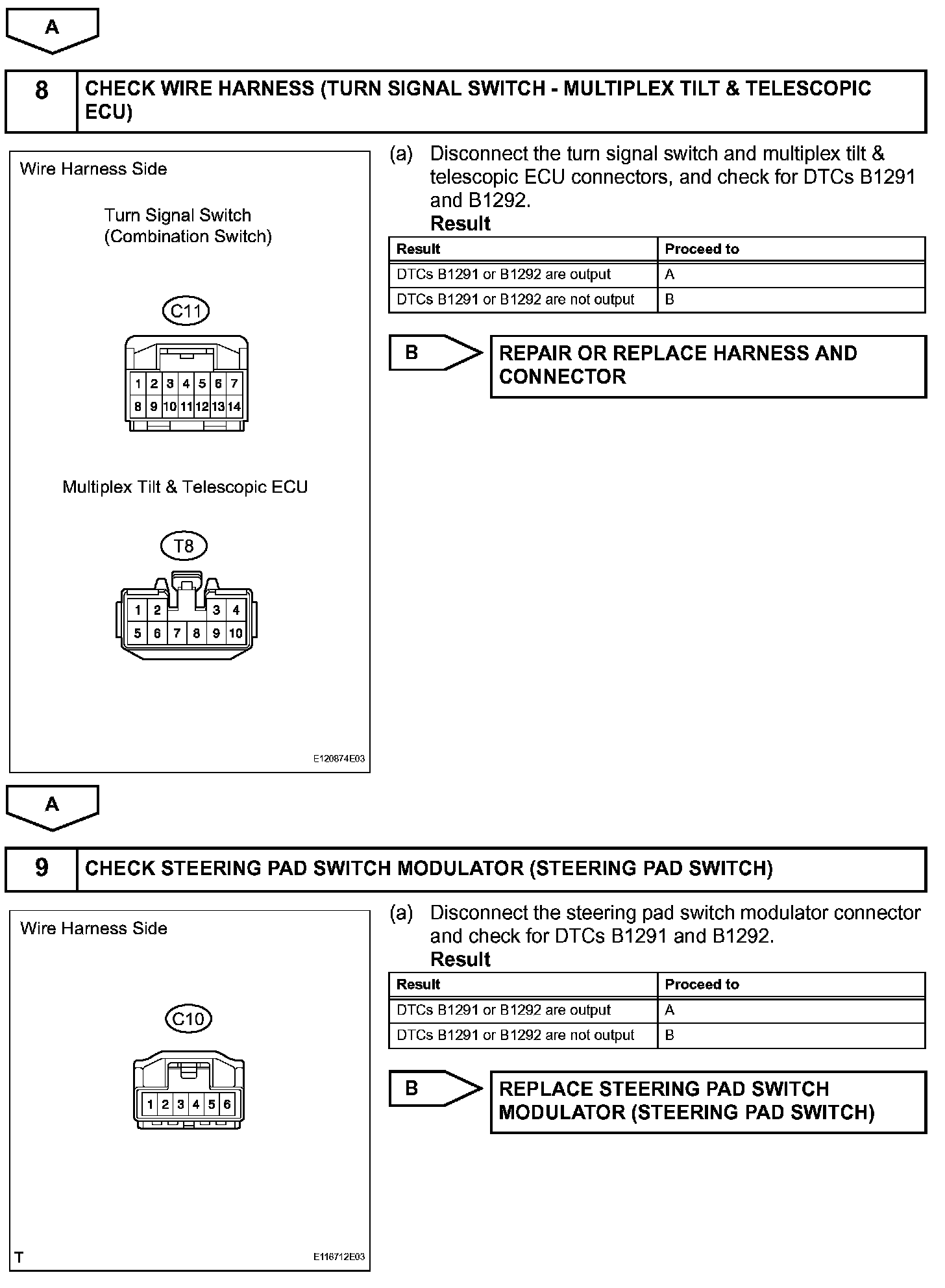

Step 7 (Continued)-9:

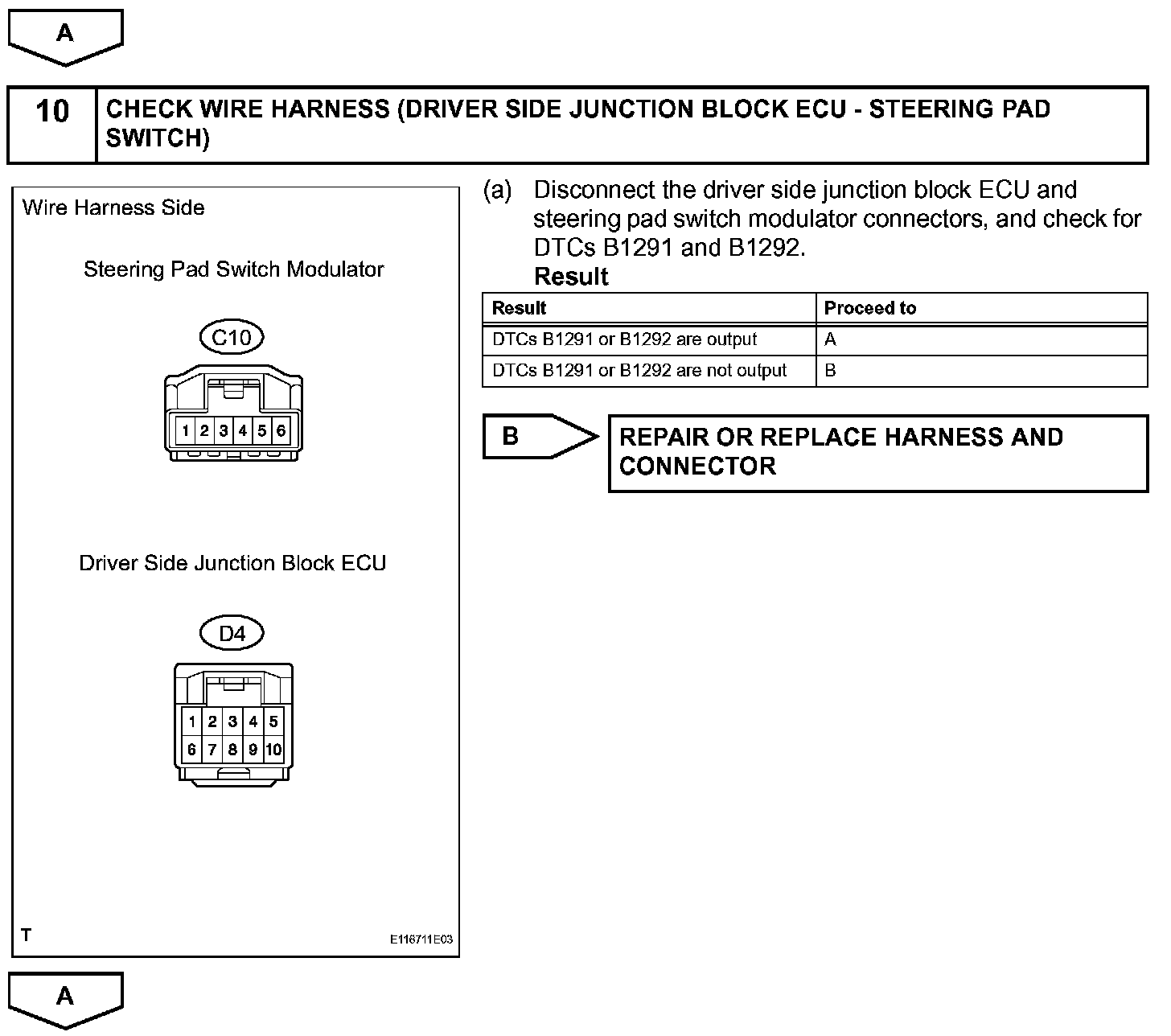

Step 9 (Continued)-10:

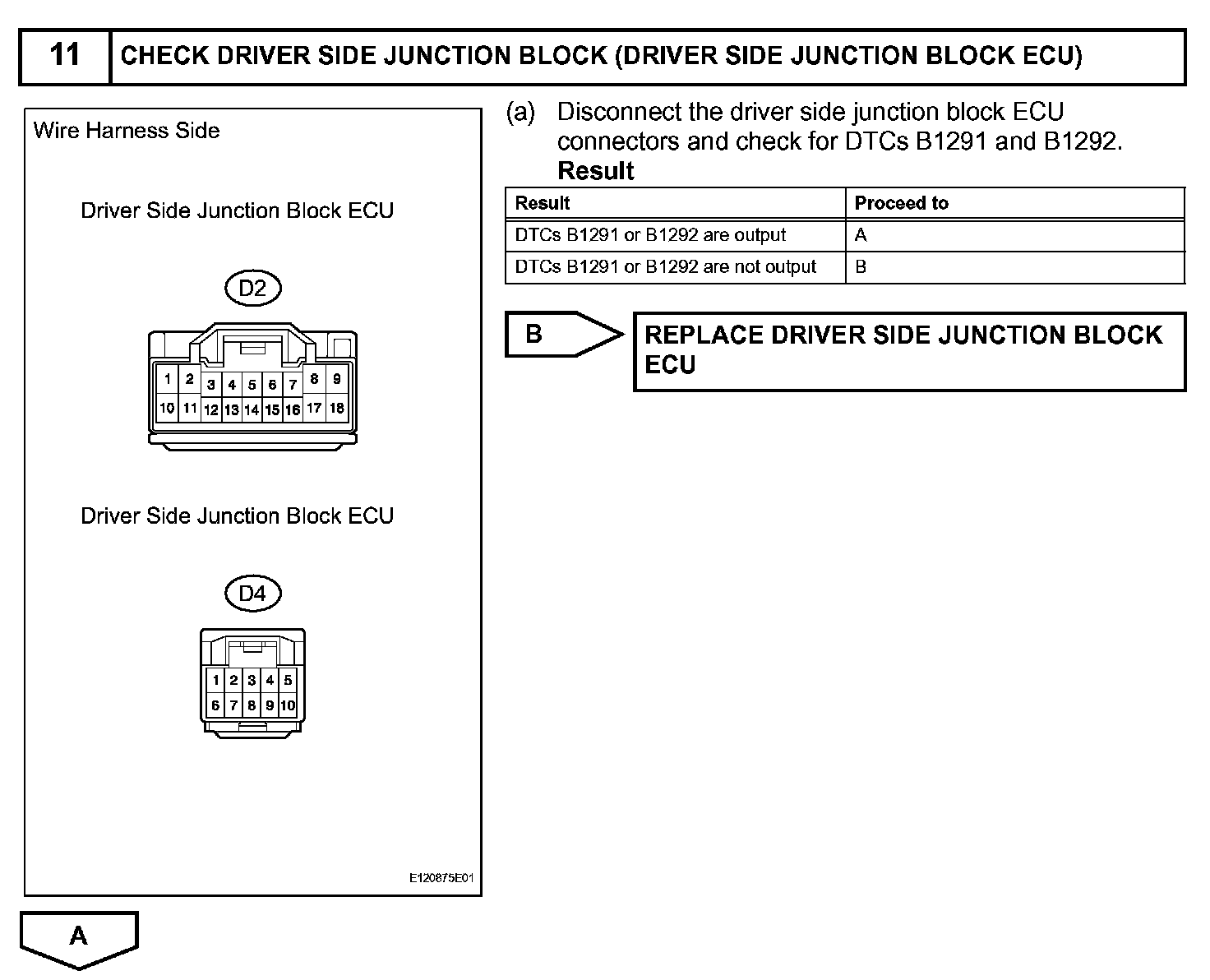

Step 11:

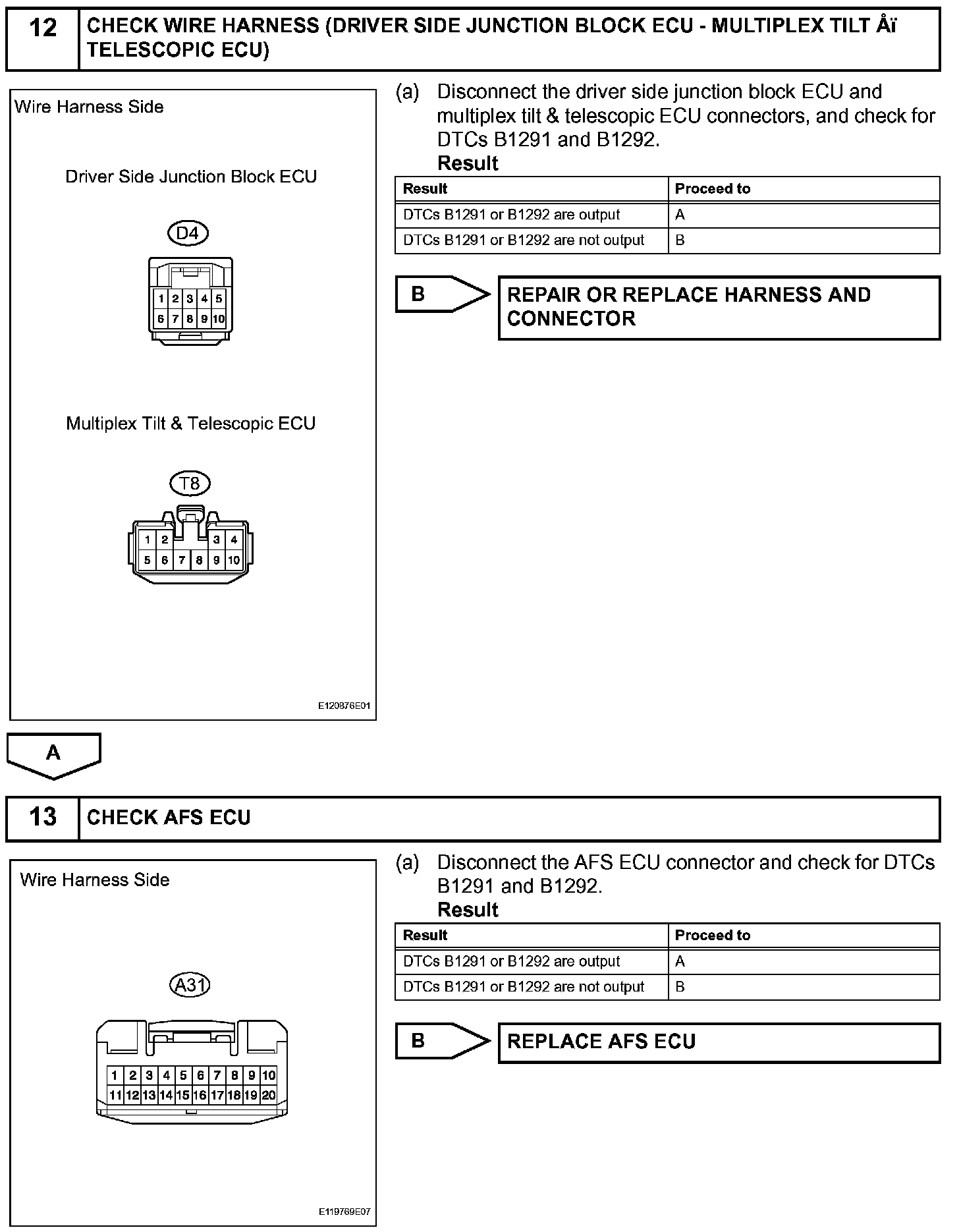

Step 12-13:

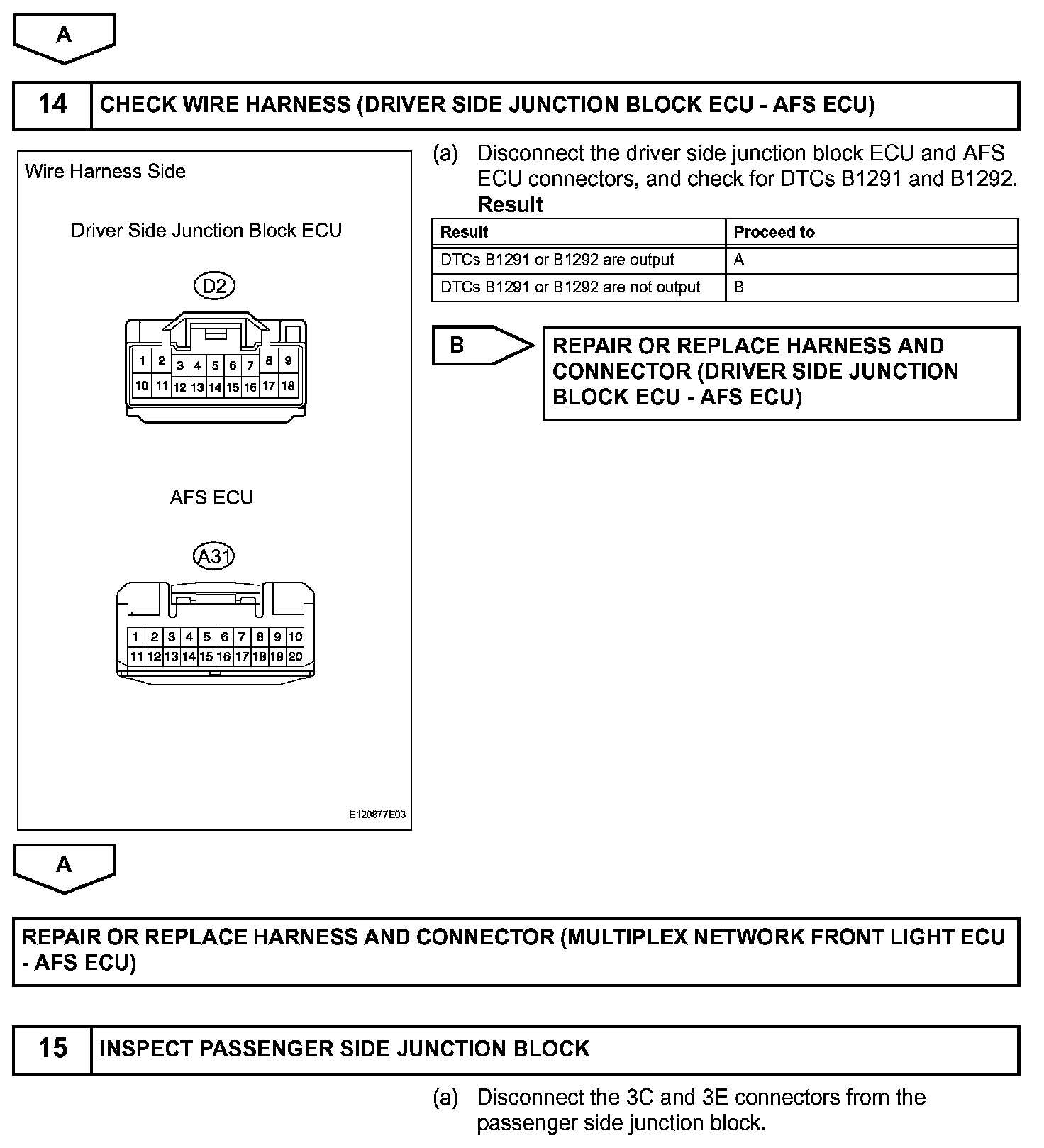

Step 13 (Continued)-15:

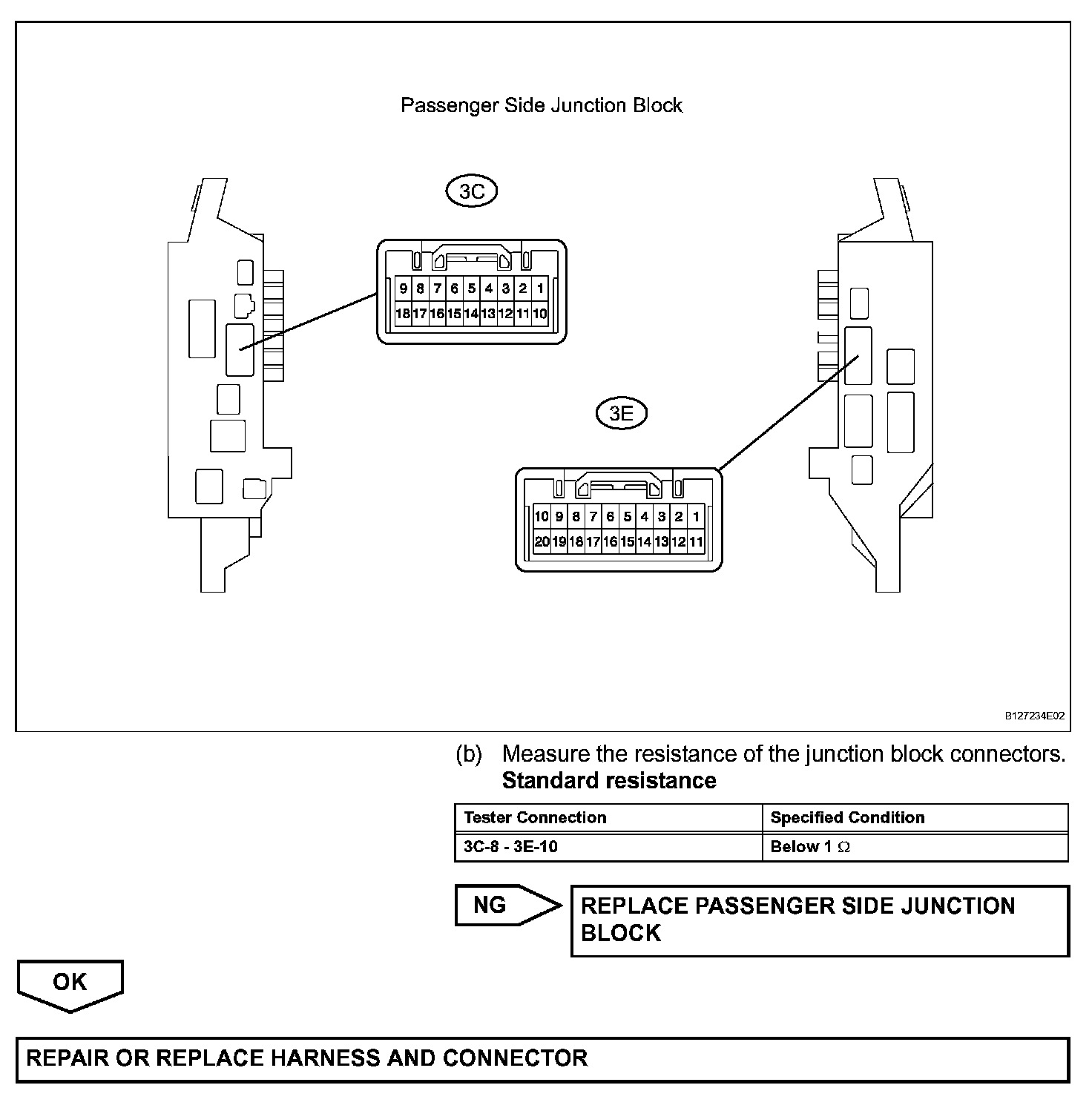

Step 15 (Continued):
