B1289

DTC B1289 Passenger Seat ECU Communication Stop

DESCRIPTION

DTC Detection Condition:

This DTC is detected when communication between the position control ECU (passenger seat ECU) and network gateway ECU stops for more than 10 seconds.

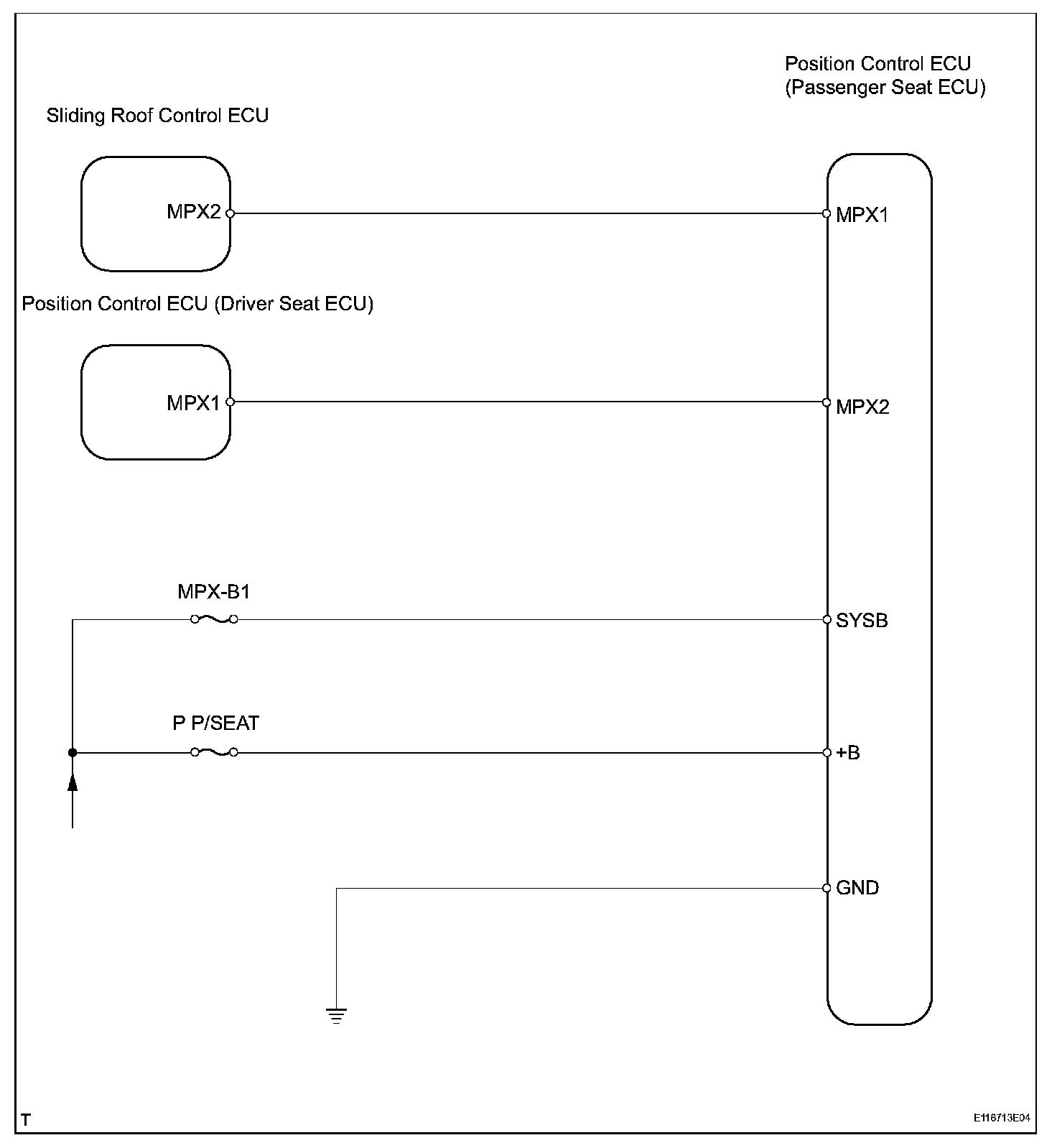

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

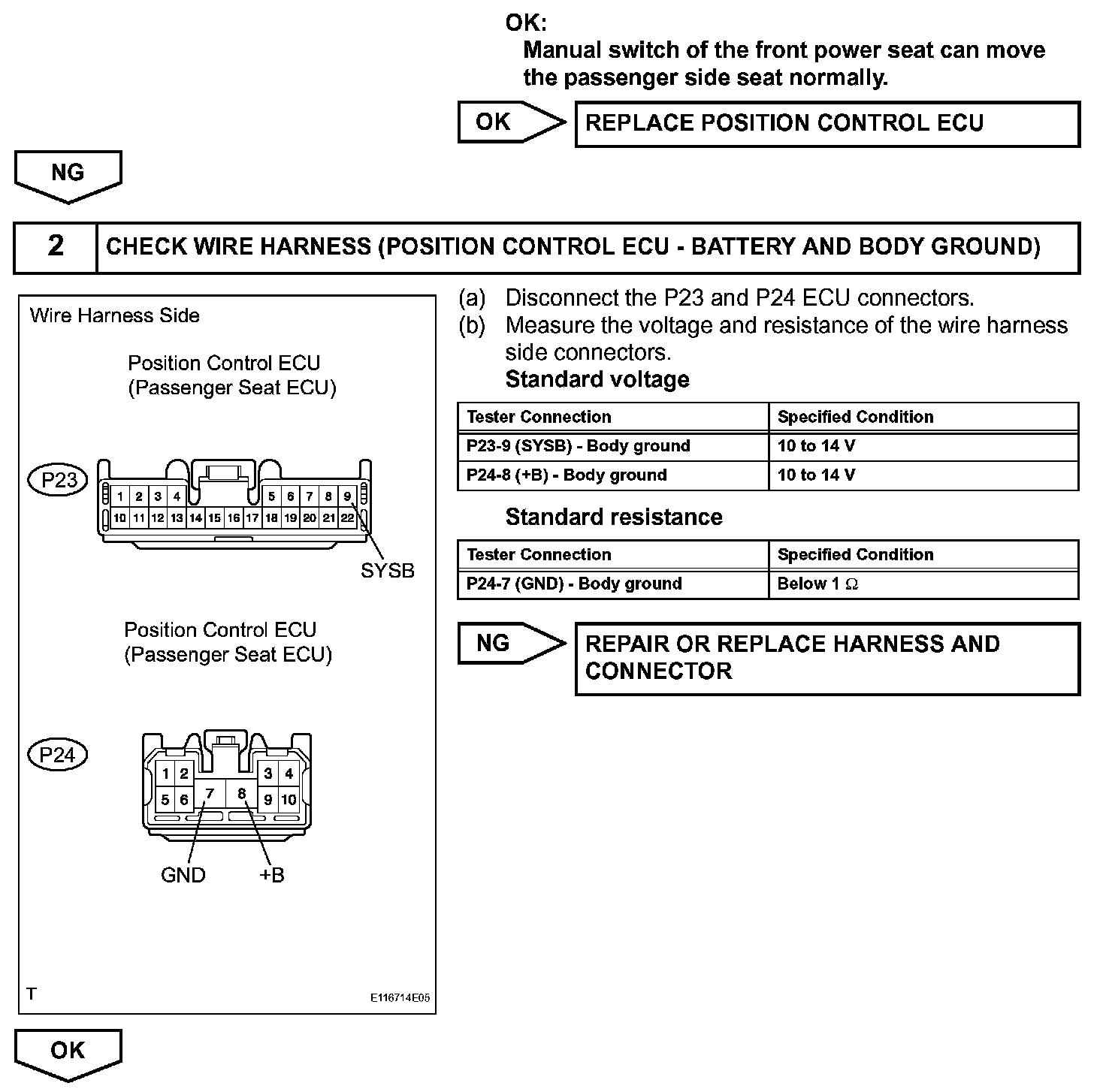

Step 1 (Continued)-2:

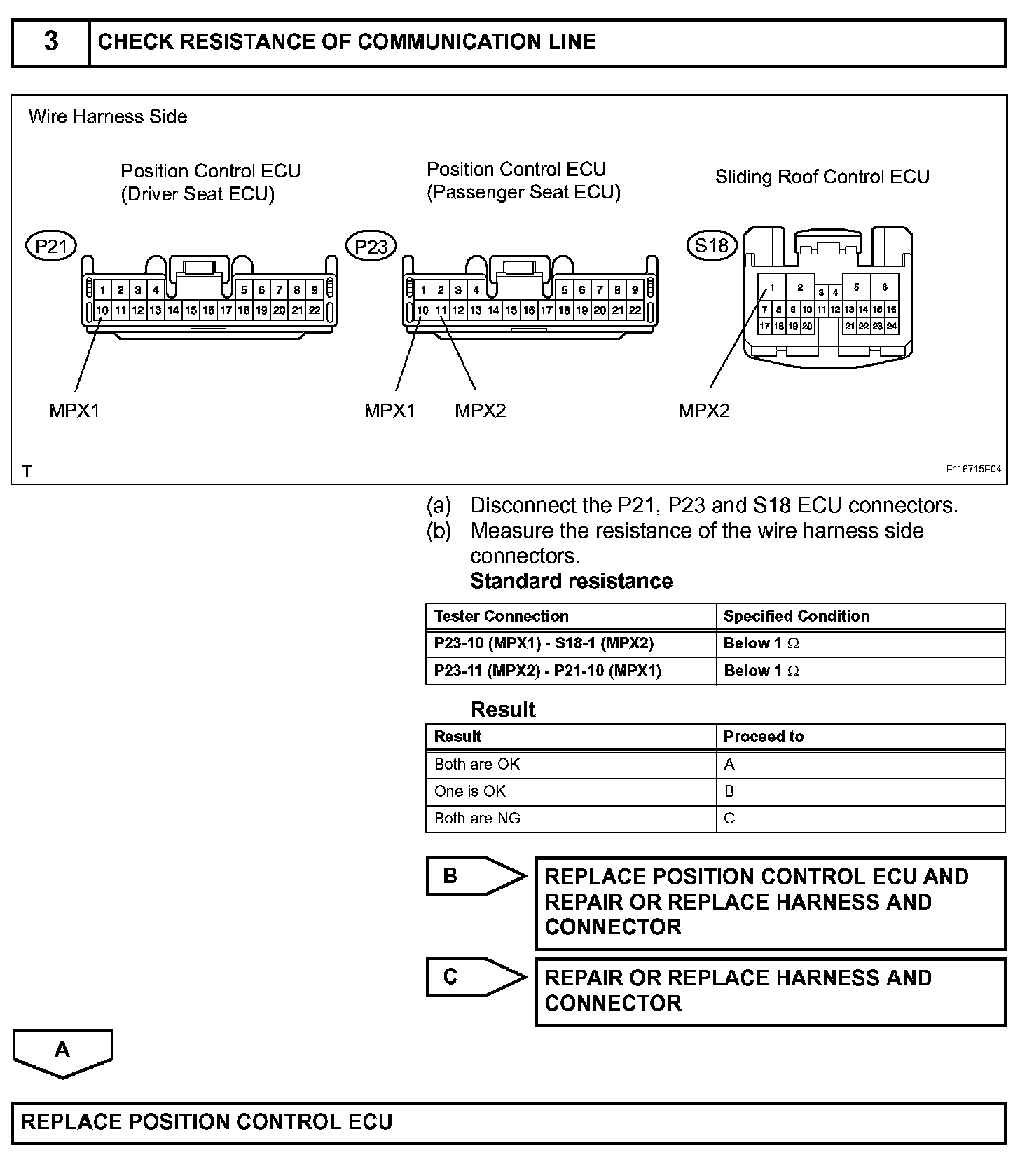

Step 3:
