B1285

DTC B1285 Steering PAD Switch Communication Stop

DESCRIPTION

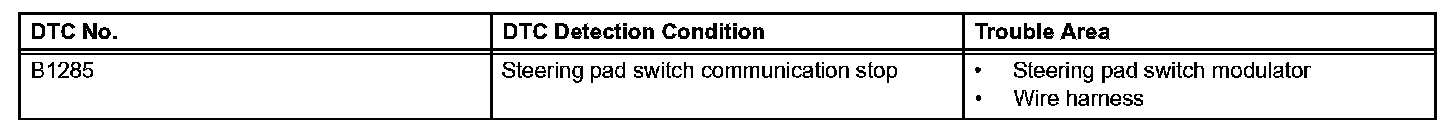

DTC Detection Condition:

This DTC is detected when communication between the steering pad switch modulator and network gateway ECU stops for more than 10 seconds.

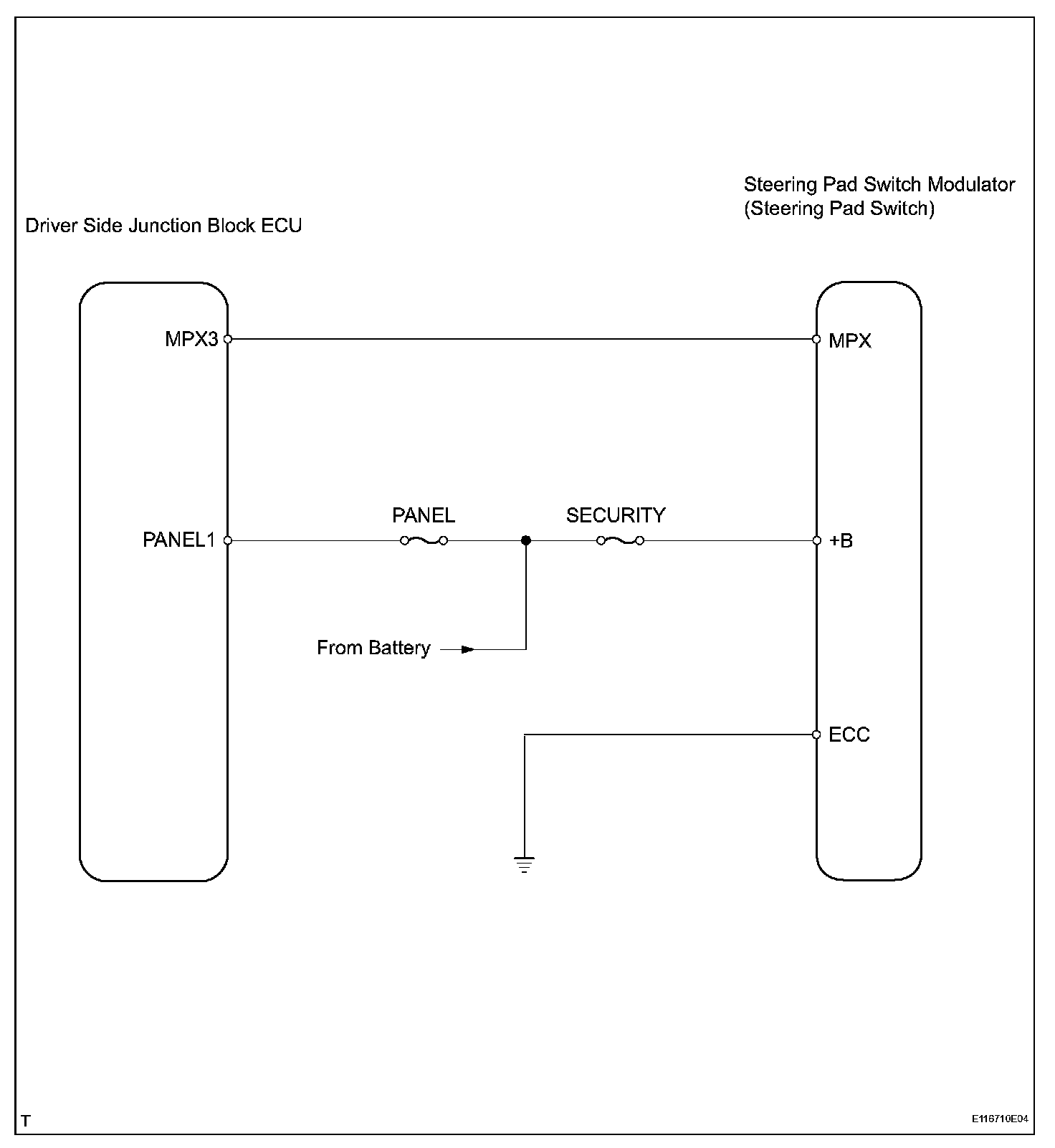

Wiring Diagram:

INSPECTION PROCEDURE

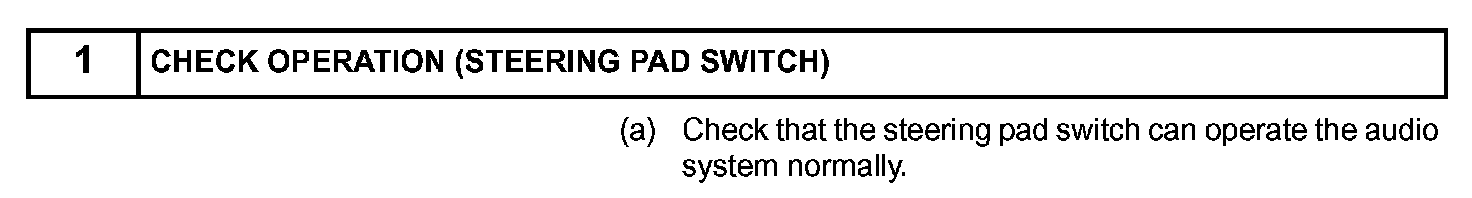

Step 1:

Step 1 (Continued)-3:

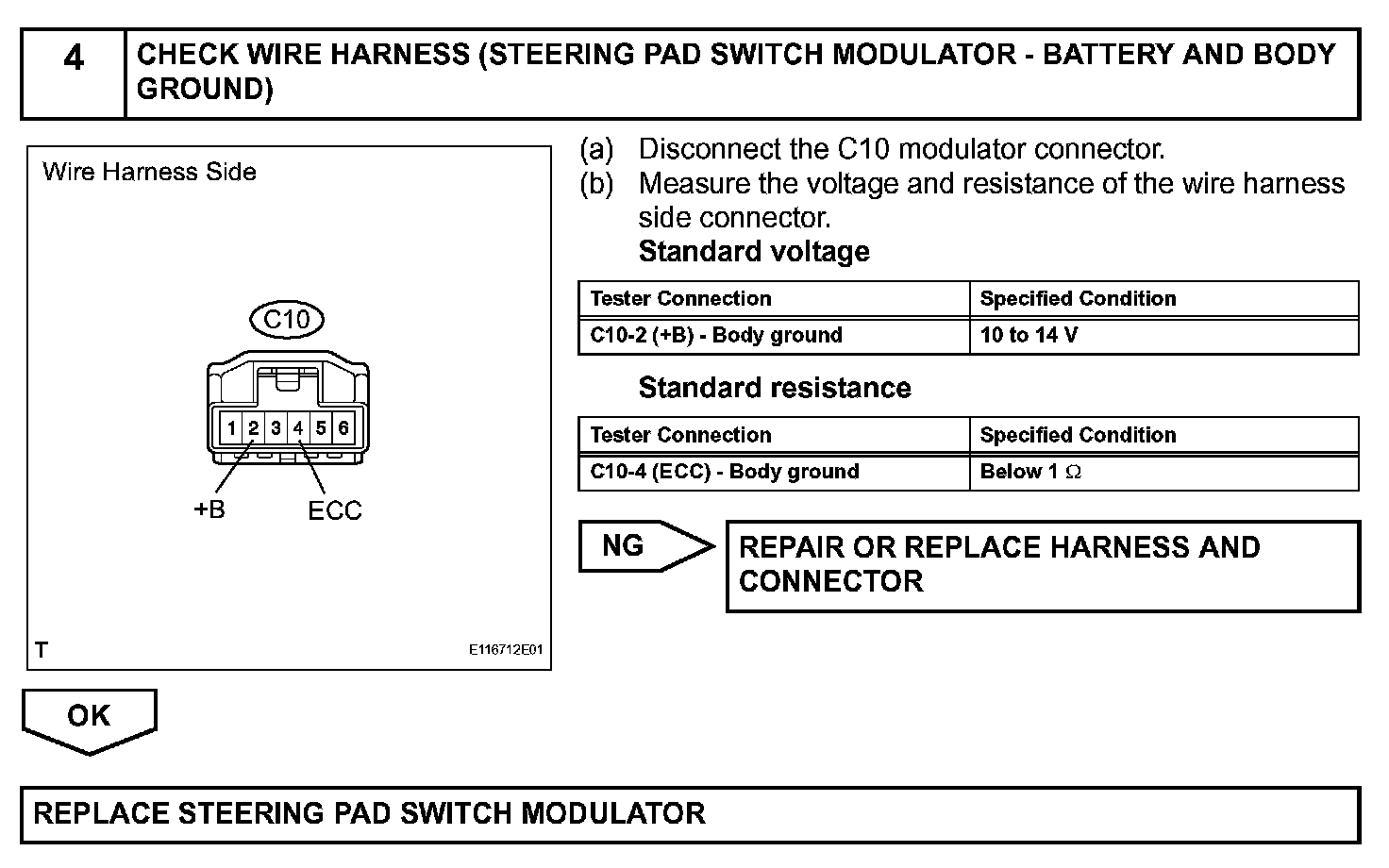

Step 4:
