B1284

DTC B1284 Passenger Side Junction Block ECU Communication Stop

DESCRIPTION

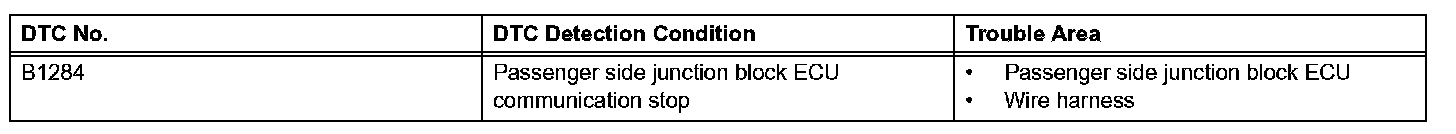

DTC Detection Condition:

This DTC is detected when communication between the passenger side junction block ECU and network gateway ECU stops for more than 10 seconds.

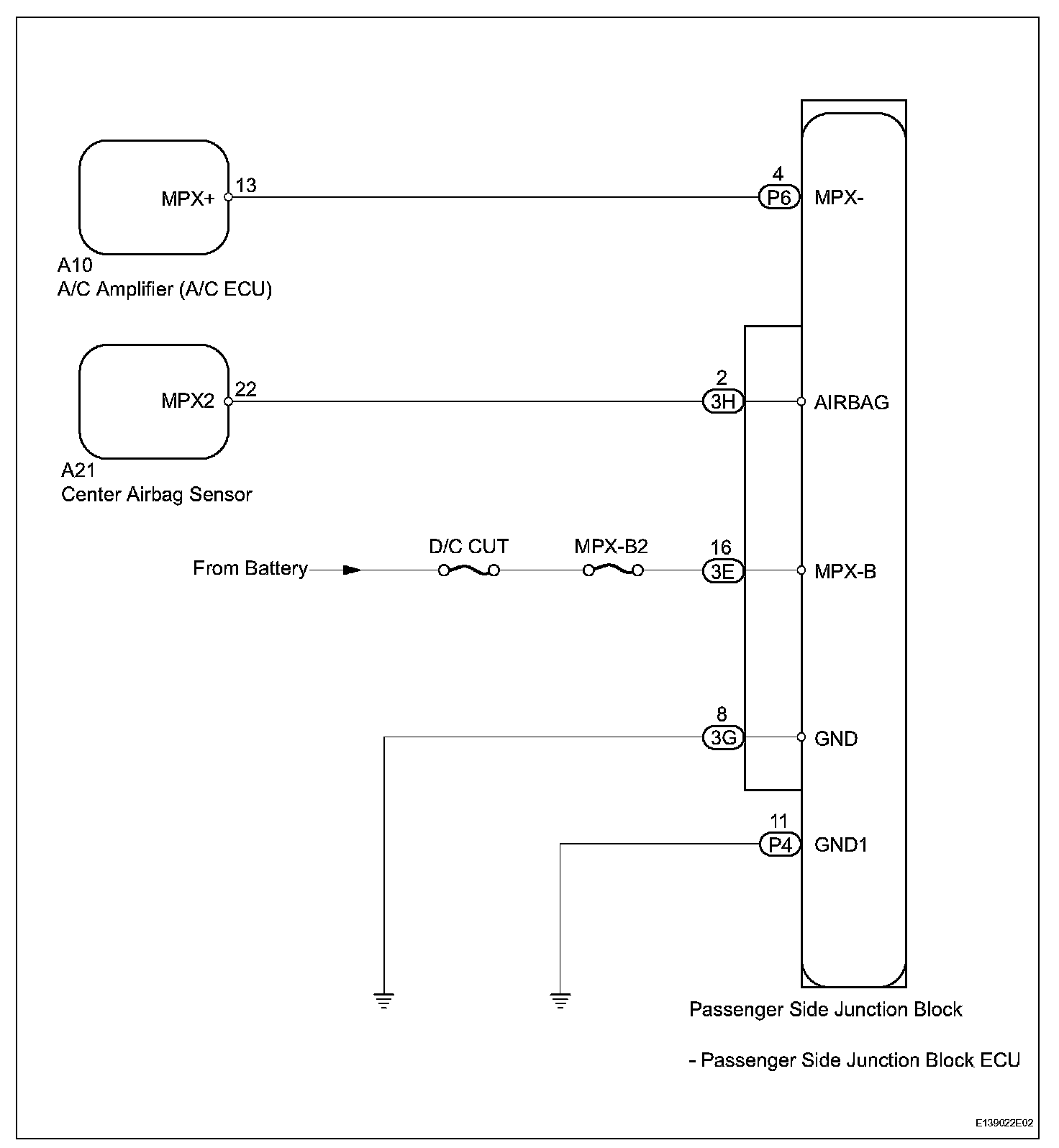

Wiring Diagram:

INSPECTION PROCEDURE

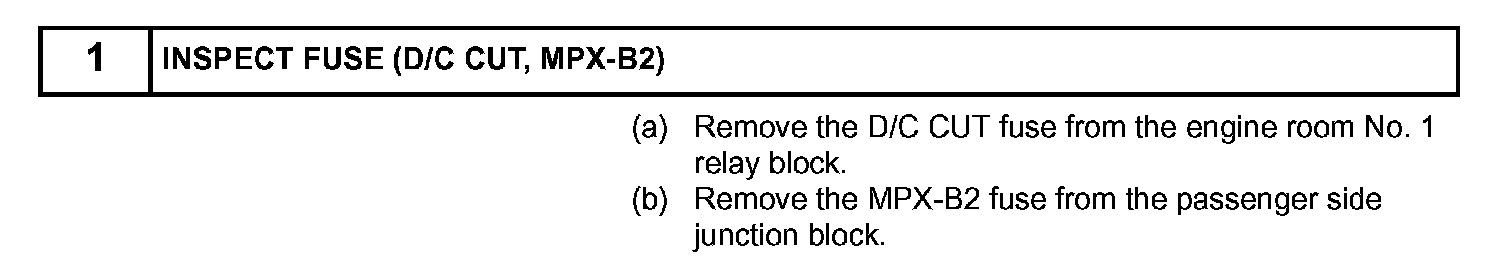

Step 1:

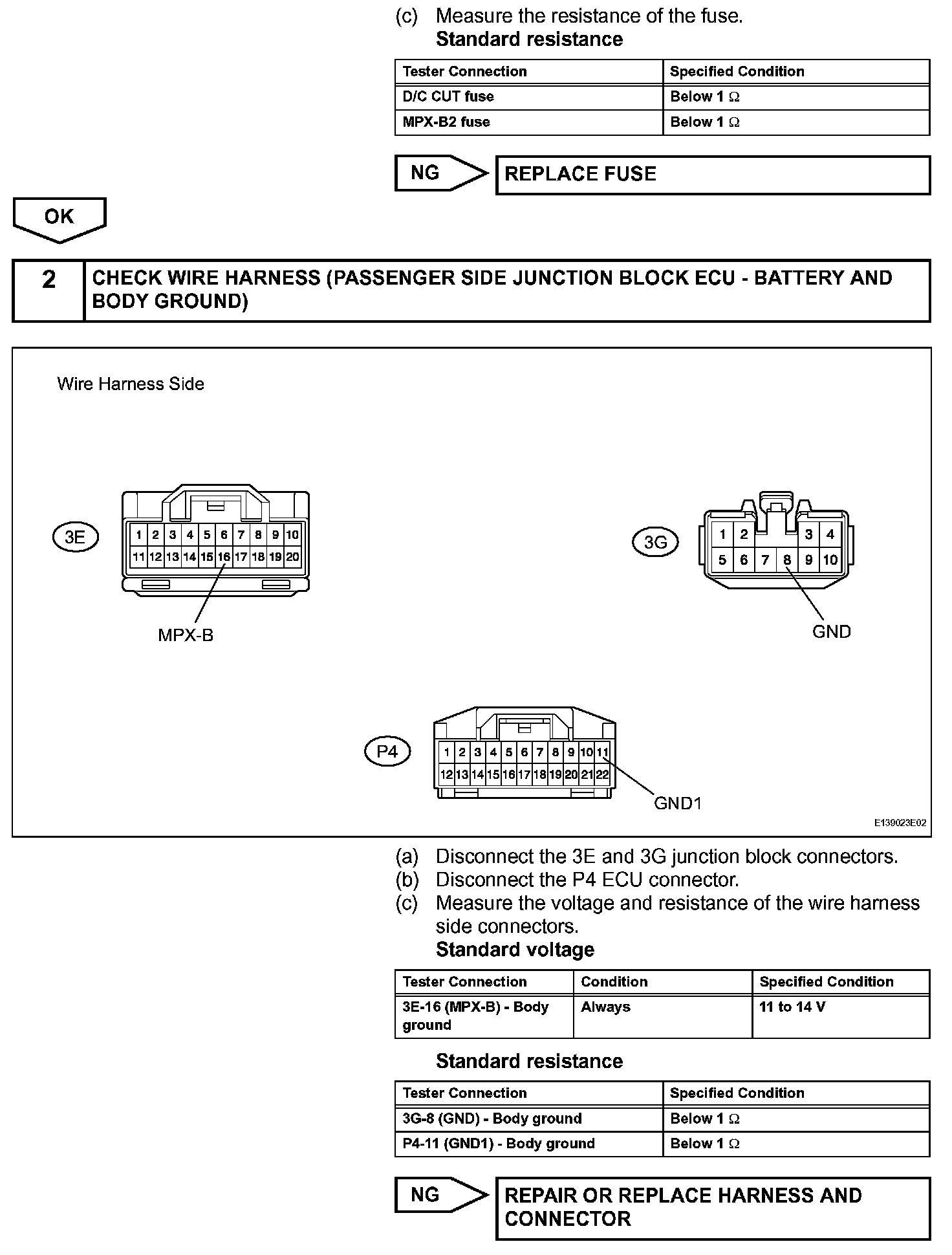

Step 1 (Continued)-2:

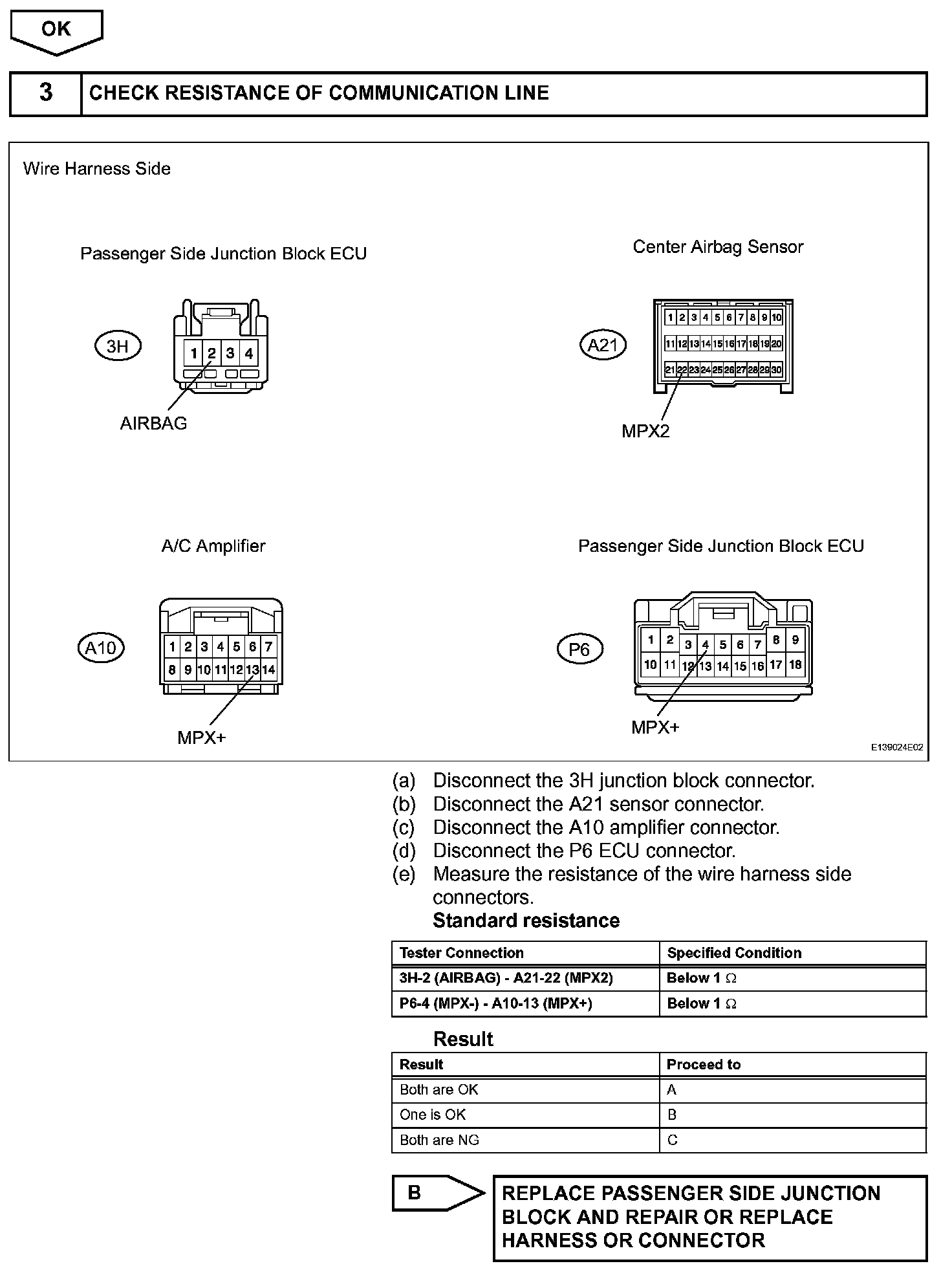

Step 2 (Continued)-3:

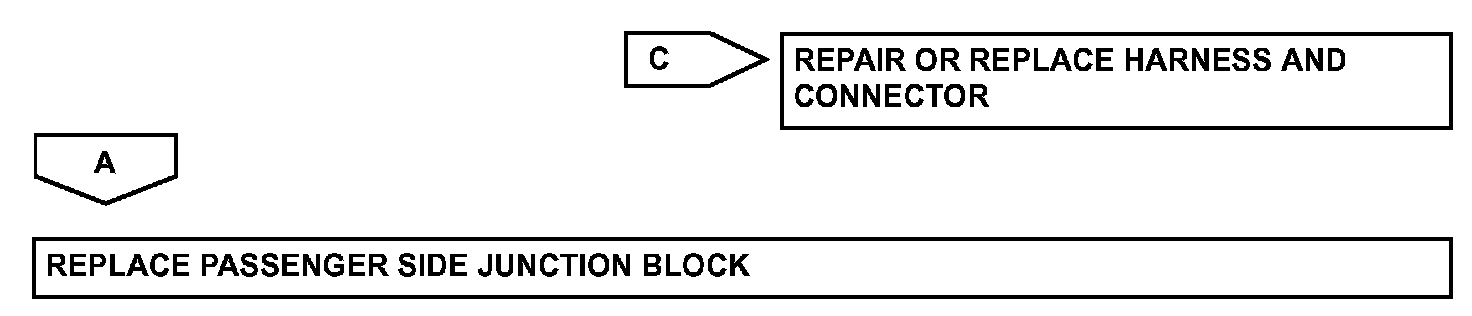

Step 3 (Continued):
