B1283

DTC B1283 Driver Side Junction Block ECU Communication Stop

DESCRIPTION

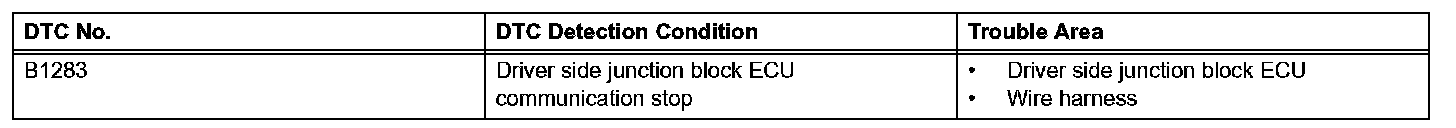

DTC Detection Condition:

This DTC is detected when communication between the driver side junction block ECU and network gateway ECU stops for more than 10 seconds.

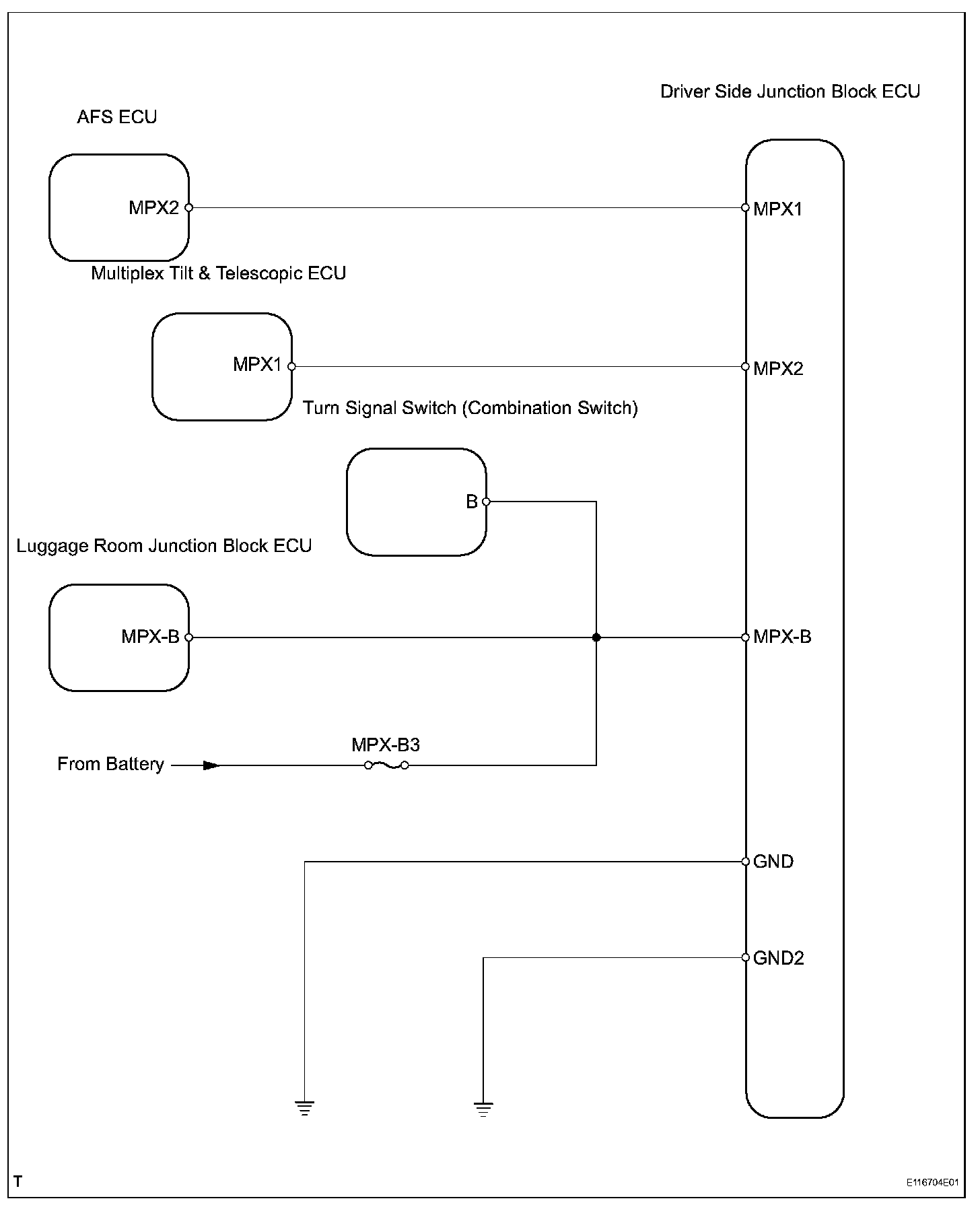

Wiring Diagram:

INSPECTION PROCEDURE

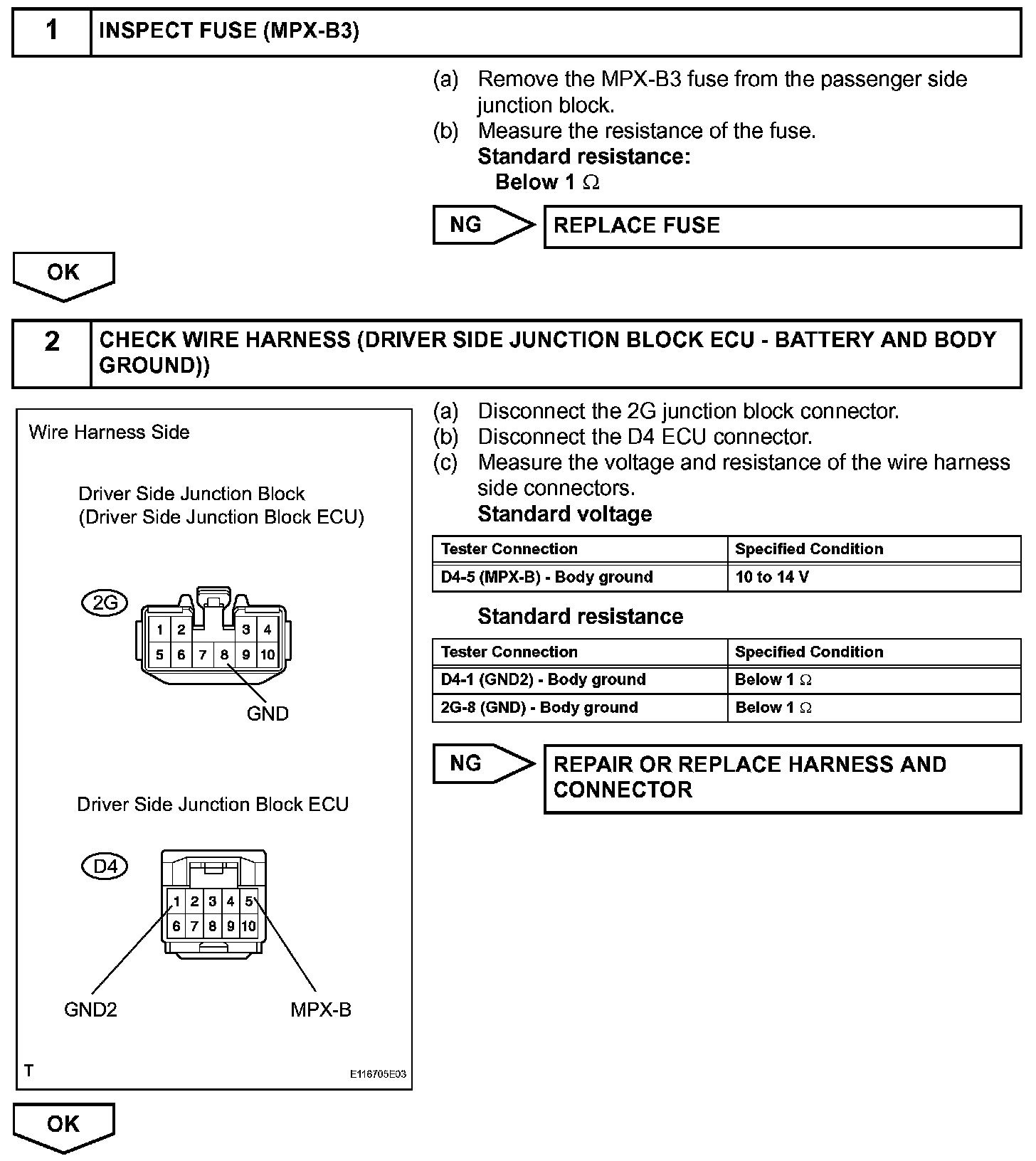

Step 1-2:

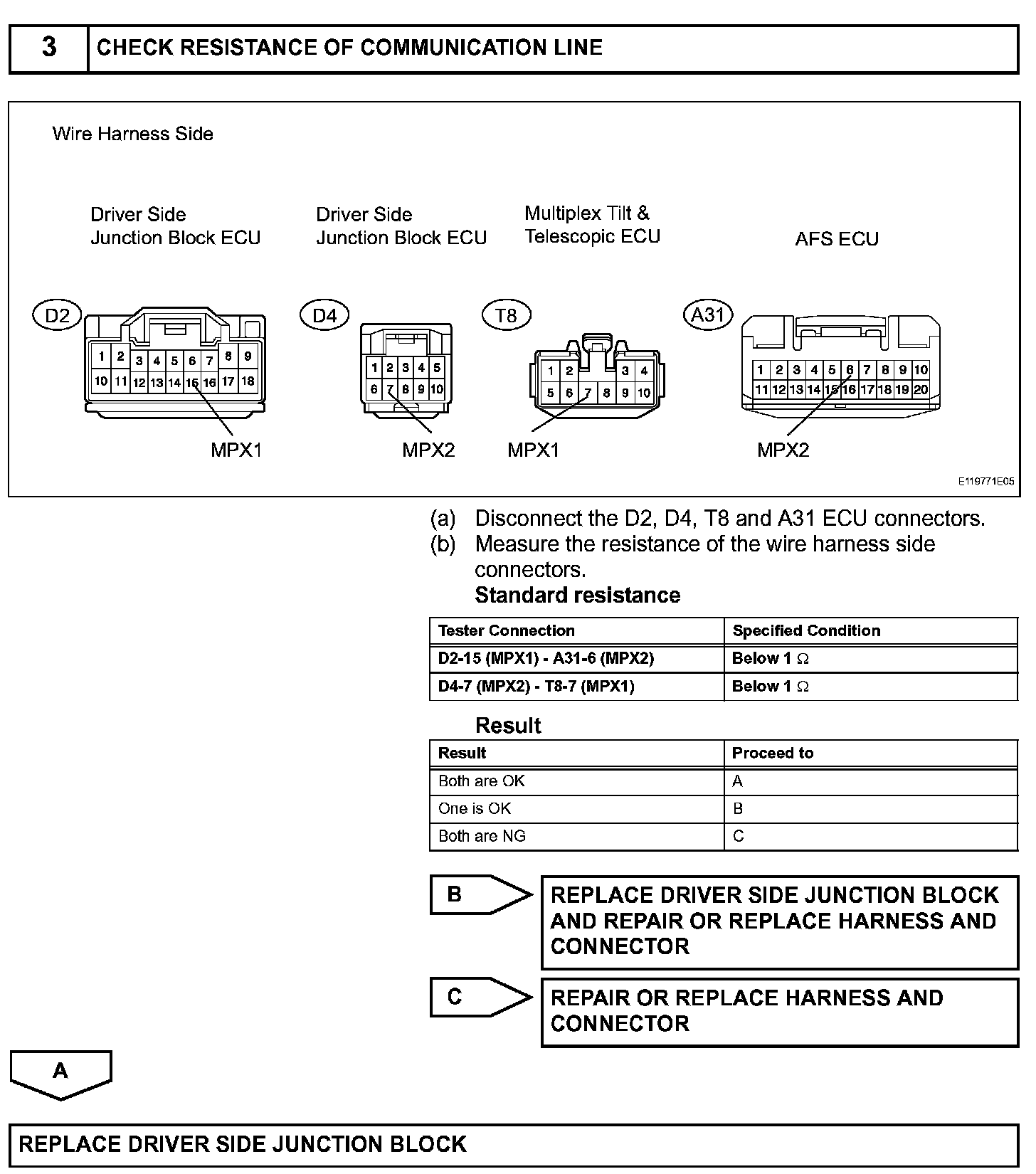

Step 3:
