B1282
DTC B1282 Skid Control ECU Communication StopDESCRIPTION

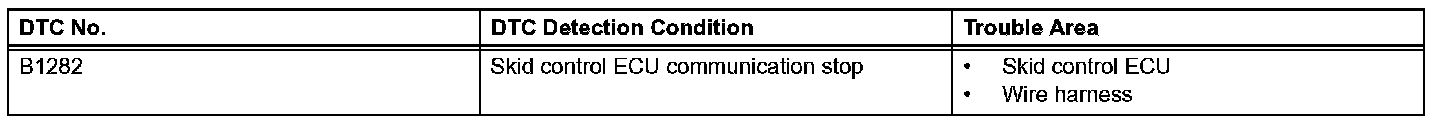

DTC Detection Condition:
This DTC is detected when communication between the skid control ECU and network gateway ECU stops for more than 10 seconds.

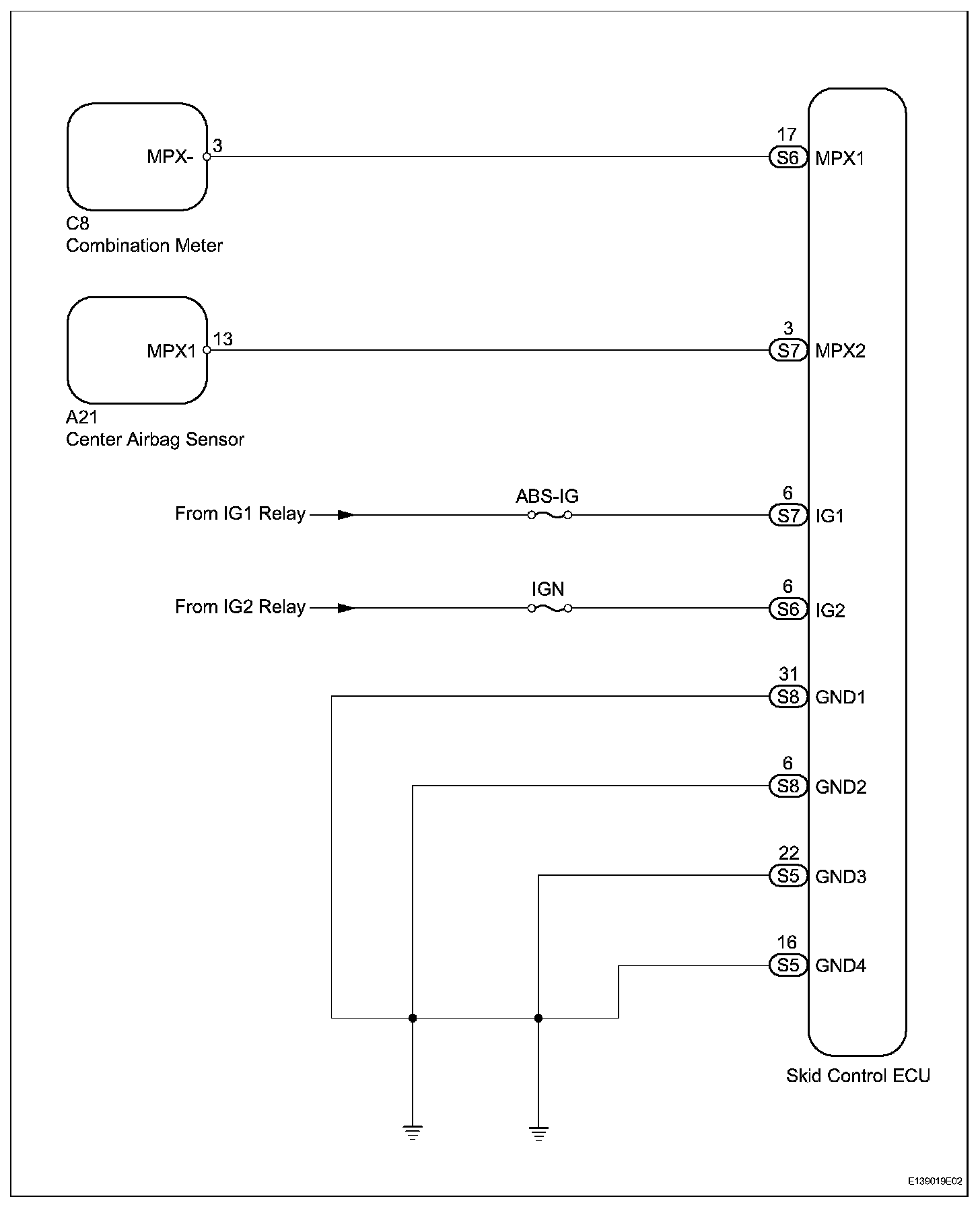

Wiring Diagram:
INSPECTION PROCEDURE

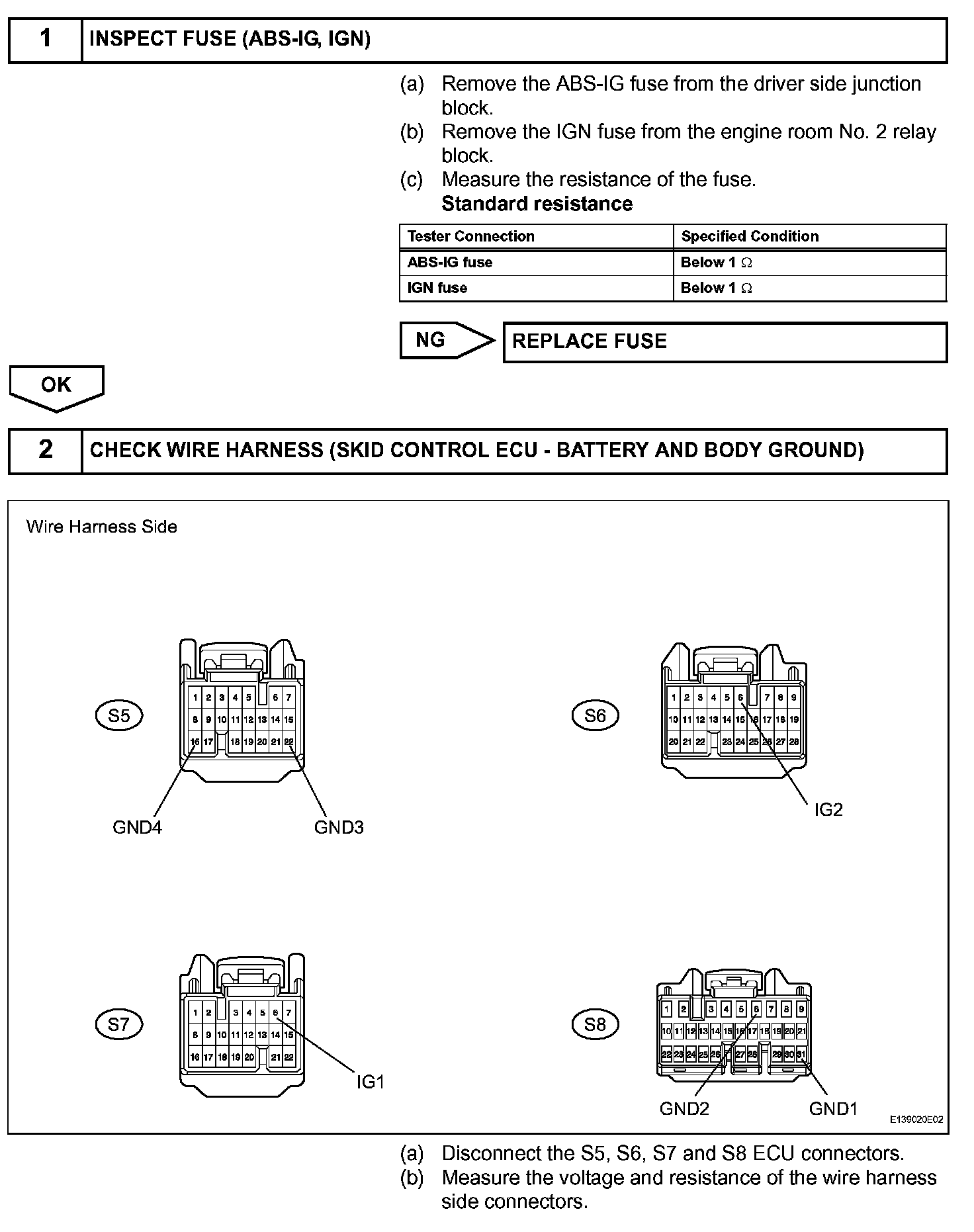

Step 1-2:

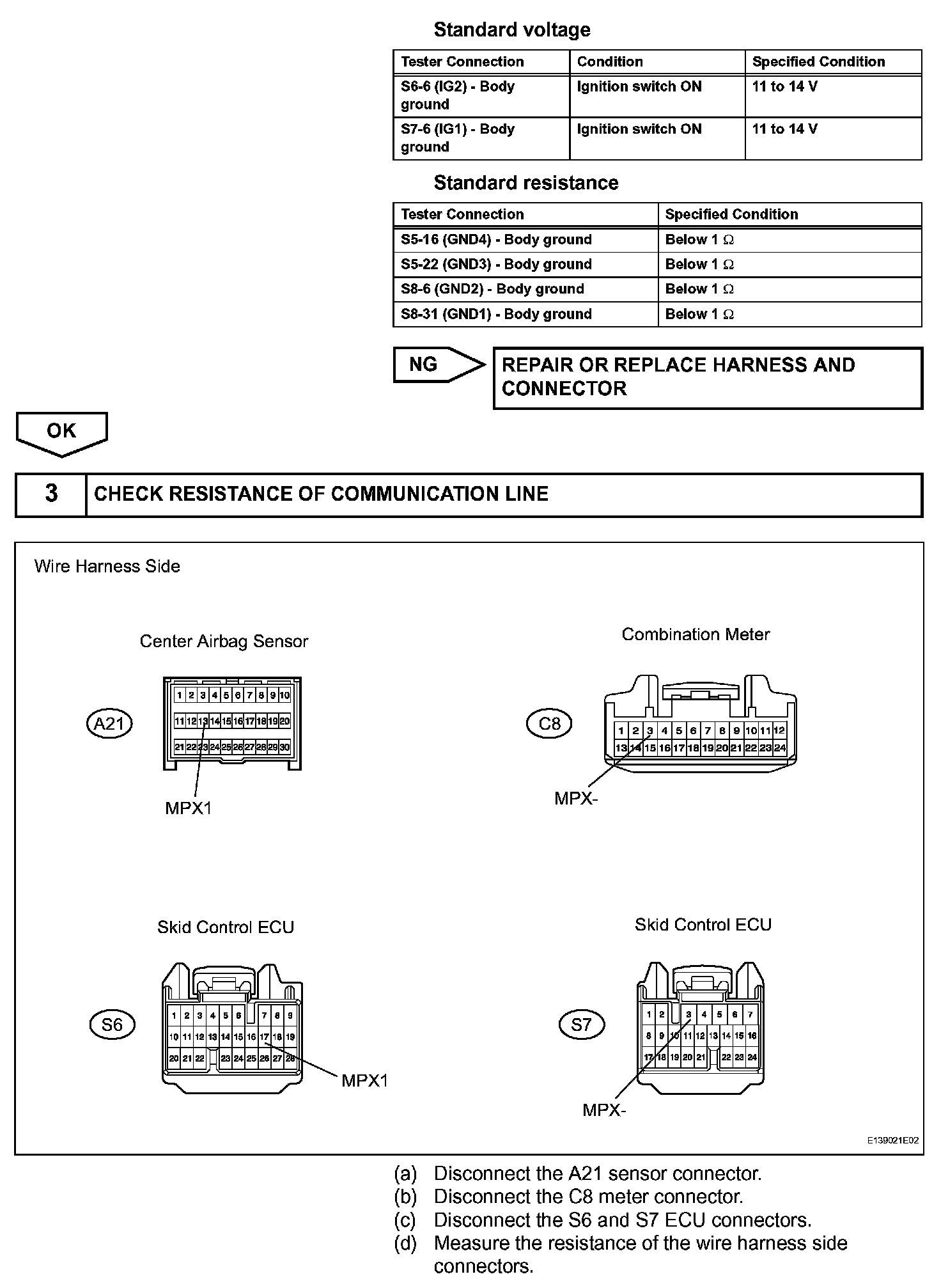

Step 2 (Continued)-3:

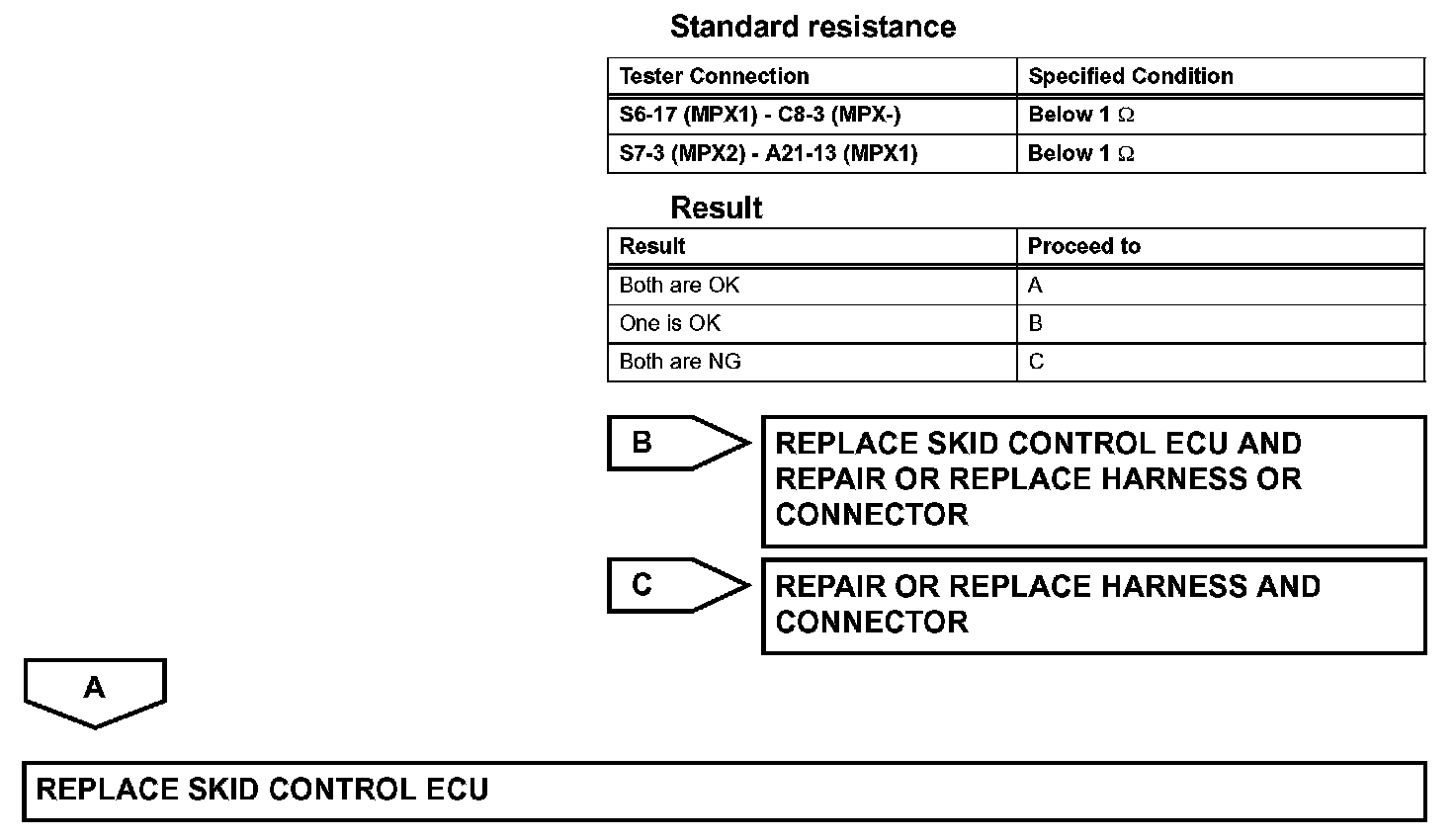

Step 3 (Continued):
