B1281
DTC B1281 Airbag ECU Communication StopDESCRIPTION

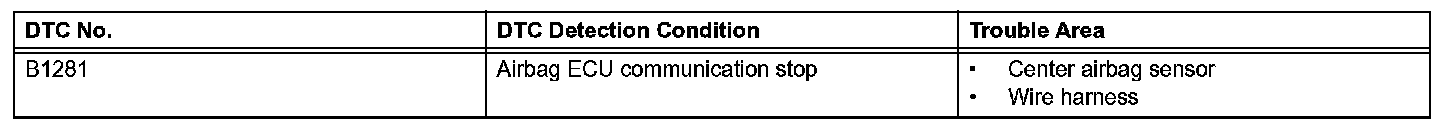

DTC Detection Condition:
This DTC is detected when communication between the center airbag sensor and network gateway ECU stops for more than 10 seconds.

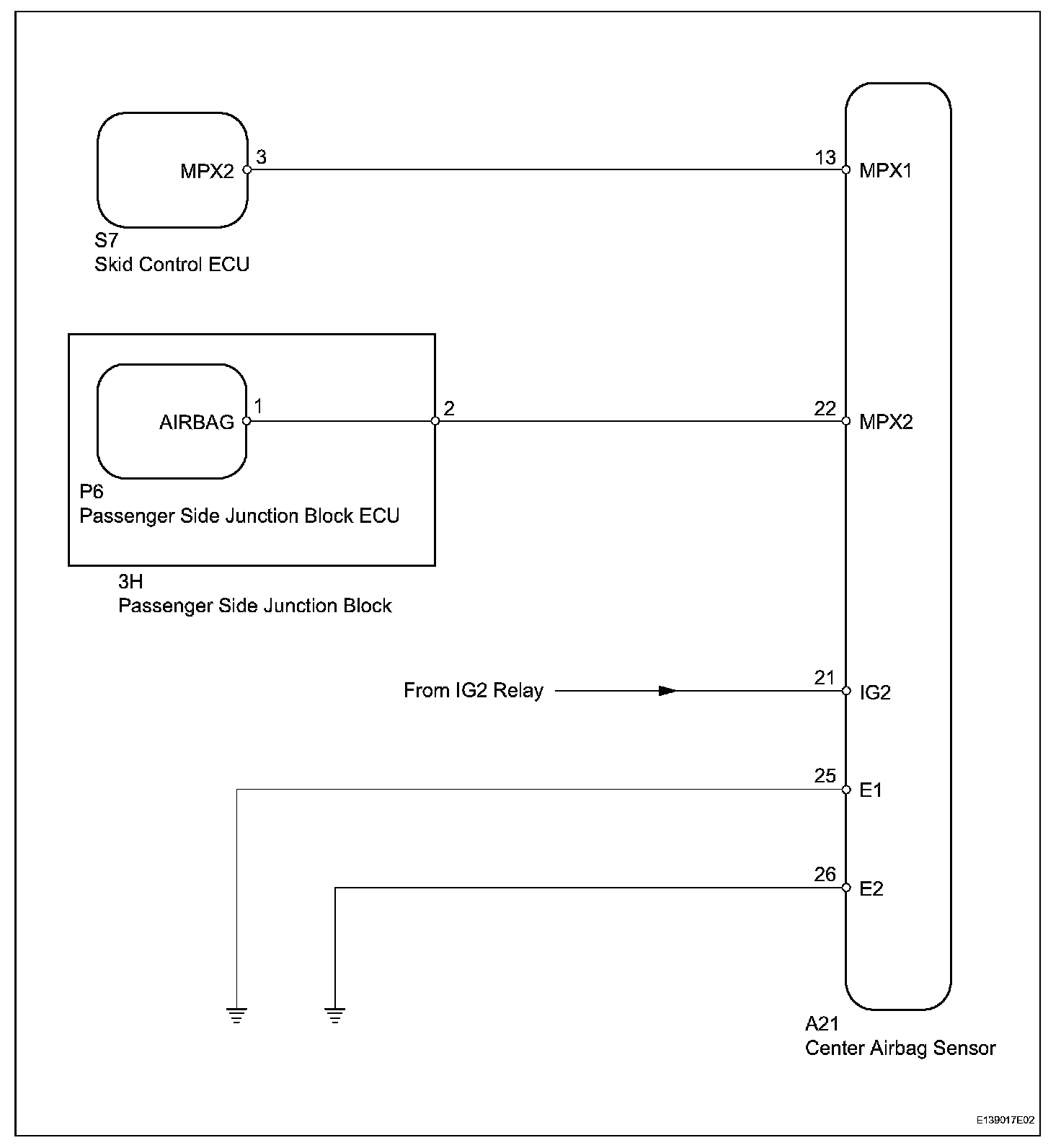

Wiring Diagram:
INSPECTION PROCEDURE

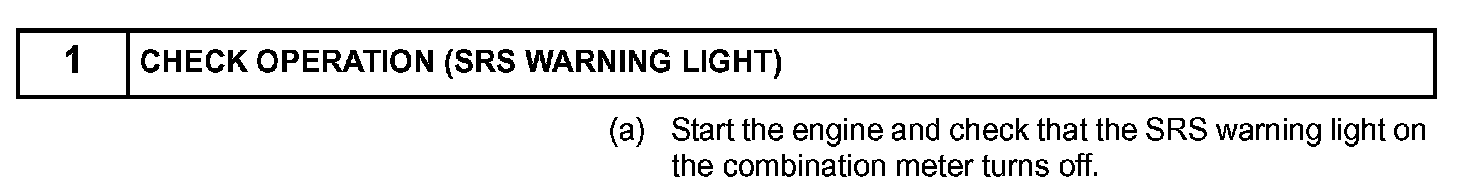

Step 1:

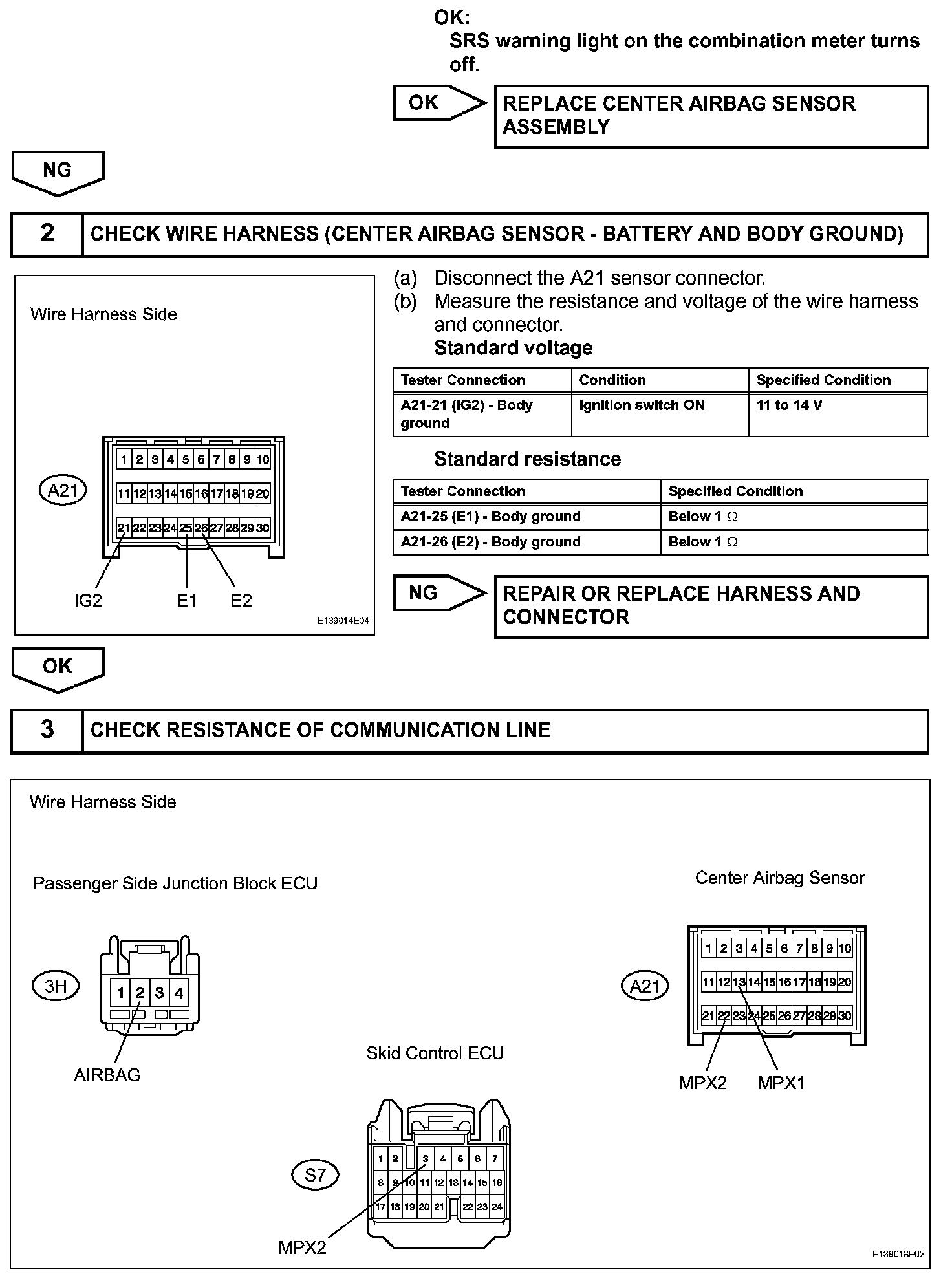

Step 1 (Continued)-3:

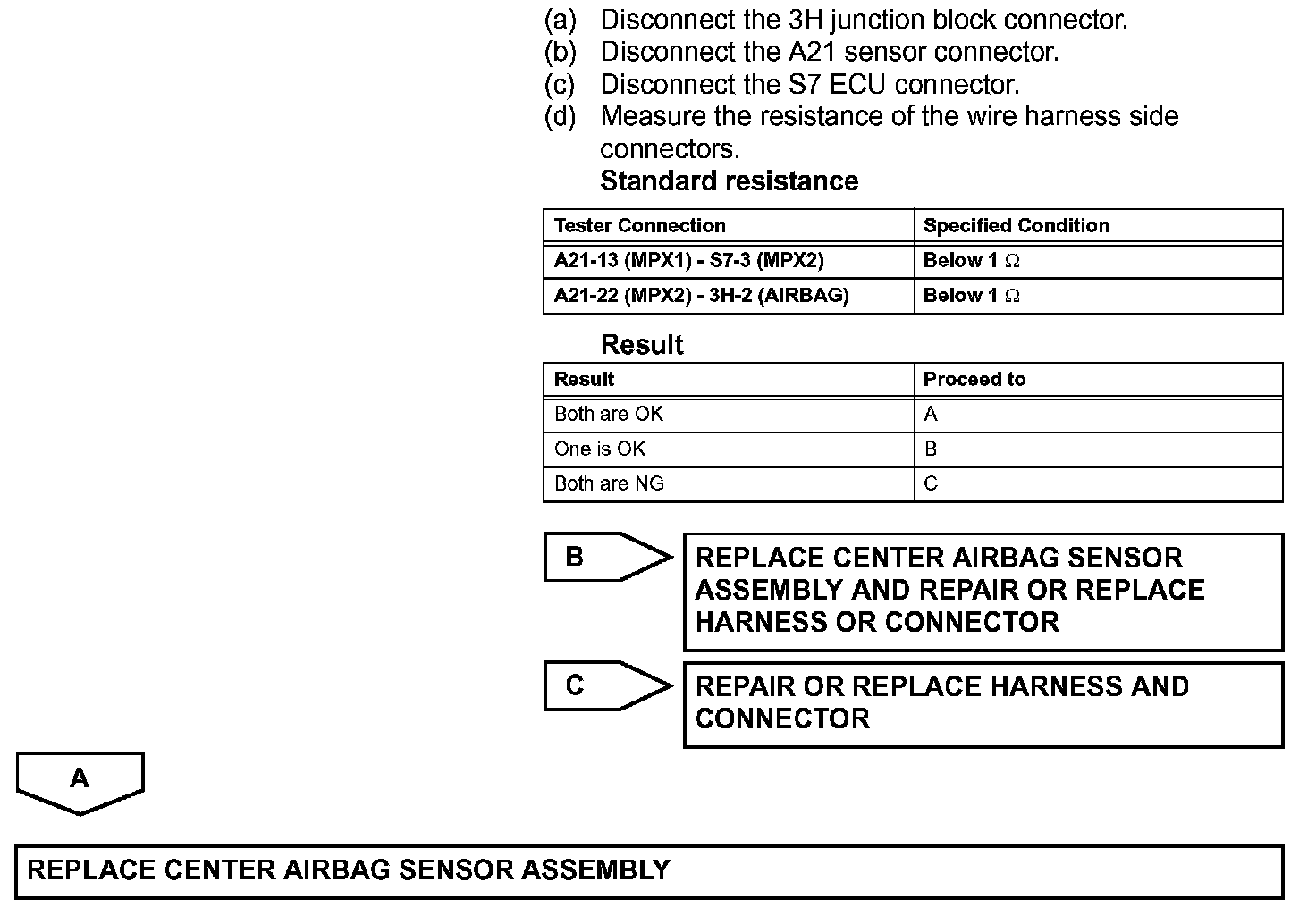

Step 3 (Continued):
