B1273

DTC B1273 Sliding Roof ECU Communication Stop

DESCRIPTION

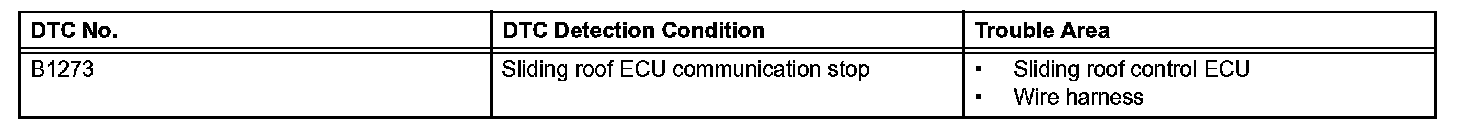

DTC Detection Condition:

This DTC is detected when communication between the sliding roof control ECU and network gateway ECU stops for more than 10 seconds.

Wiring Diagram:

INSPECTION PROCEDURE

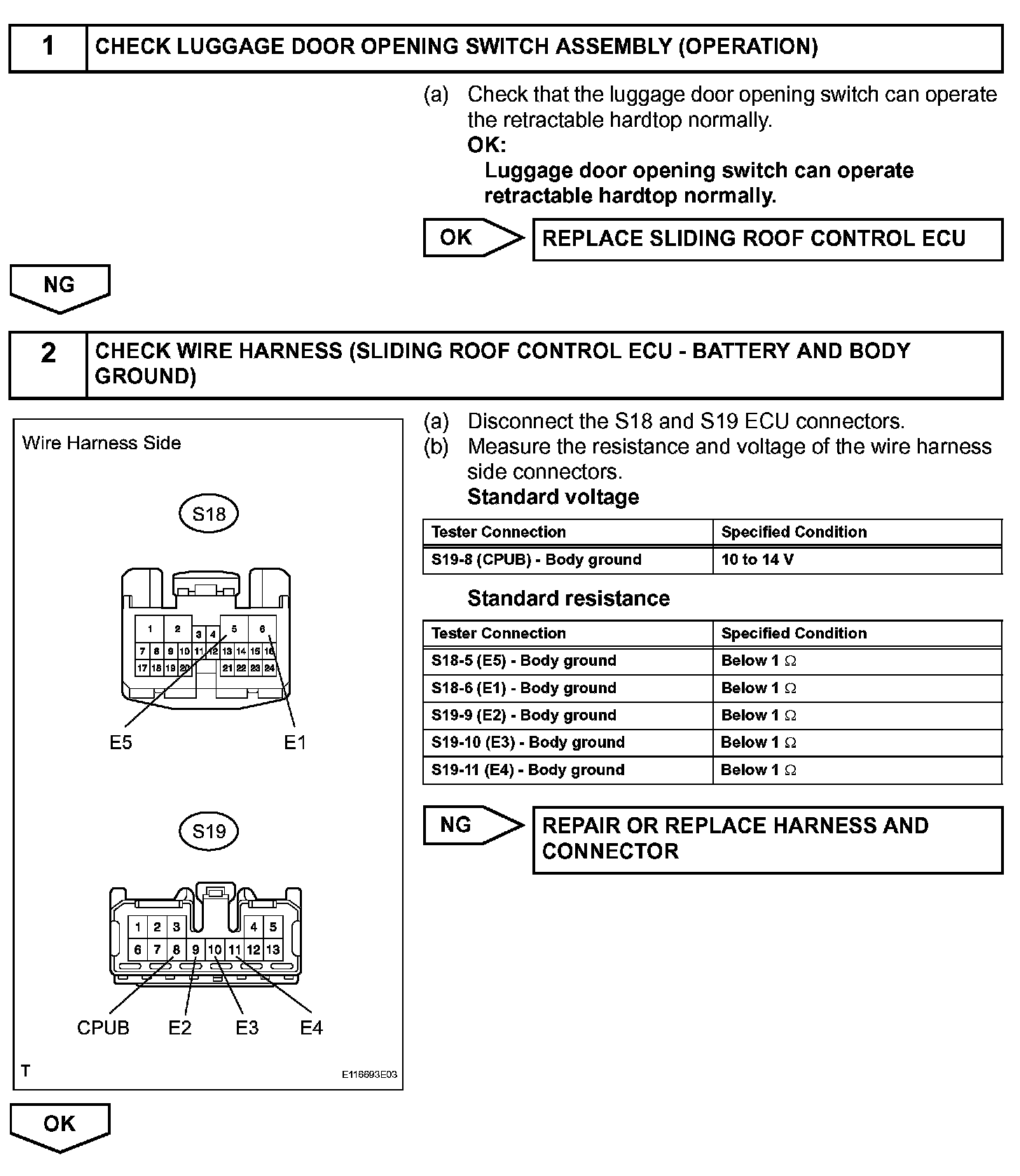

Step 1-2:

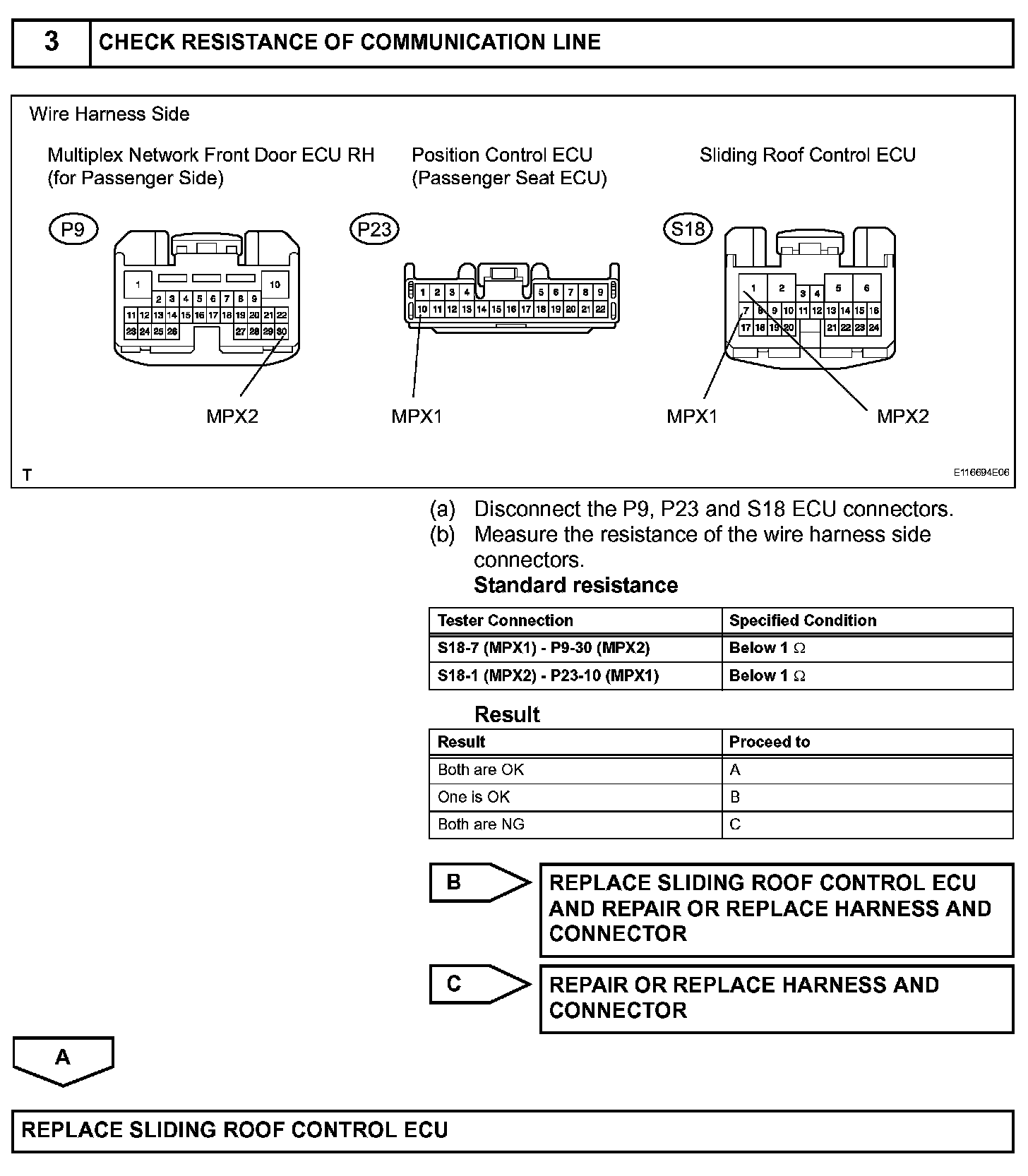

Step 3:
