B1271

DTC B1271 Combination Meter ECU Communication Stop

DESCRIPTION

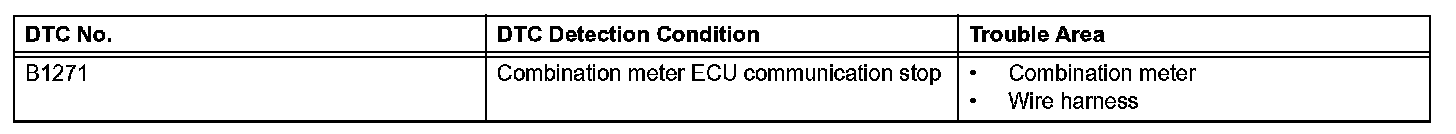

DTC Detection Condition:

This DTC is detected when communication between the combination meter and network gateway ECU stops for more than 10 seconds.

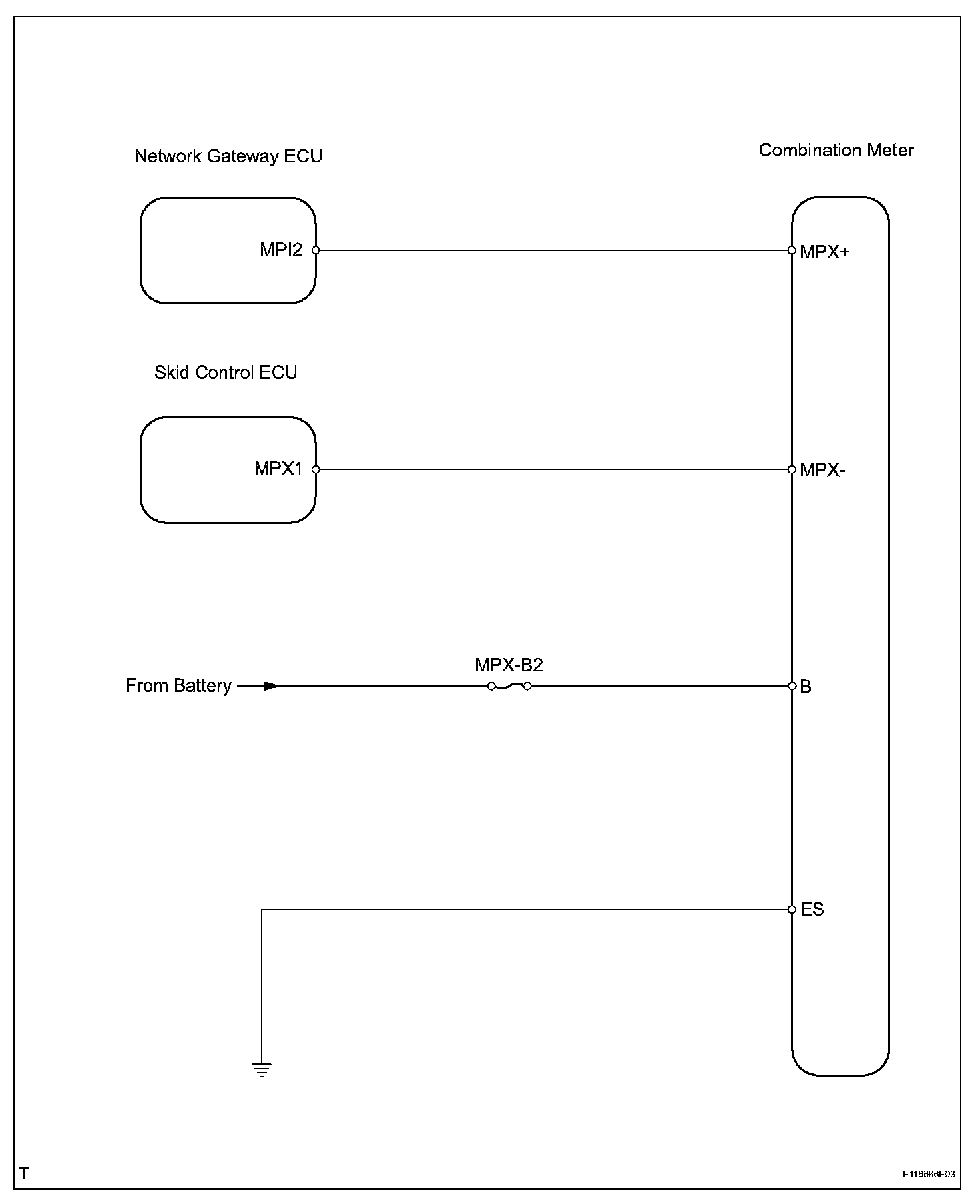

Wiring Diagram:

INSPECTION PROCEDURE

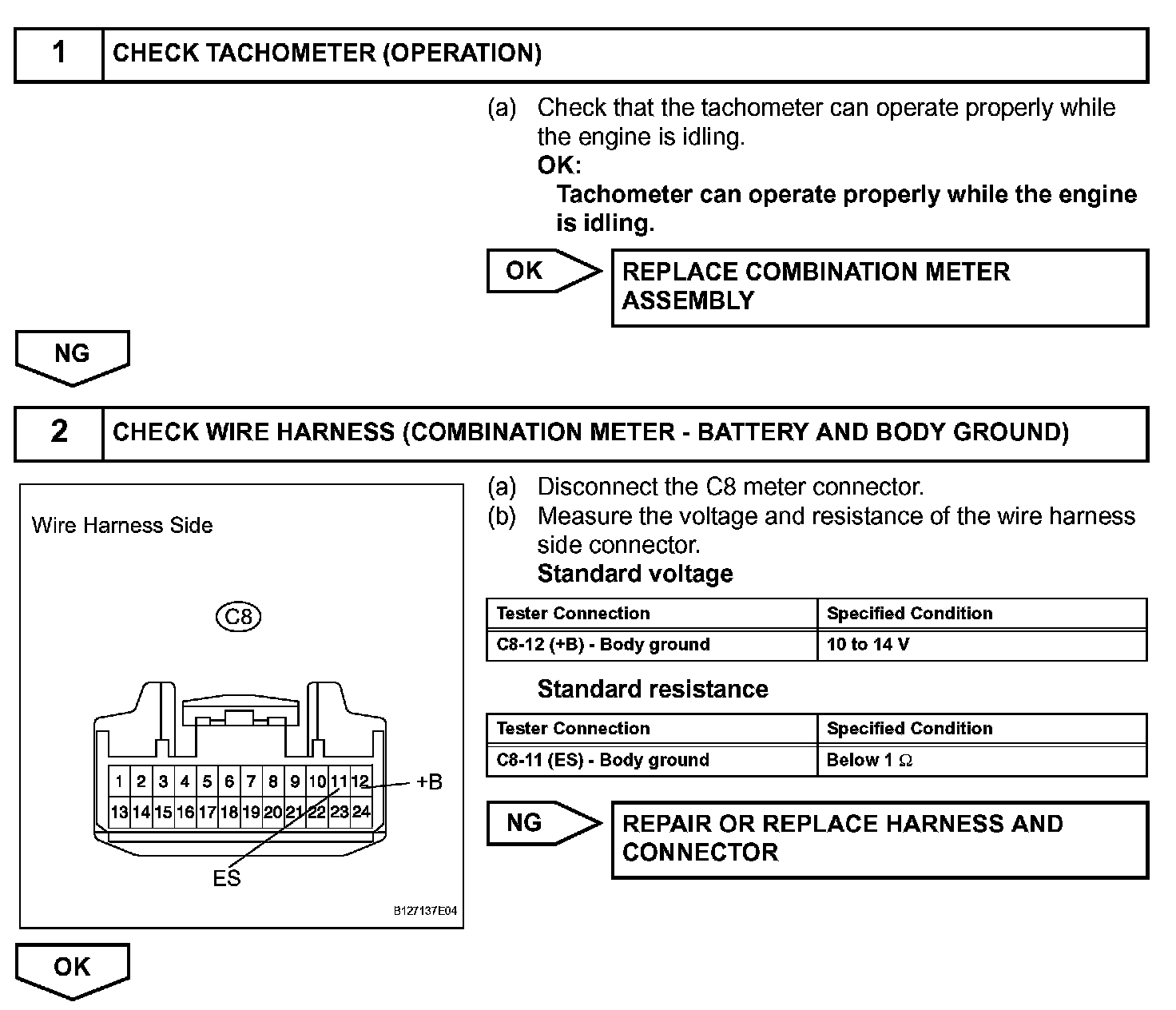

Step 1-2:

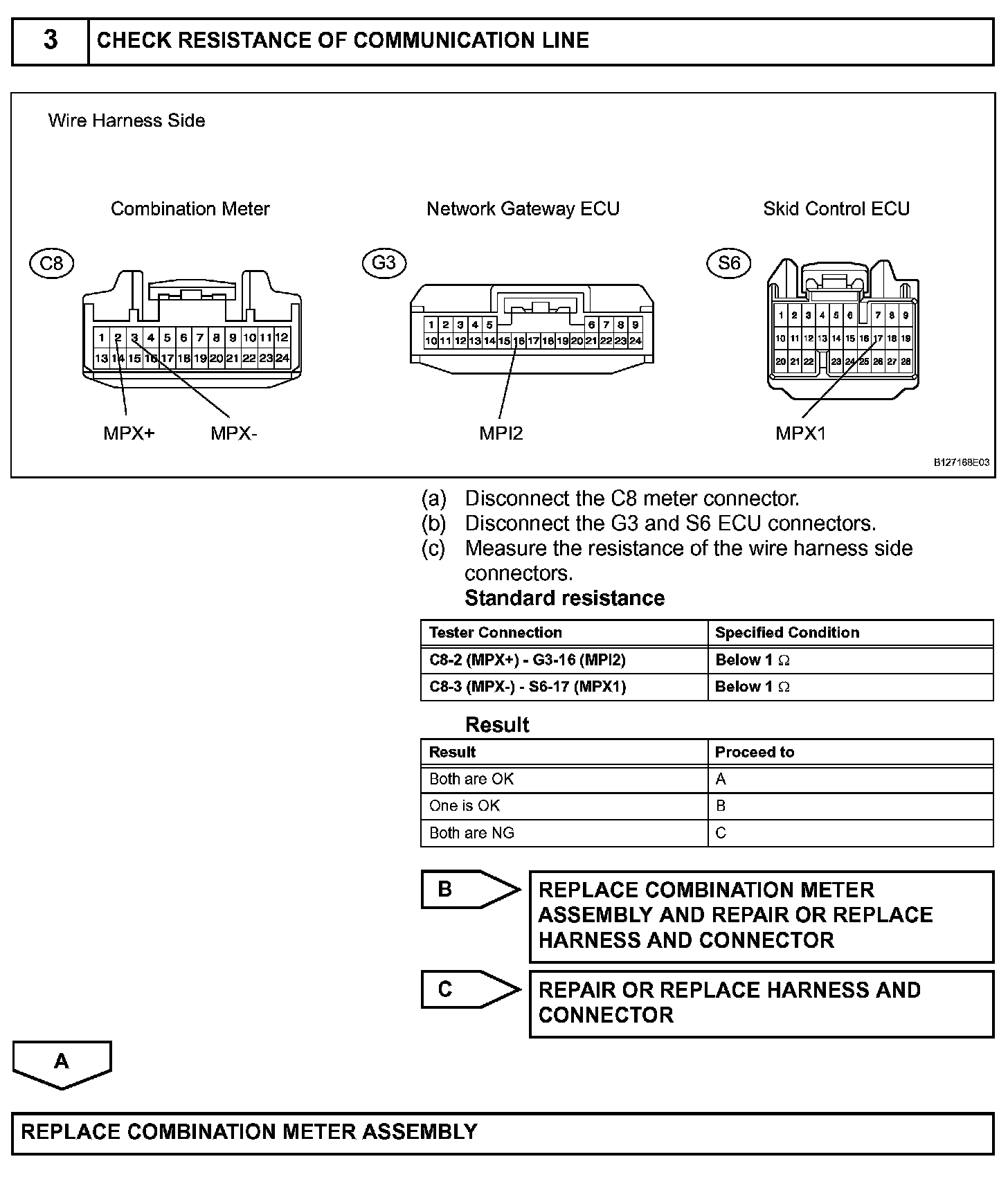

Step 3:
