B1269
DTC B1269 Theft Deterrent ECU Communication StopDESCRIPTION

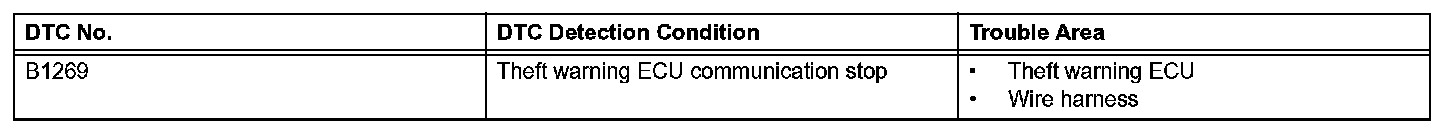

DTC Detection Condition:
This DTC is detected when communication between the theft warning ECU and network gateway ECU stops for more than 10 seconds.

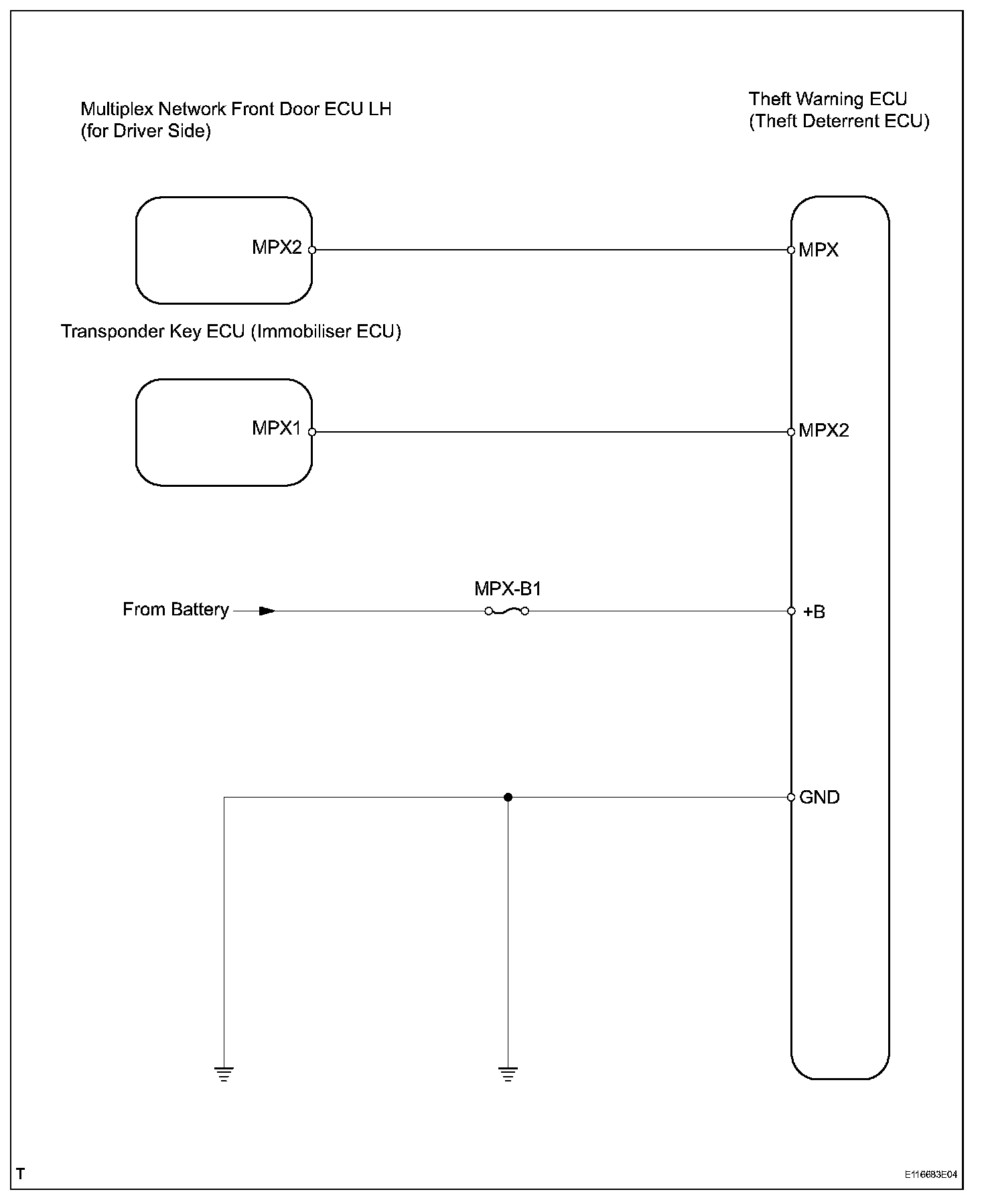

Wiring Diagram:
INSPECTION PROCEDURE

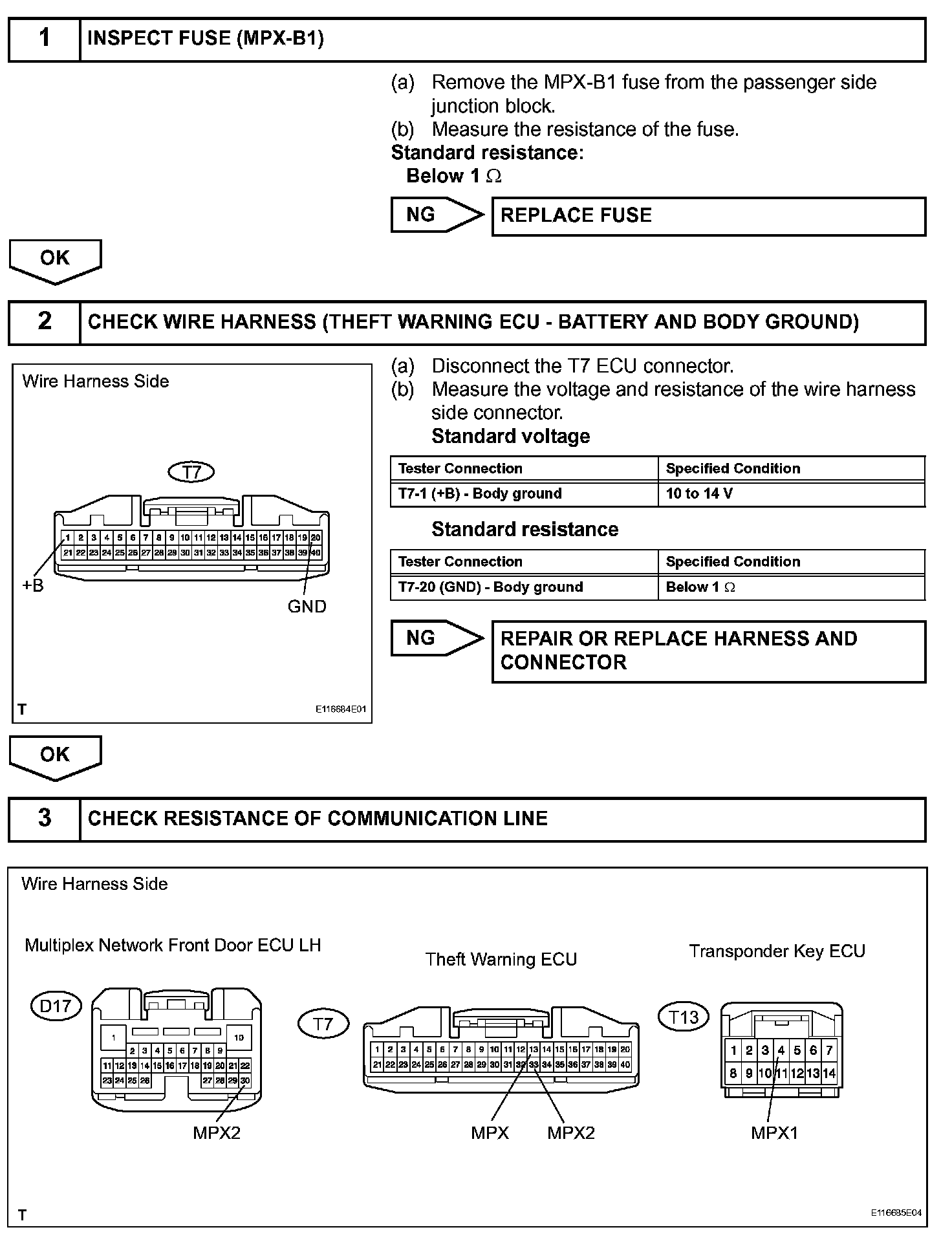

Step 1-3:

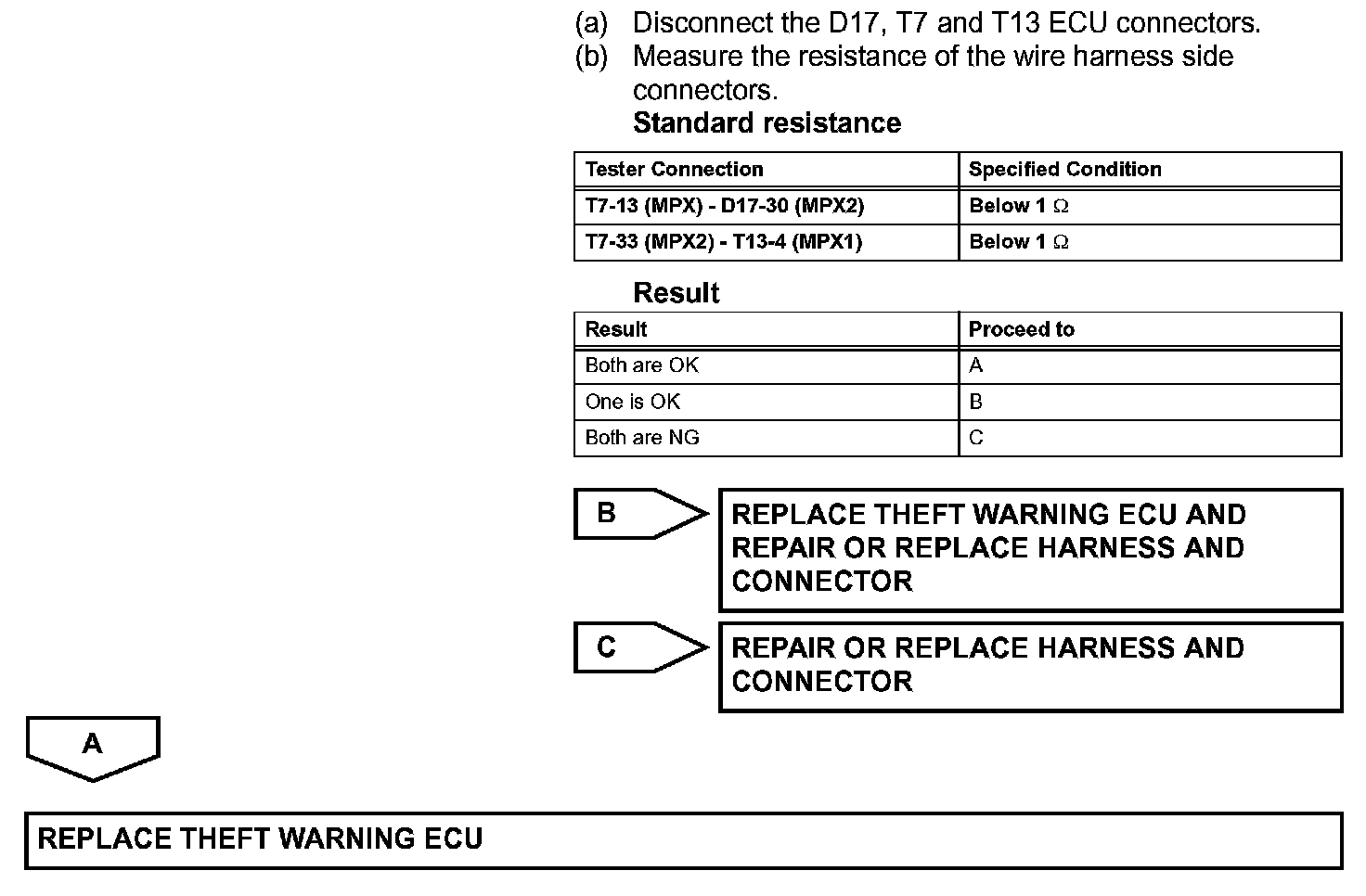

Step 3 (Continued):
