B1268

DTC B1268 Back-up Communication Bus Malfunction

DESCRIPTION

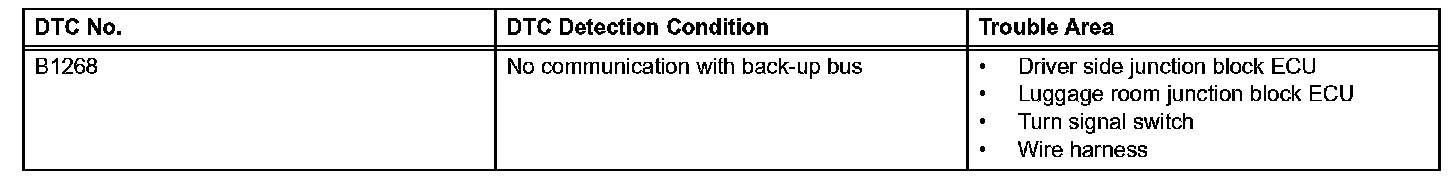

DTC Detection Condition:

This DTC is output when a B+ or GND short occurs on the back-up communication bus (BU+, BU-).

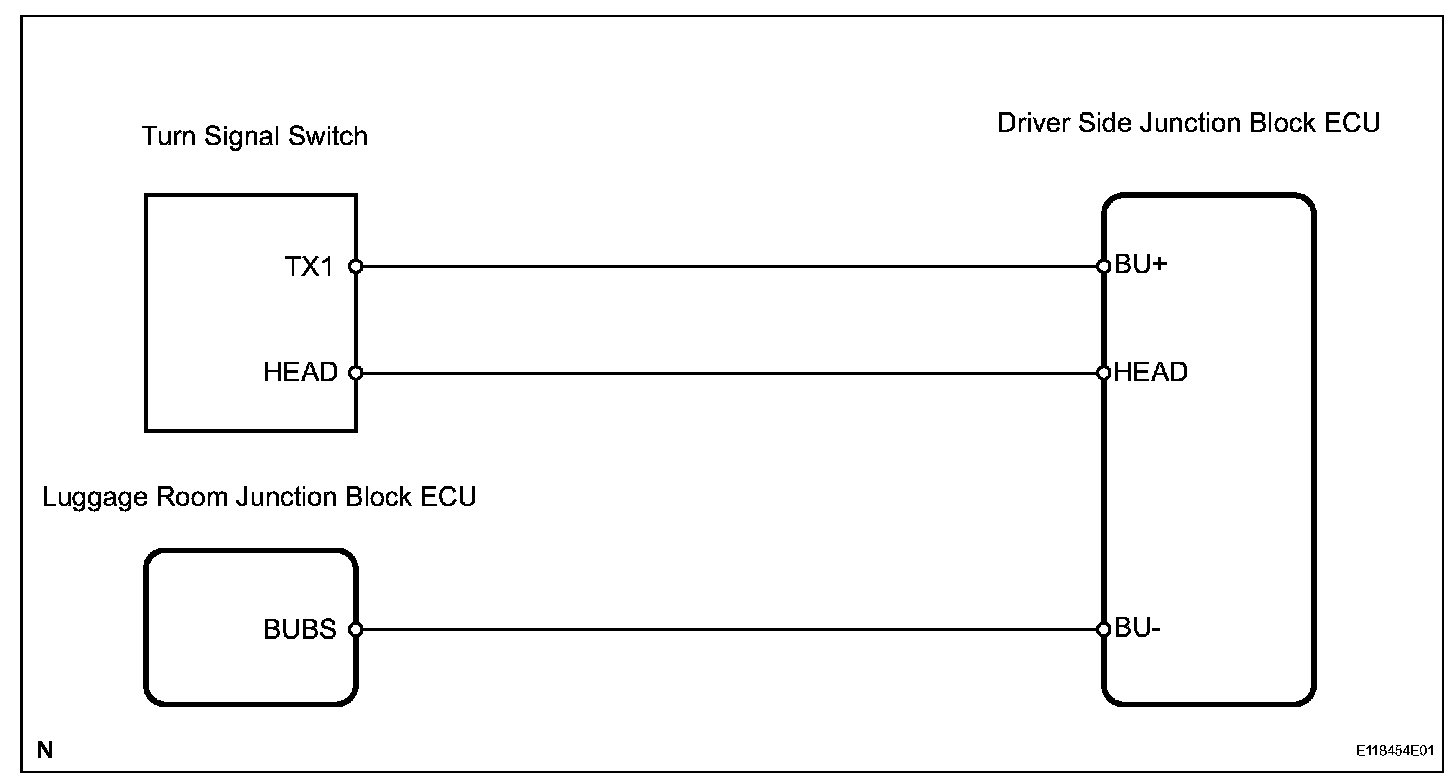

Wiring Diagram:

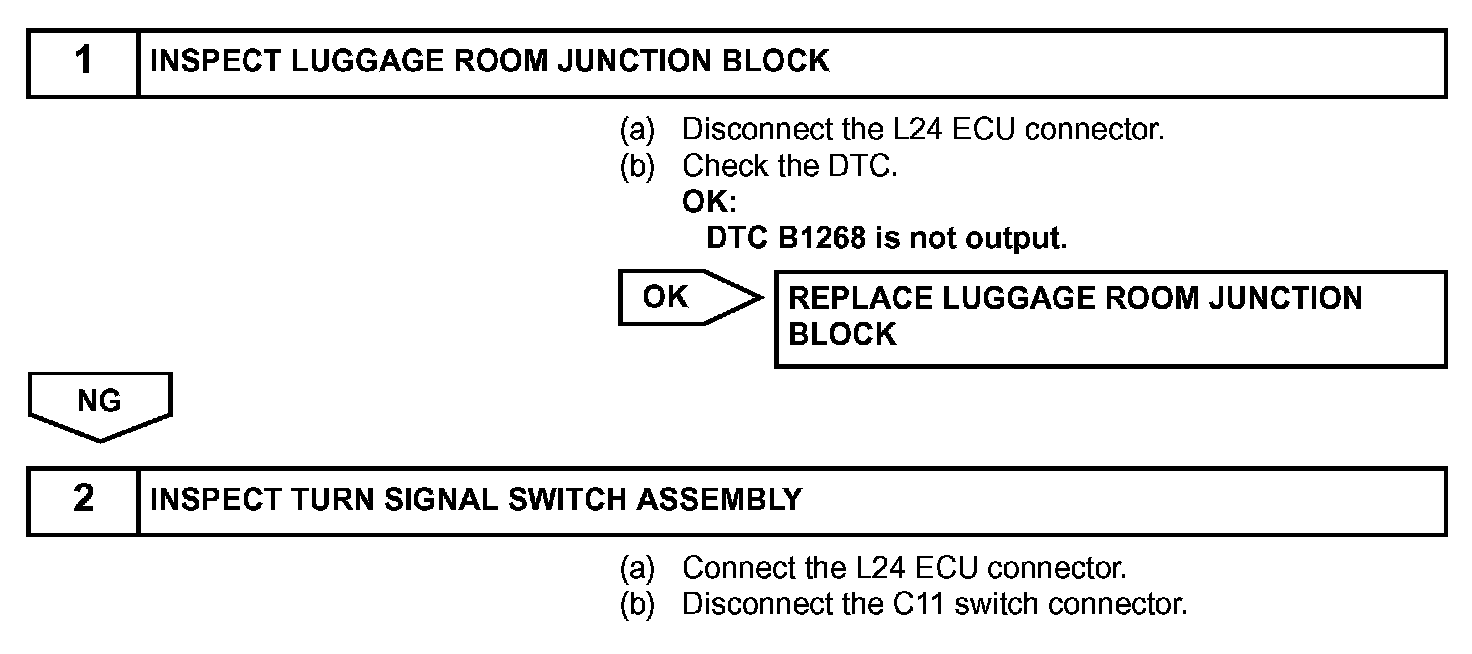

Step 1-2:

Step 2 (Continued)-3:

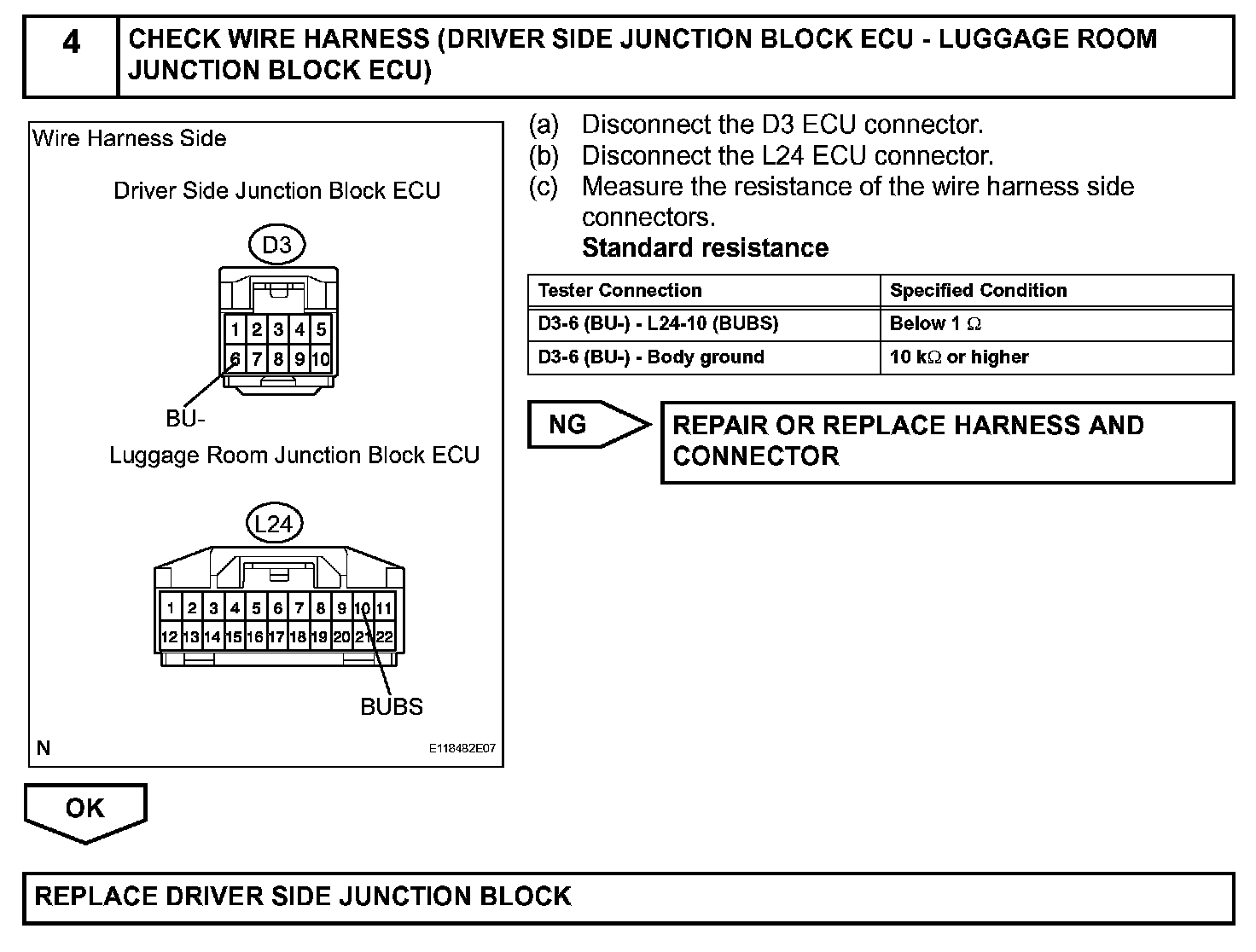

Step 4:

INSPECTION PROCEDURE
