B1263

DTC B1263 Luggage Room Junction Block ECU Communication Stop

DESCRIPTION

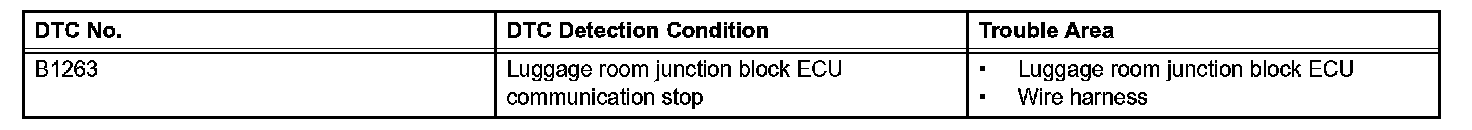

DTC Detection Condition:




B1263 will be output when the communication between the luggage room junction block ECU and network gateway ECU stops for more than 10 seconds.

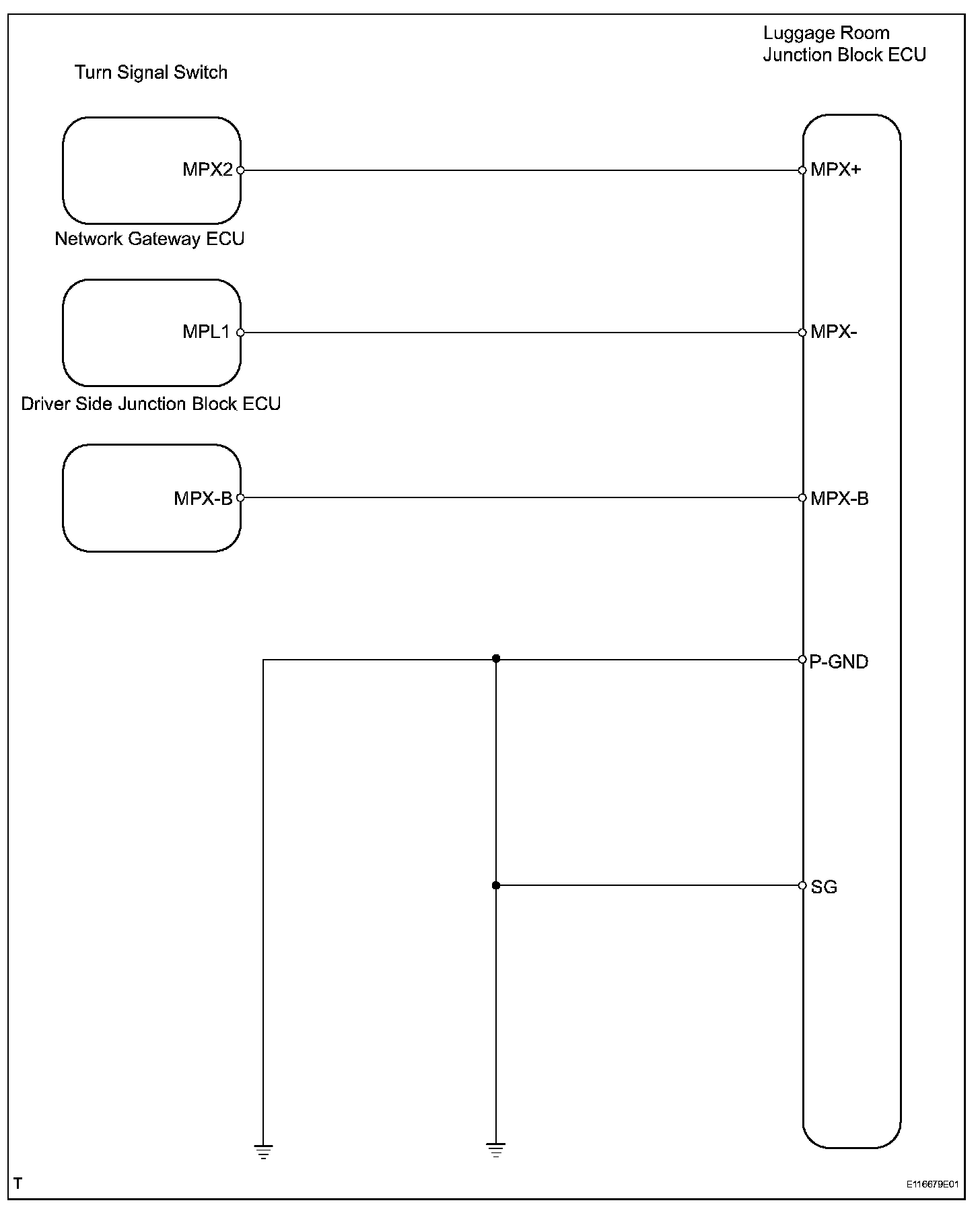

Wiring Diagram:





INSPECTION PROCEDURE

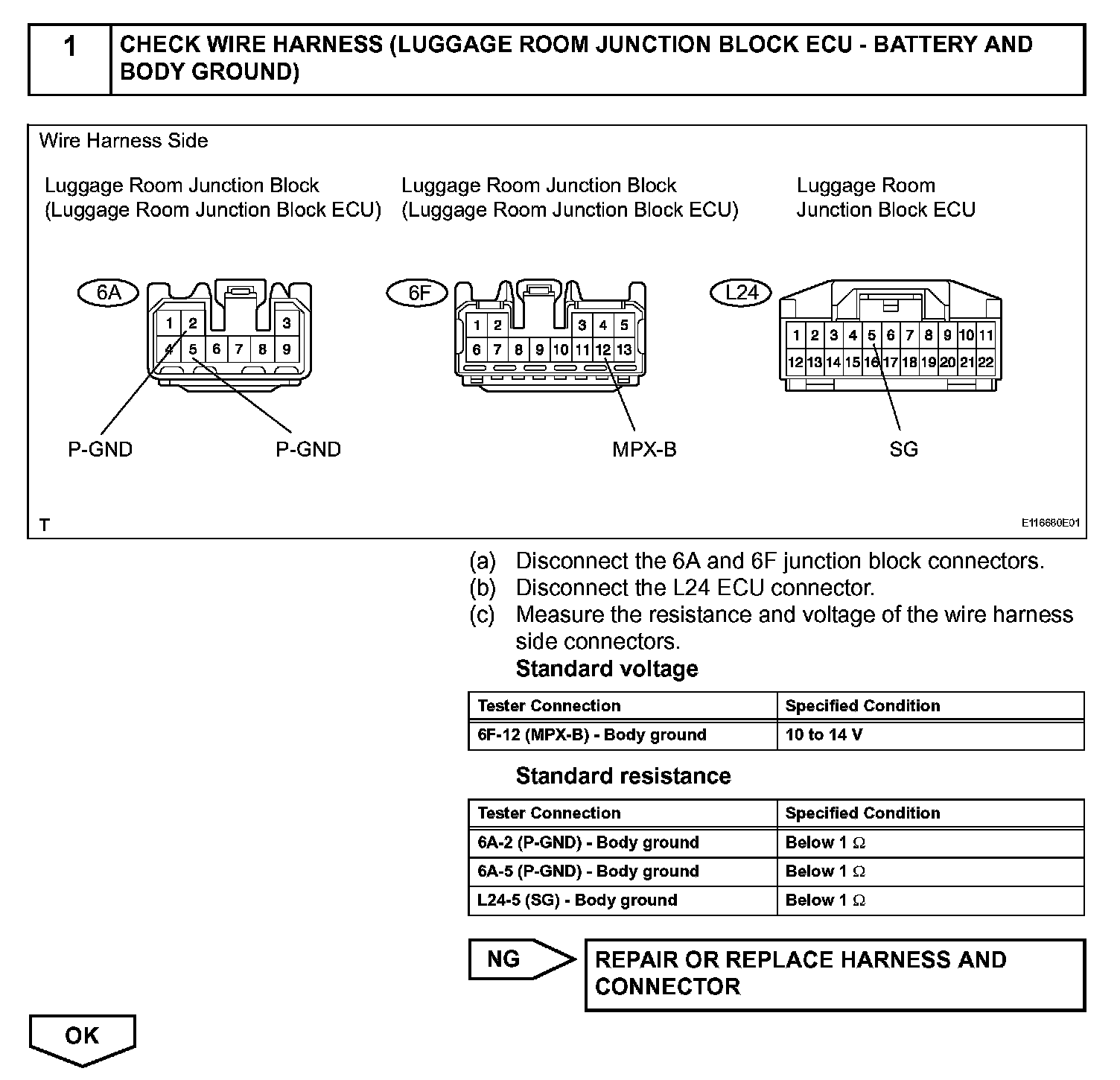

Step 1:

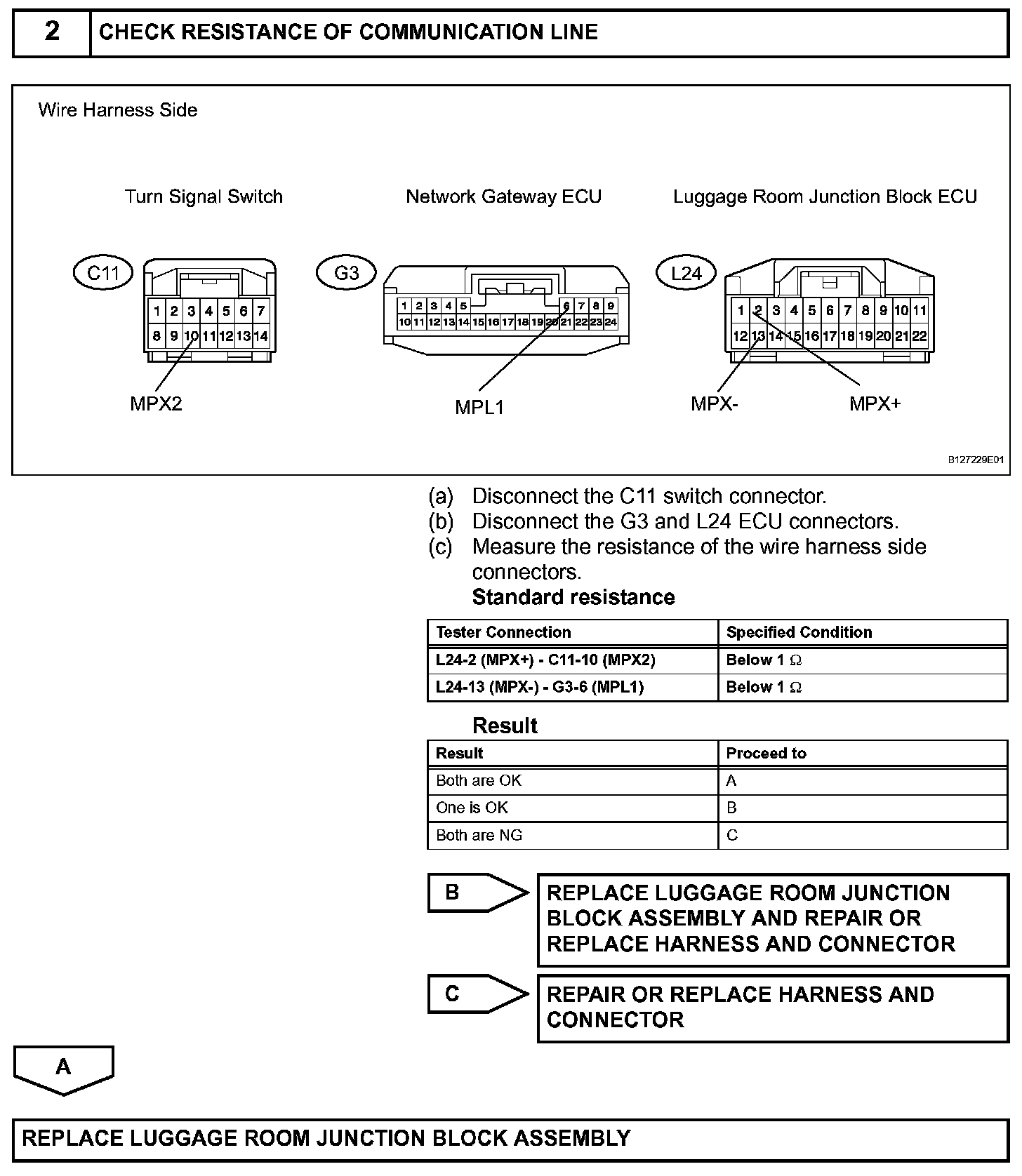

Step 2:
