B1262

DTC B1262 A/C ECU Communication Stop

DESCRIPTION

DTC Detection Condition:

This DTC is detected when communication between the A/C amplifier and network gateway ECU stops for more than 10 seconds.

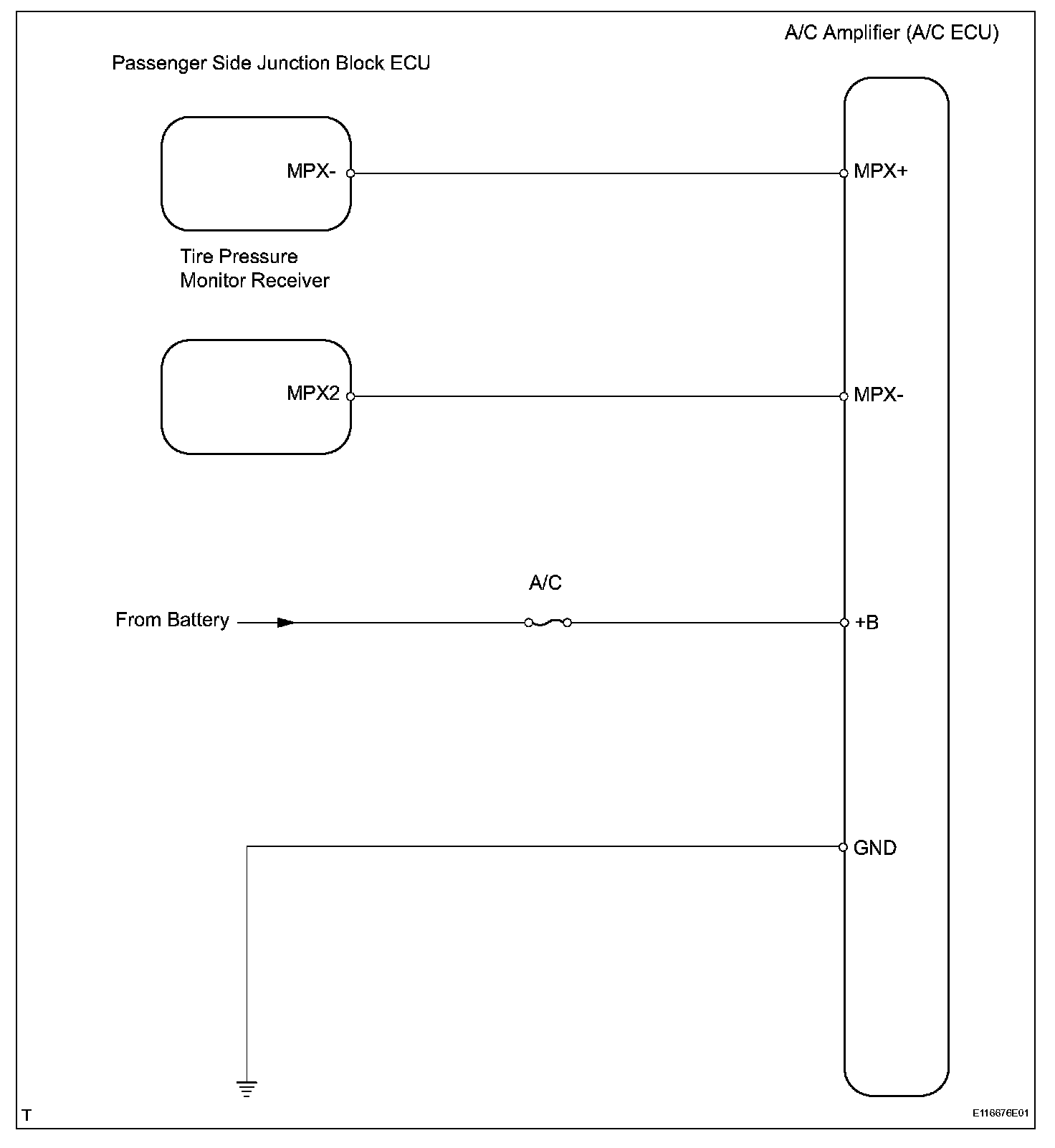

Wiring Diagram:

INSPECTION PROCEDURE

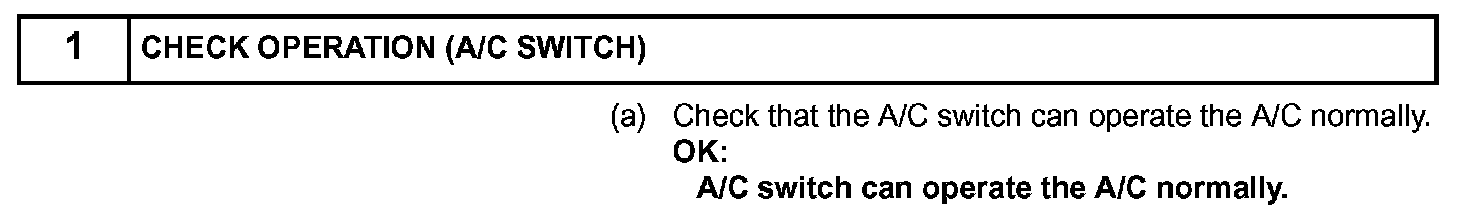

Step 1:

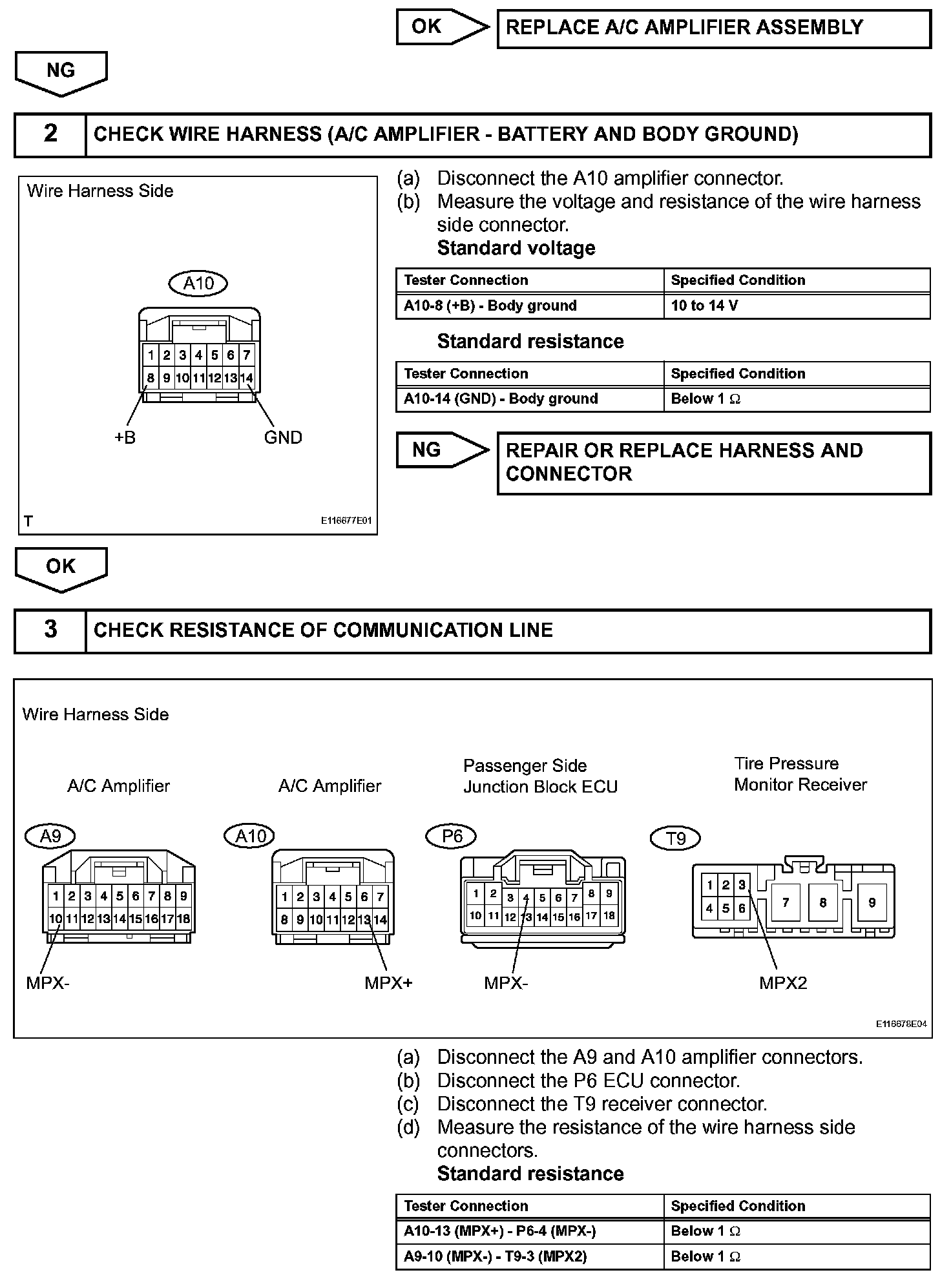

Step 1 (Continued)-3:

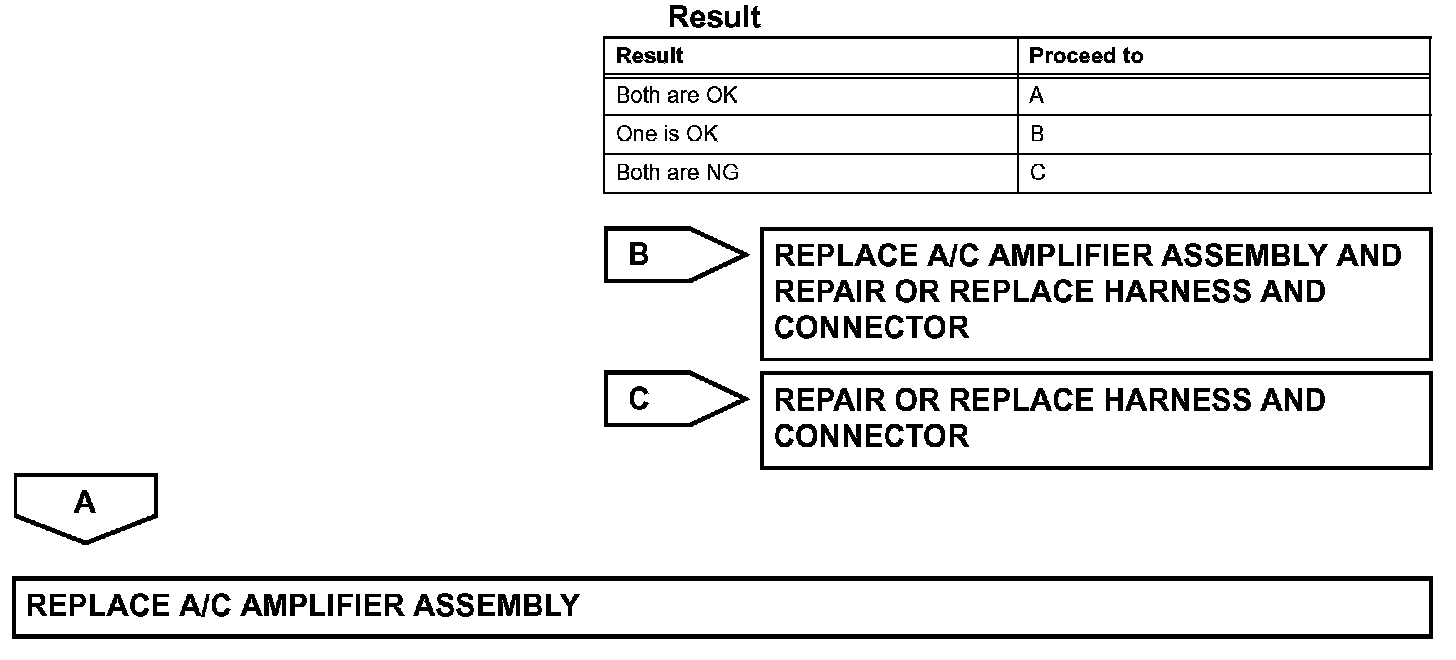

Step 3 (Continued):
