B1248

DTC B1248 AVC-LAN Communication Impossible

DESCRIPTION

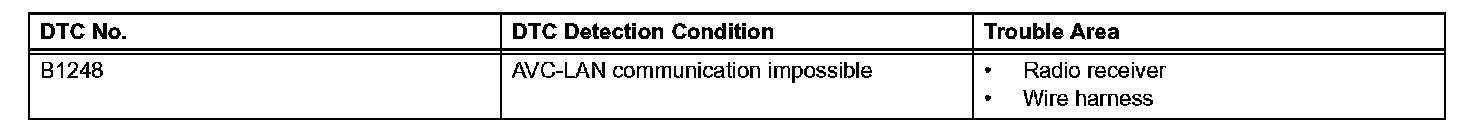

DTC Detection Condition:

This DTC is detected when communication is impossible between the radio receiver assembly and network gateway ECU.

Wiring Diagram:

INSPECTION PROCEDURE

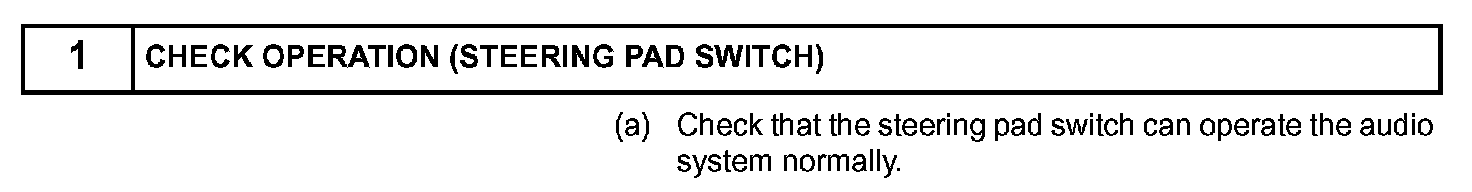

Step 1:

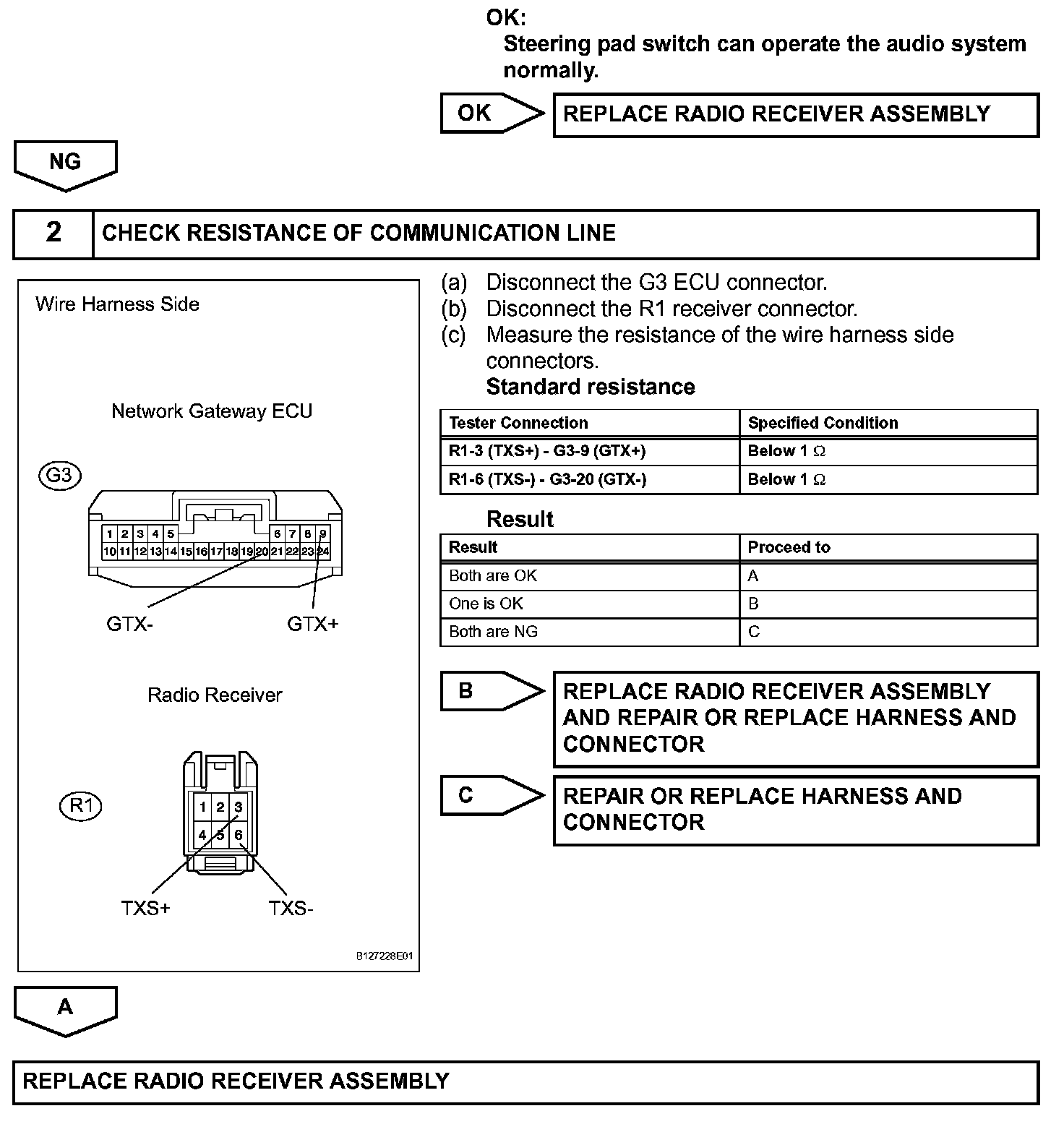

Step 1 (Continued)-2:
