B1247
DTC B1247 Tire Pressure Monitor Receiver Communication StopDESCRIPTION

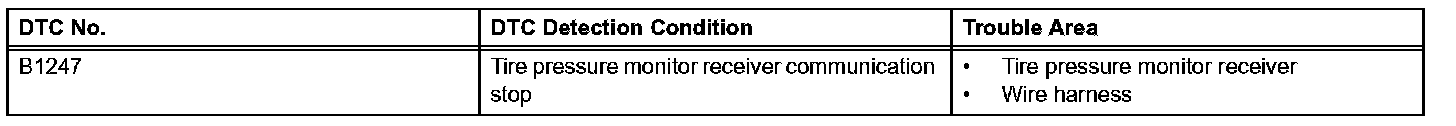

DTC Detection Condition:
This DTC is detected when communication between the tire pressure monitor receiver and network gateway ECU stops for more than 10 seconds.

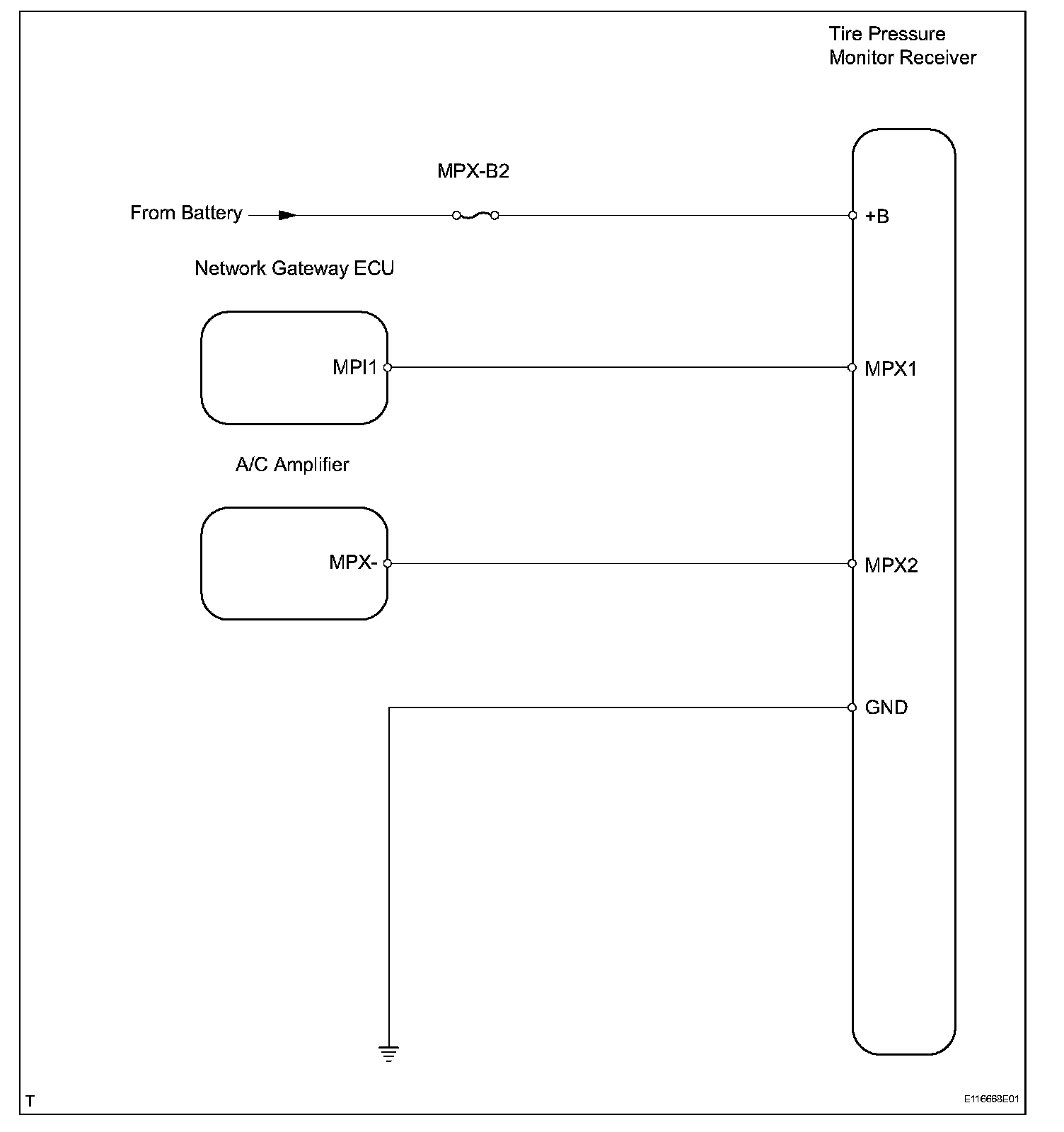

Wiring Diagram:
INSPECTION PROCEDURE

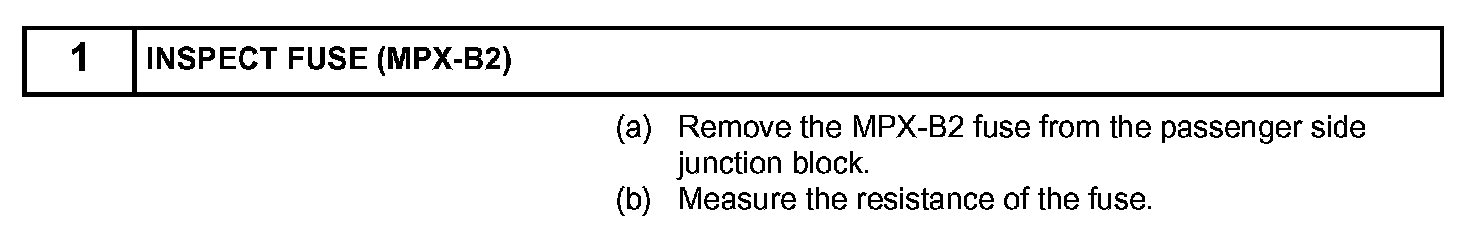

Step 1:

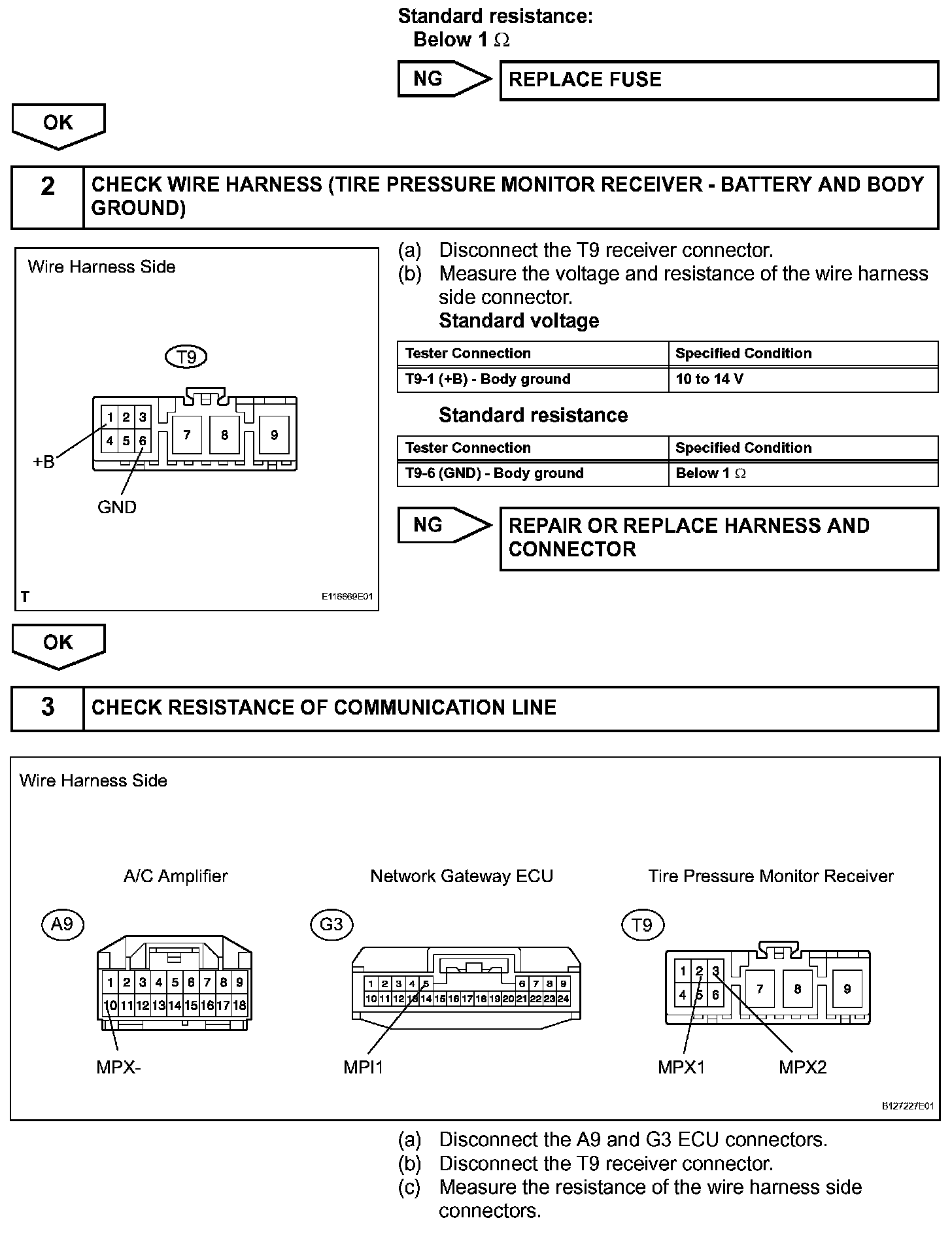

Step 1 (Continued)-3:

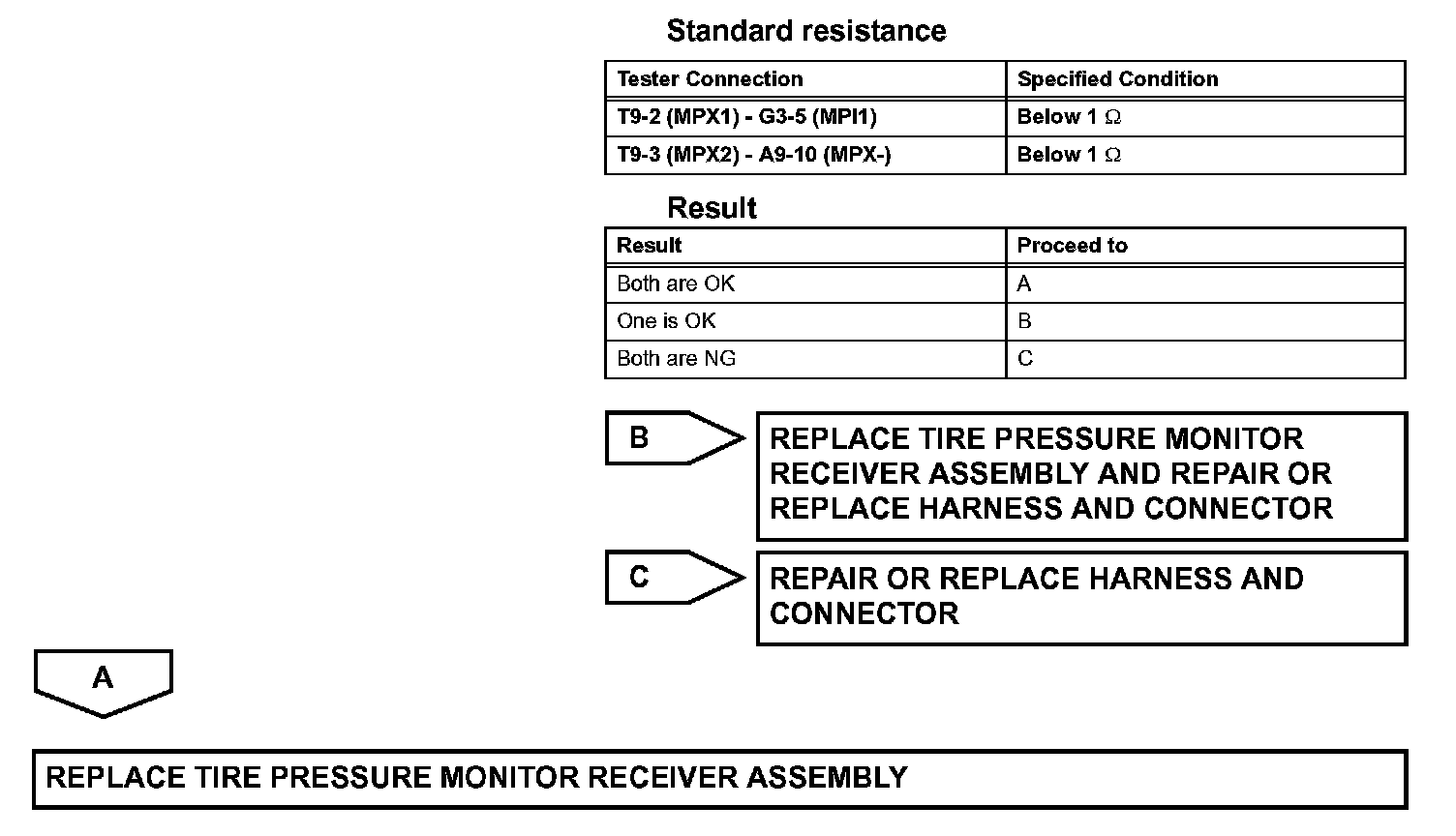

Step 3 (Continued):
