B1244

DTC B1244 Light Sensor Circuit Malfunction

DESCRIPTION

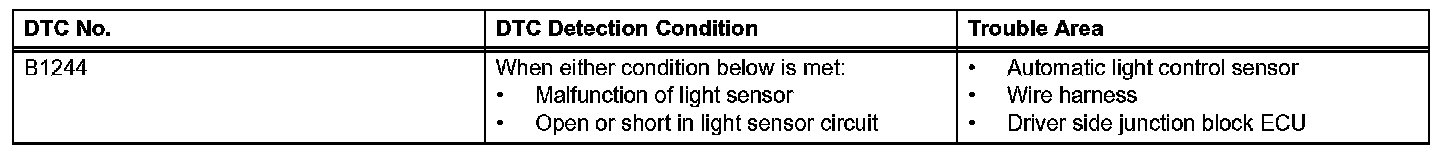

DTC Detection Condition:

This DTC is output when a failure of the light control sensor circuit is detected.

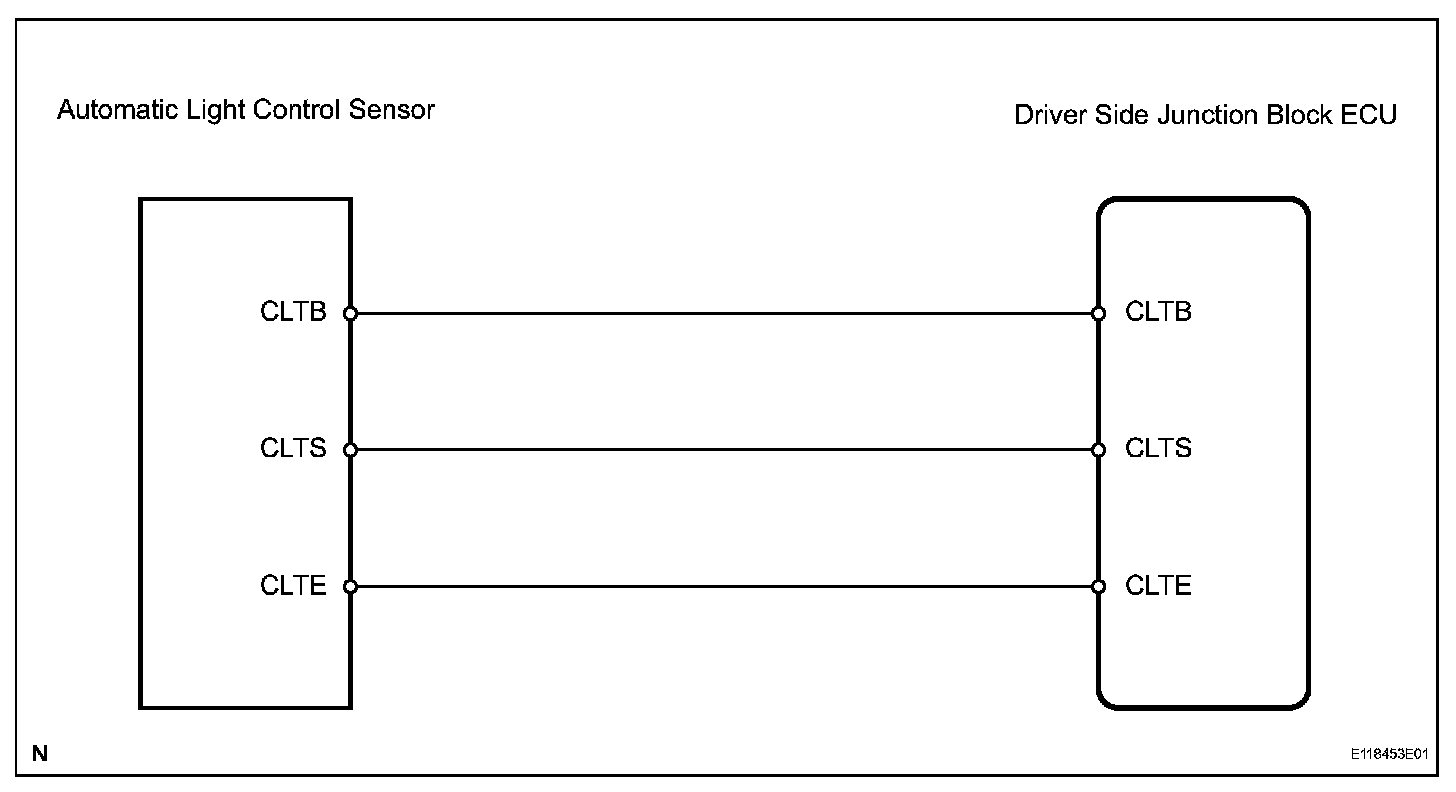

Wiring Diagram:

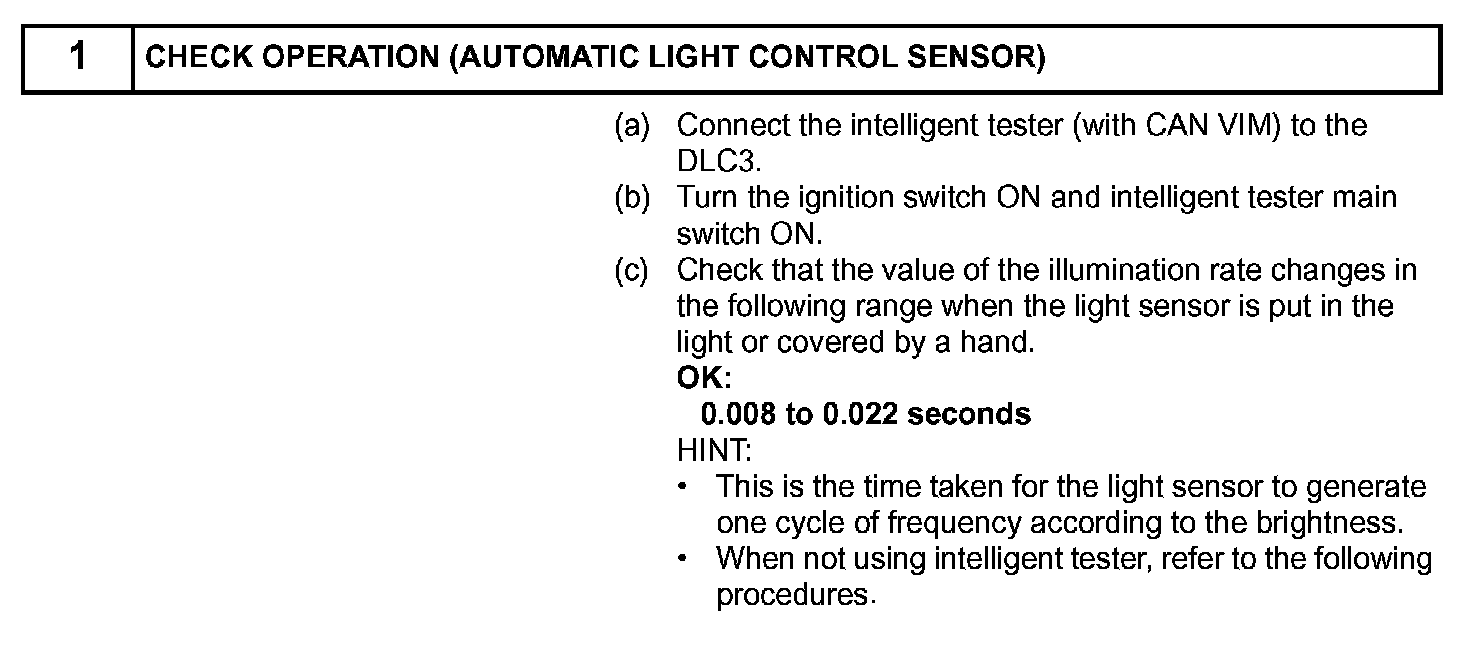

Step 1:

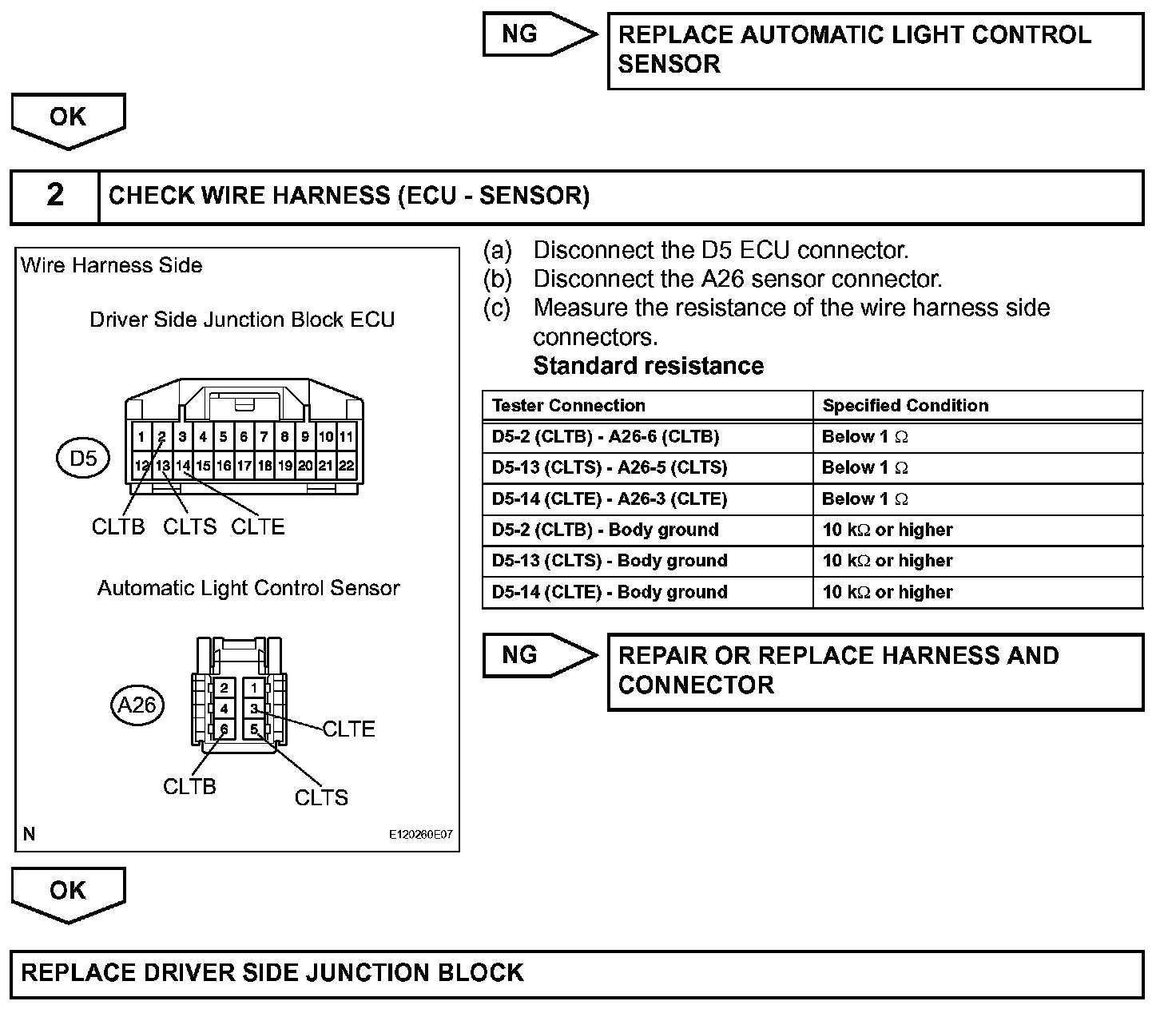

Step 1 (Continued)-2:

INSPECTION PROCEDURE
