B1233
DTC B1233 Jam Protection Limit Switch Circuit On Passenger DoorDTC B1234 Jam Protection Pulse Switch Circuit On Passenger Door
DESCRIPTION
These DTCs are output when the passenger door power window regulator motor circuit is malfunctioning.

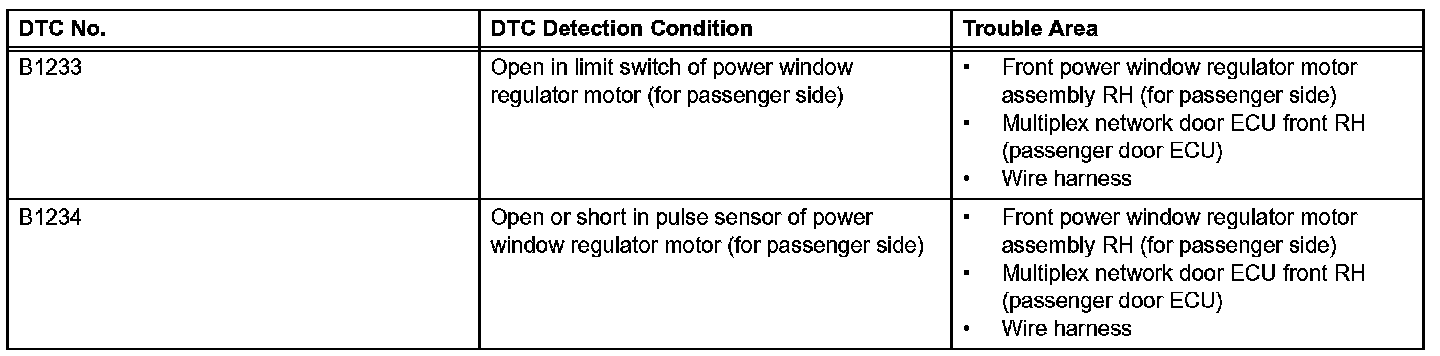

DTC Detection Condition:
WIRING DIAGRAM

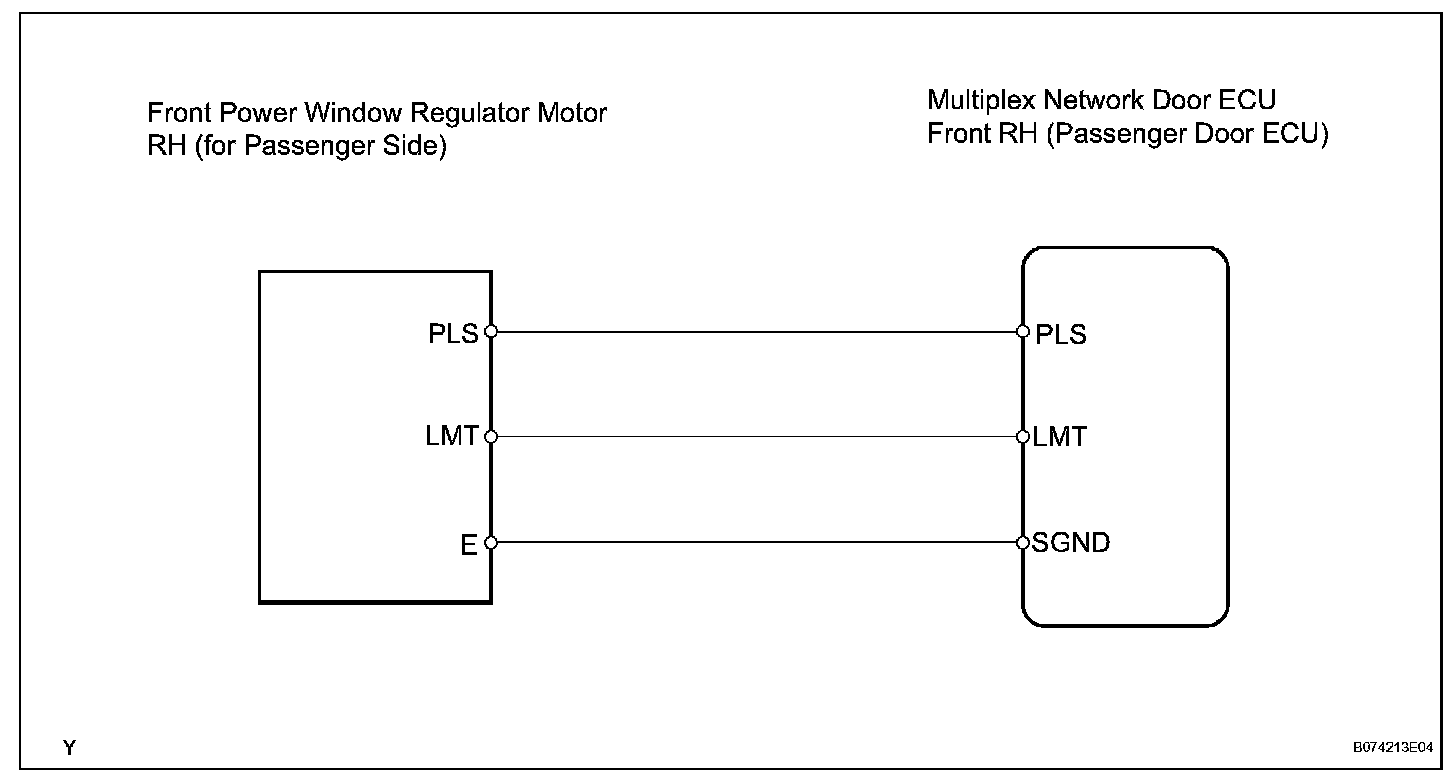

Wiring Diagram:
INSPECTION PROCEDURE

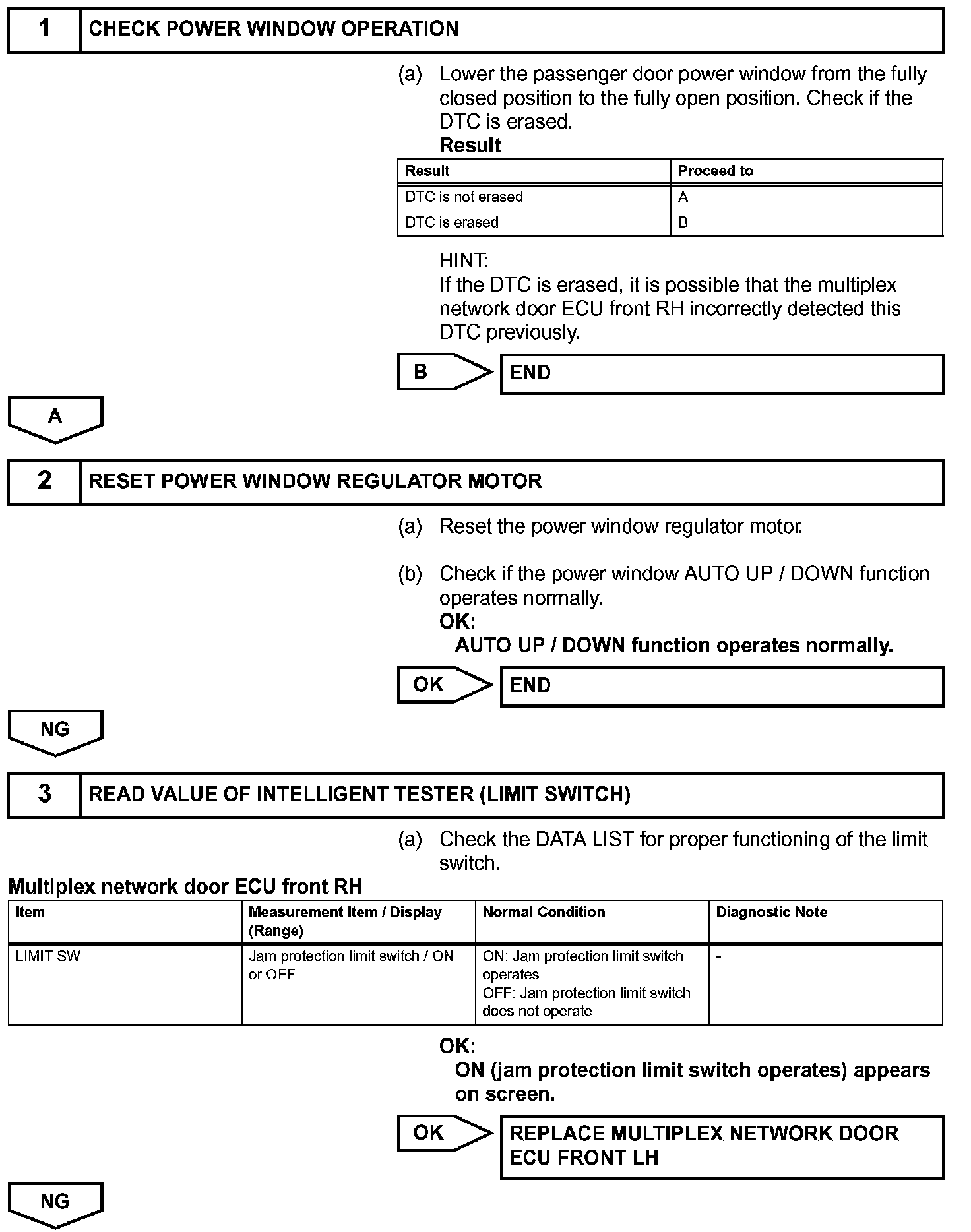

Step 1 - 3:
Step 4 - 5:

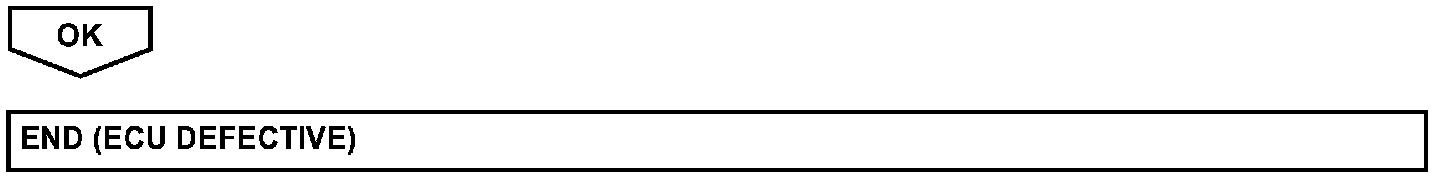

Step 5(Continued):
