B1231

DTC B1231 Door Jam Protection Limit Switch Circuit On Driver
DTC B1232 Jam Protection Pulse Switch Circuit On Driver Door

DESCRIPTION
These DTCs are output when the driver door power window regulator motor circuit is malfunctioning.

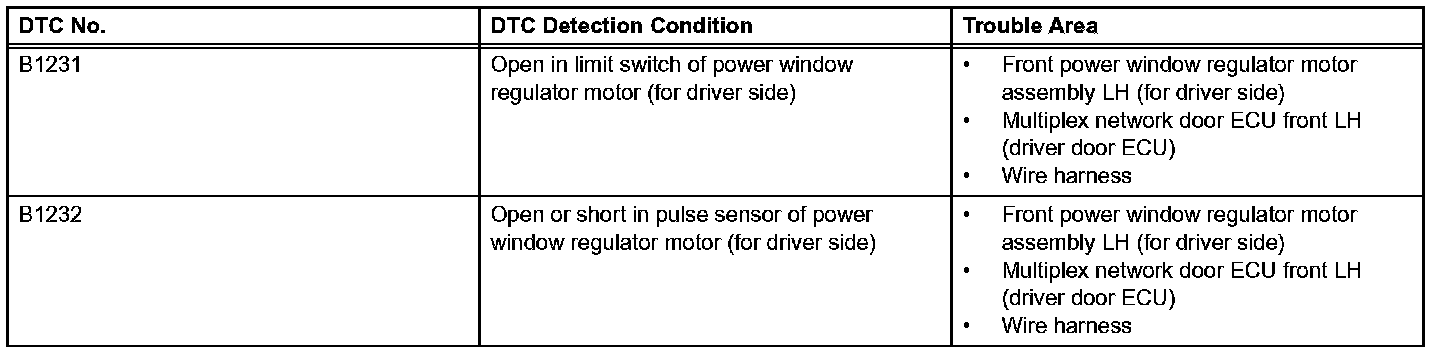

DTC Detection Condition:

WIRING DIAGRAM

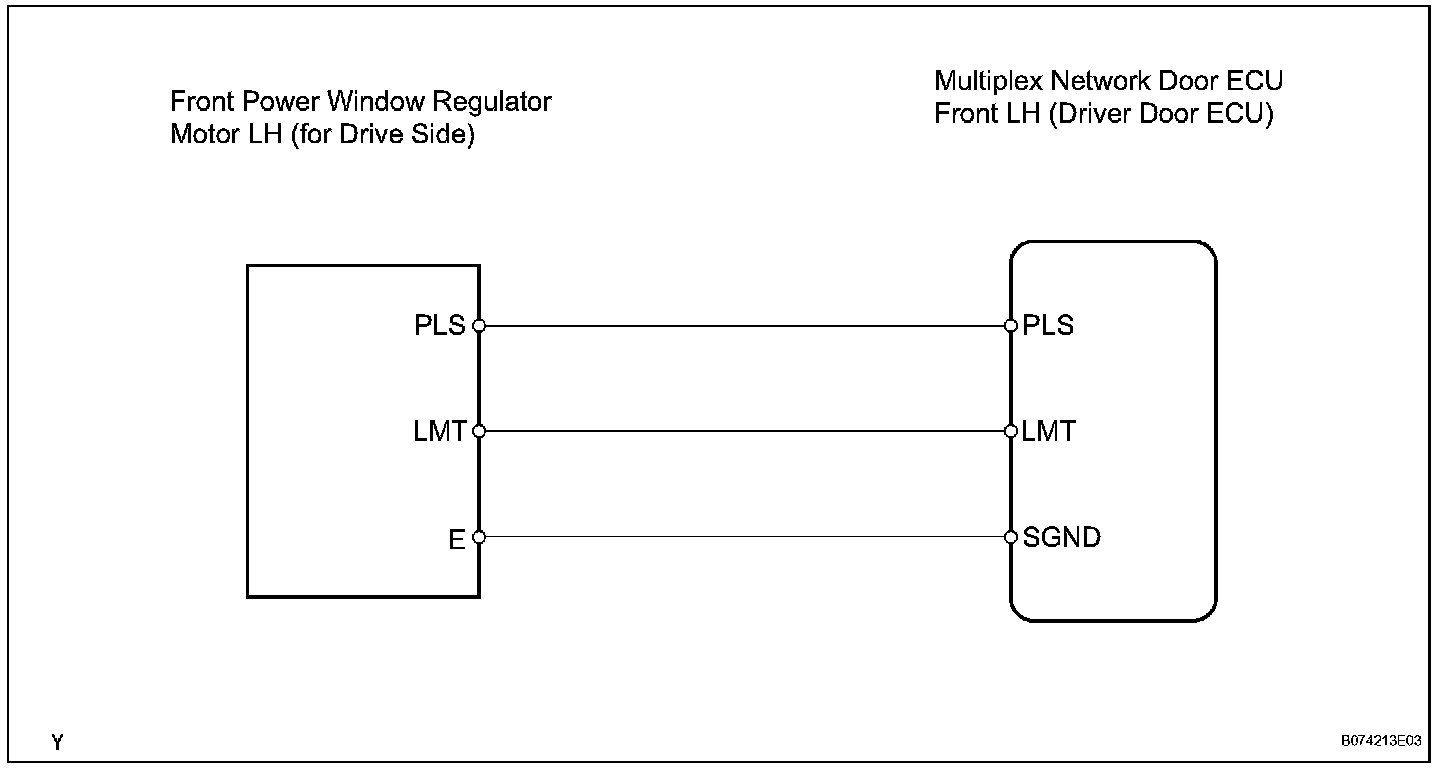

Wiring Diagram:

INSPECTION PROCEDURE

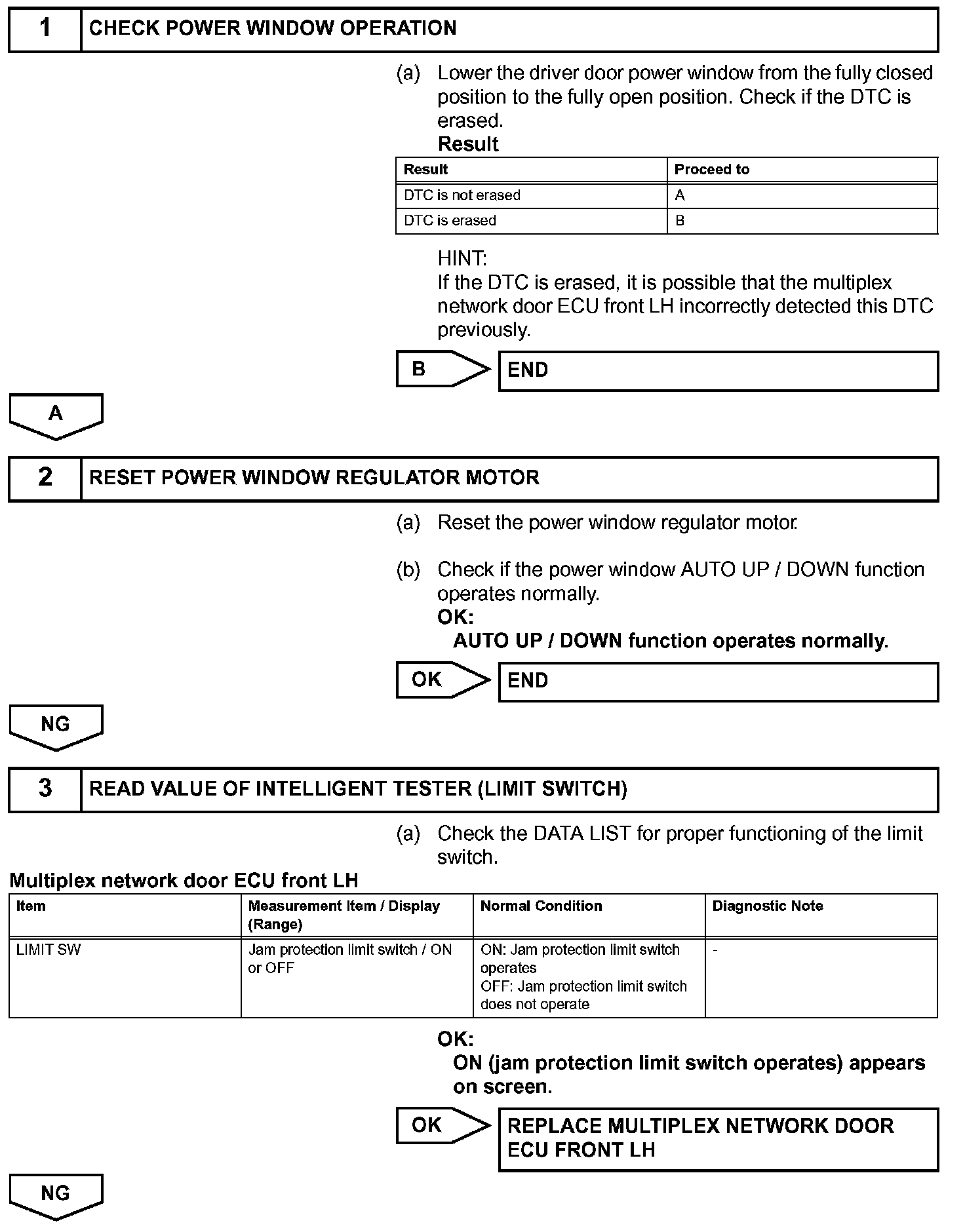

Step 1 - 3:

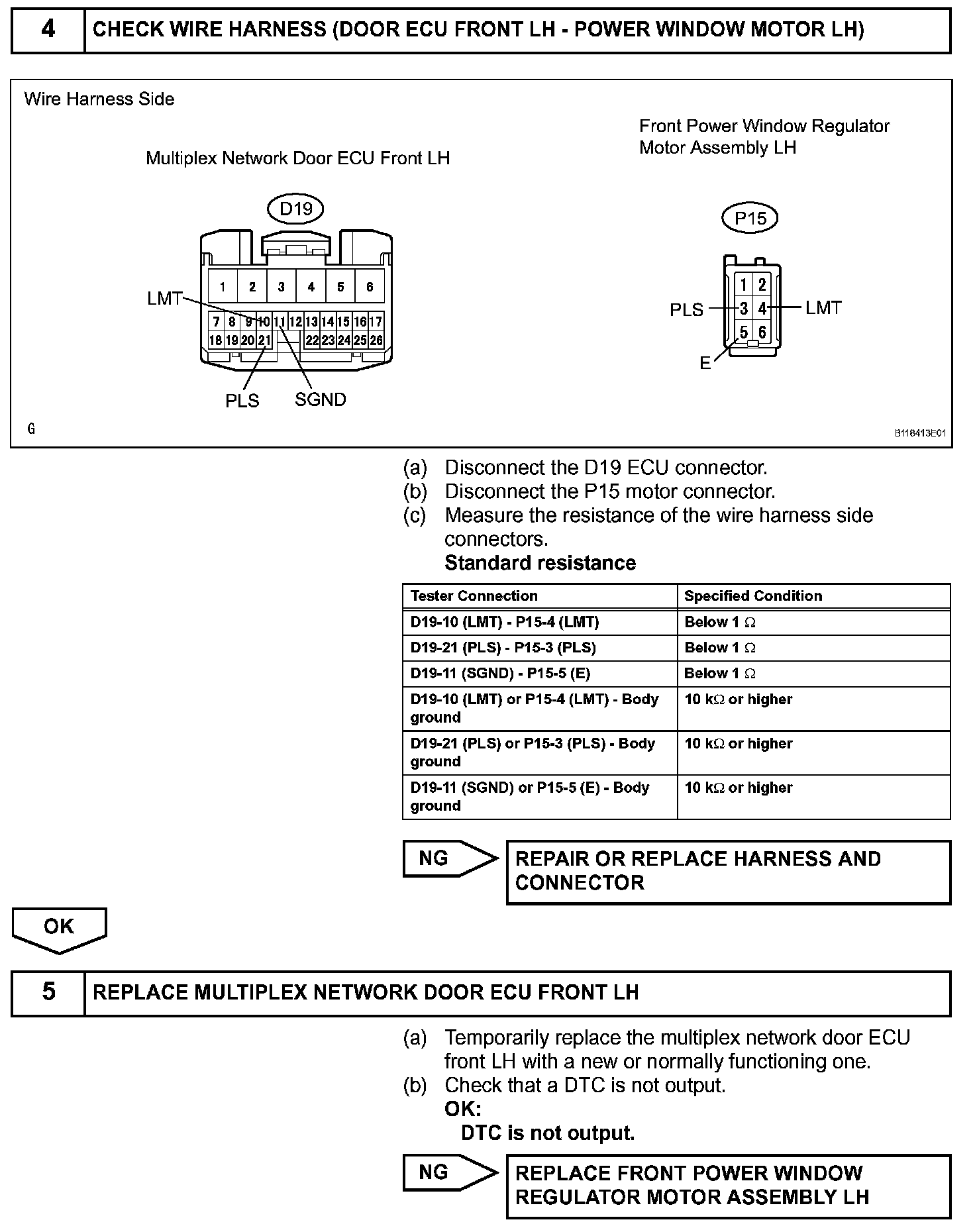

Step 4 - 5:

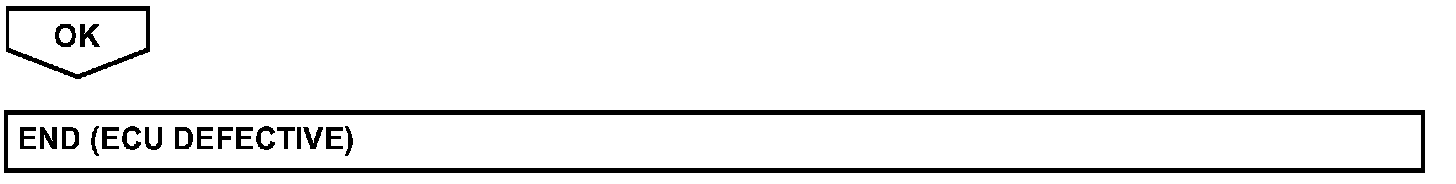

Step 5(Continued):
