B1224

DTC B1224 Front Passenger Side Door Lock Switch Circuit Malfunction

DESCRIPTION

DTC Detection Condition:

This DTC will be output when the passenger's door unlock switch (for key operation) of the power window regulator master switch is on.

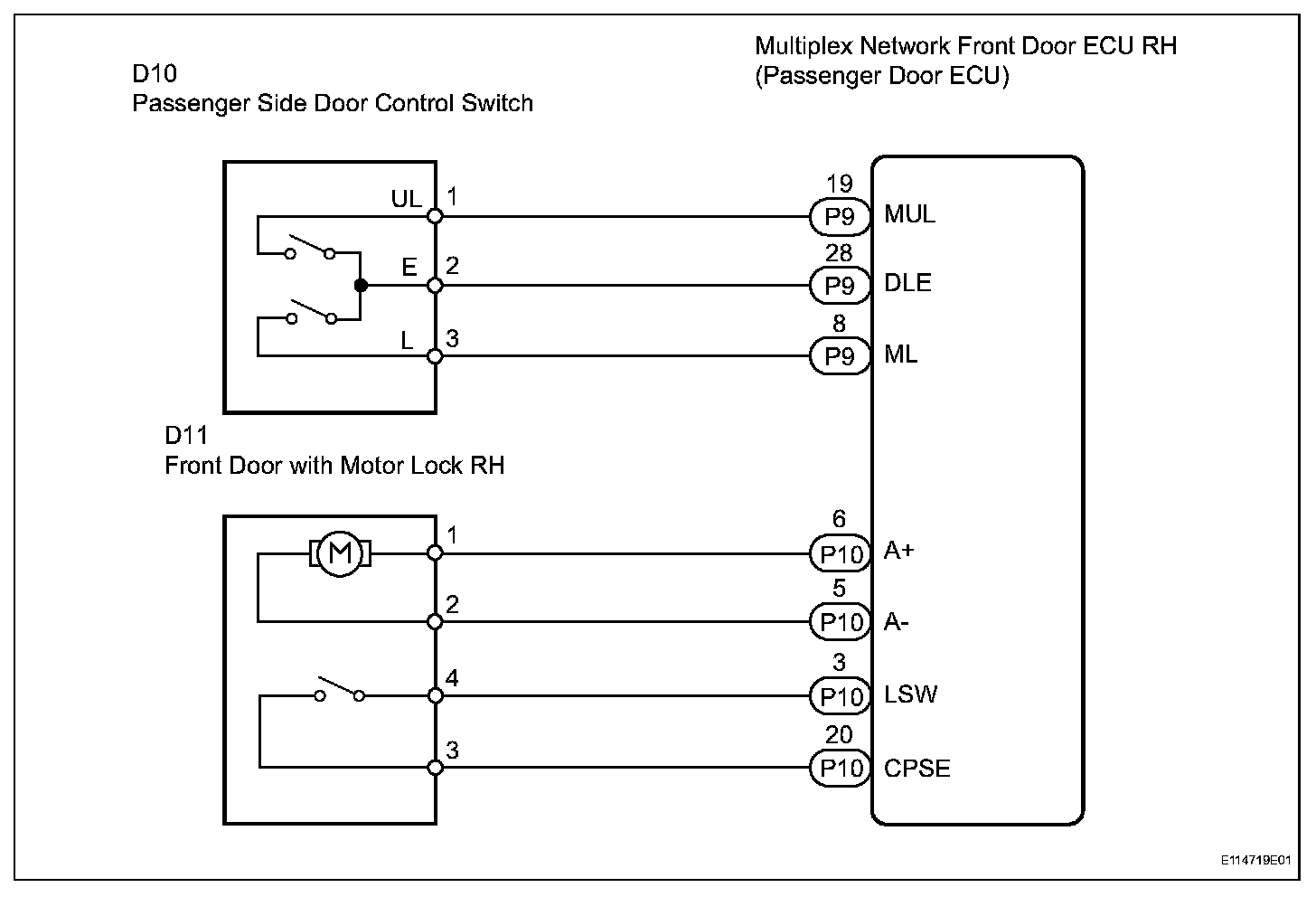

Wiring Diagram:

Step 1-2:

Step 3:

INSPECTION PROCEDURE
