B1223

DTC B1223 Power Window Switch Circuit On Passenger Door

DESCRIPTION
This DTC is output when the passenger door power window regulator switch or door control switch is operated.

HINT:
- If this DTC is output when a switch is not operated, one of the switches may be stuck.
- If this DTC is not output when a switch is operated, the switch's contact is defective.

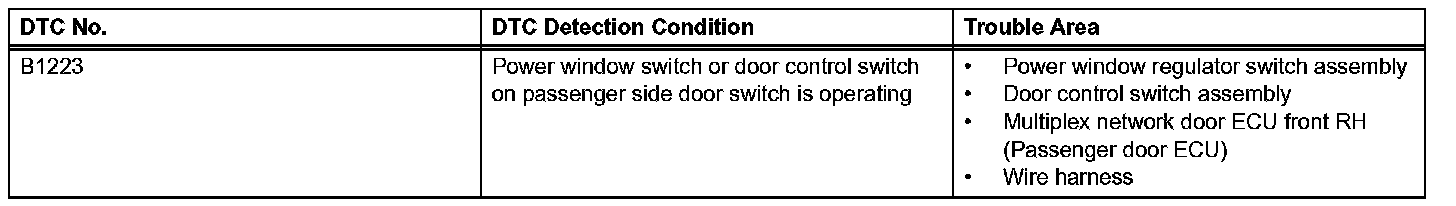

DTC Detection Condition:

WIRING DIAGRAM

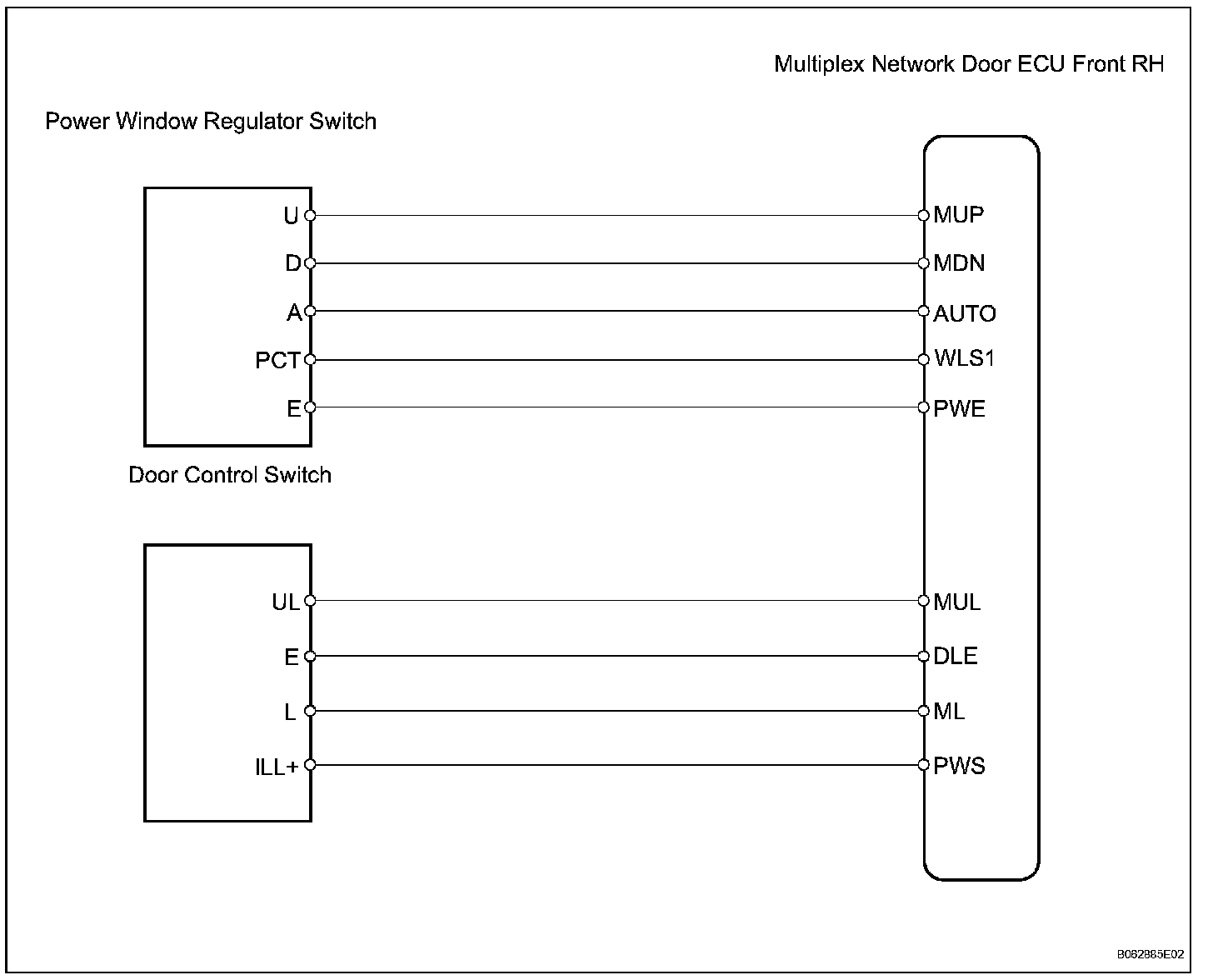

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

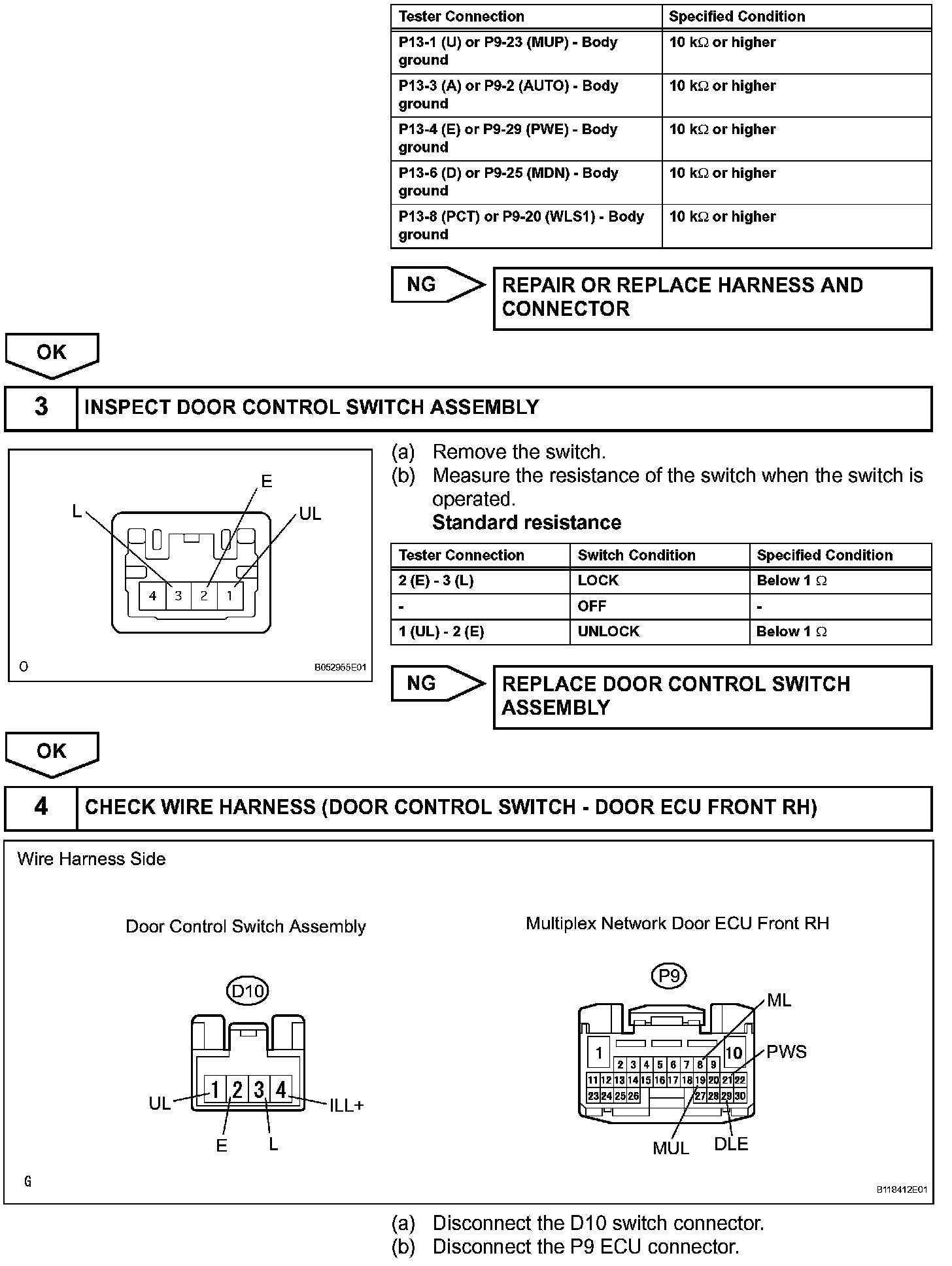

Step 2(Continued) - 4:

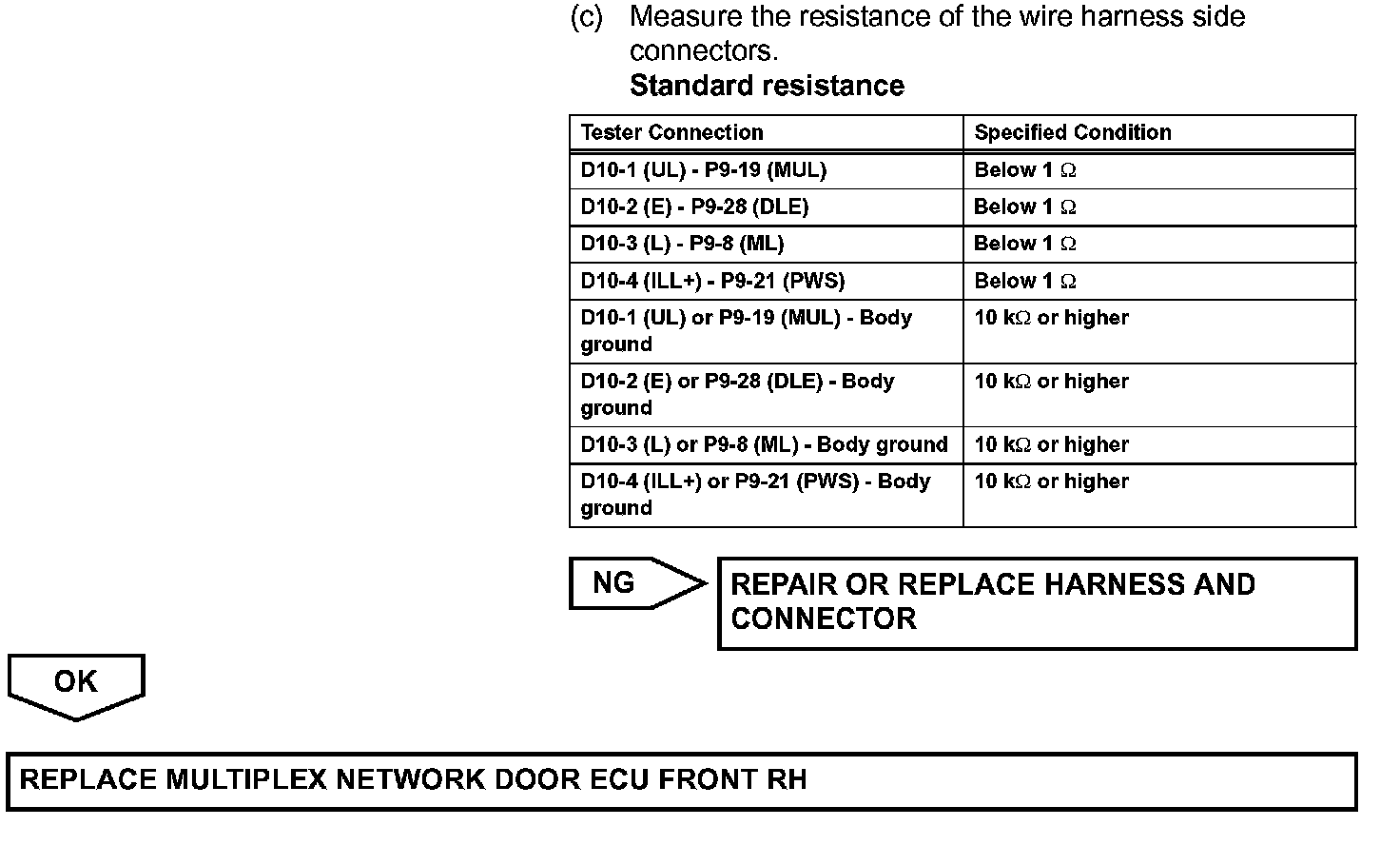

Step 4(Continued):
