B1222

DTC B1222 Driver Side Door Lock Switch Circuit Malfunction

DESCRIPTION

DTC Detection Condition:

This DTC will be output when the driver's door unlock switch (for key operation) of the power window regulator master switch is on.

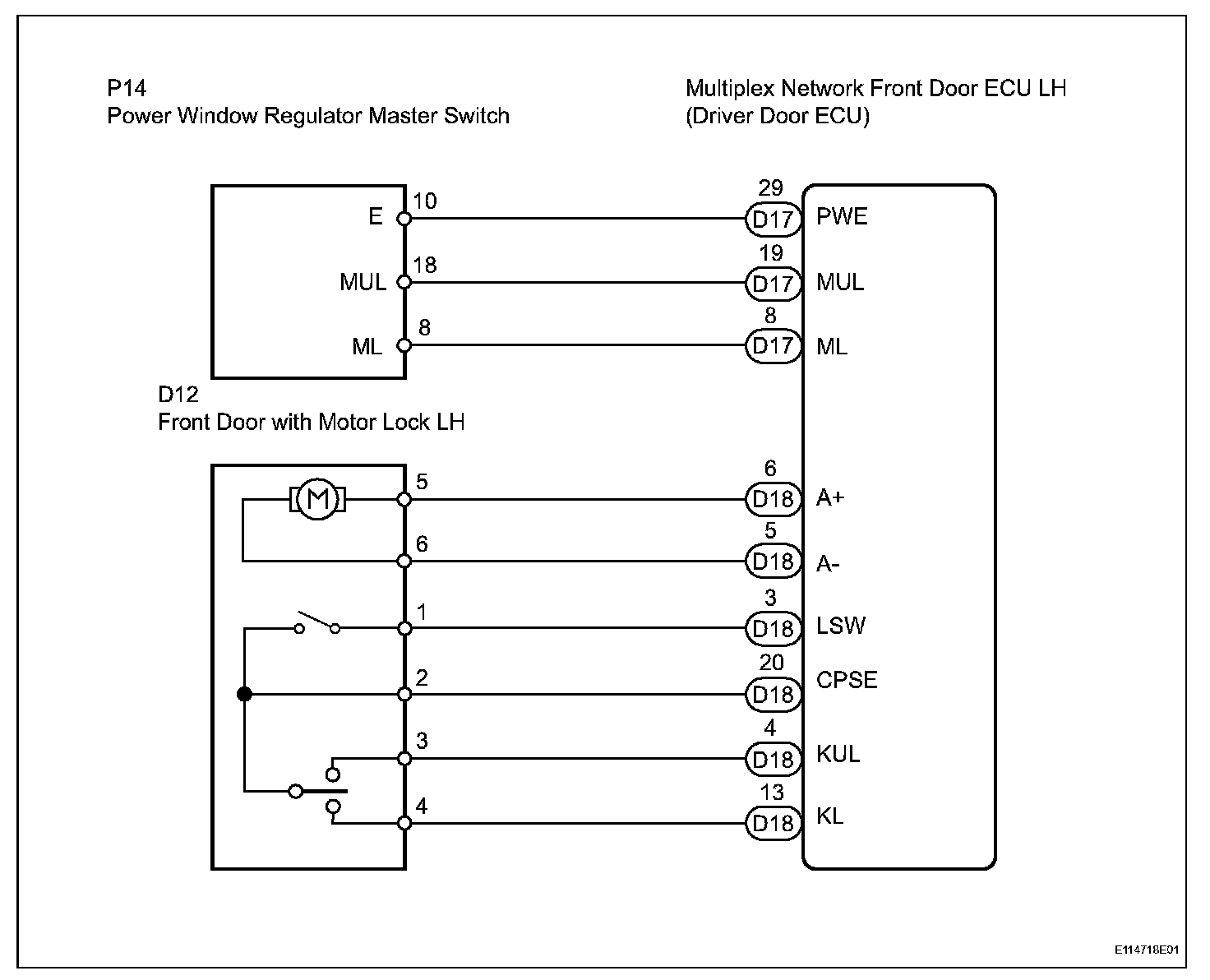

Wiring Diagram:

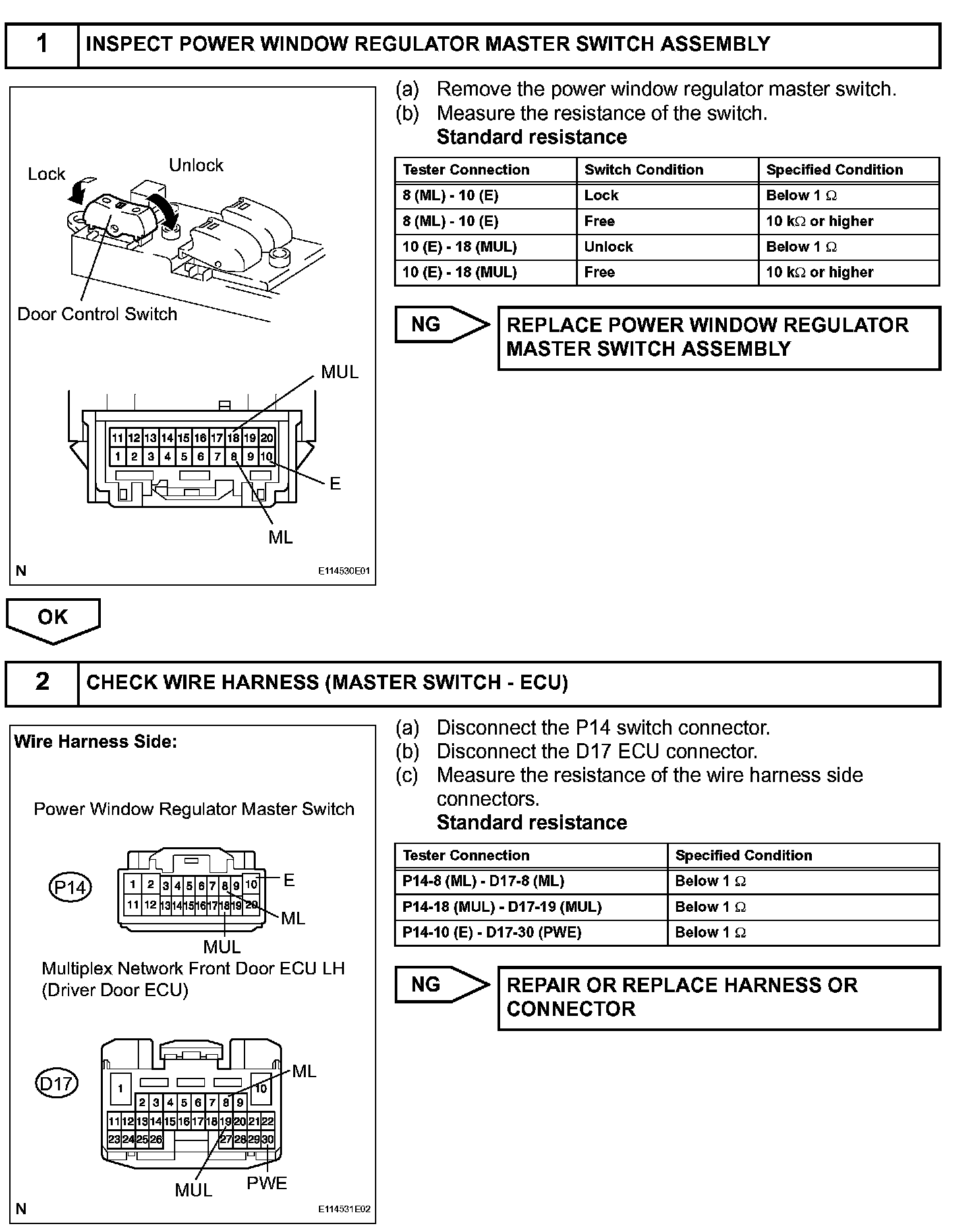

Step 1-2:

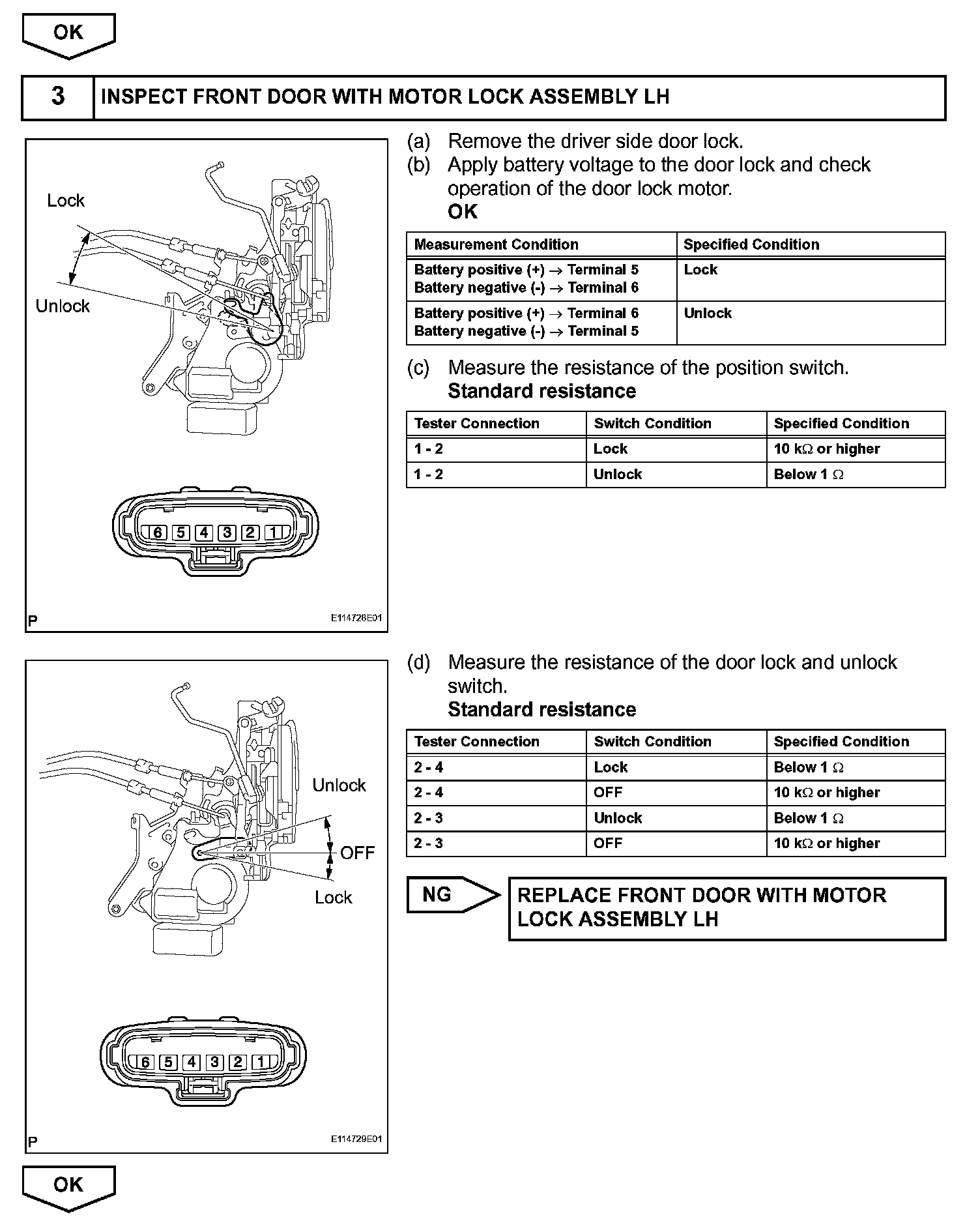

Step 2 (Continued)-3:

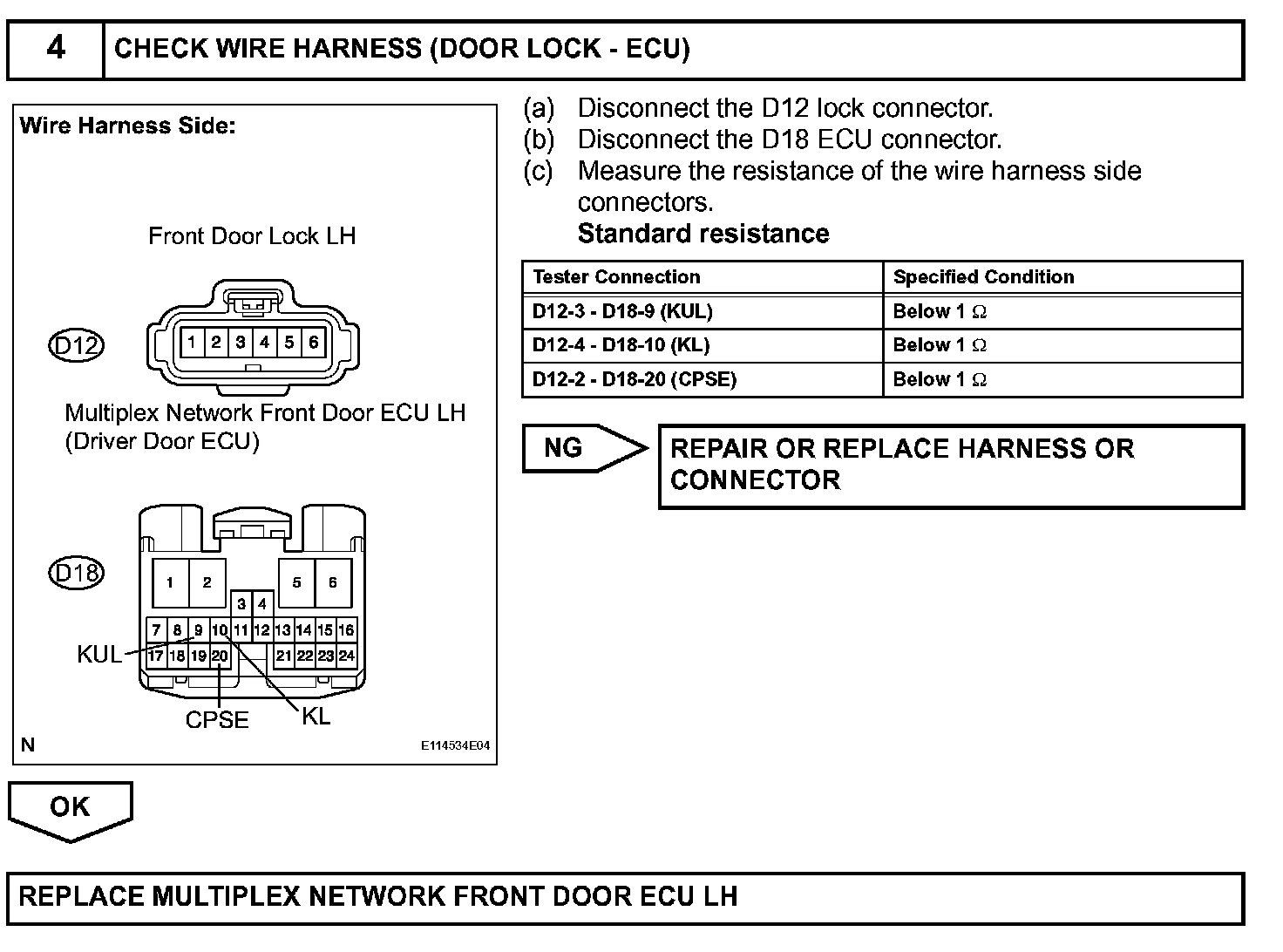

Step 4:

INSPECTION PROCEDURE
