DTC B1214 Short to B+ in Door System Communication Bus Malfunction
DTC B1215 Short to GND in Door System Communication Bus Malfunction

DESCRIPTION

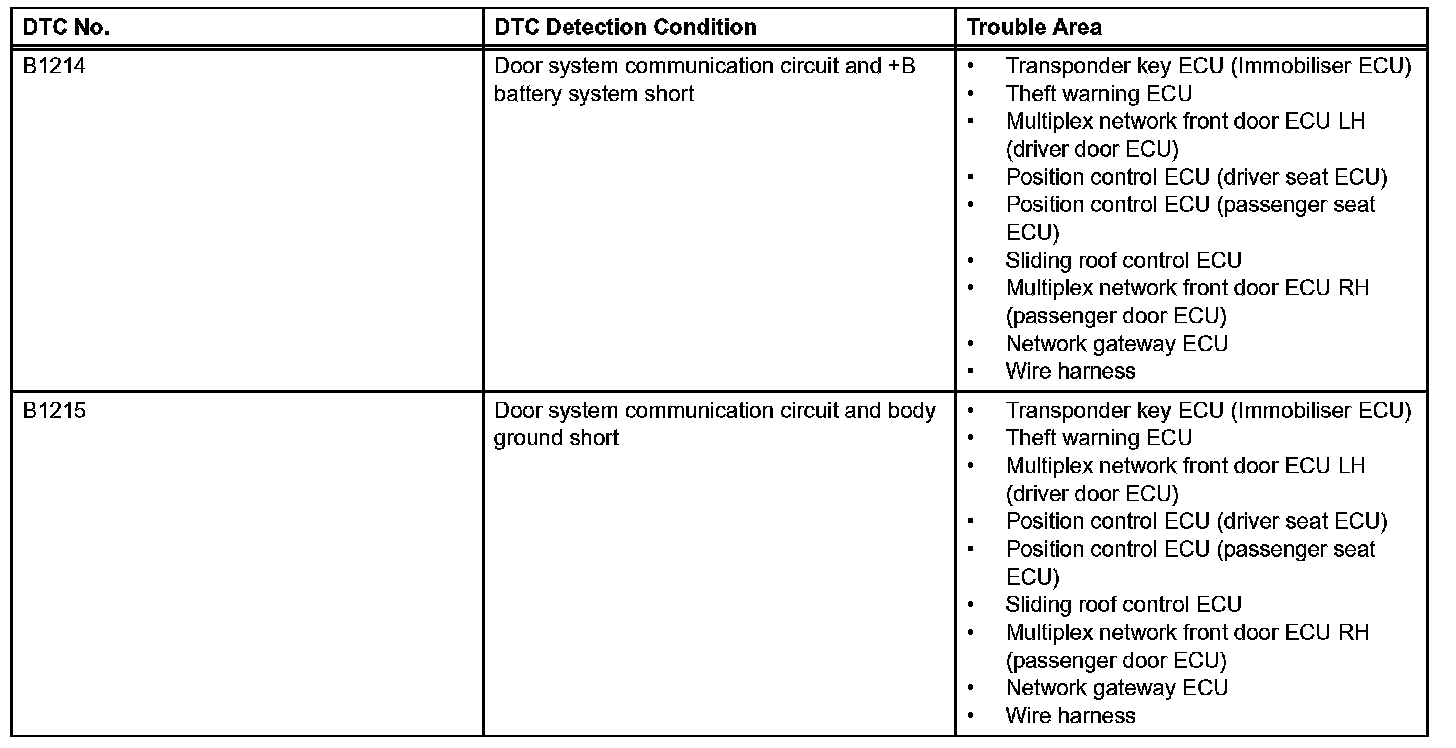

DTC Detection Condition:

DTC B1214 is detected when +B is short-circuited on the door system communication bus, and DTC B1215 is detected when the body ground is short-circuited on the door system communication bus. Detecting this condition will disable the door system communication bus (BEAN) and a DTC will be output.

Wiring Diagram:

INSPECTION PROCEDURE

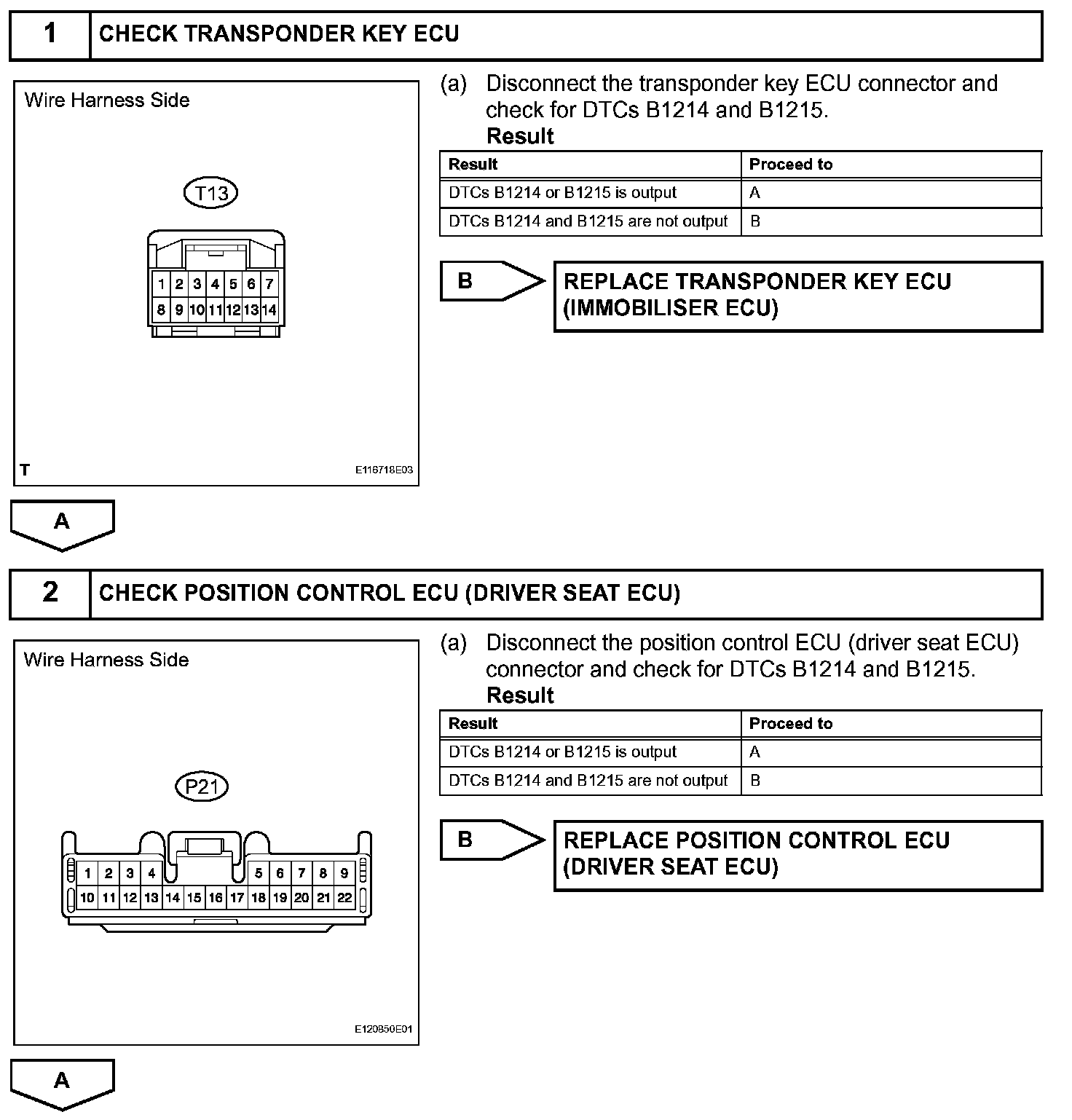

Step 1-2:

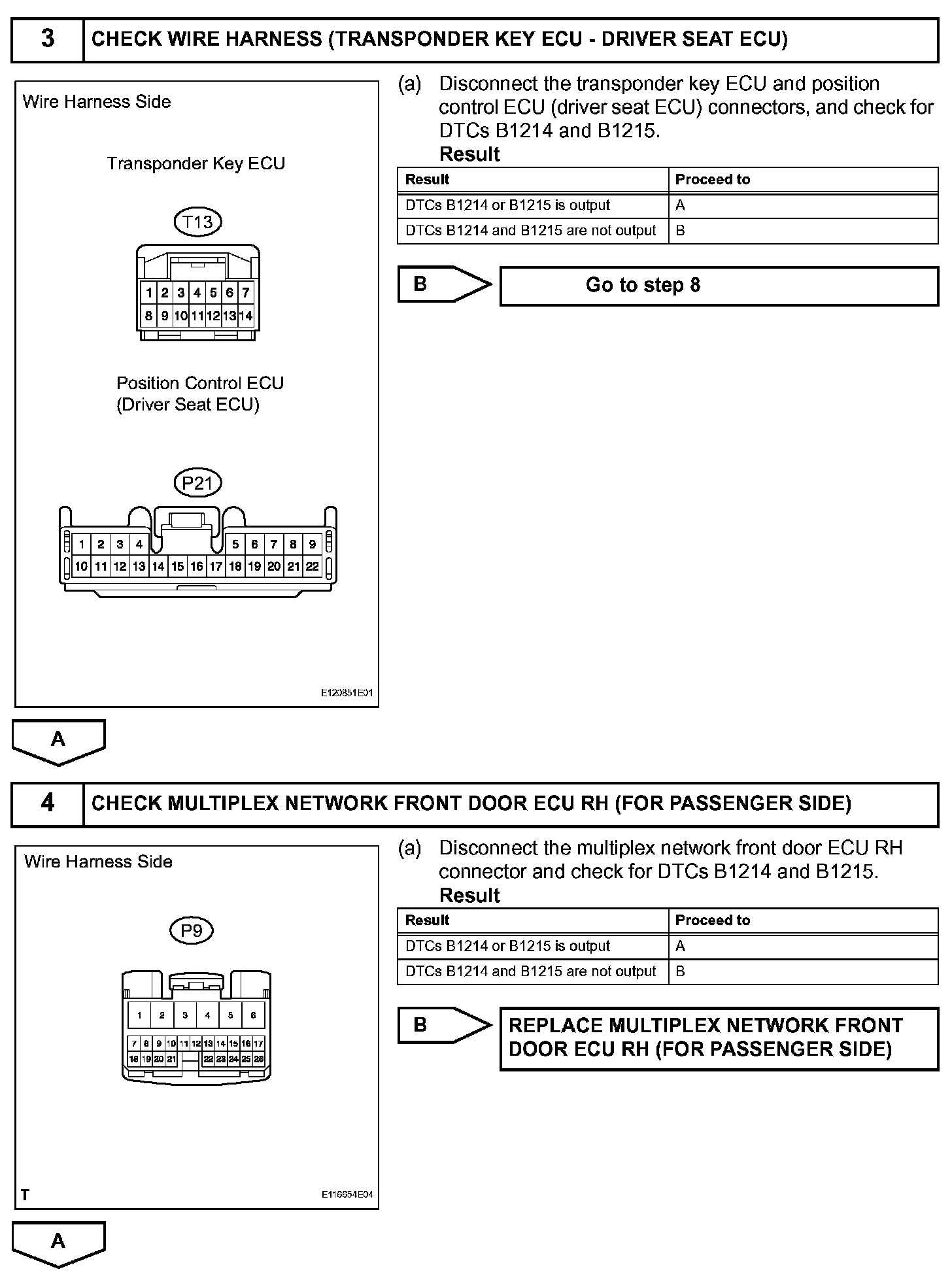

Step 3-4:

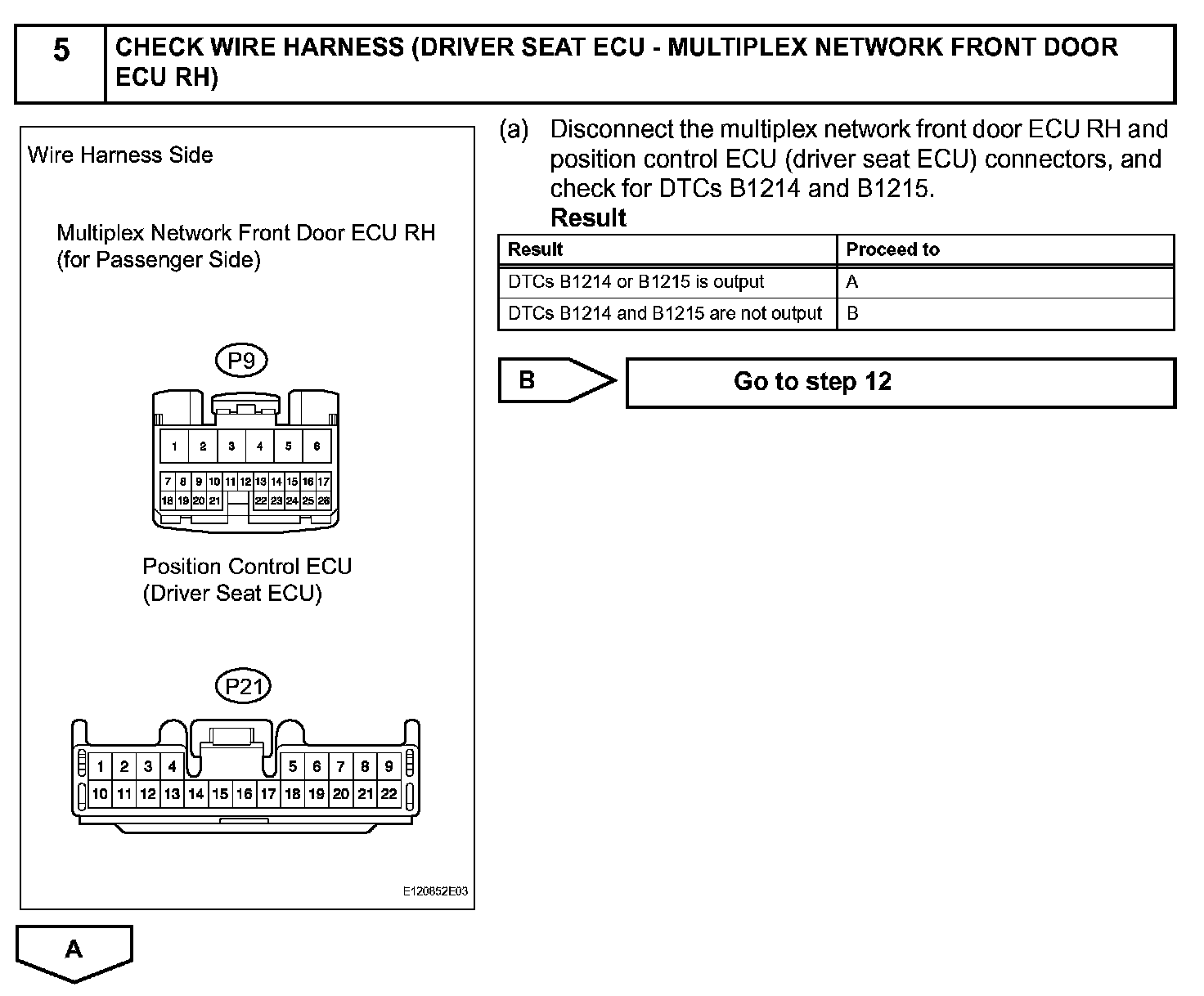

Step 5:

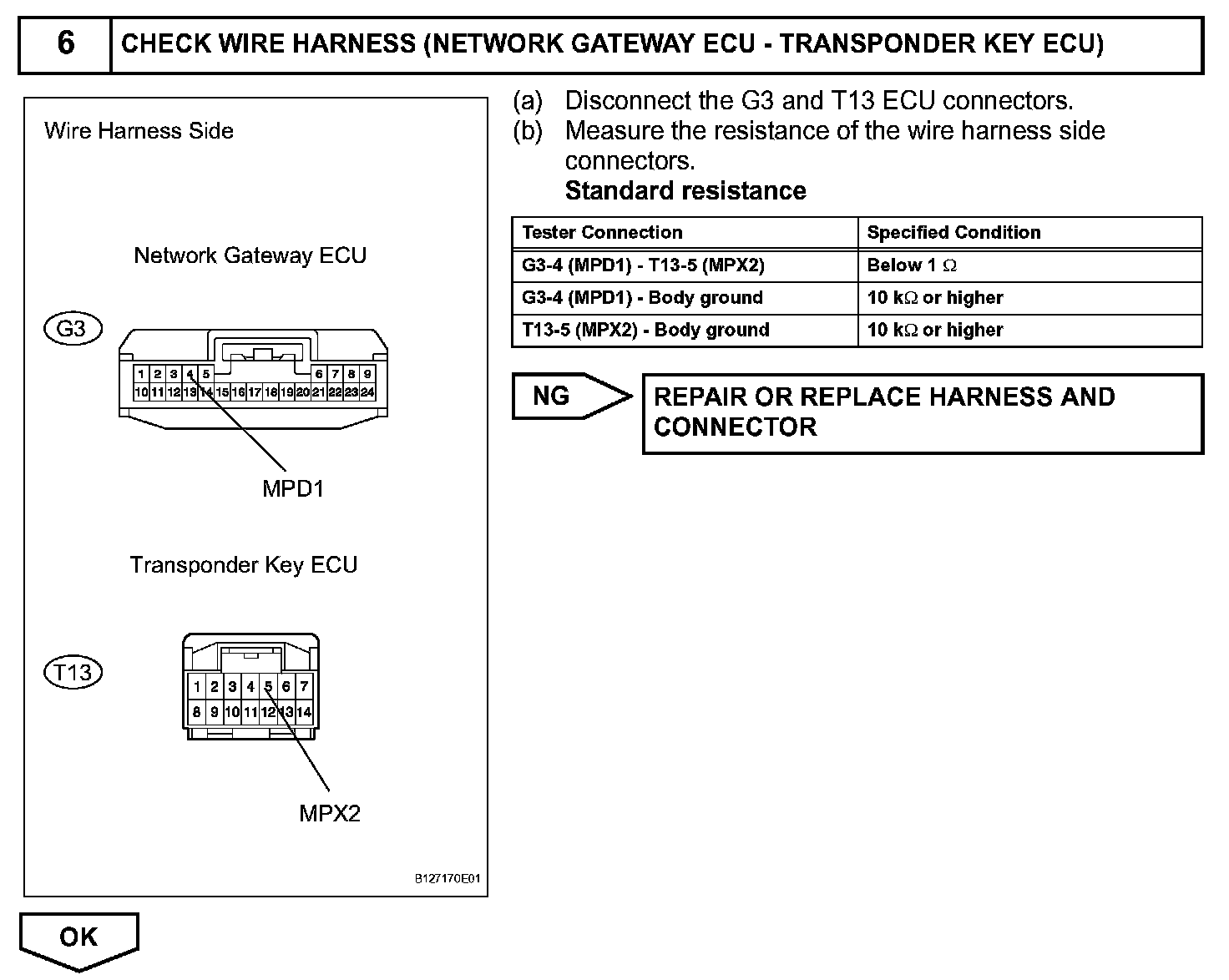

Step 6:

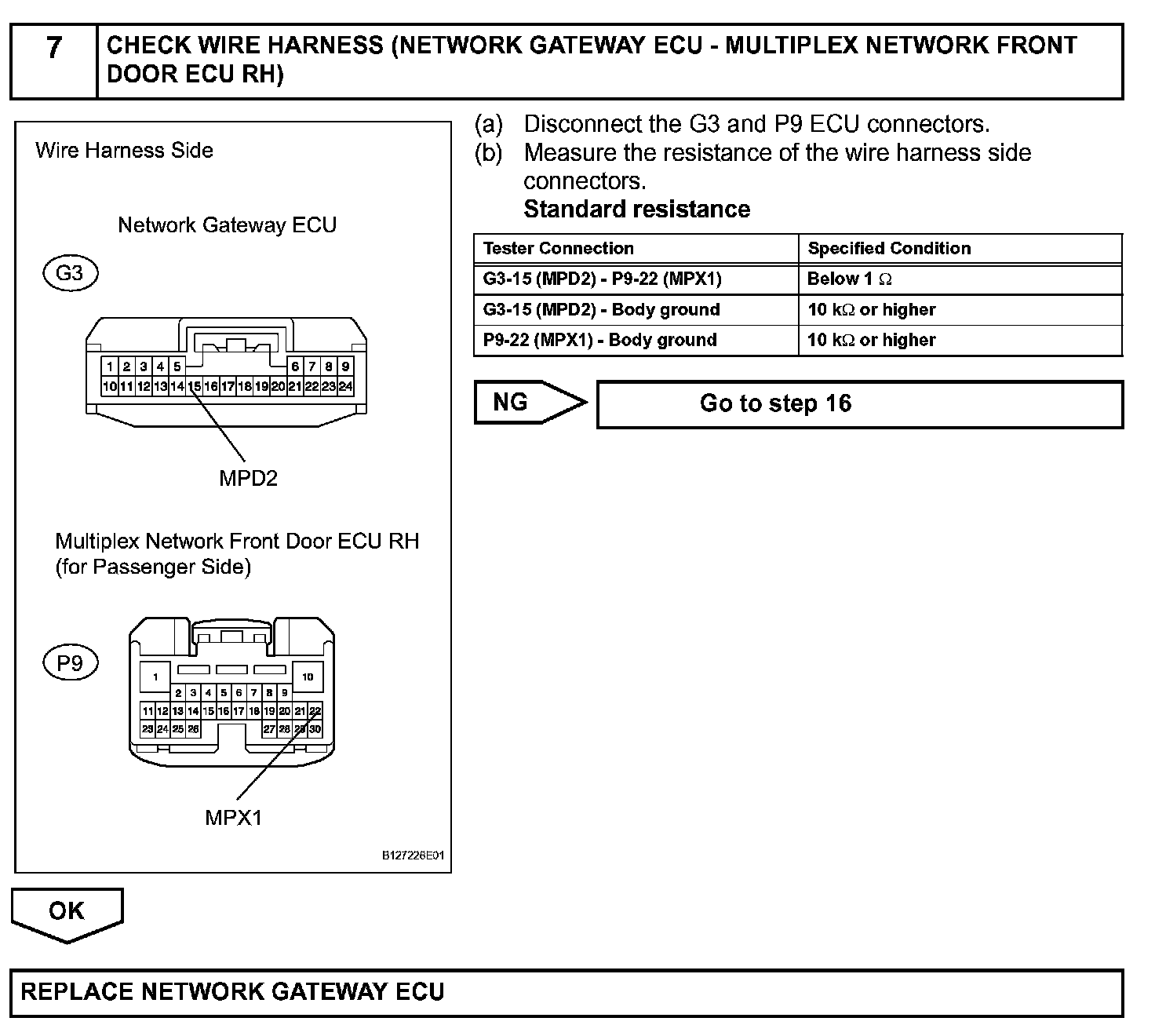

Step 7:

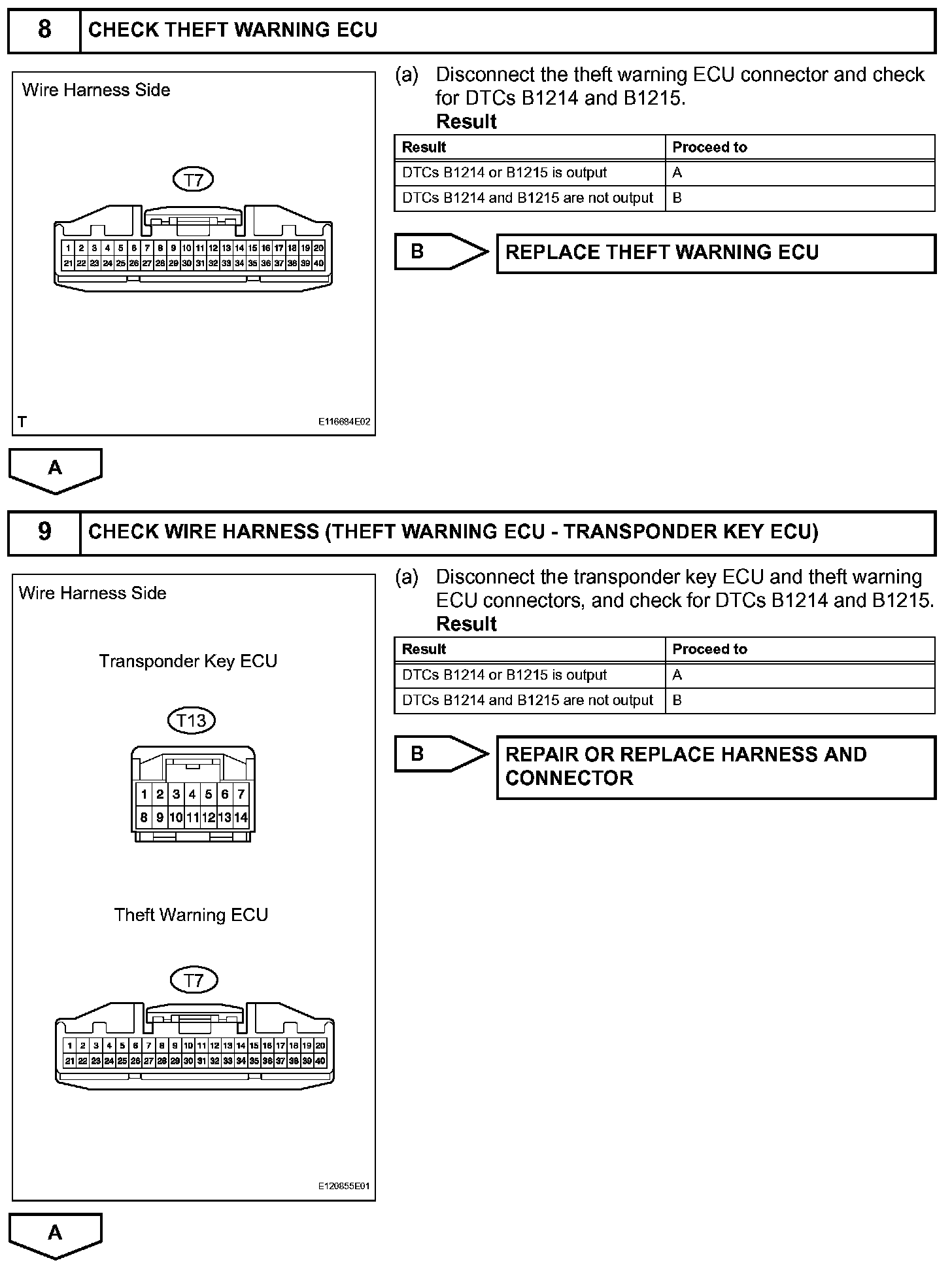

Step 8-9:

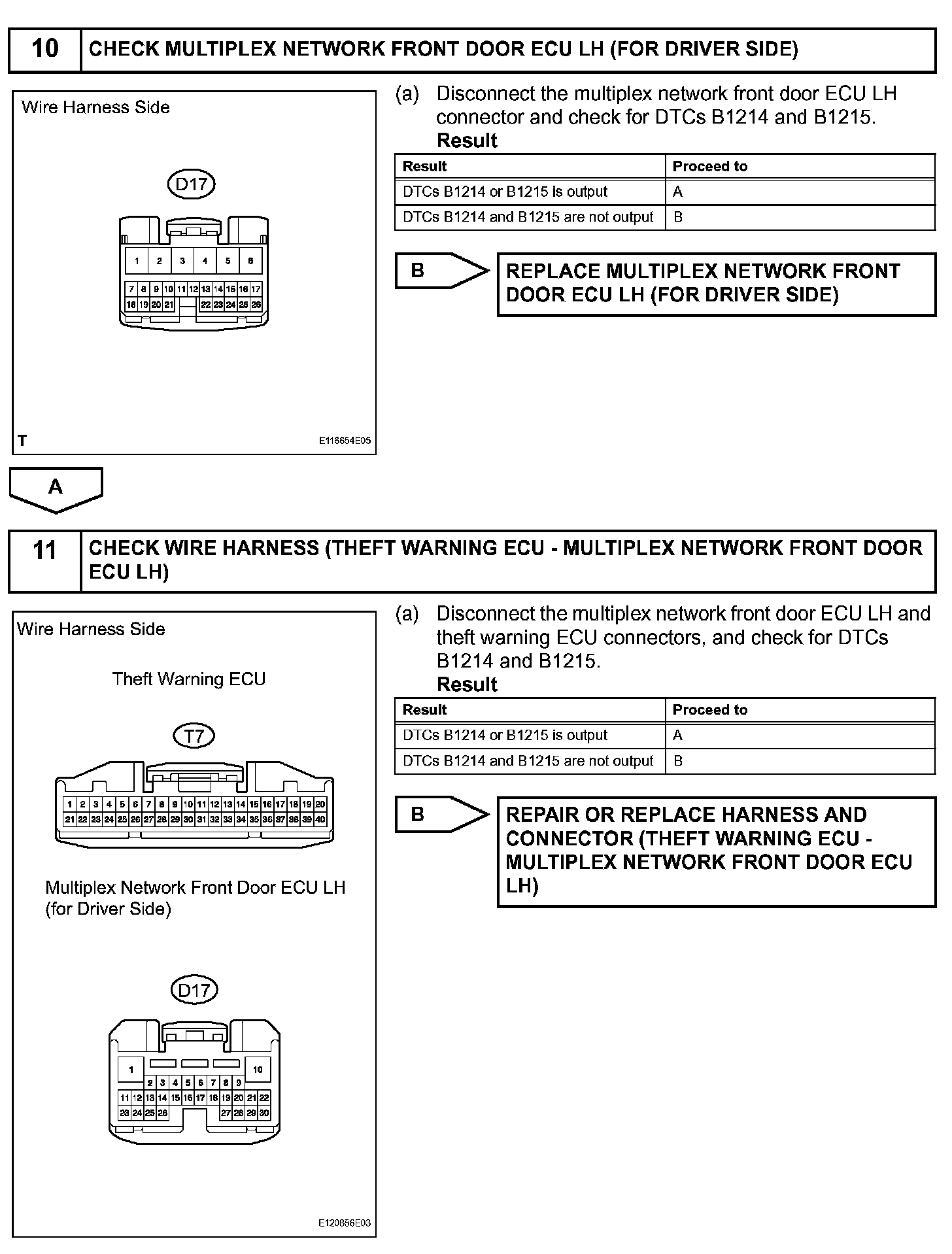

Step 10-11:

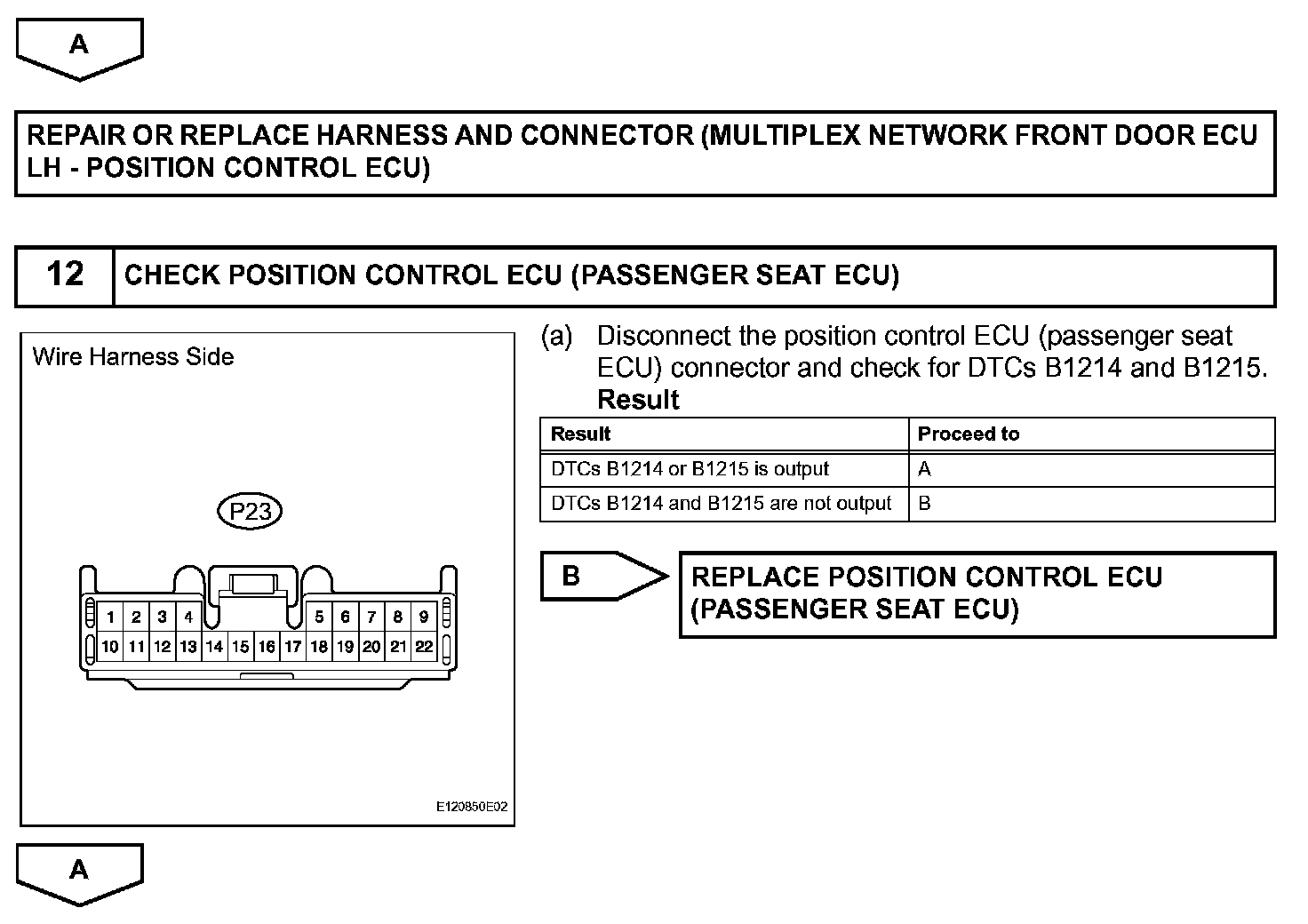

Step 11 (Continued)-12:

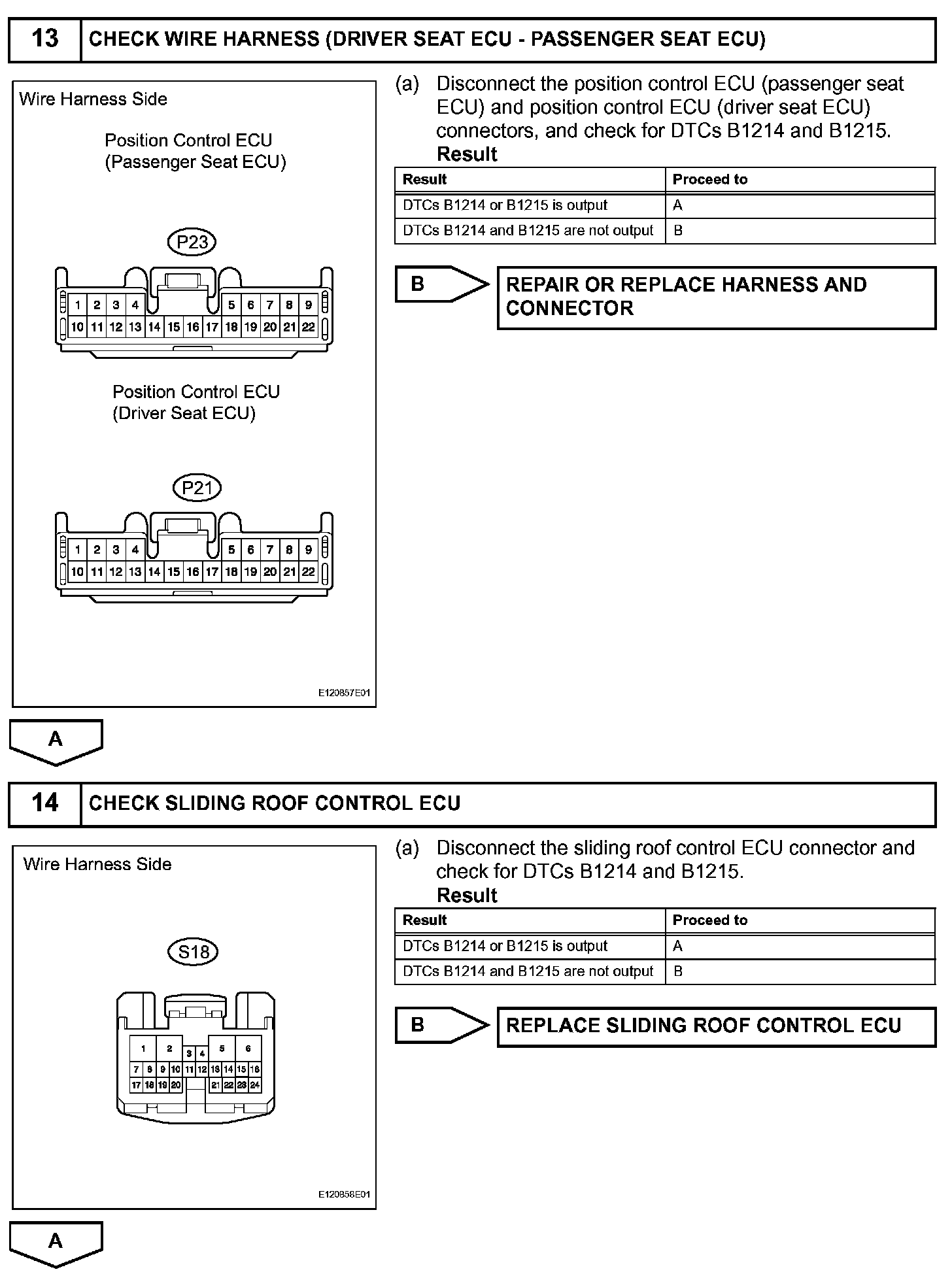

Step 13-14:

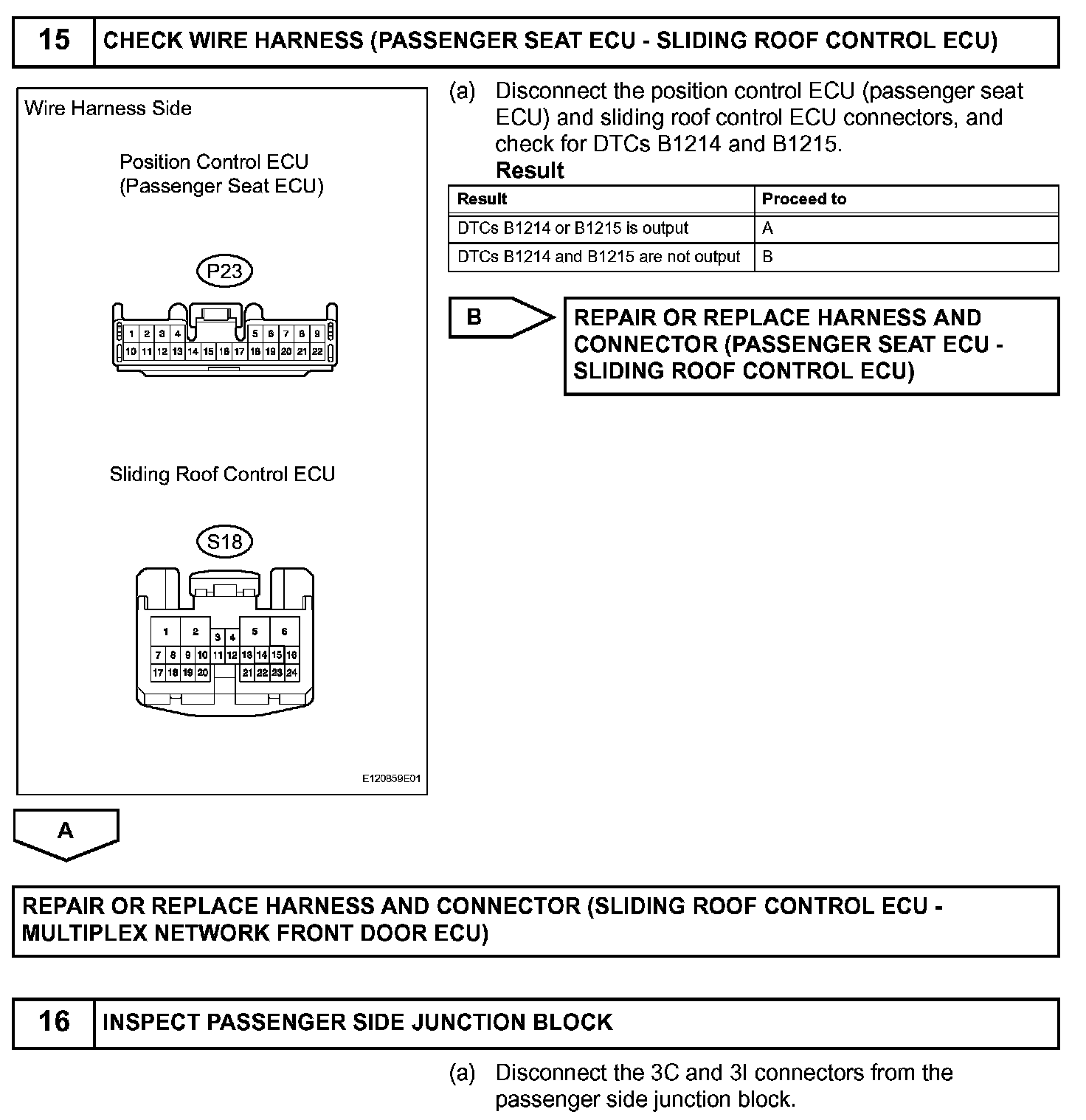

Step 15-16:

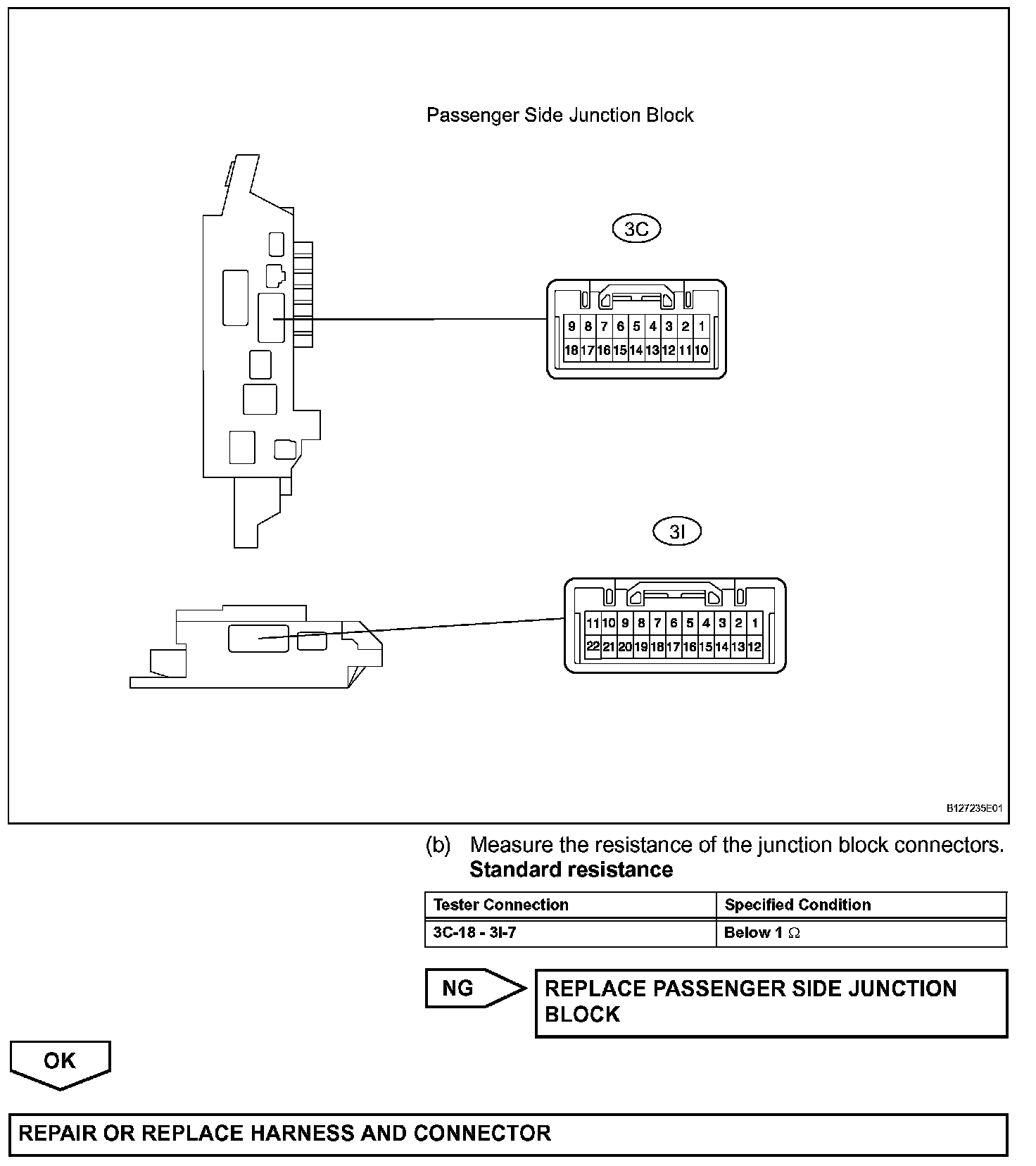

Step 16 (Continued):
