B1213

DTC B1213 Tilt and Telescopic ECU Communication Stop

DESCRIPTION

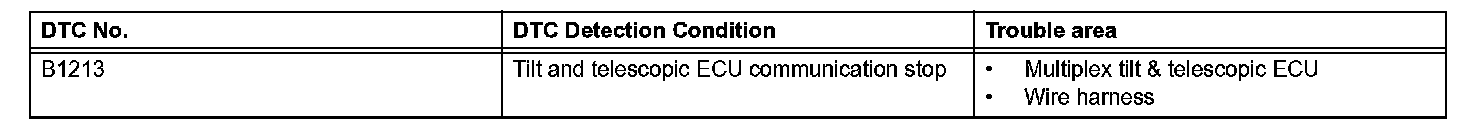

DTC Detection Condition:

This DTC is detected when communication between the multiplex tilt & telescopic ECU (tilt and telescopic ECU) and network gateway ECU stops for more than 10 seconds.

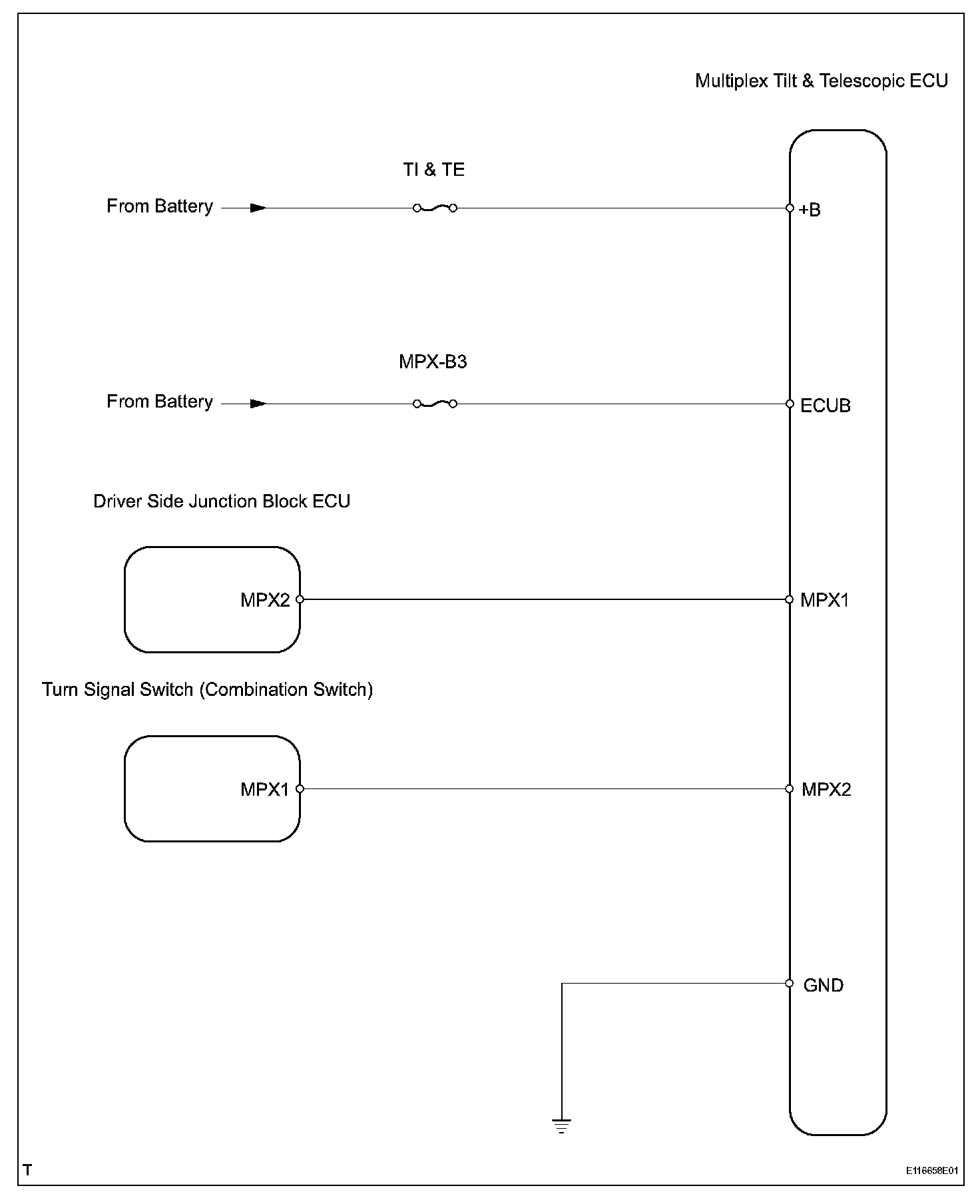

Wiring Diagram:

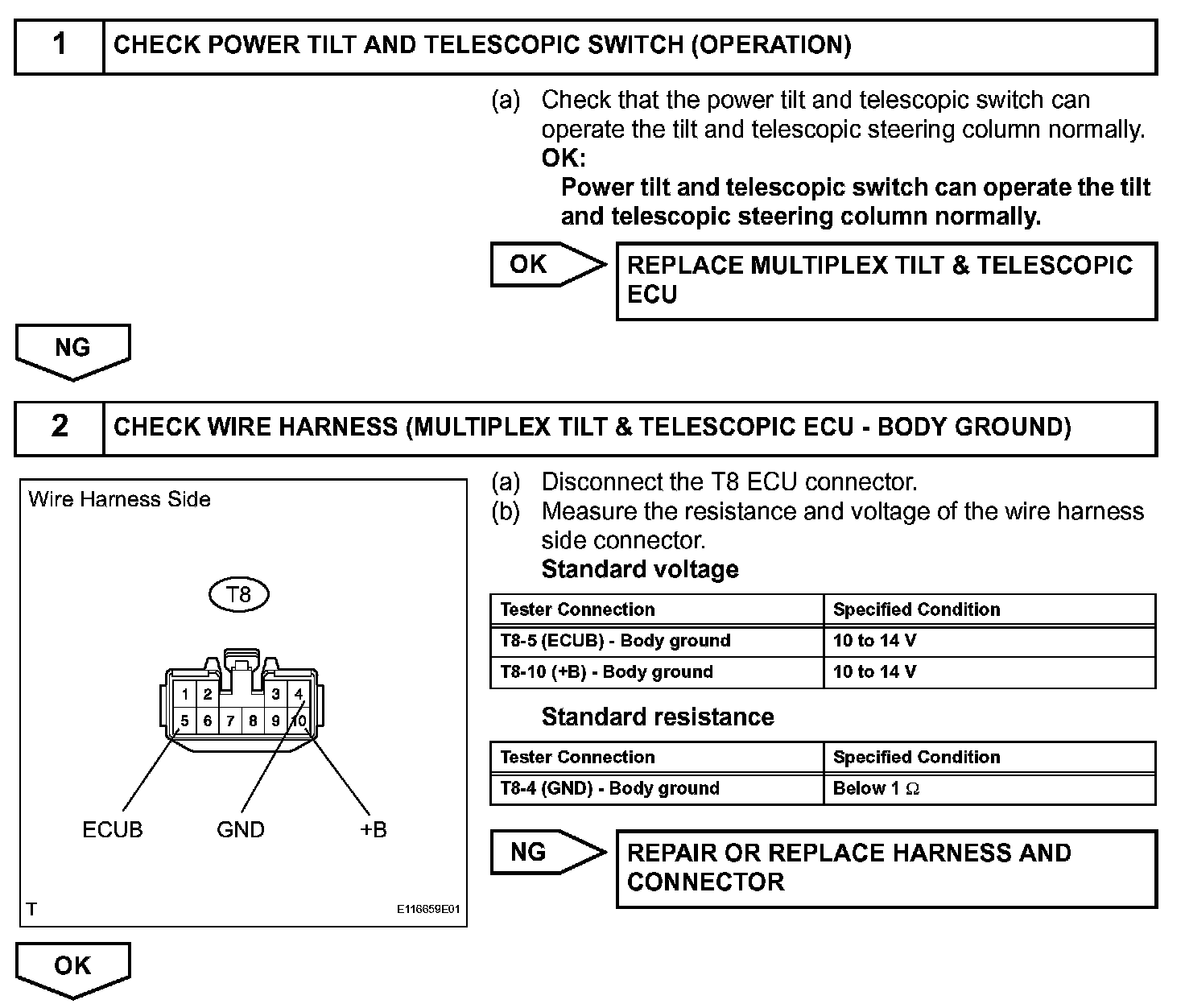

Step 1-2:

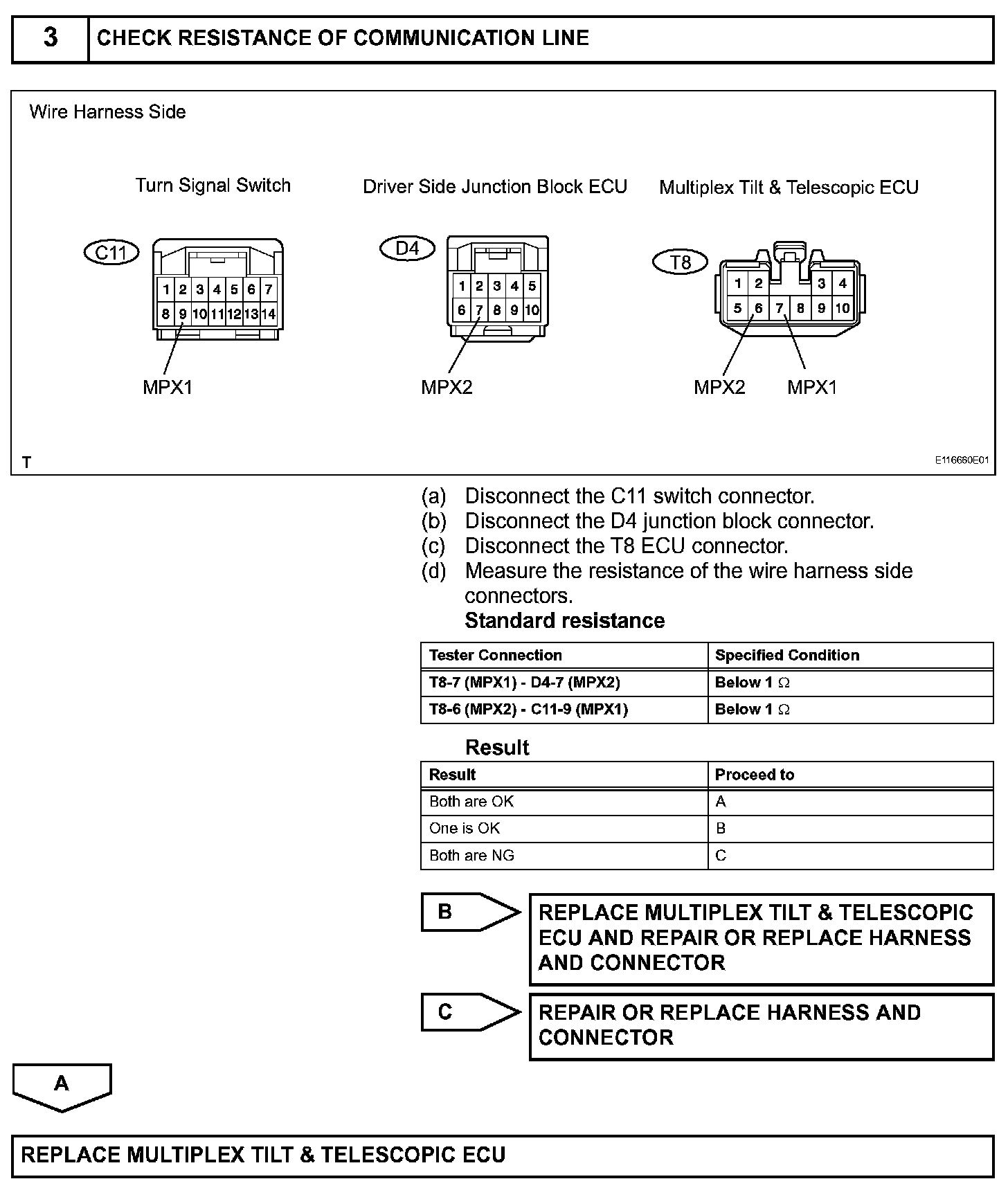

Step 3:

INSPECTION PROCEDURE
