B1212

DTC B1212 Front Passenger Door ECU Communication Stop

DESCRIPTION

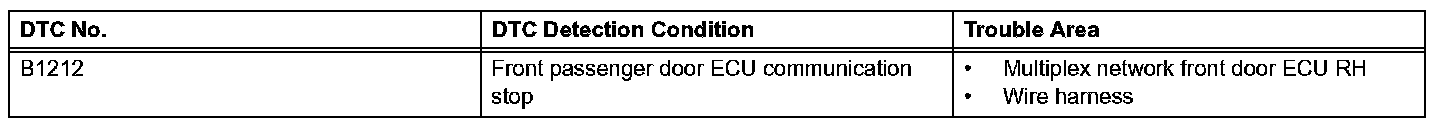

DTC Detection Condition:

This DTC is detected when communication between the multiplex network front door ECU RH (front passenger door ECU) and network gateway ECU stops for more than 10 seconds.

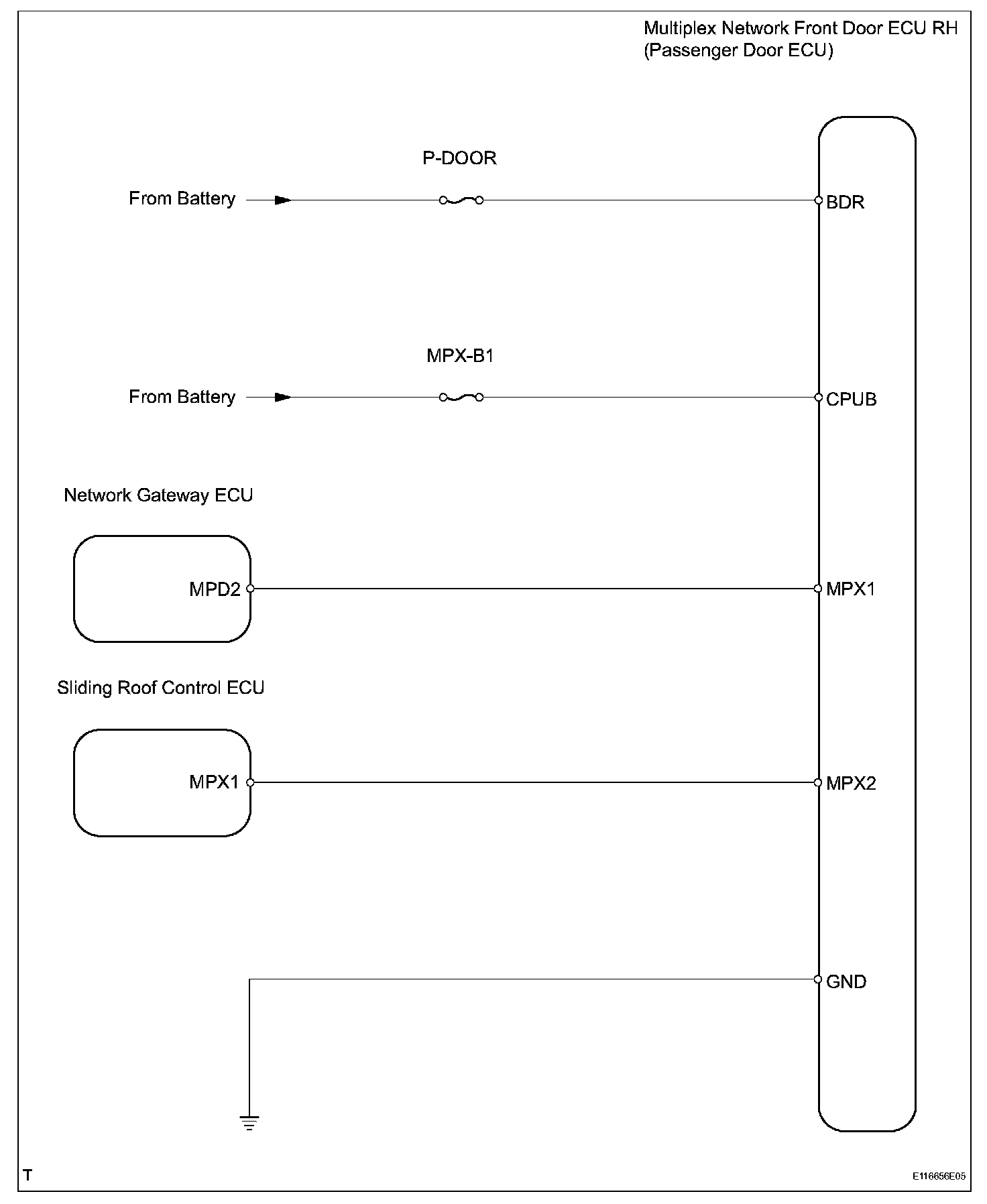

Wiring Diagram:

Step 1-2:

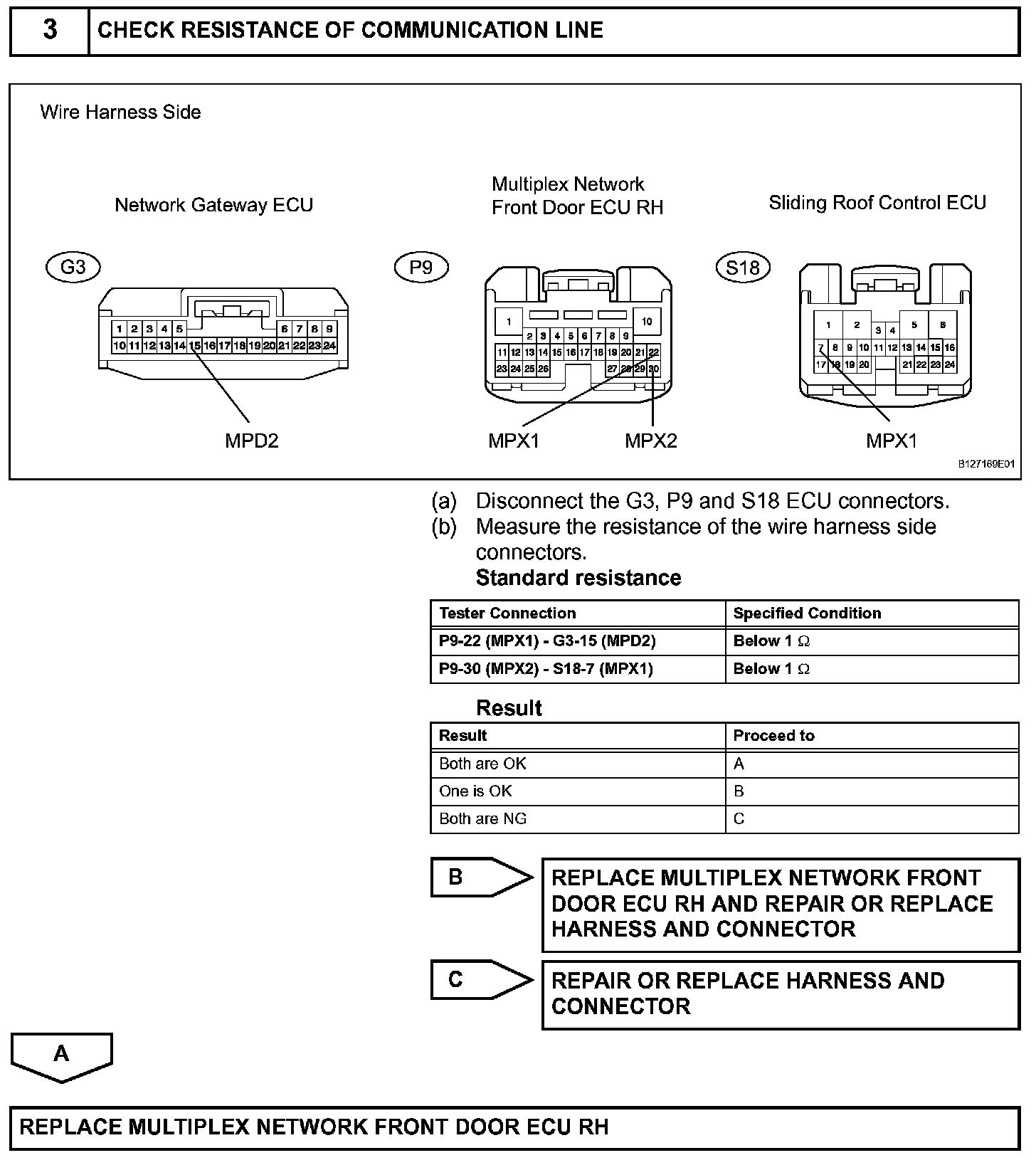

Step 3:

INSPECTION PROCEDURE
