B1211

DTC B1211 Driver Door ECU Communication Stop

DESCRIPTION

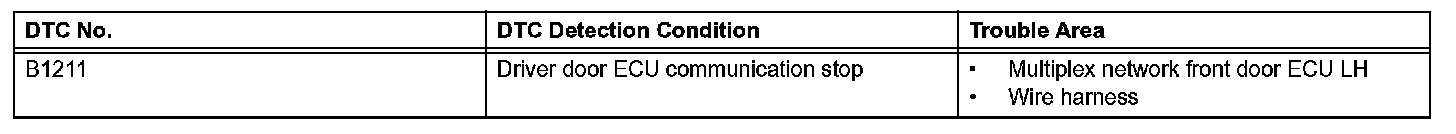

DTC Detection Condition:

This DTC is detected when communication between the multiplex network front door ECU LH and network gateway ECU stops for more than 10 seconds.

Wiring Diagram:

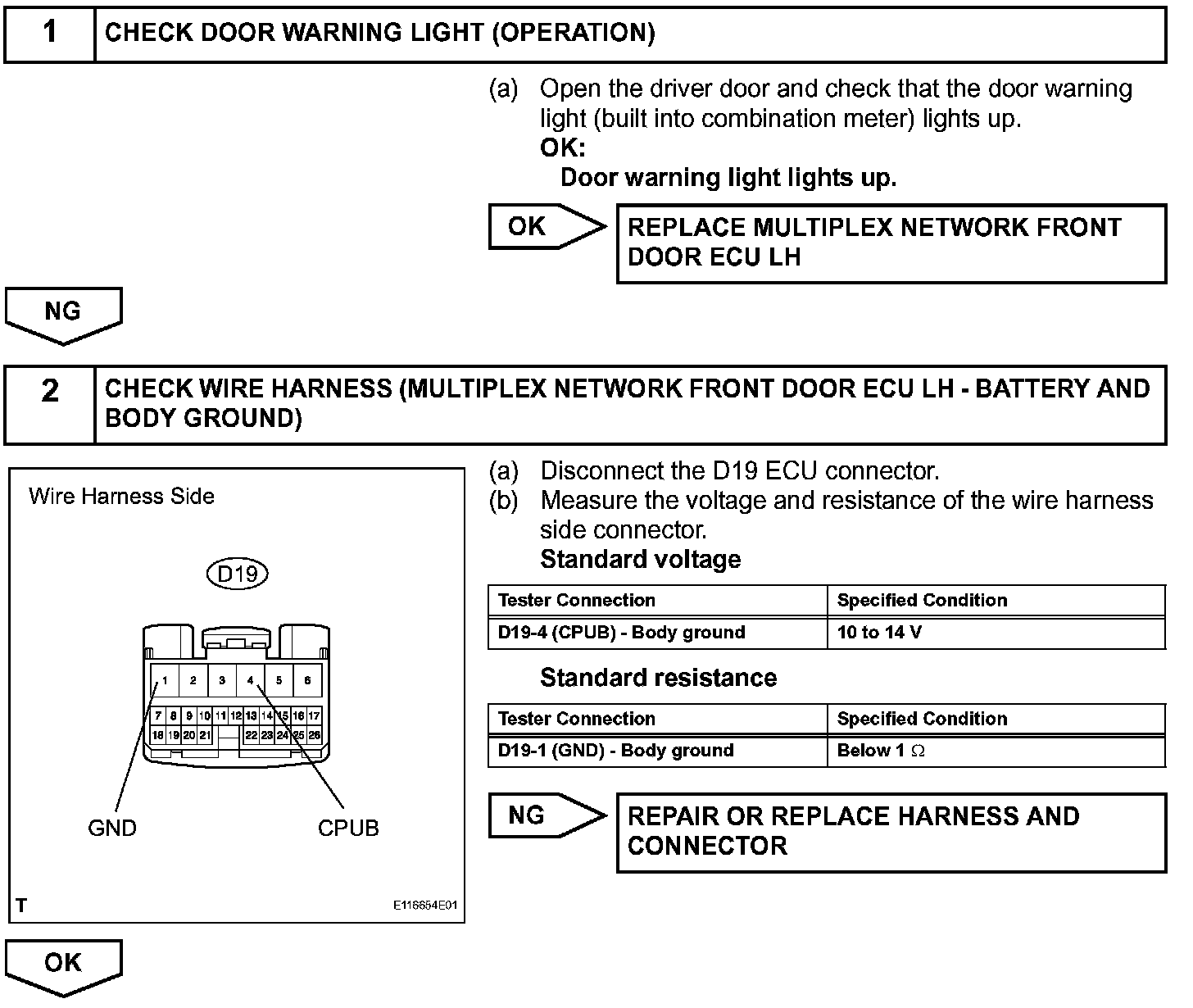

Step 1-2:

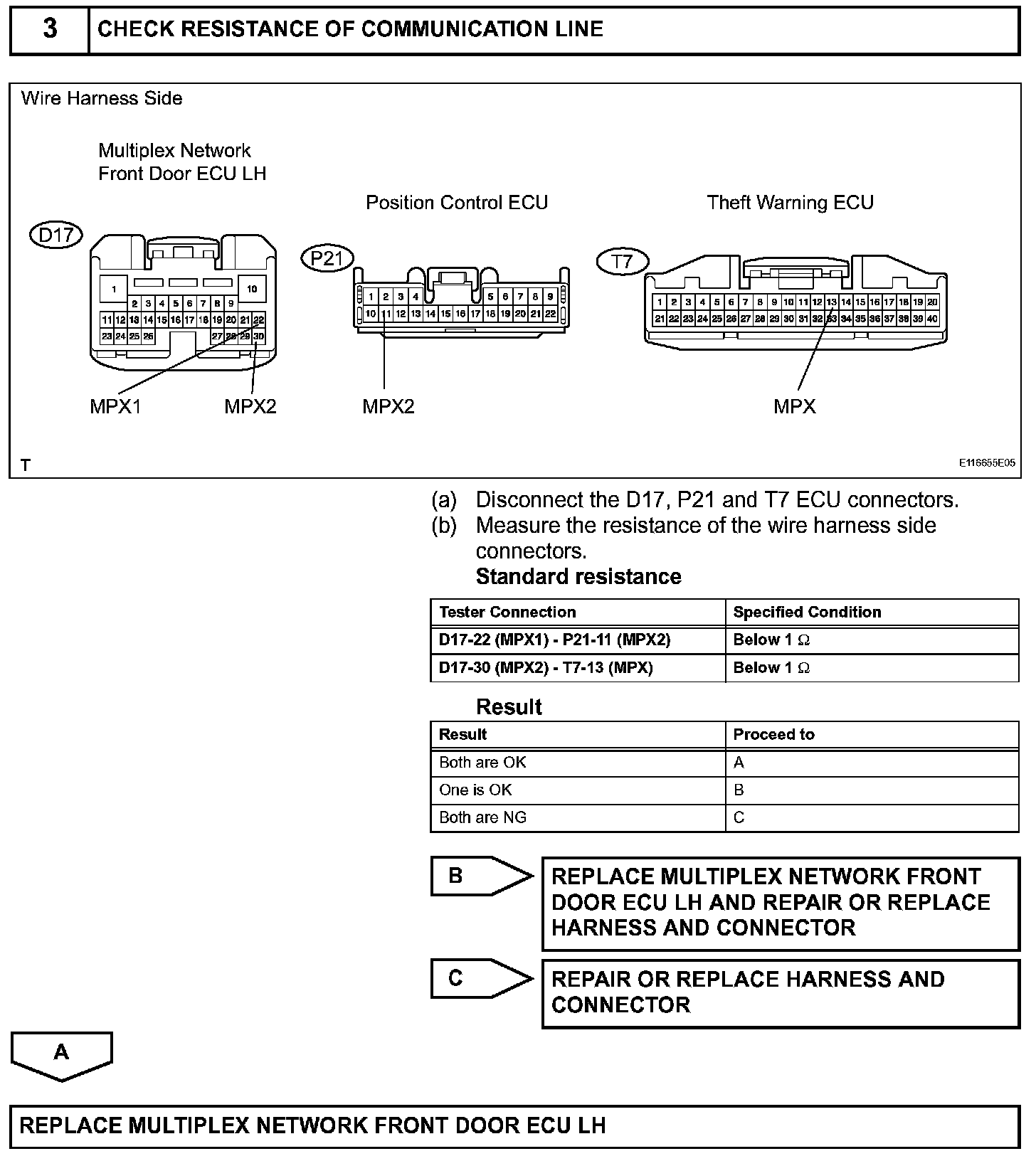

Step 3:

INSPECTION PROCEDURE
