B1205

DTC B1205 AFS ECU Communication Stop

DESCRIPTION

DTC Detection Condition:

This DTC is detected when communication between the AFS ECU and network gateway ECU stops for more than 10 seconds.

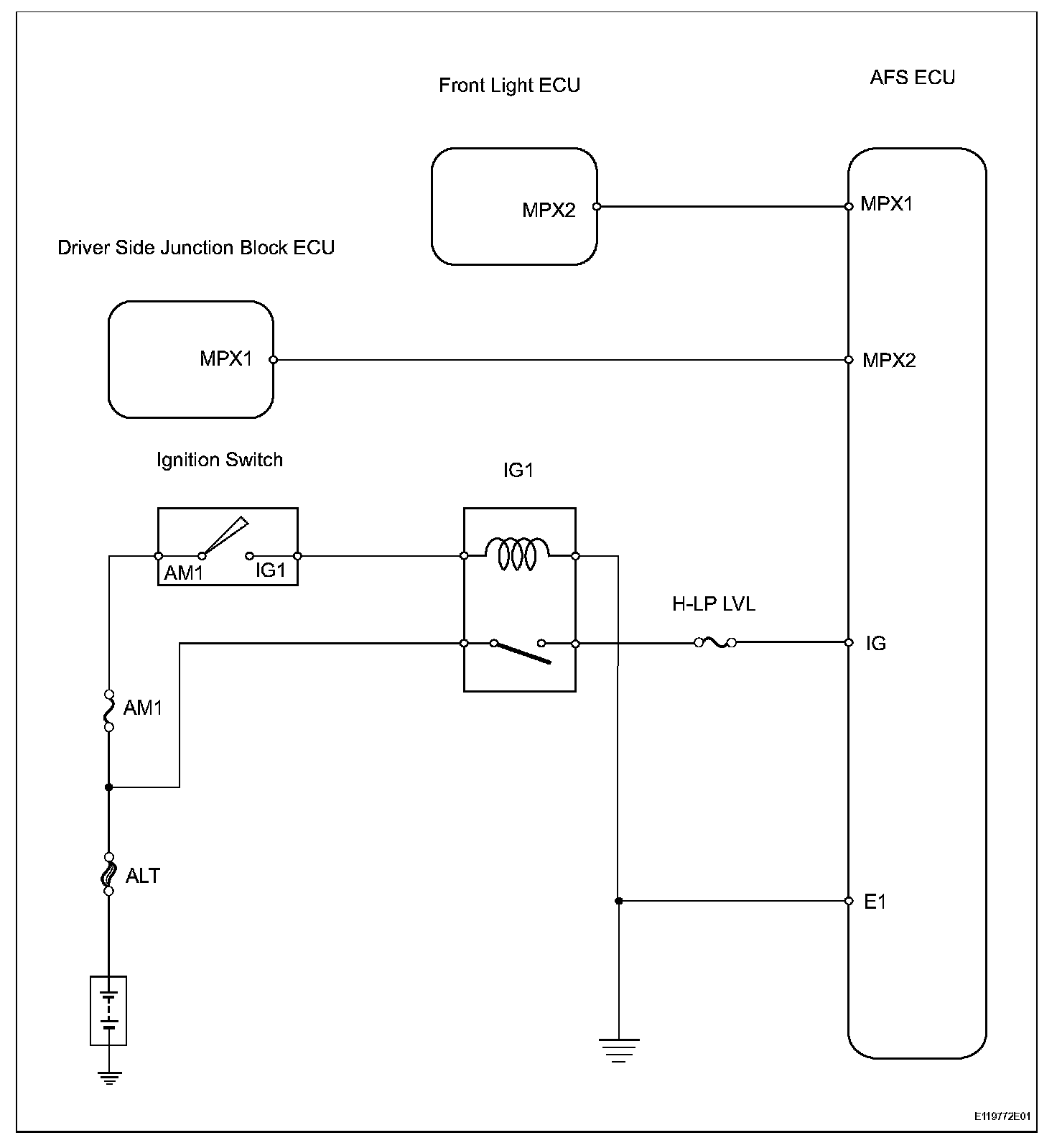

Wiring Diagram:

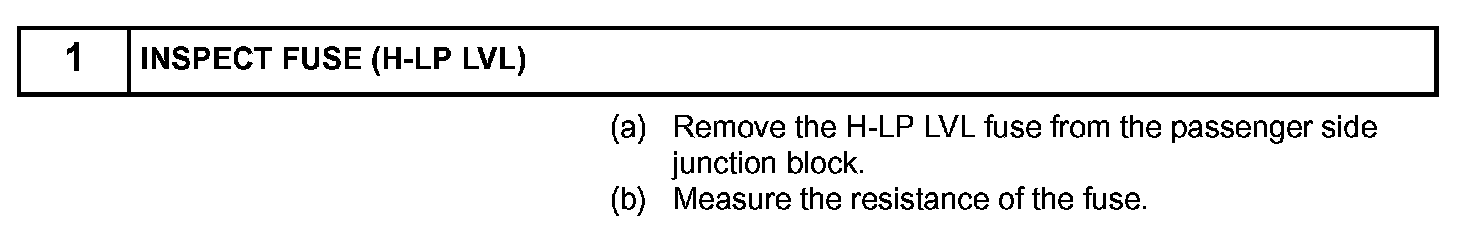

Step 1:

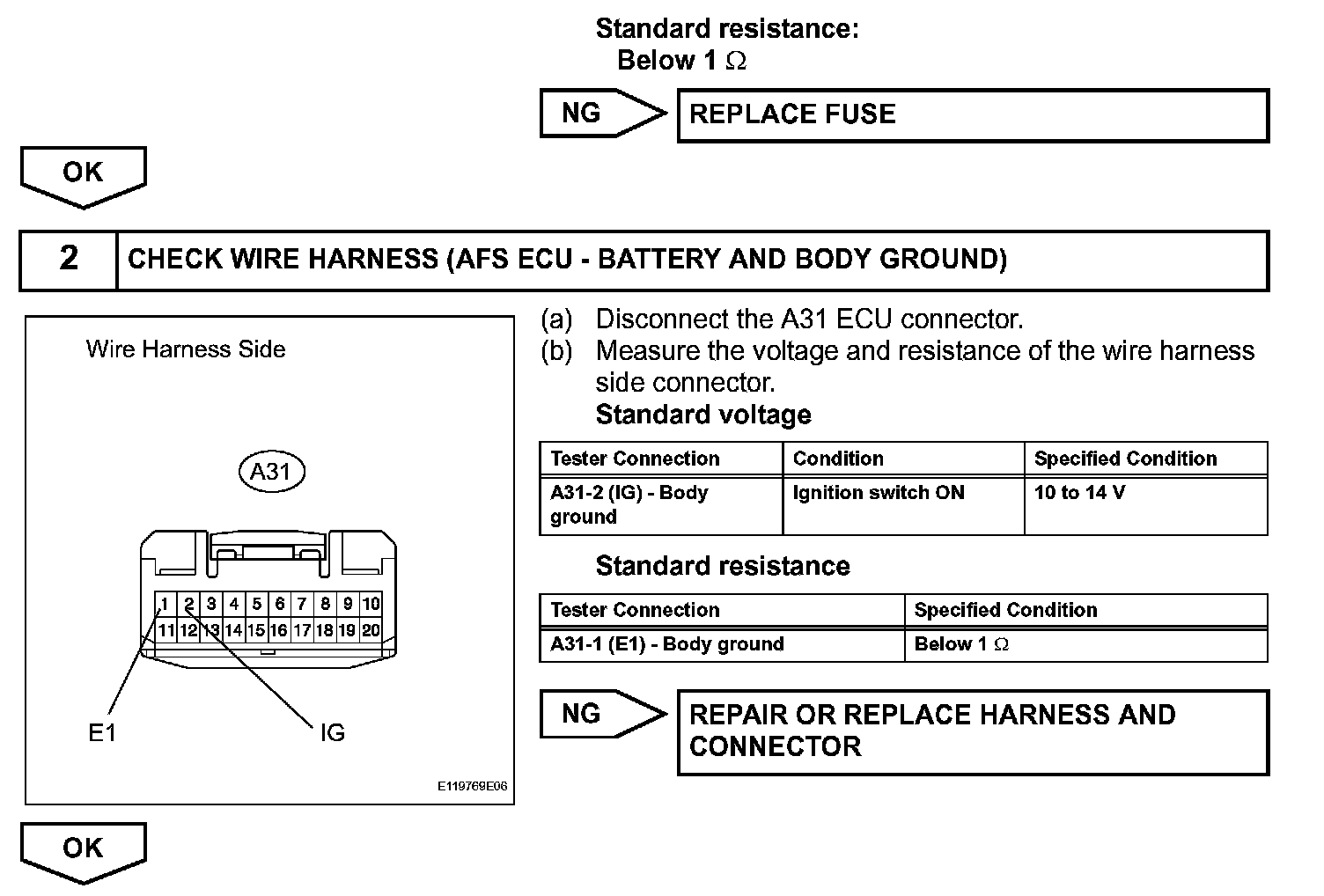

Step 1 (Continued)-2:

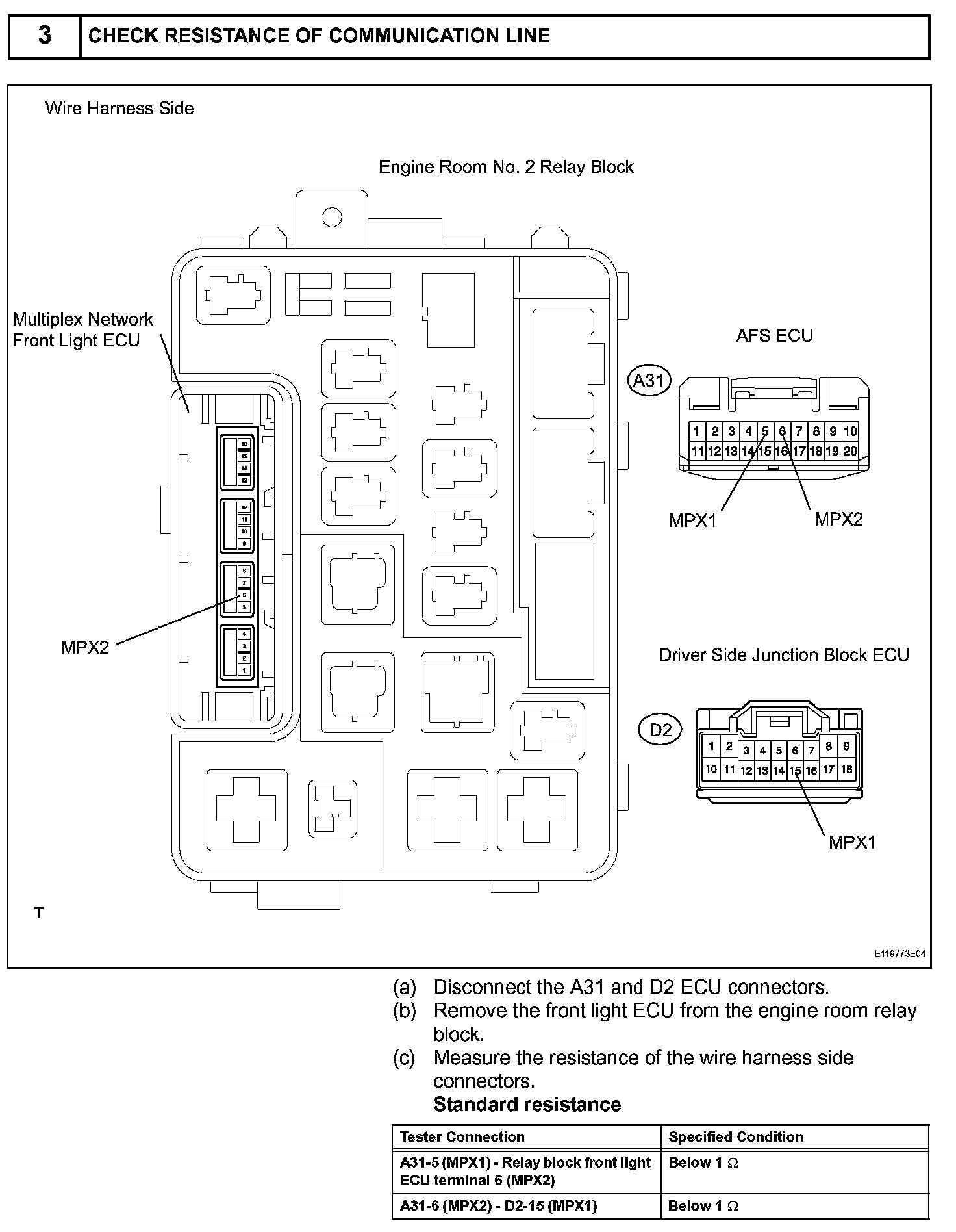

Step 3:

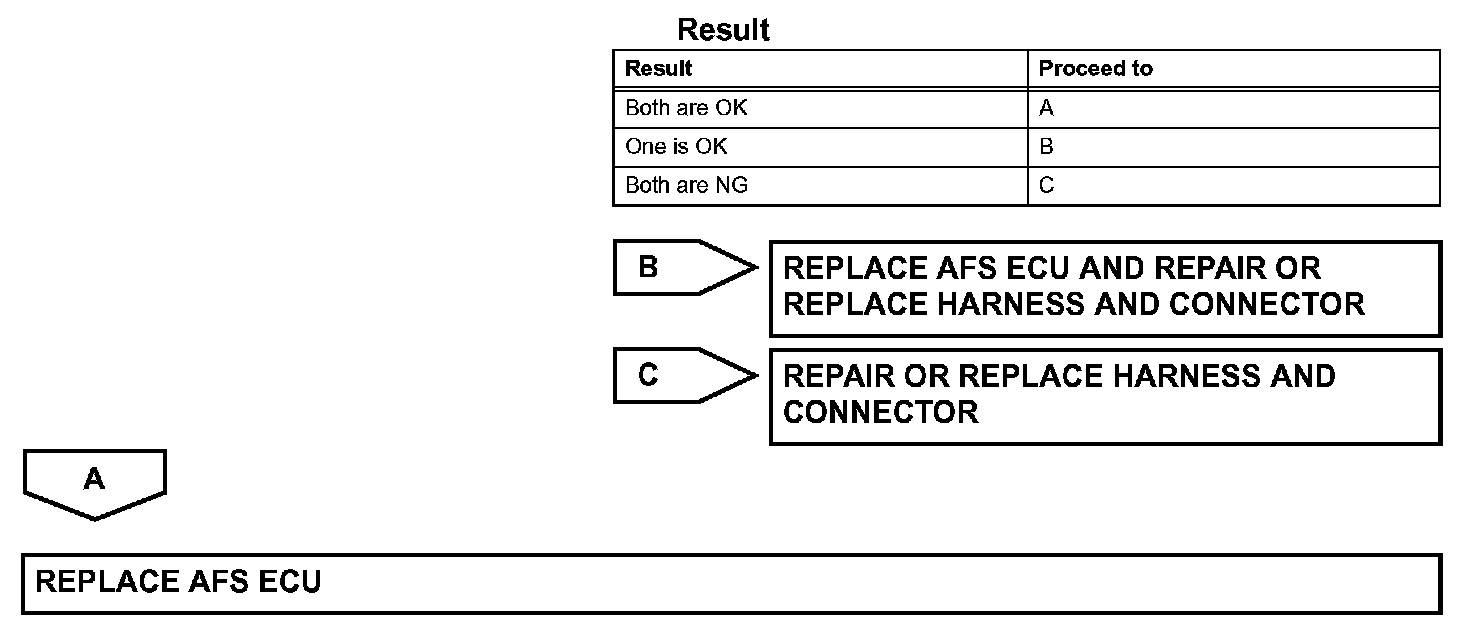

Step 3 (Continued):

INSPECTION PROCEDURE
