Wiper and Washer Switch Circuit
Wiper and Washer Switch CircuitDESCRIPTION
This circuit provides power to operate the windshield wiper switch. The manual operation signals are sent to the front light ECU.

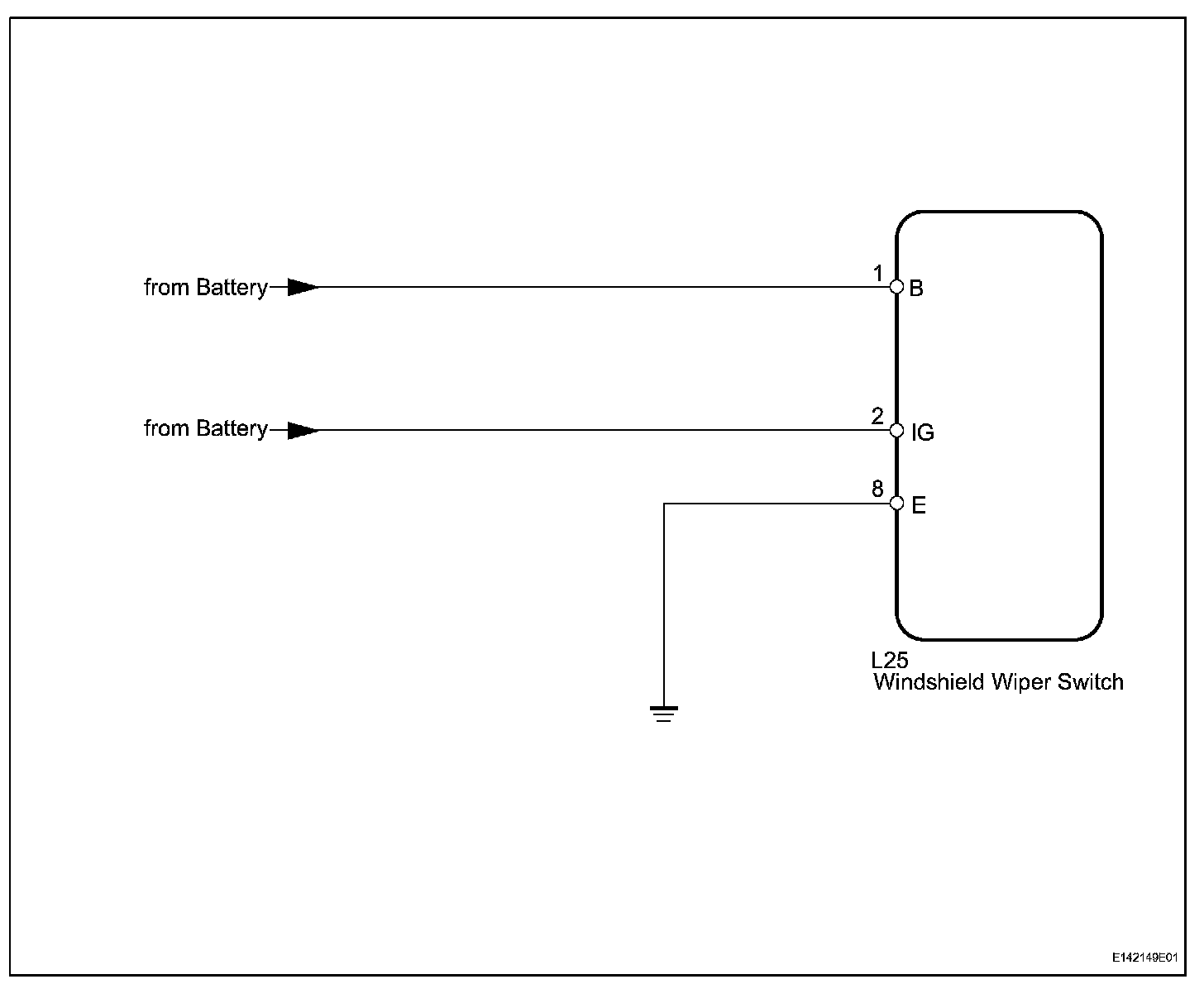

Wiring Diagram:

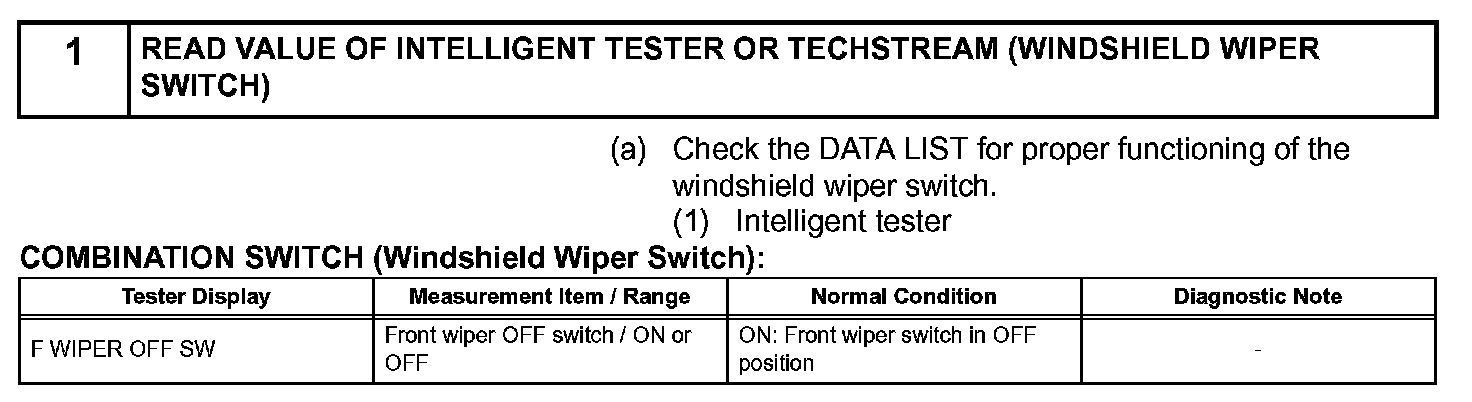

Step 1:

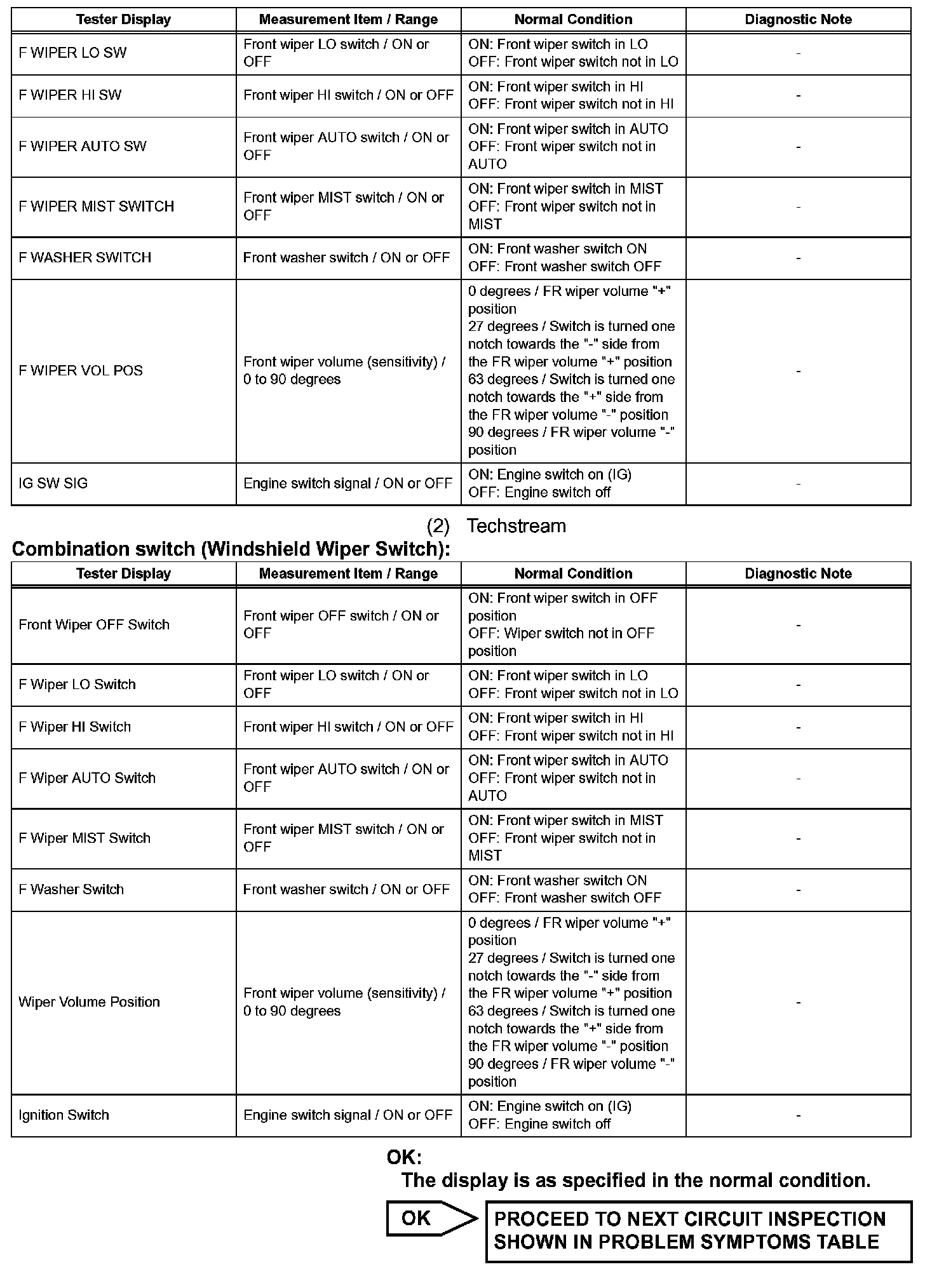

Step 1 (Continued):

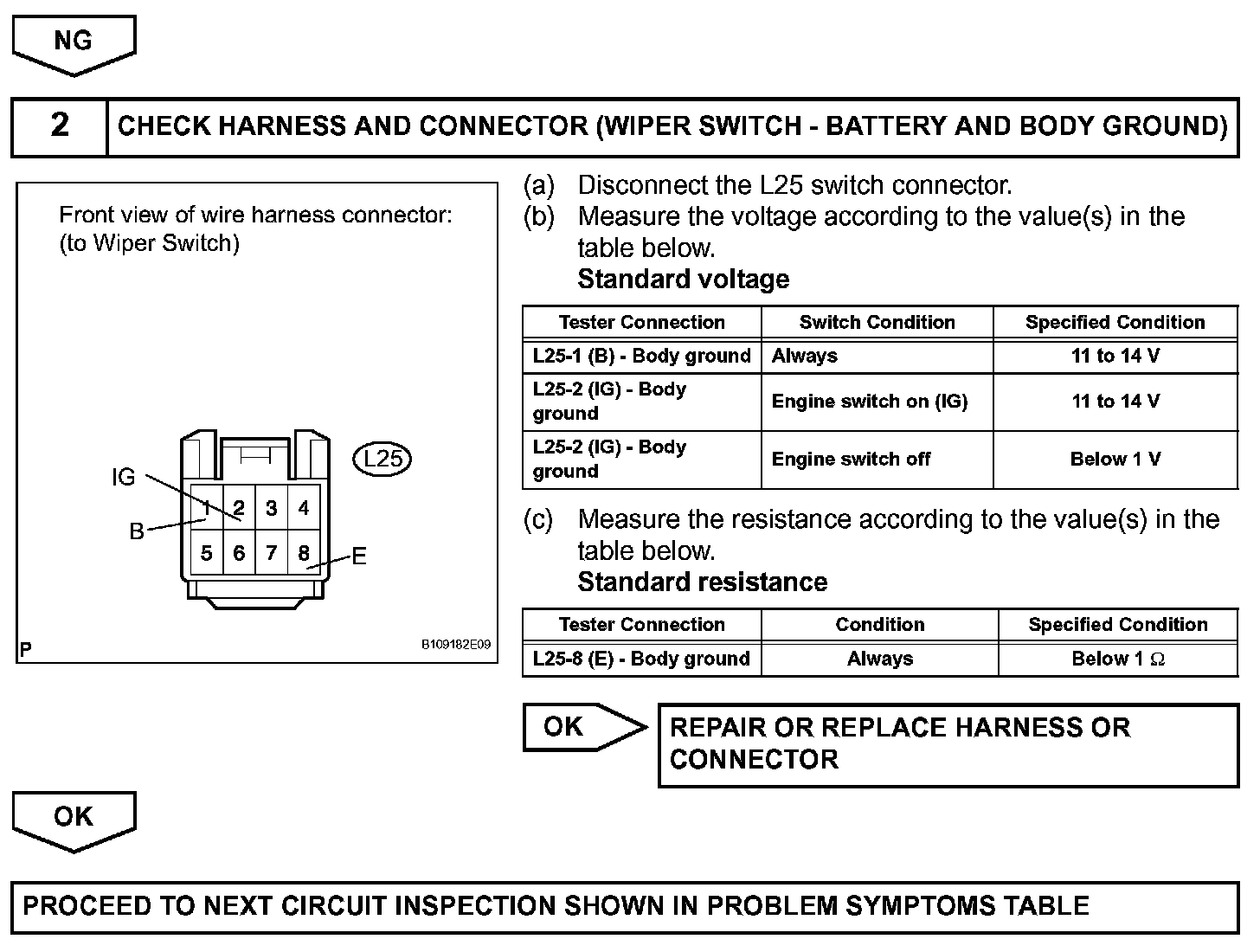

Step 1 (Continued)-2:
INSPECTION PROCEDURE
