Washer Motor Circuit
Washer Motor CircuitDESCRIPTION
The front light ECU receives washer switch information from the front wiper switch, and operates the wash relay.

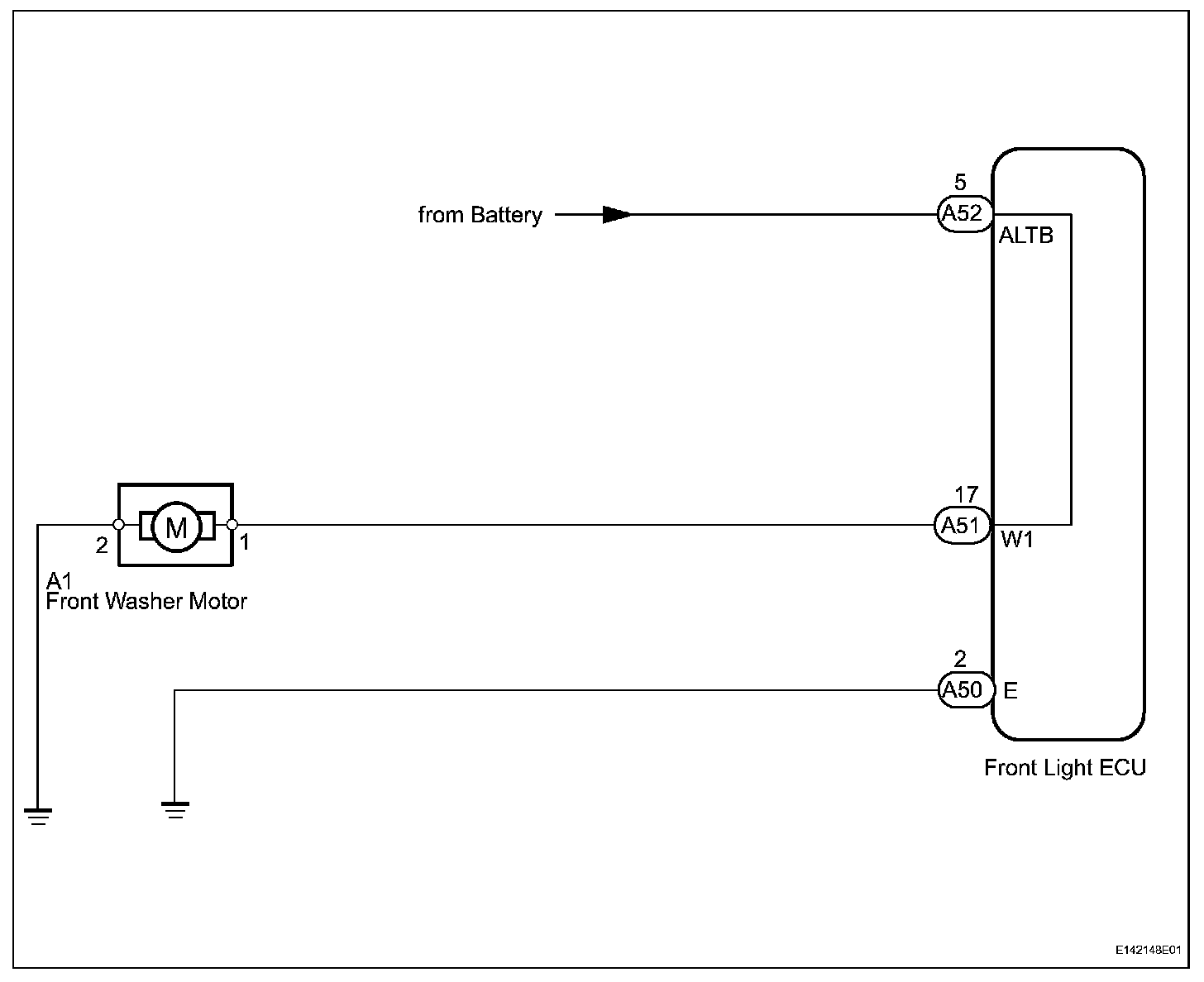

Wiring Diagram:

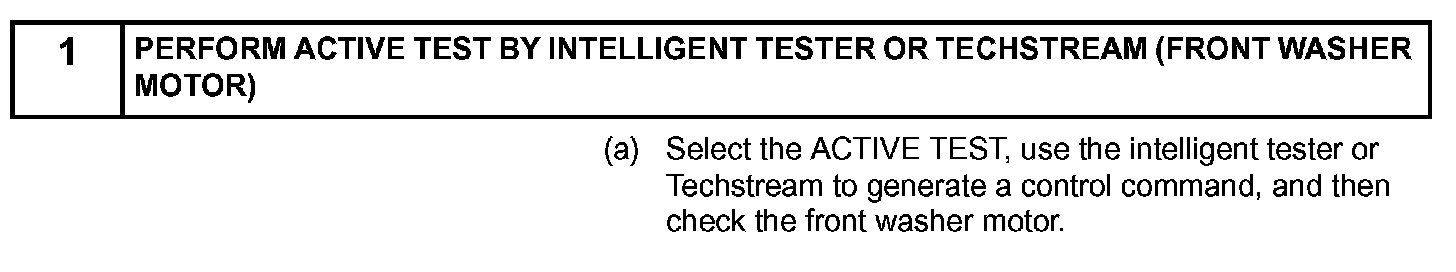

Step 1:

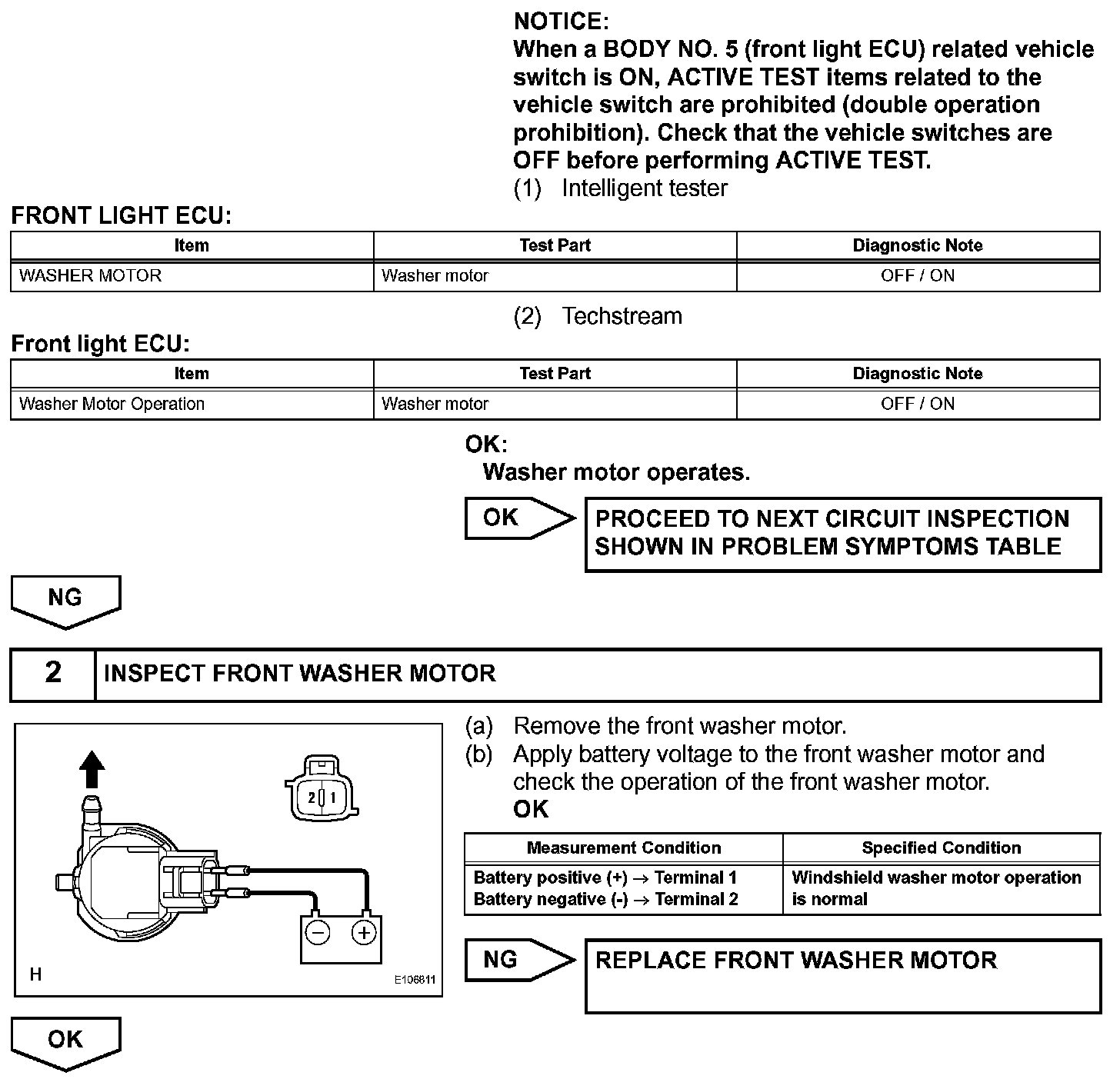

Step 1 (Continued)-2:

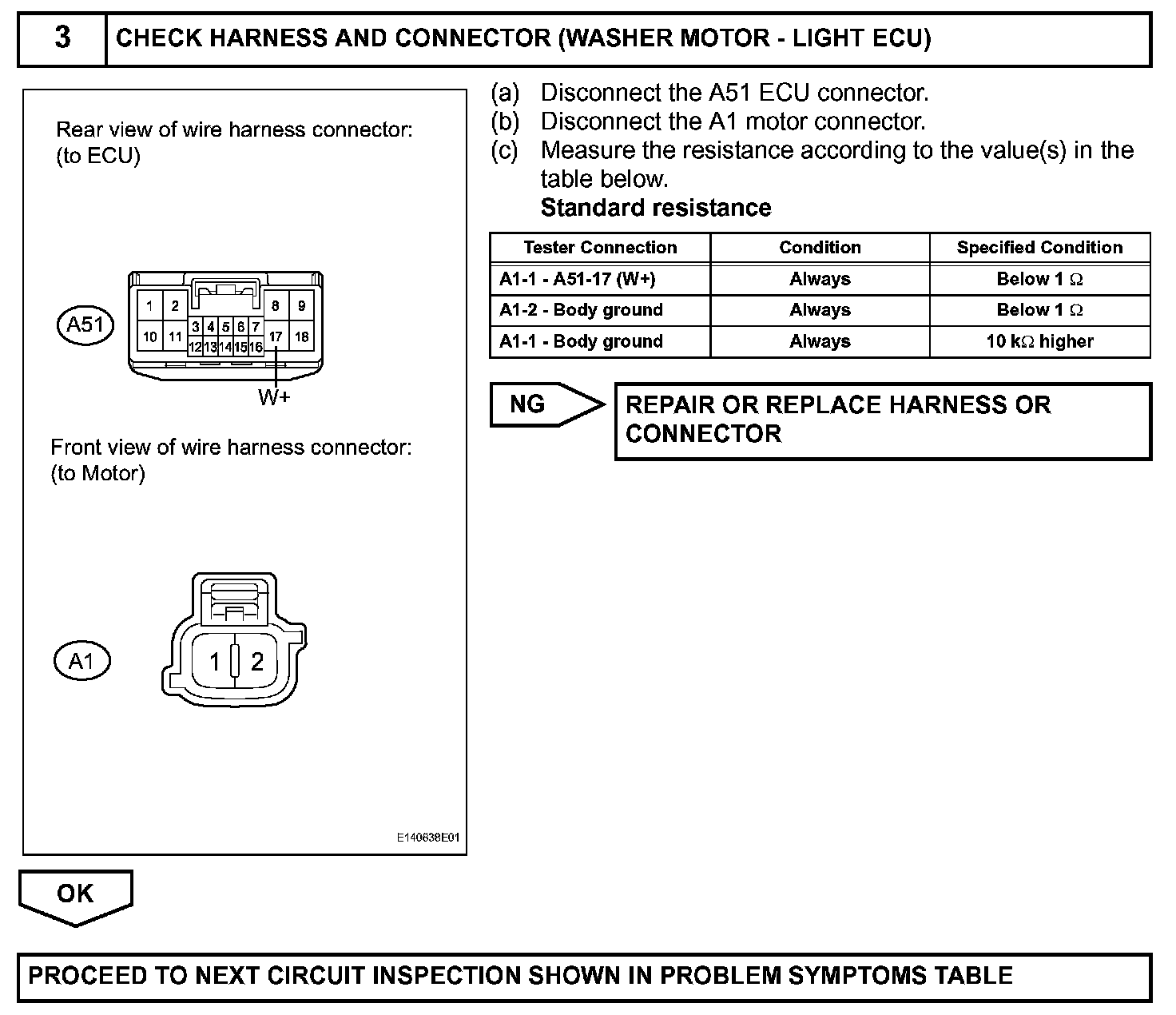

Step 3:
INSPECTION PROCEDURE
DESCRIPTION
The front light ECU receives washer switch information from the front wiper switch, and operates the wash relay.
INSPECTION PROCEDURE
