Washer Fluid Level Warning Switch Circuit

Washer Fluid Level Warning Switch Circuit

DESCRIPTION

The front light ECU receives washer fluid level warning switch information, and sends it through CAN line to the combination meter. The combination meter receives this information, and turns on the washer fluid level warning switch when the washer fluid becomes low.

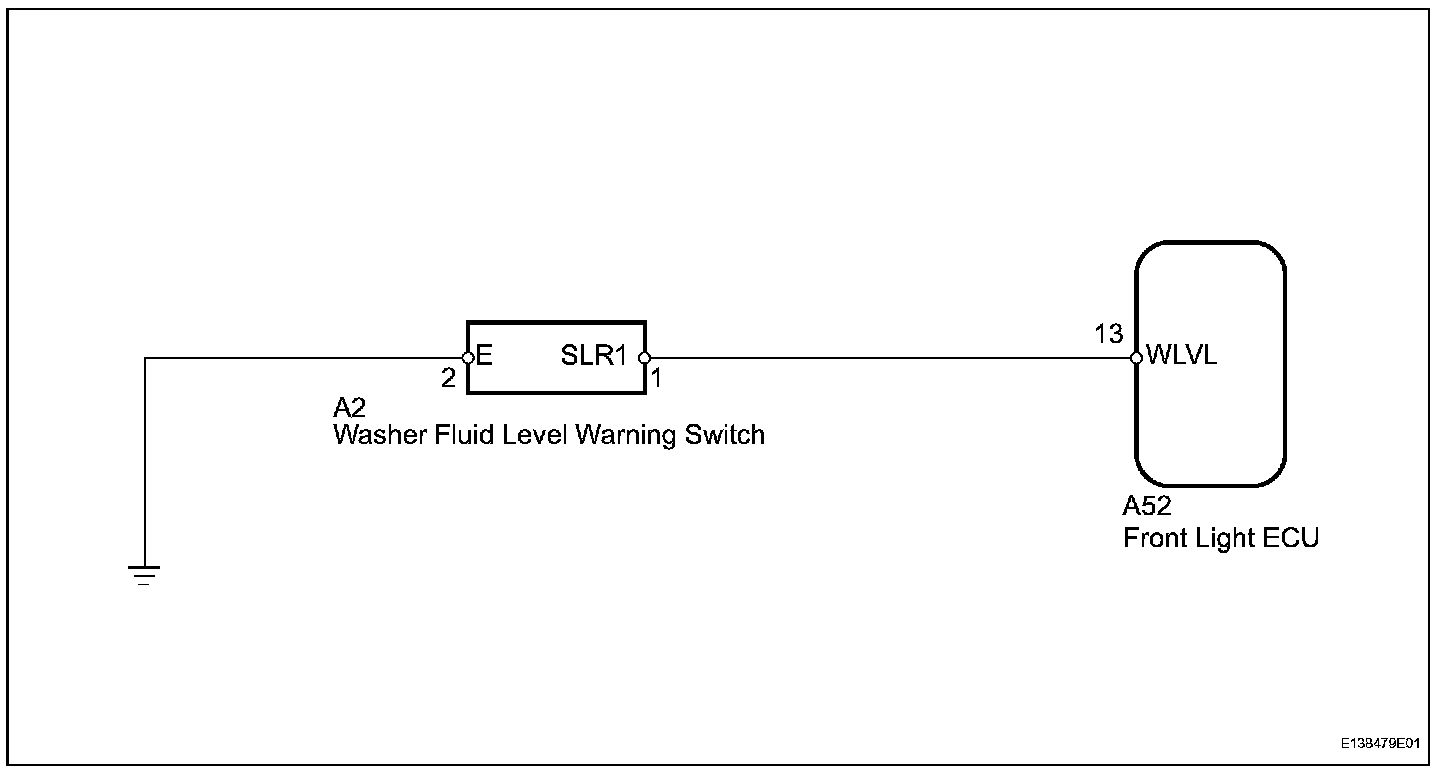

Wiring Diagram:

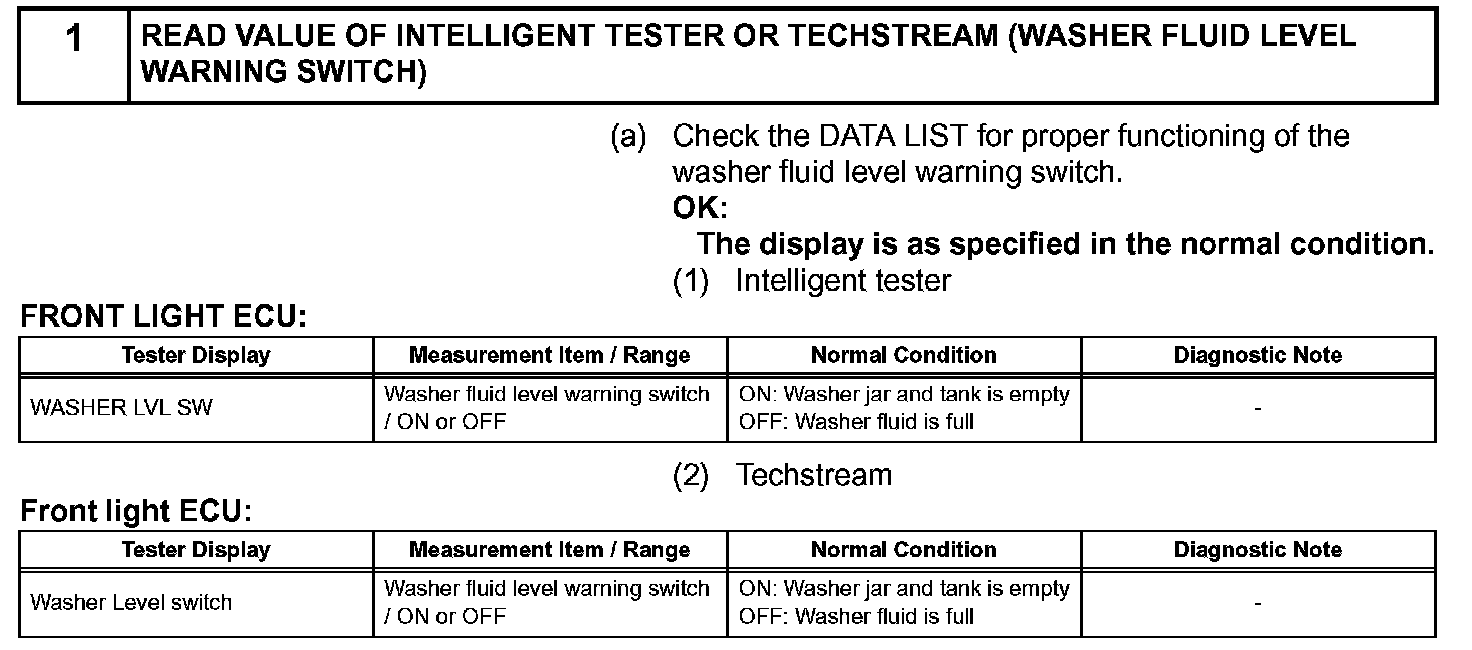

Step 1:

Step 1 (Continued)-3:

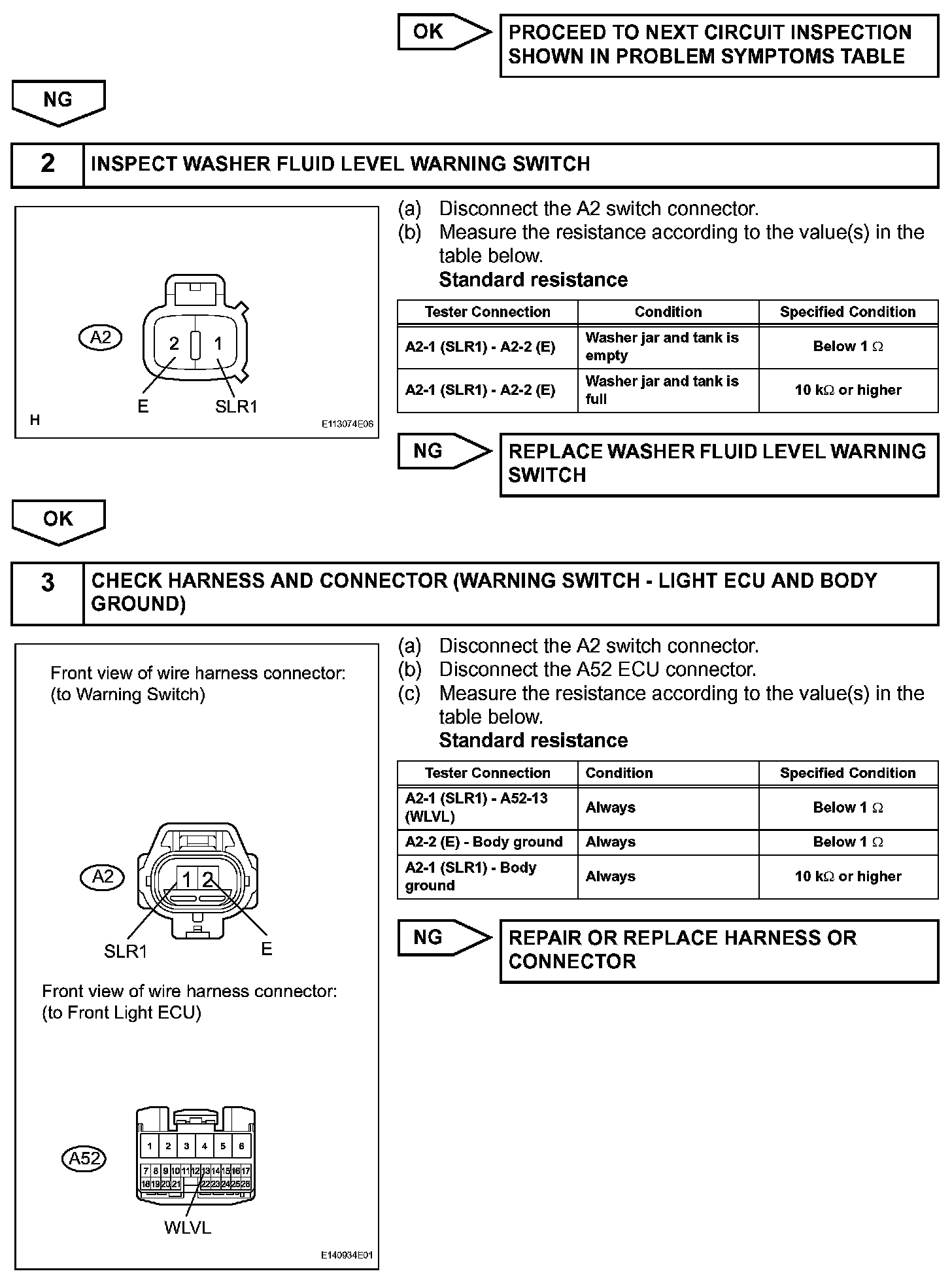

Step 3 (Continued):

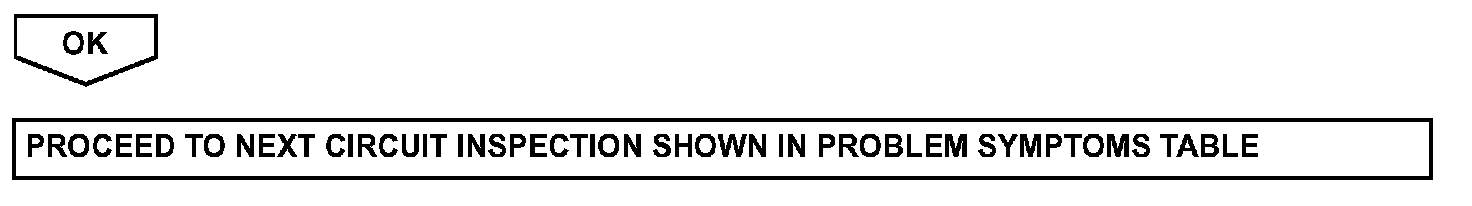

INSPECTION PROCEDURE
