Headlight Cleaner Motor and Relay Circuit
Headlight Cleaner Motor and Relay CircuitDESCRIPTION
This circuit provides power to the headlight cleaner control relay. The headlight cleaner control relay sends the signal from the switch, etc. to the headlight cleaner motor to operate the headlight cleaner system.

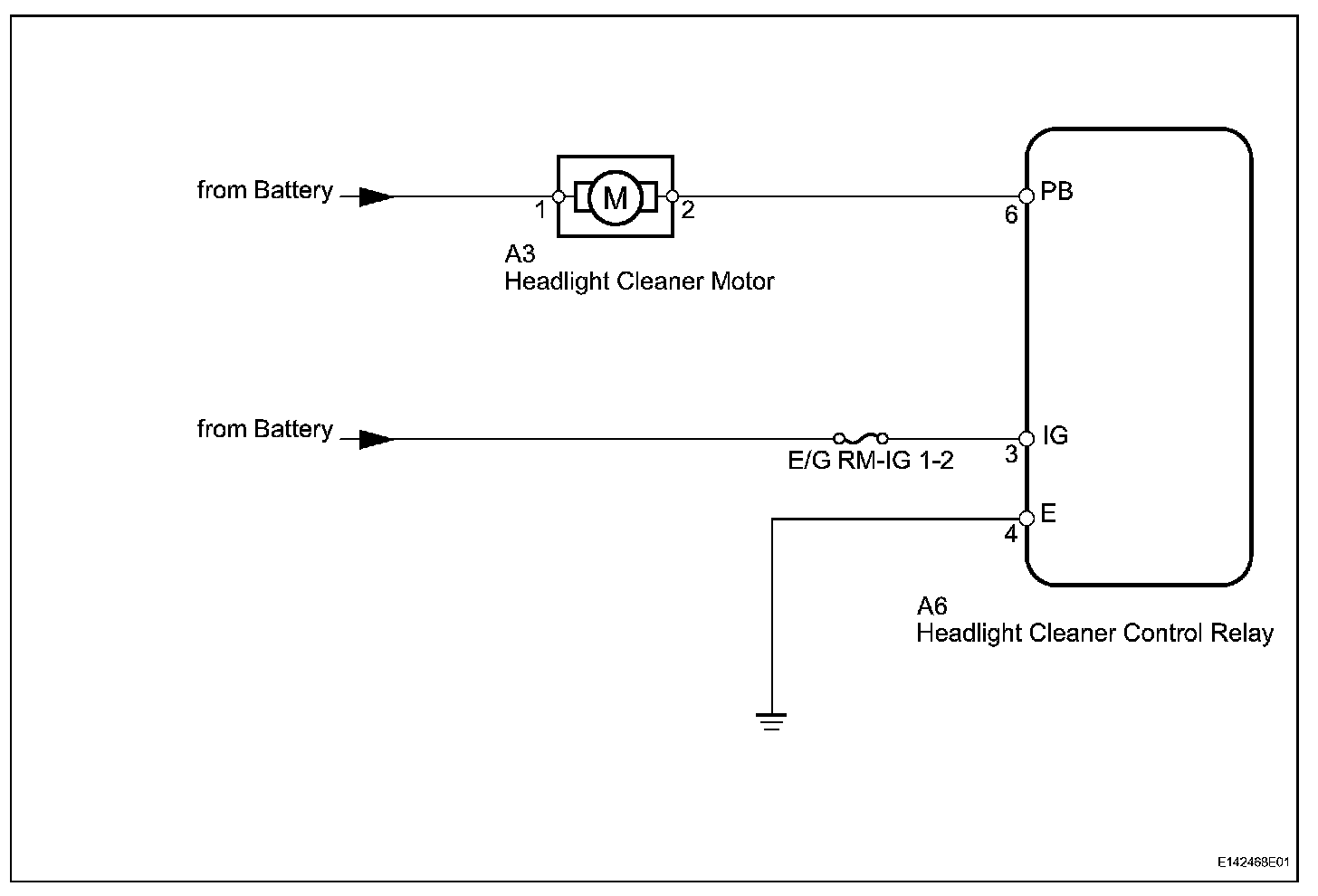

Wiring Diagram:

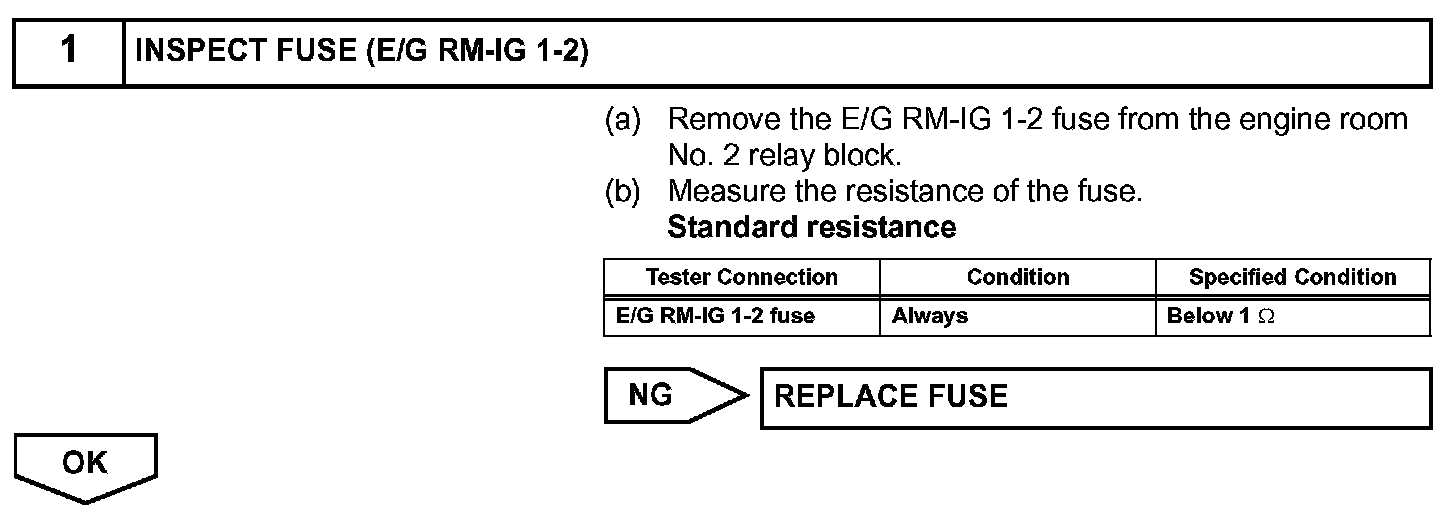

Step 1:

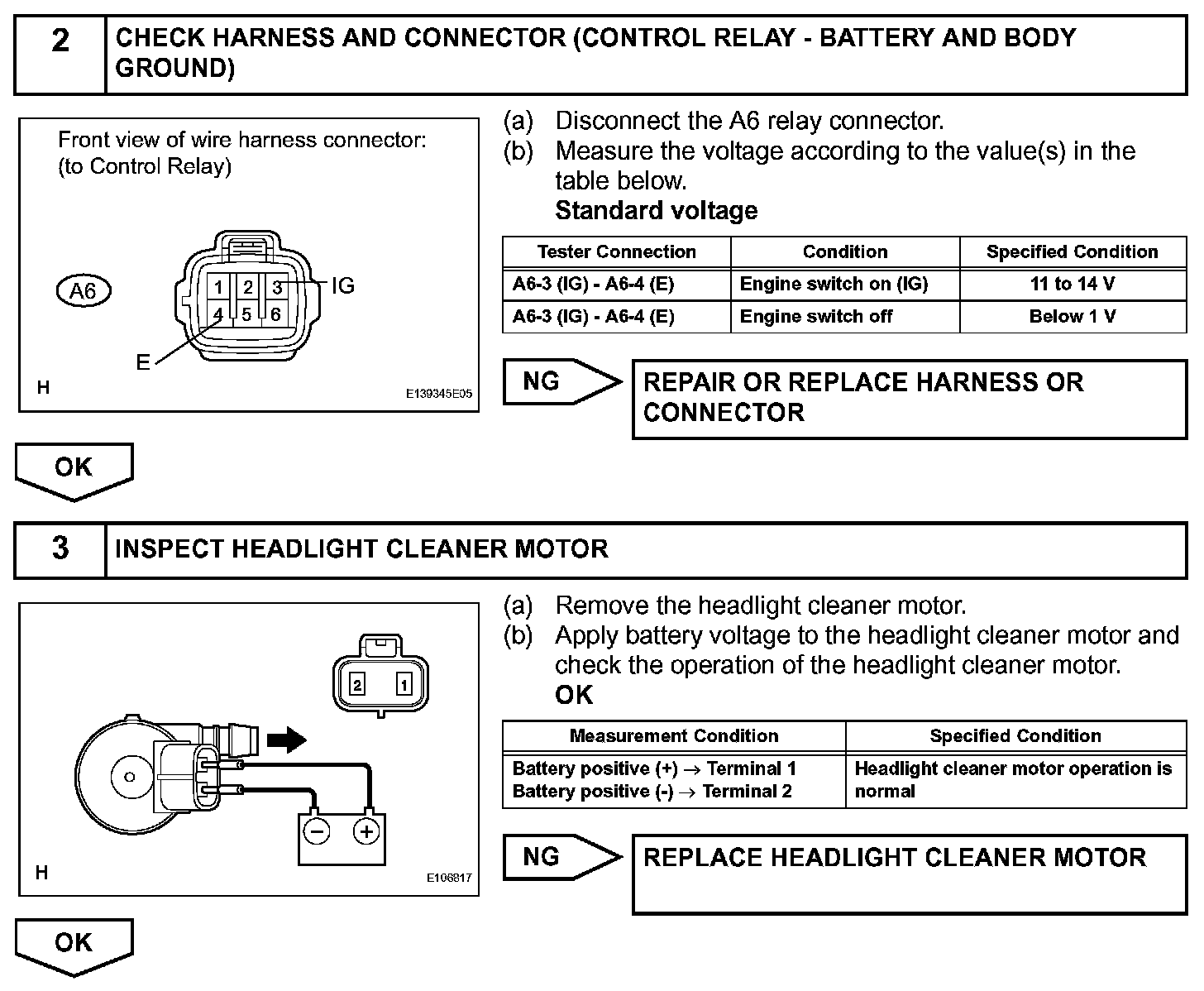

Step 2-3:

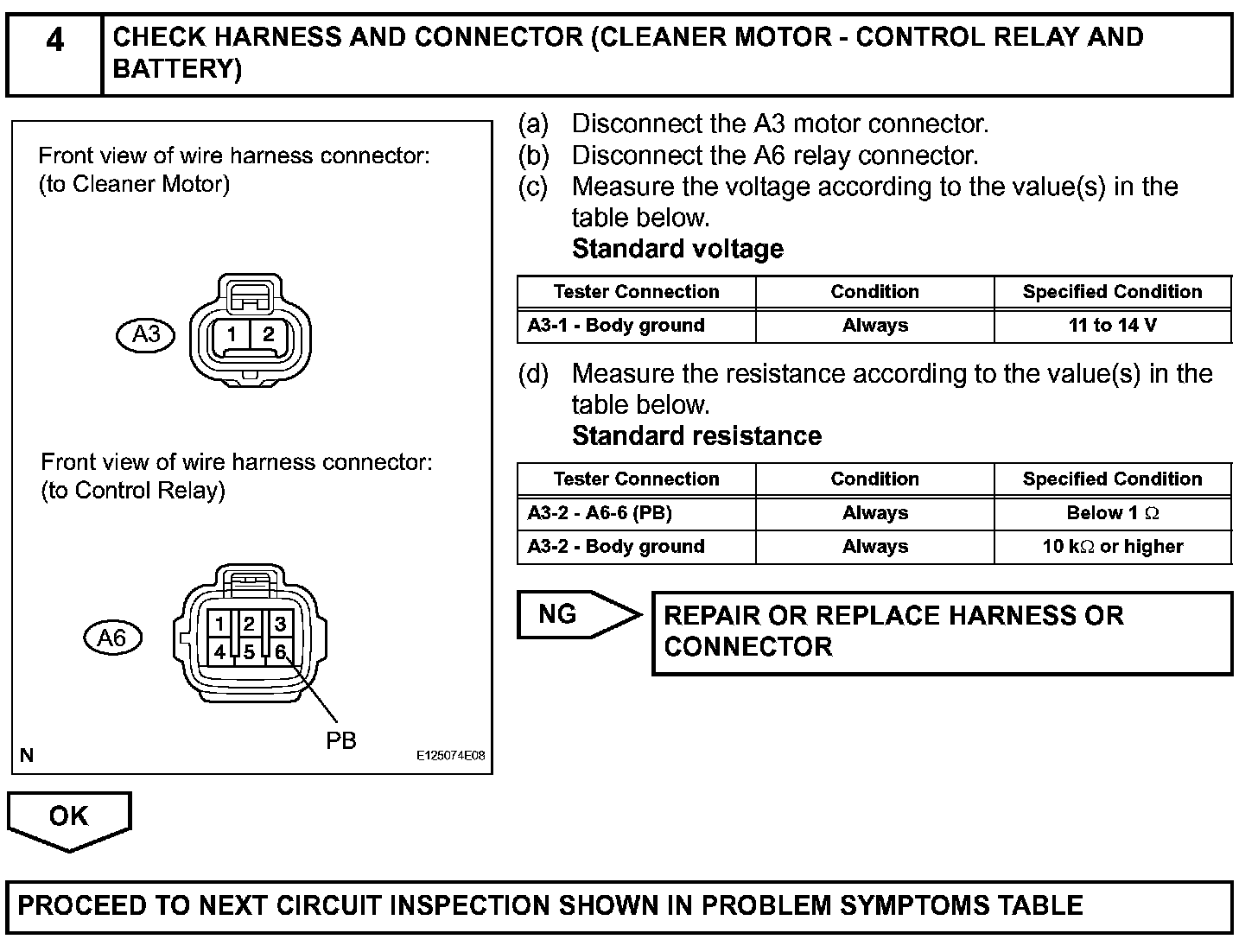

Step 4:
INSPECTION PROCEDURE
