ECU Power Source Circuit

ECU Power Source Circuit

DESCRIPTION

This circuit provides power to the front wiper motor and operates the front light ECU.

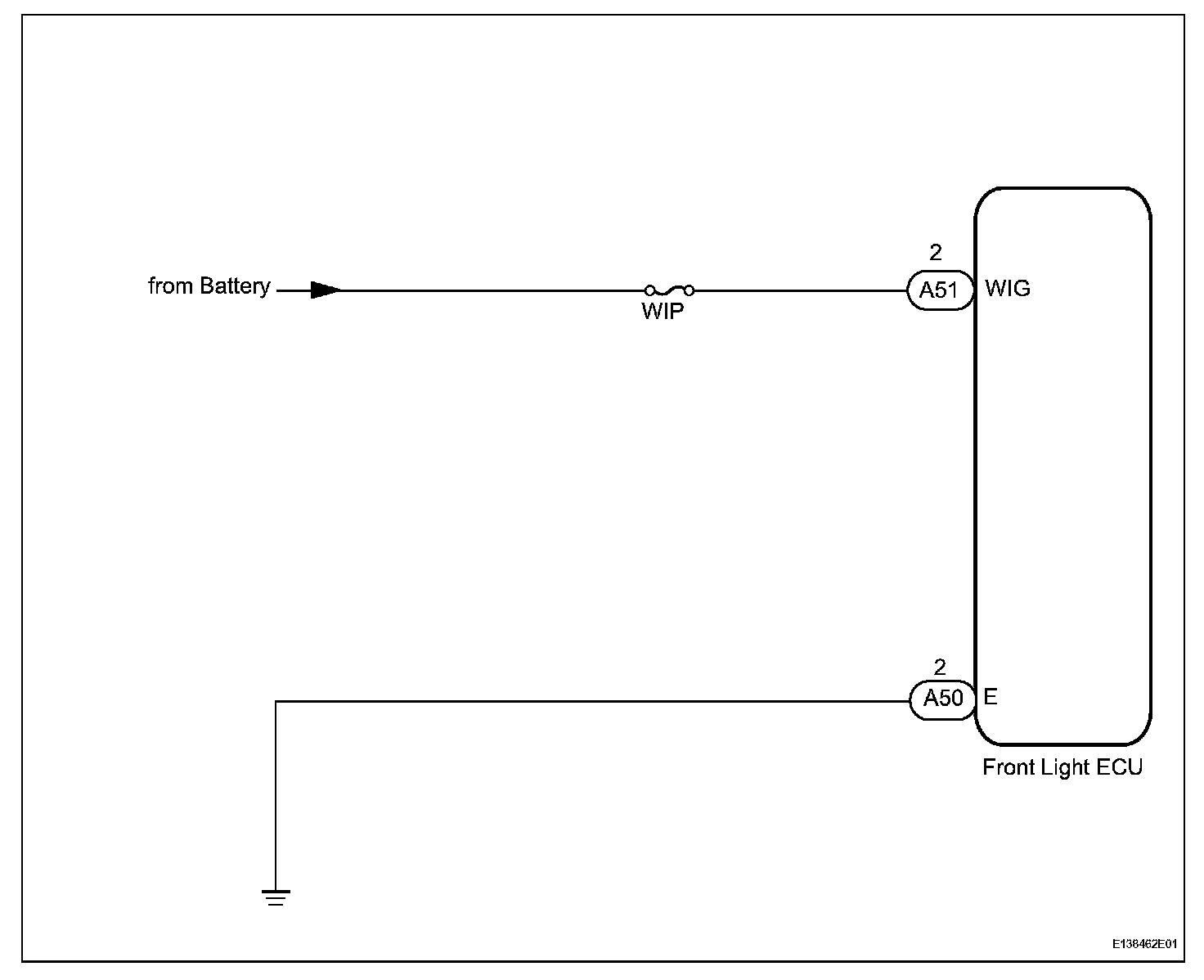

Wiring Diagram:

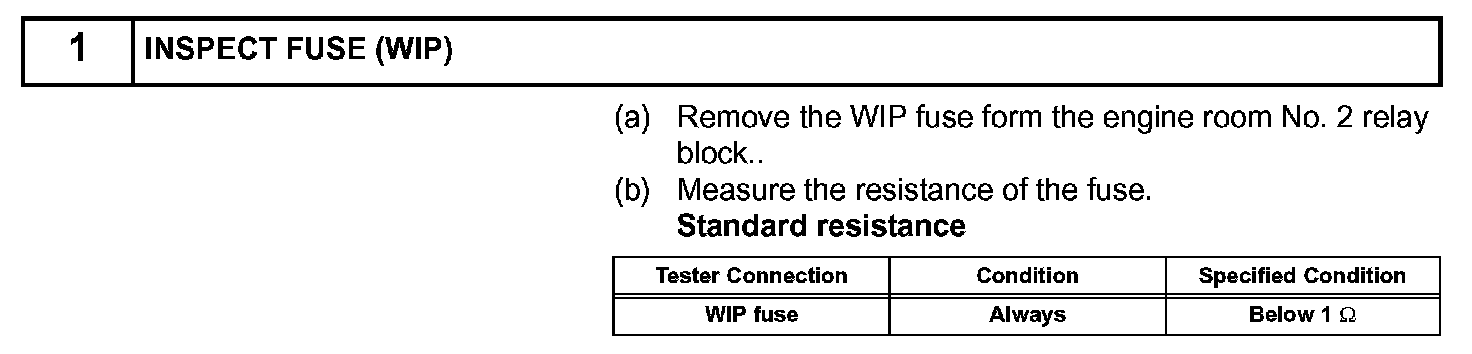

Step 1:

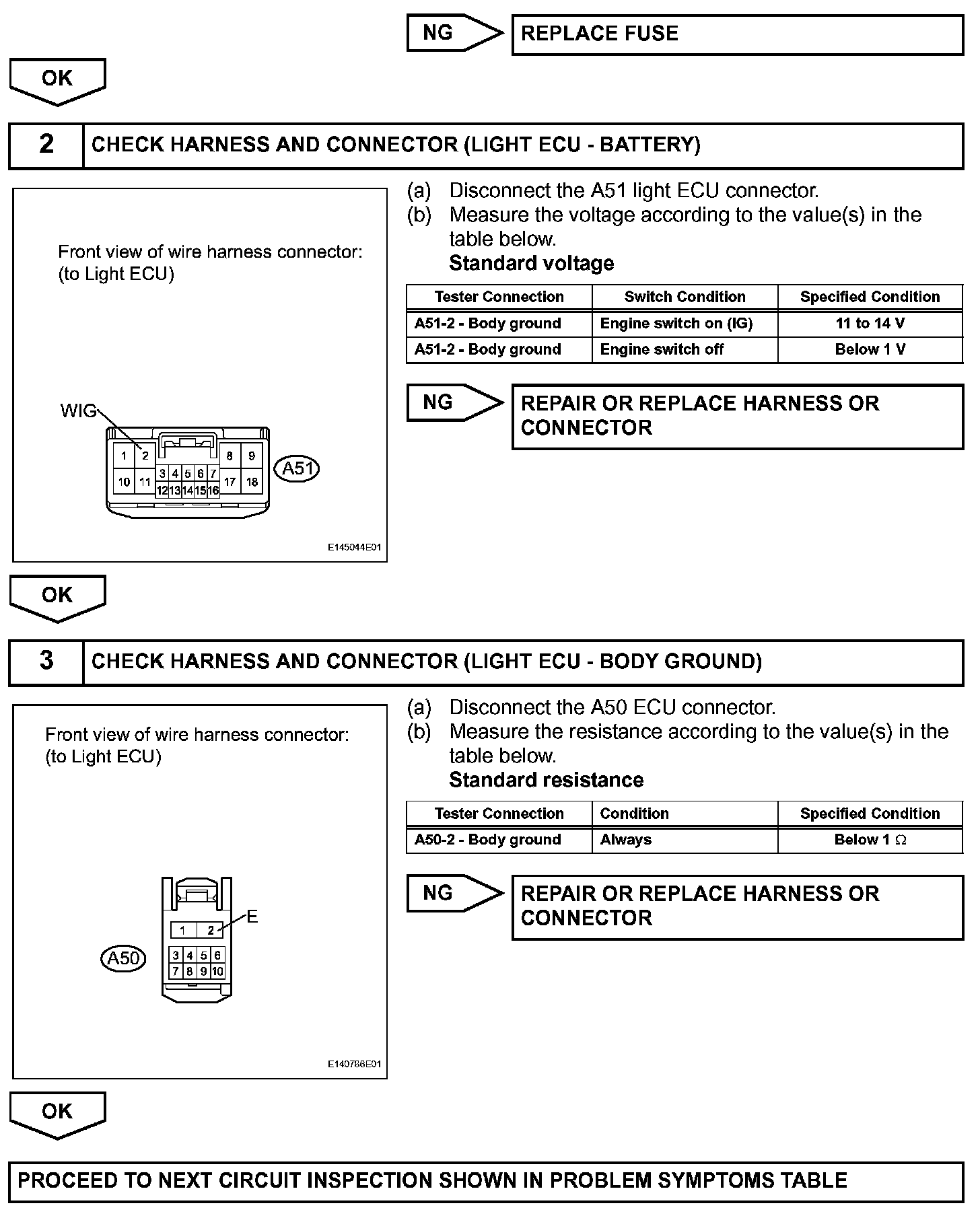

Step 1 (Continued)-3:




INSPECTION PROCEDURE
