Only Front Switch Cannot Operate Rear Sunshade
Only Front Switch Cannot Operate Rear SunshadeDESCRIPTION
A rear sunshade switch signal is sent from the No. 2 console switch (Integration control & panel) to the No. 1 console switch (combination switch). Then the signal is sent through LIN communication to the outer mirror switch, which then sends the signal through CAN communication to the rear junction block ECU, and the rear sunshade operates.
WIRING DIAGRAM

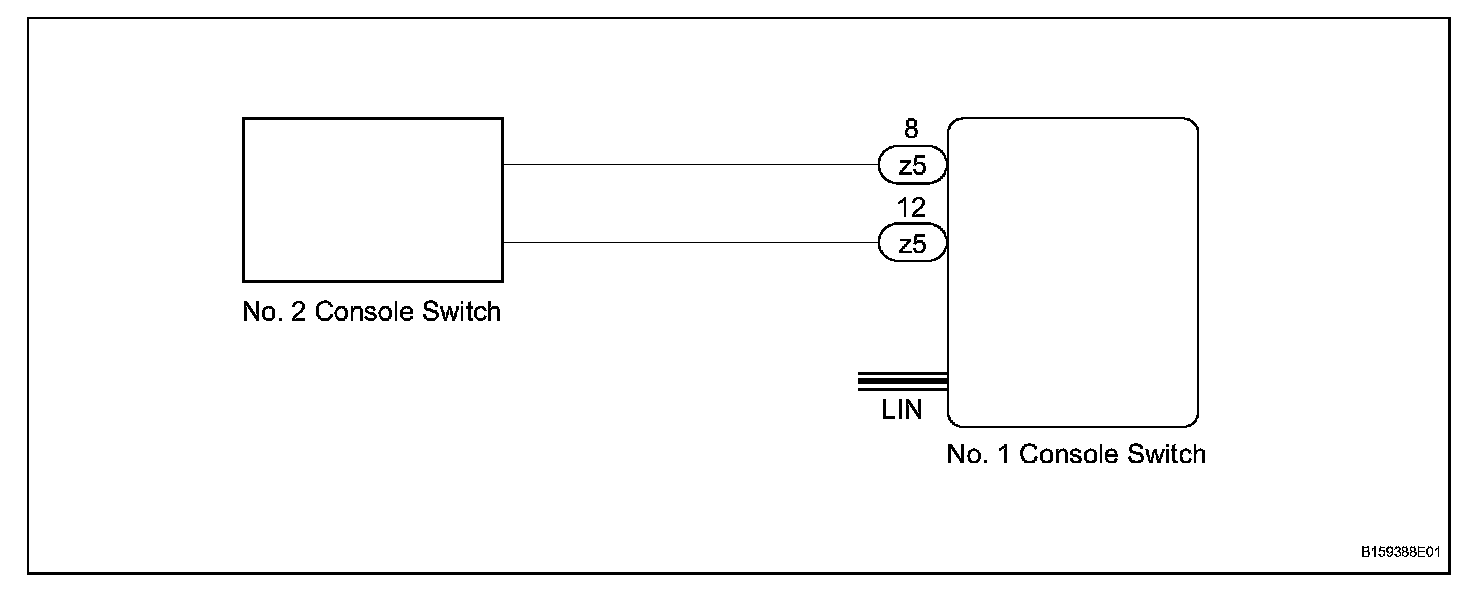

Wiring Diagram:
INSPECTION PROCEDURE

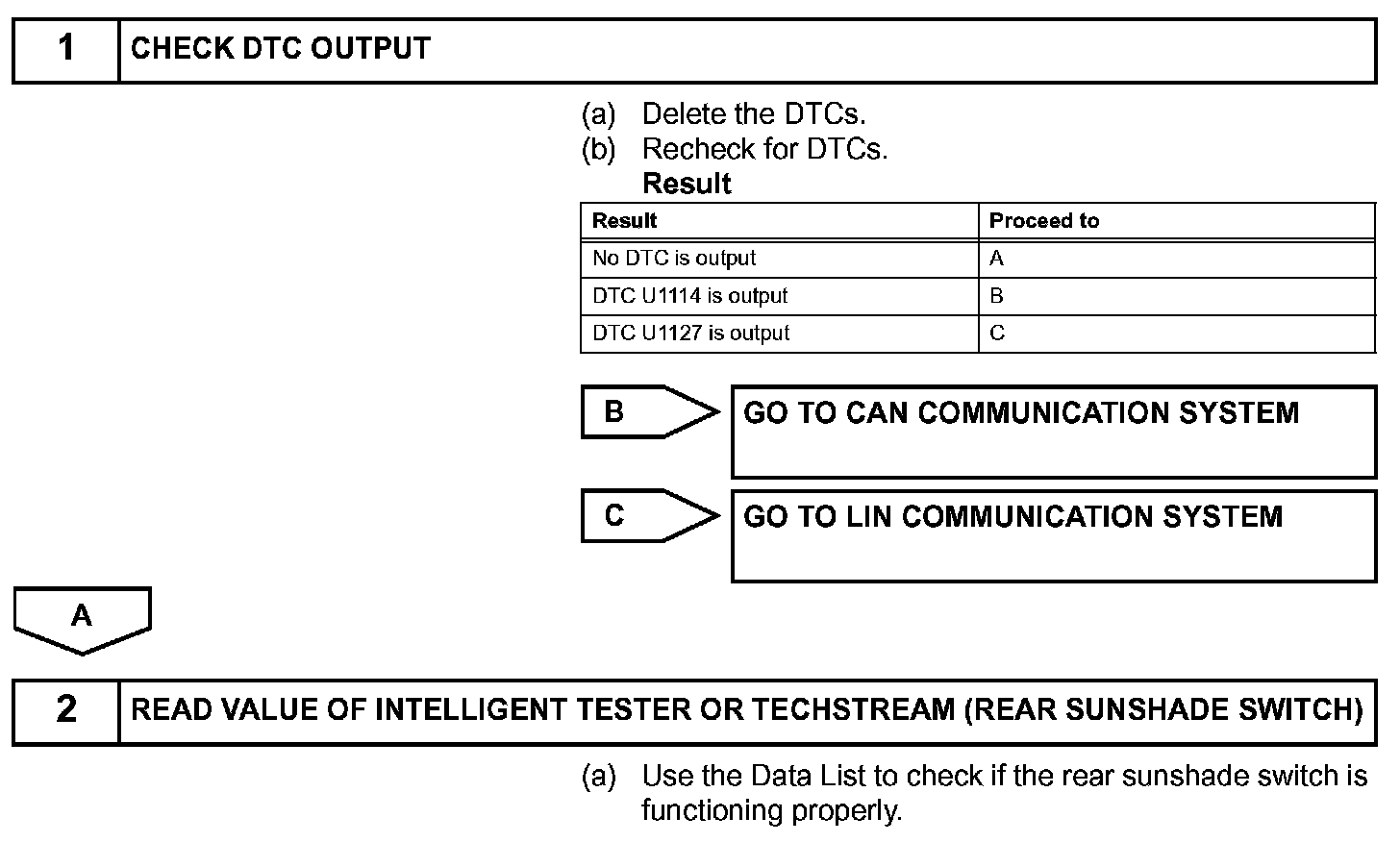

Step 1 - 2:

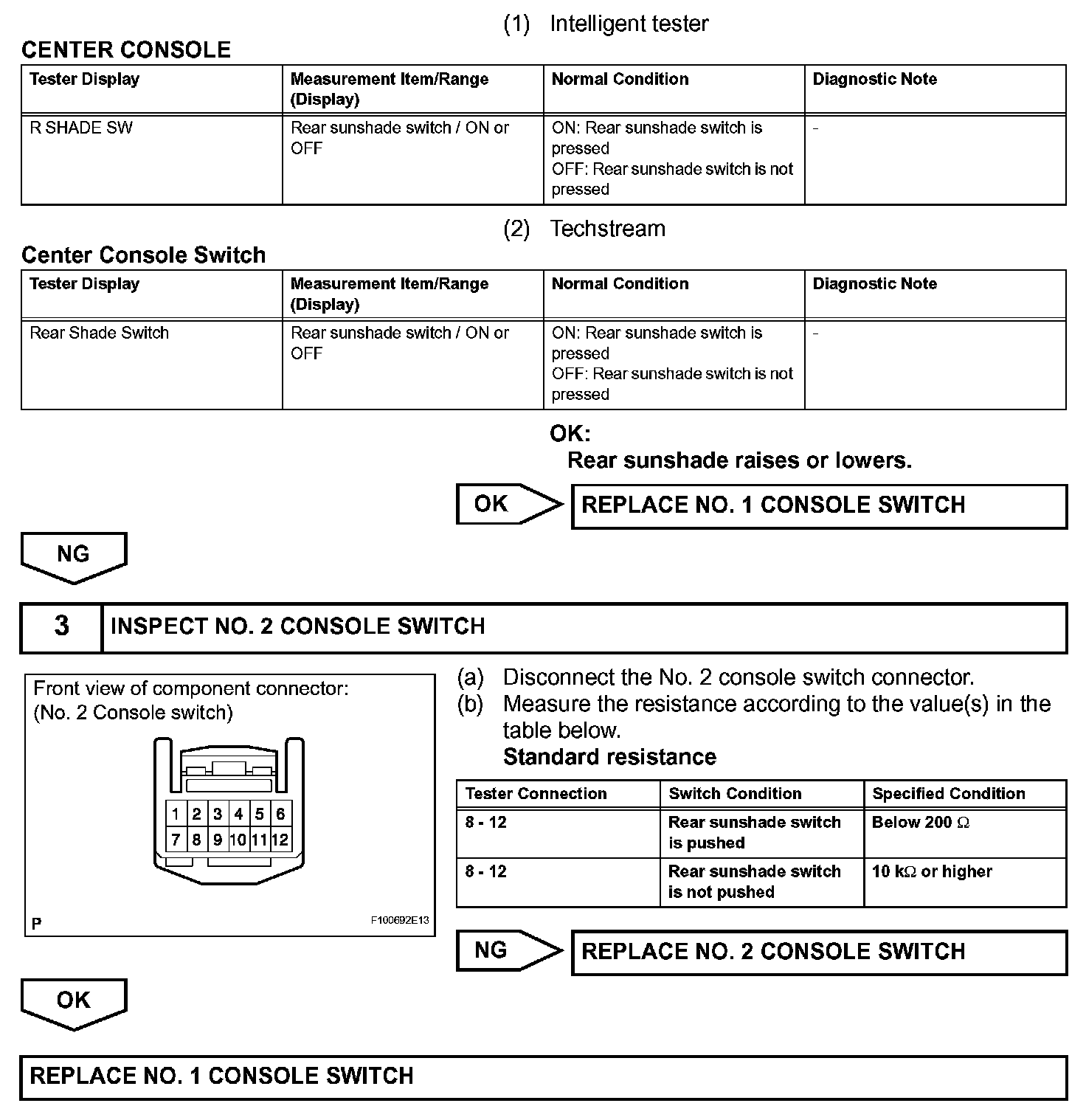

Step 2(Continued) - 3:
