Rear Switch Cannot Operate Right and / or Left Door Sunshade
Rear Switch cannot Operate Right and / or Left Door SunshadeDESCRIPTION
A rear door sunshade switch signal is sent from the rear power seat module switch to the rear door ECUs through CAN communication, and the rear curtains operate.
WIRING DIAGRAM

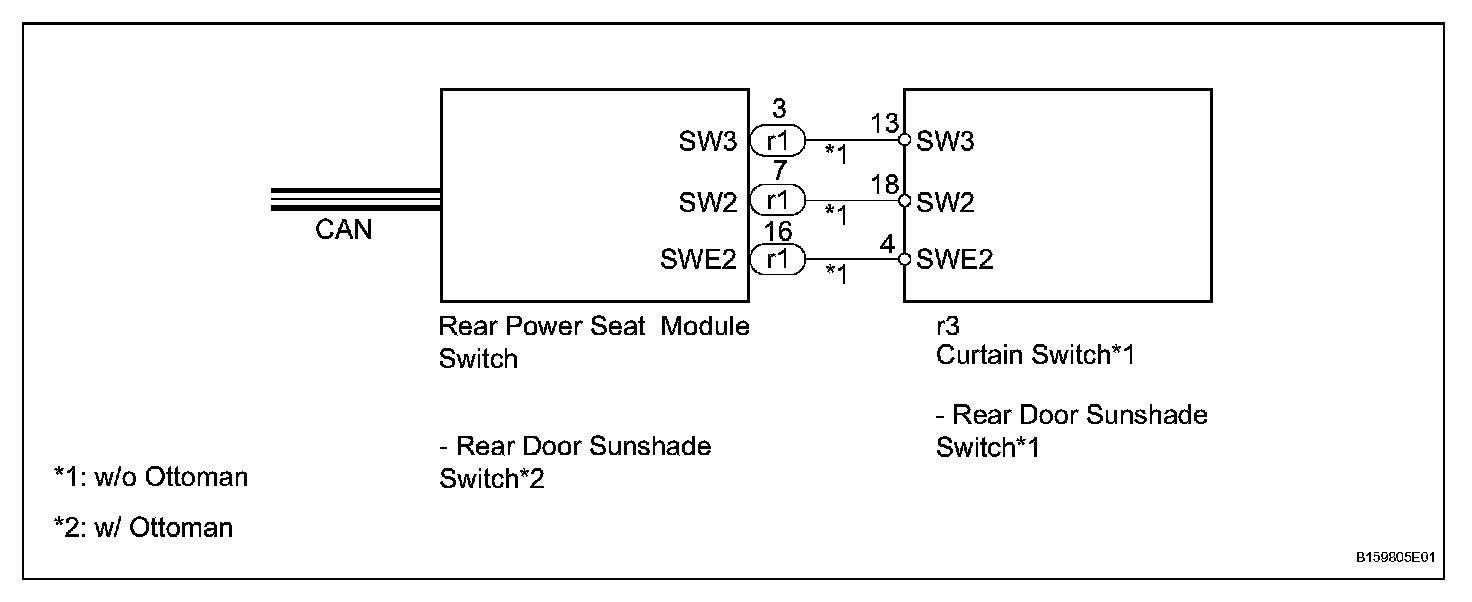

Wiring Diagram:
INSPECTION PROCEDURE

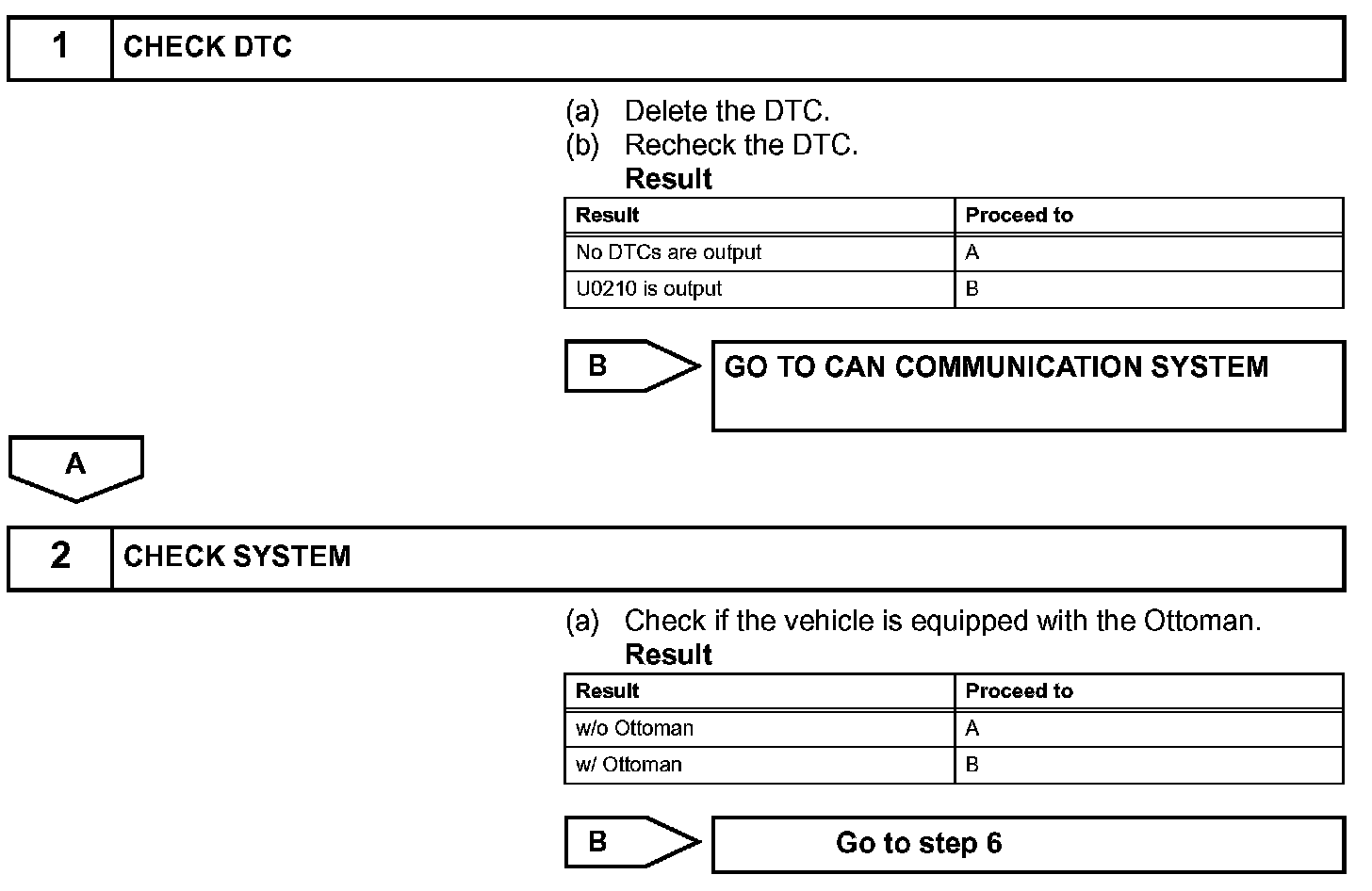

Step 1 - 2:

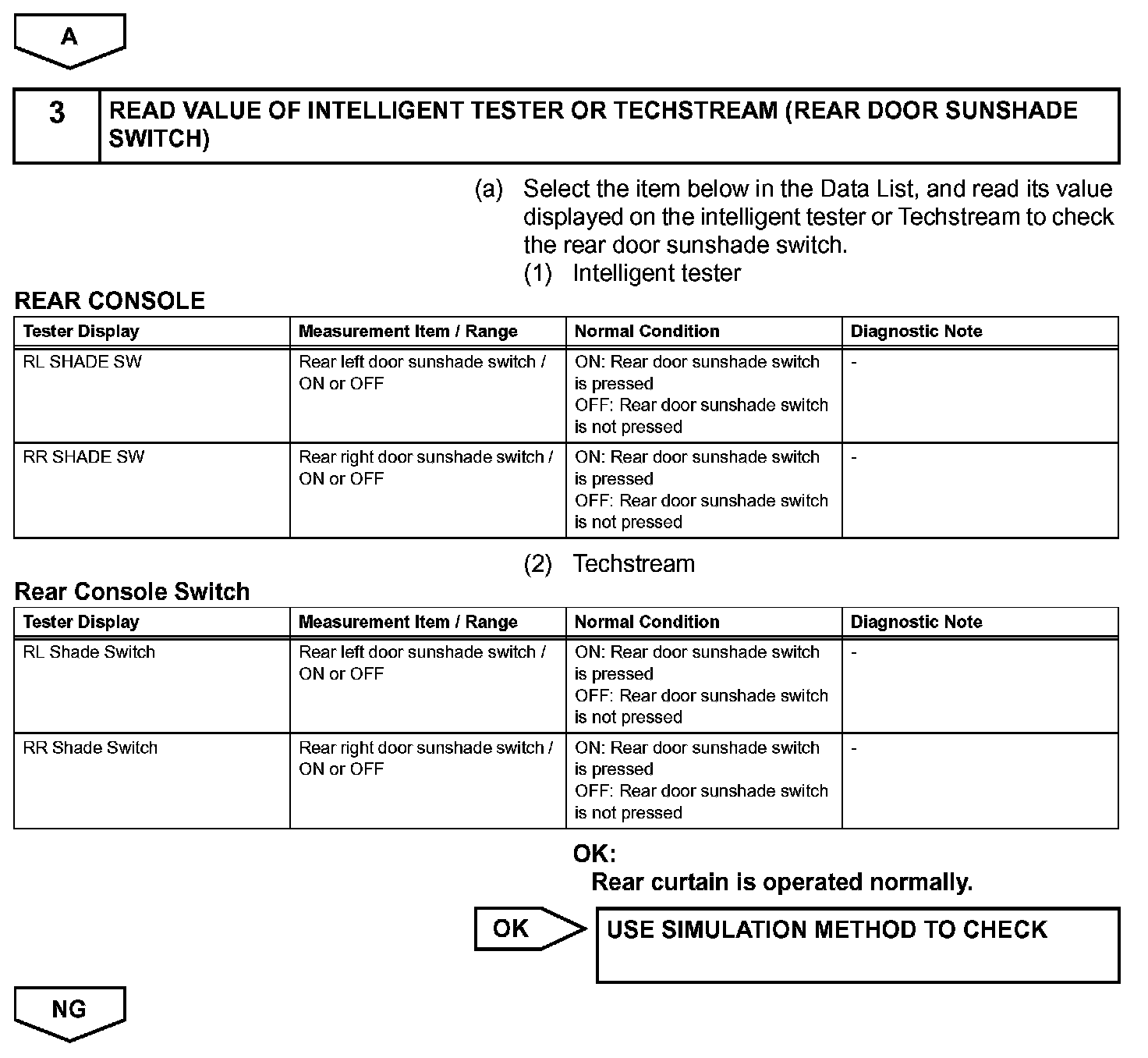

Step 2(Continued) - 3:

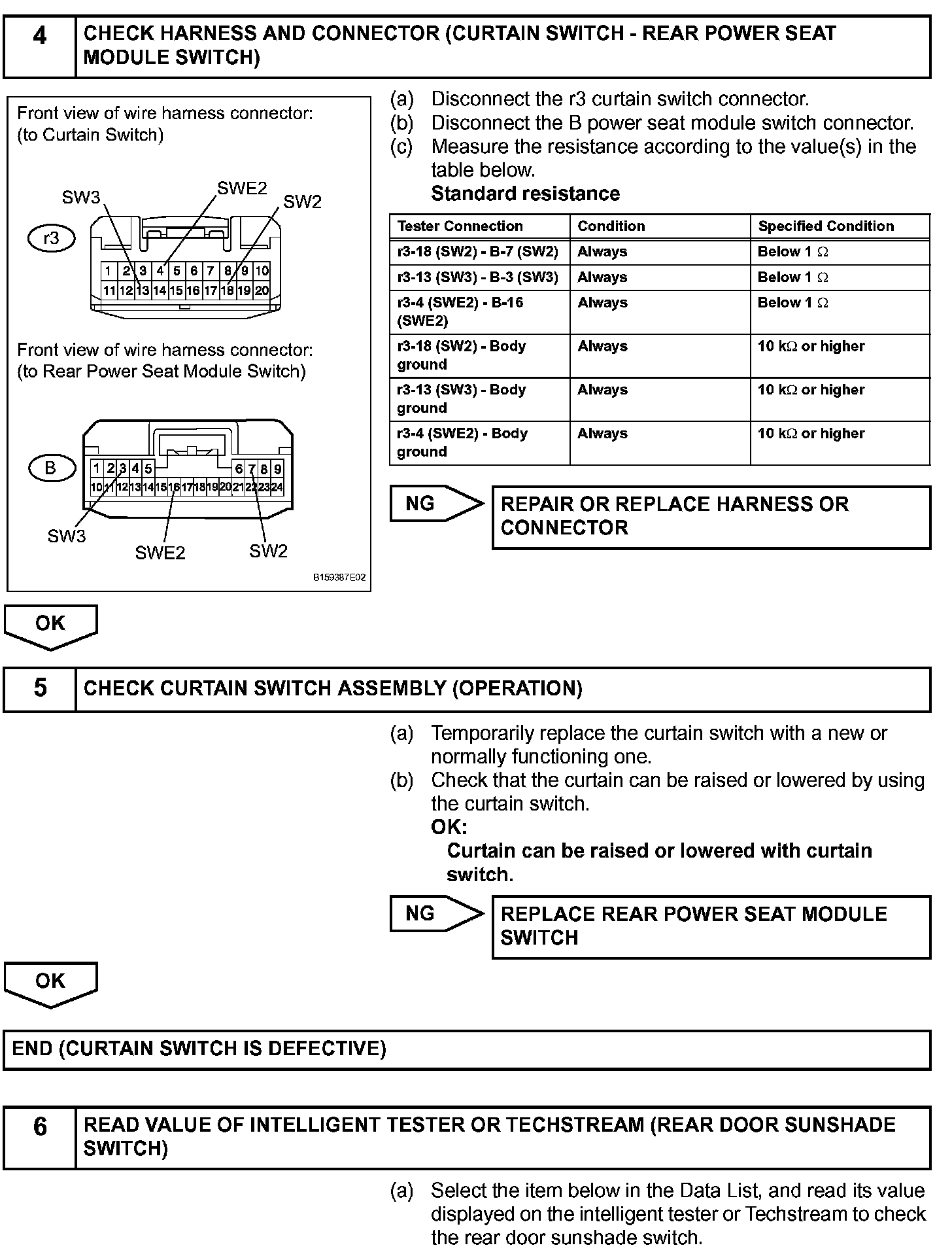

Step 4 - 6:

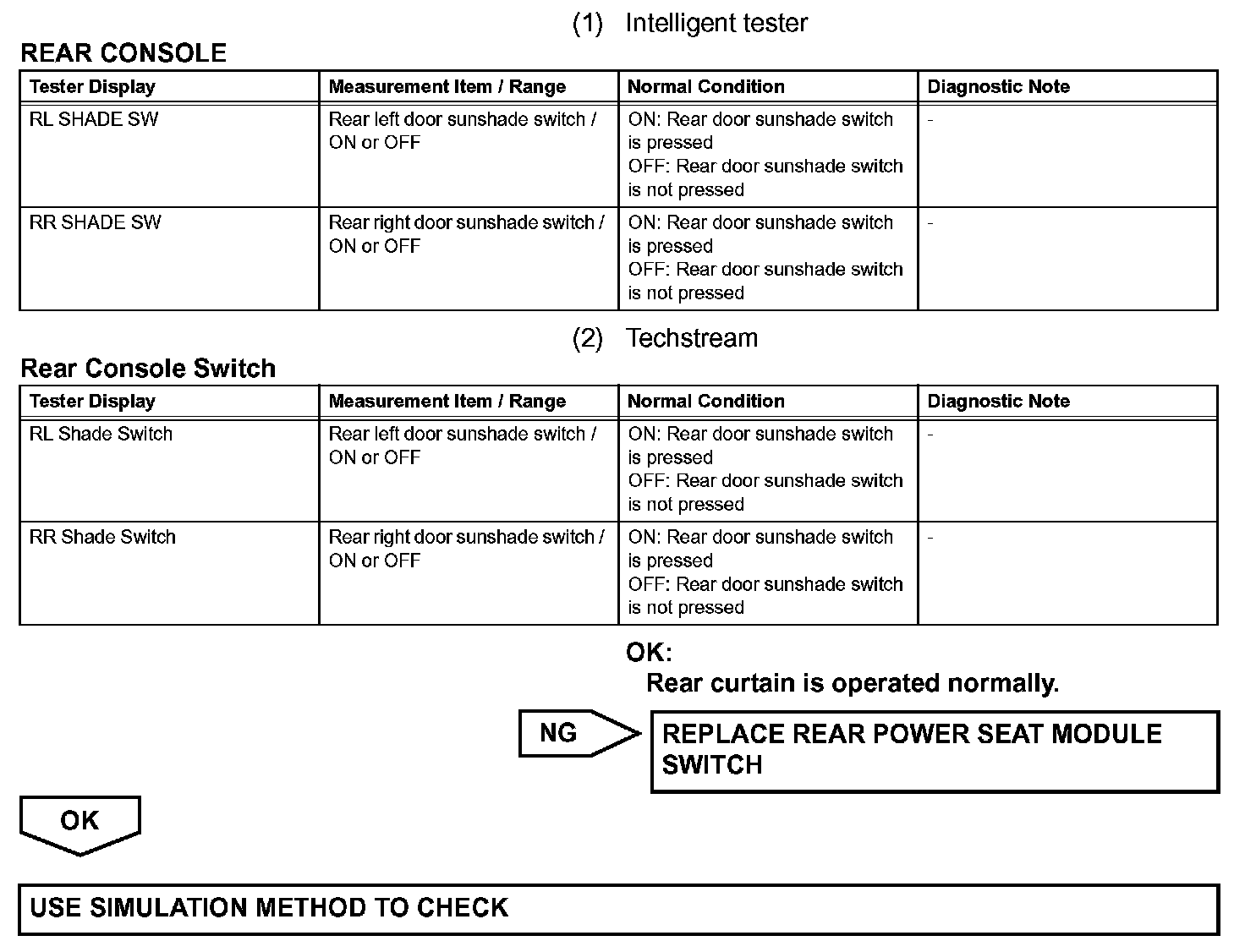

Step 6(Continued):
