Only Front Switch Cannot Operate Right and Left Door Sunshade
Only Front Switch cannot Operate Right and Left Door SunshadeDESCRIPTION
A rear door sunshade switch signal is sent from the No. 2 console switch to the outer mirror switch assembly through LIN communication. The outer mirror switch then sends the signal to the rear door ECUs through CAN communication, and the rear curtains operate.
WIRING DIAGRAM

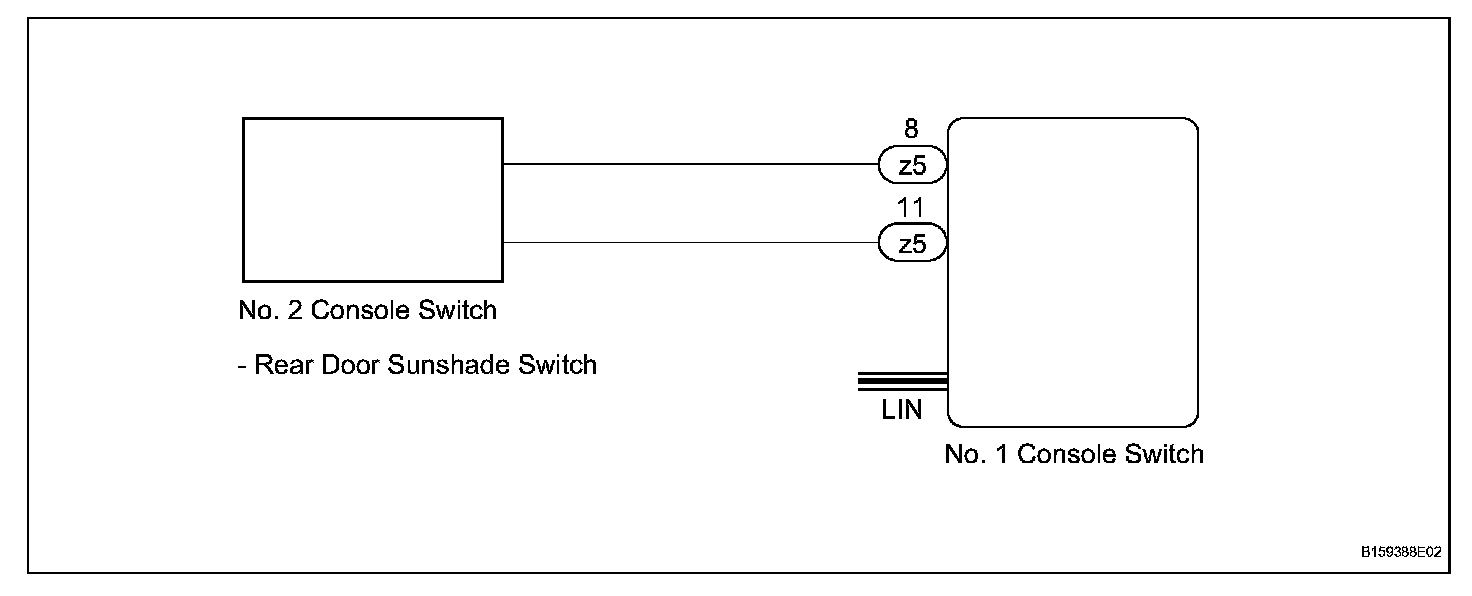

Wiring Diagram:
INSPECTION PROCEDURE

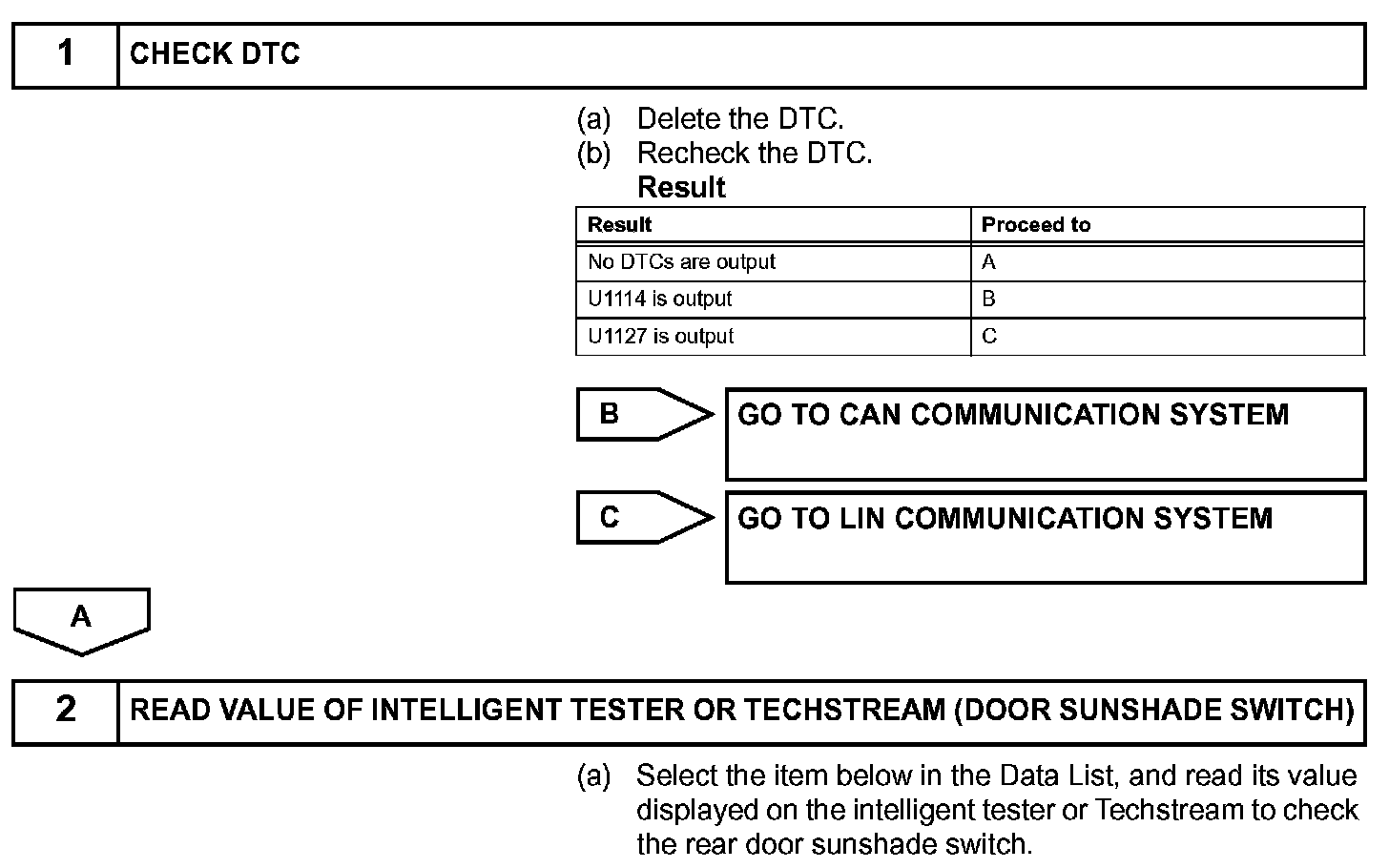

Step 1 - 2:

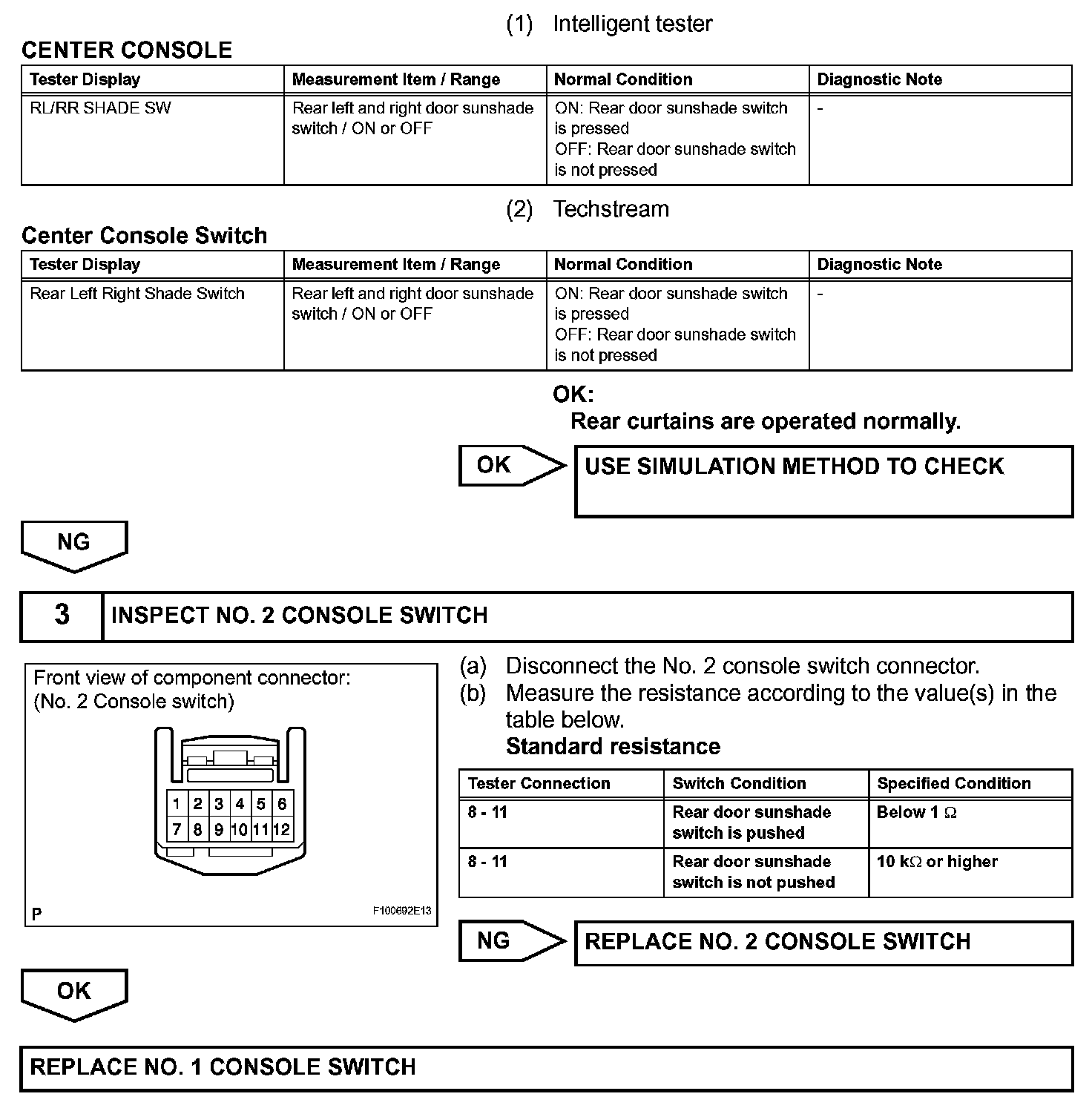

Step 2(Continued) - 3:
