Front and Rear Switch Cannot Operate Right Door Sunshade

Front and Rear Switch cannot Operate Right Door Sunshade

DESCRIPTION
The rear door ECU operates the motor of the rear curtain (rear door sunshade).

WIRING DIAGRAM

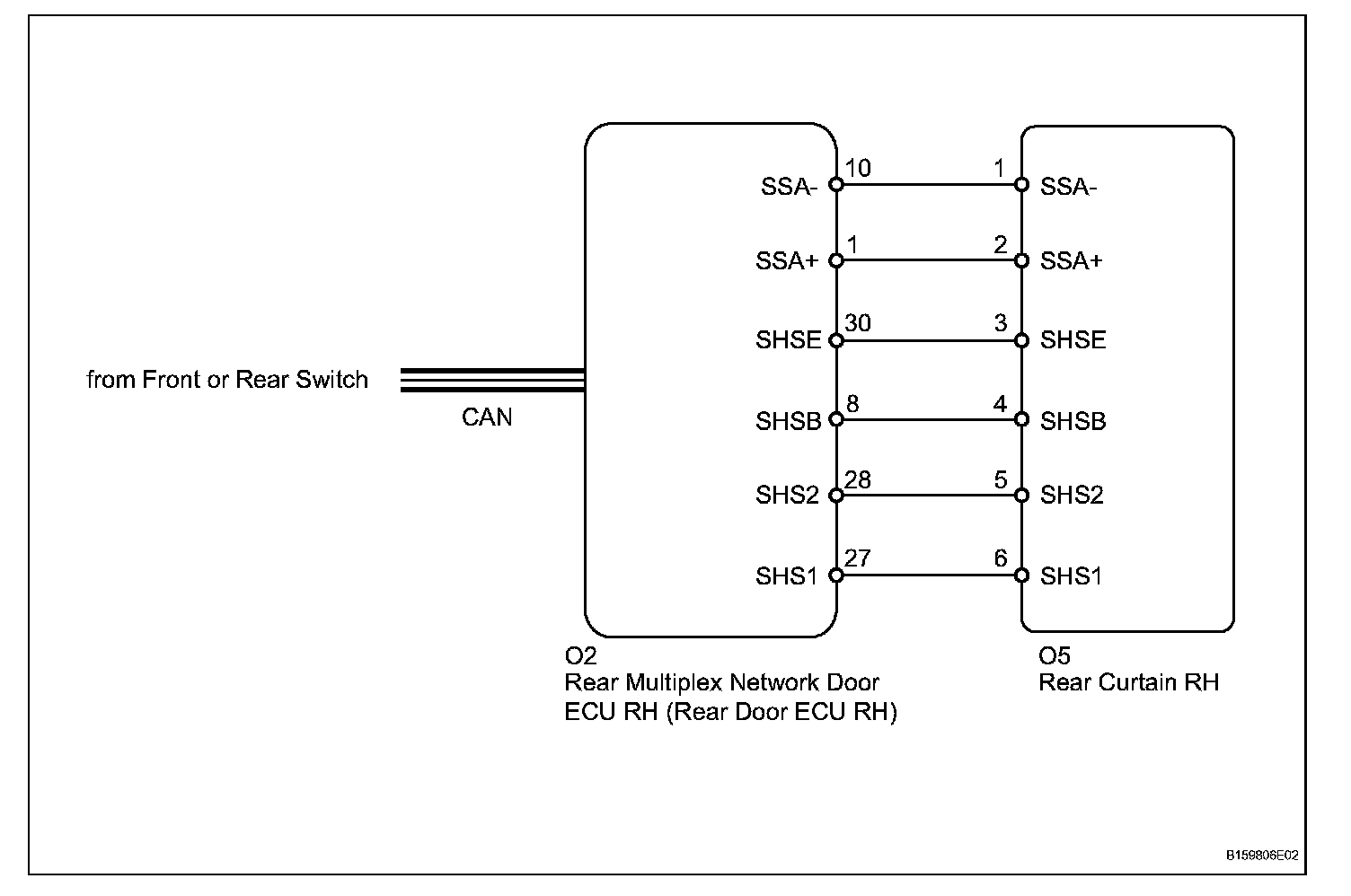

Wiring Diagram:





INSPECTION PROCEDURE

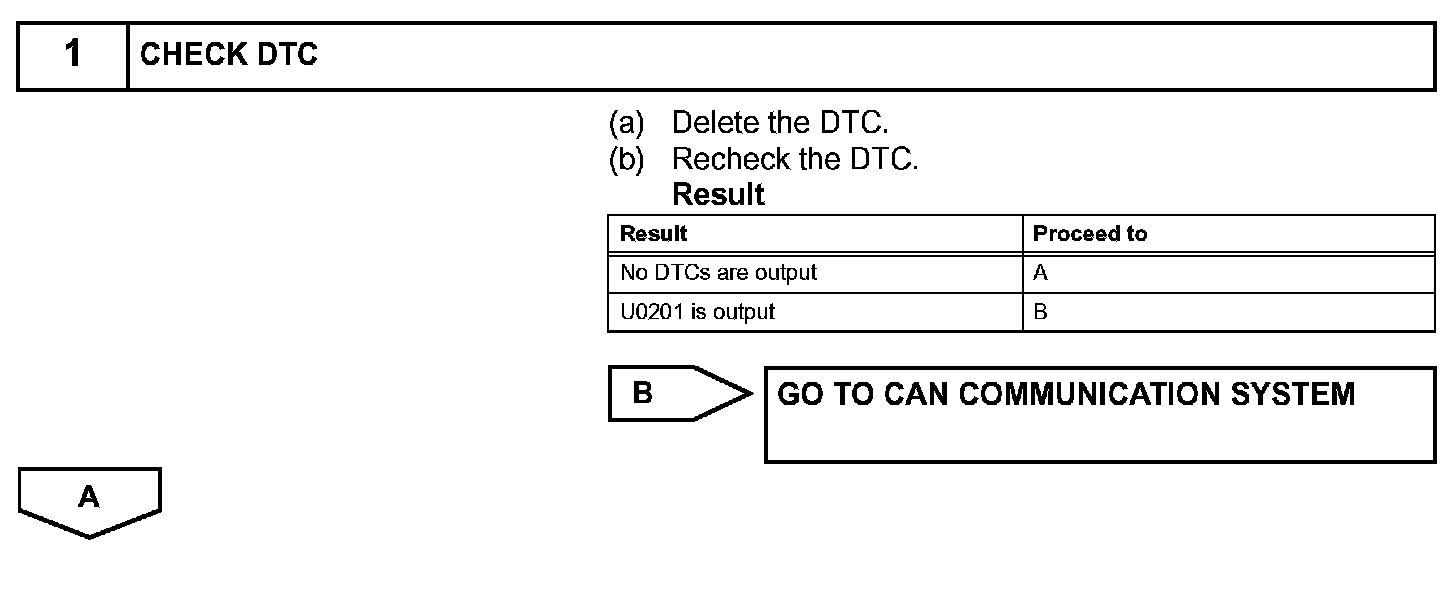

Step 1:

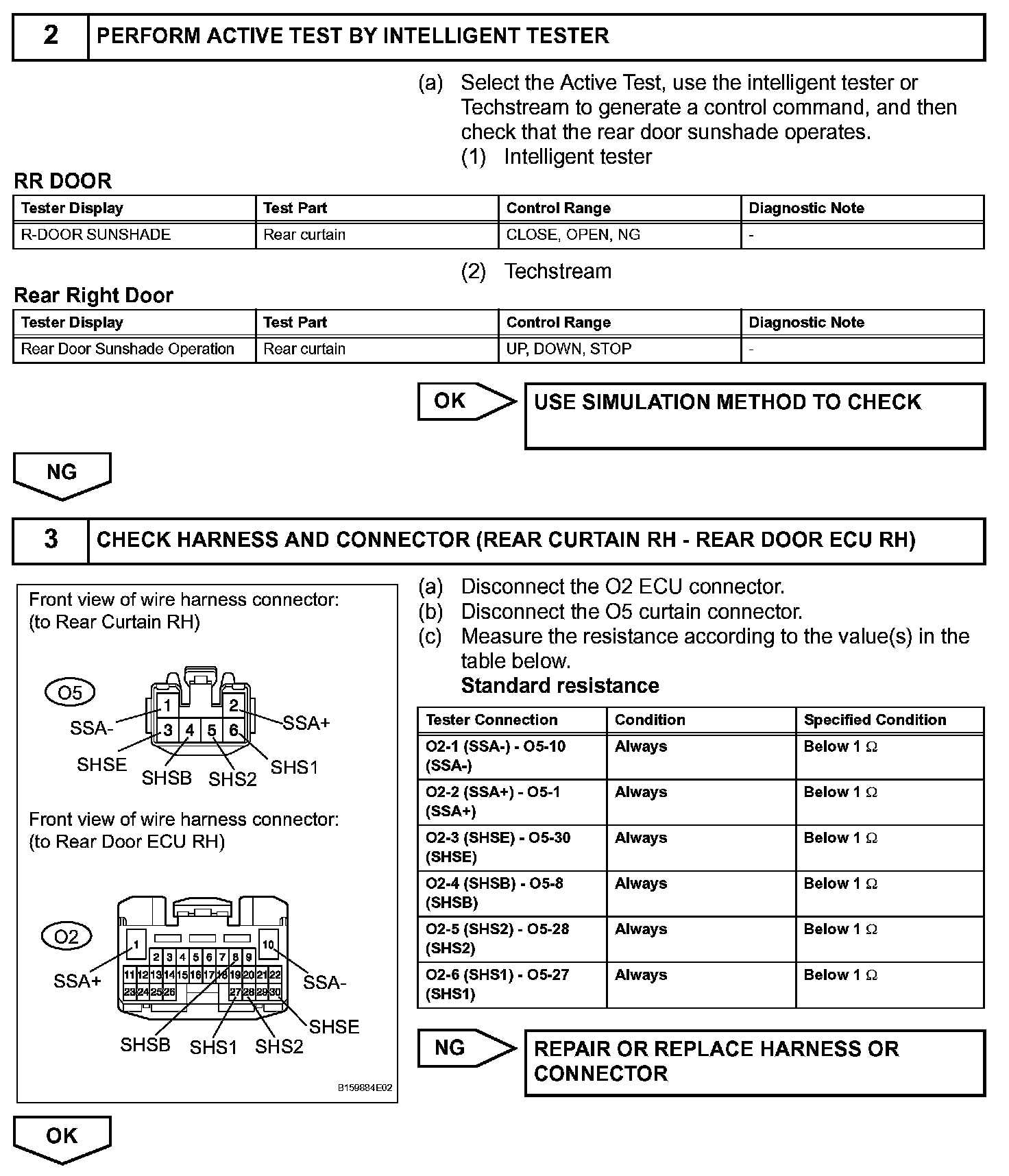

Step 2 - 3:

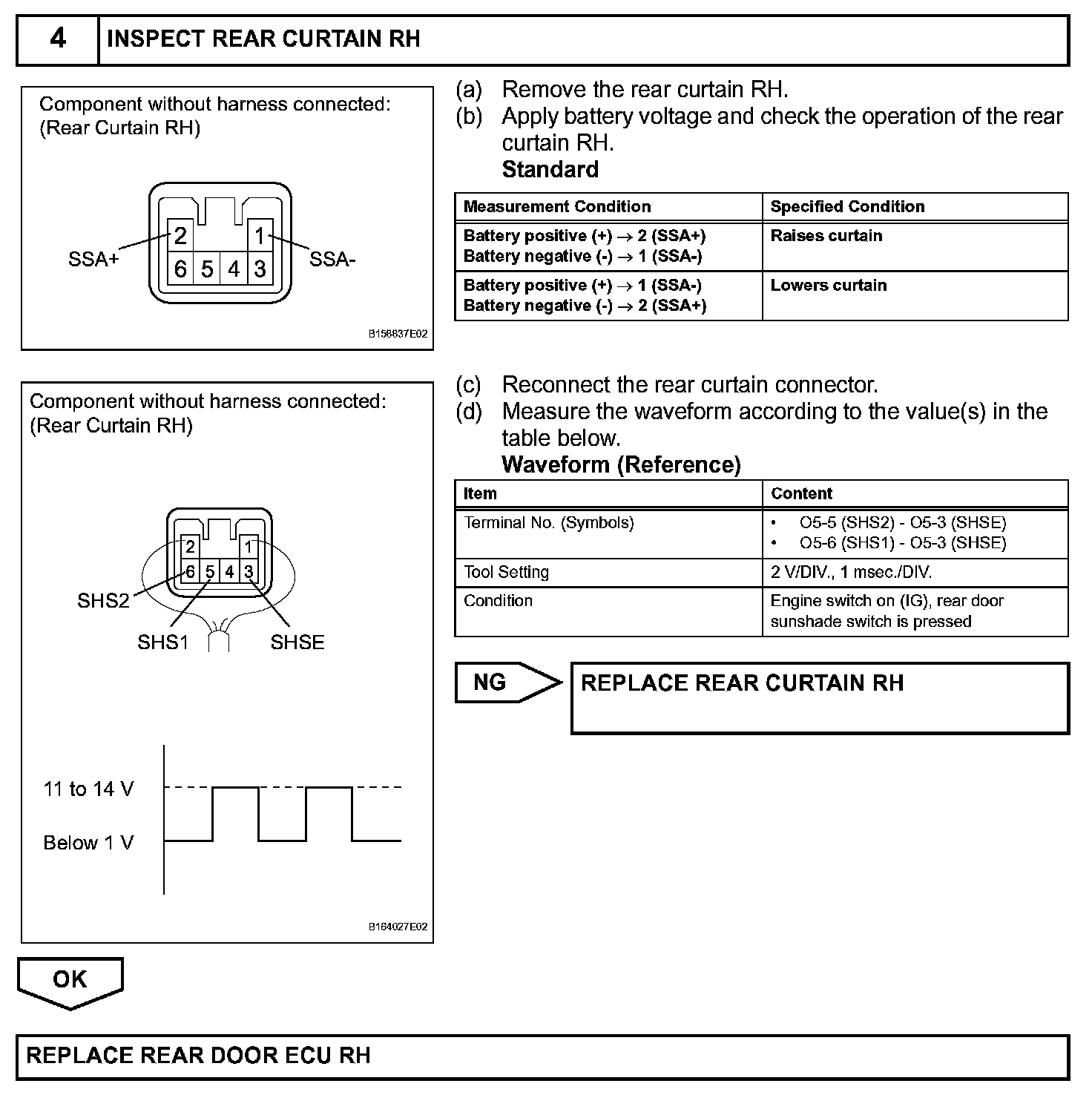

Step 4:
