Component Inspection
REAR SUNSHADE ASSEMBLYINSPECTION
1. INSPECT REAR SUNSHADE ASSEMBLY

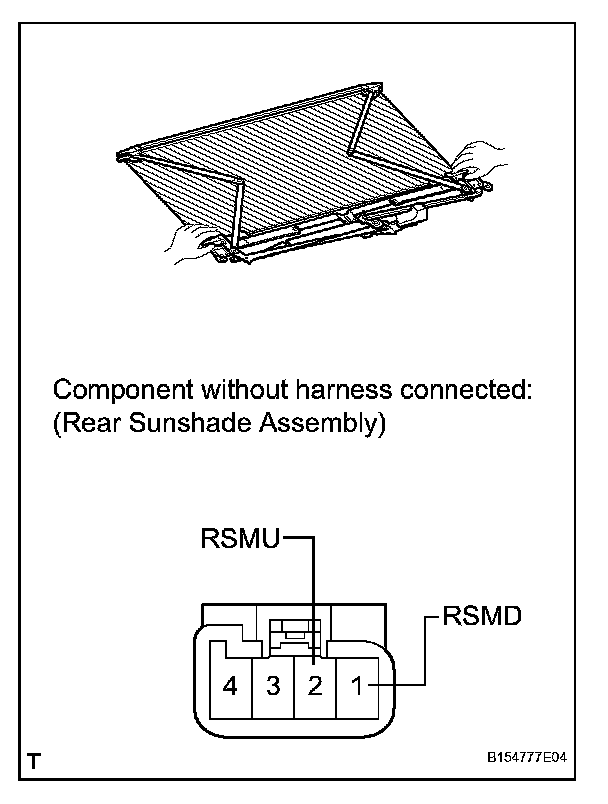

a. Hold the edges of the rear sunshade with your hands, as shown in the illustration.

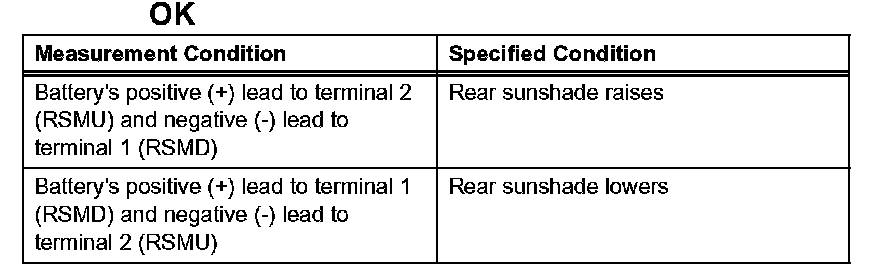

b. Apply battery voltage to the rear sunshade motor and check the operation of the rear sunshade.
HINT: To prevent the motor from burning out, stop operation as soon as the rear sunshade is fully raised or lowered.
CAUTION: Be careful when the rear sunshade raises and lowers. Something could get caught in the rear sunshade and cause an injury.

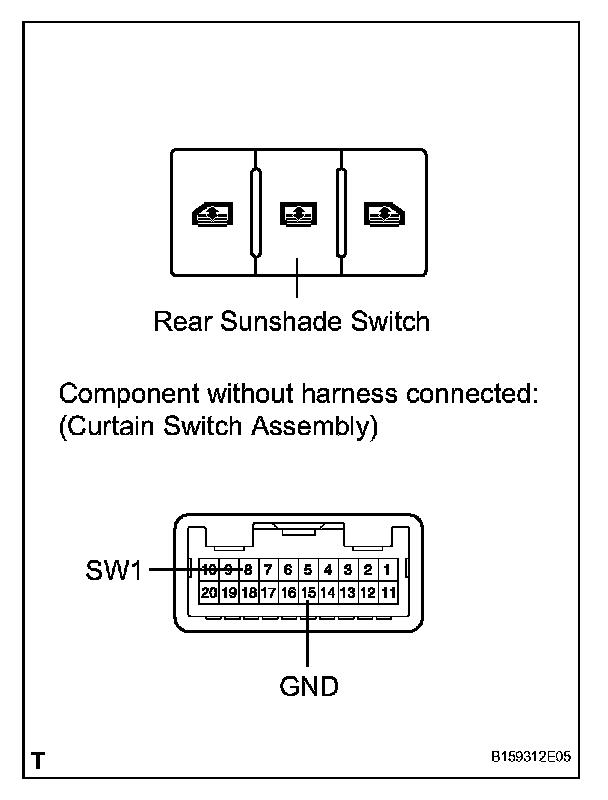

2. INSPECT CURTAIN SWITCH ASSEMBLY
a. Remove the curtain switch assembly.

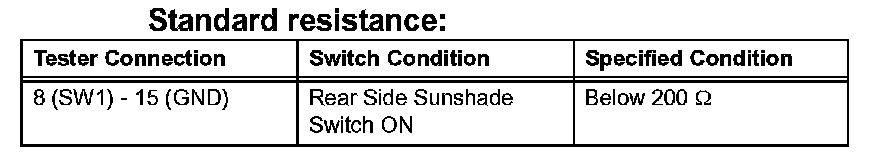

b. Measure the resistance between the terminals when the switch is operated.
If the result is not as specified, replace the curtain switch.

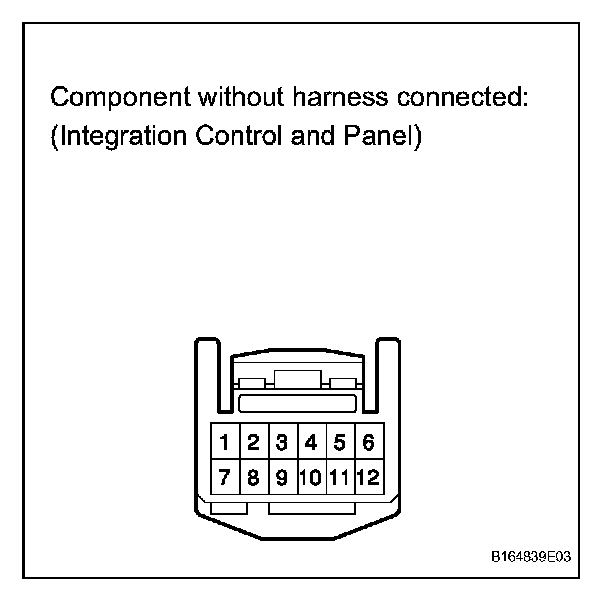

3. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY
a. Remove the integration control and panel assembly.

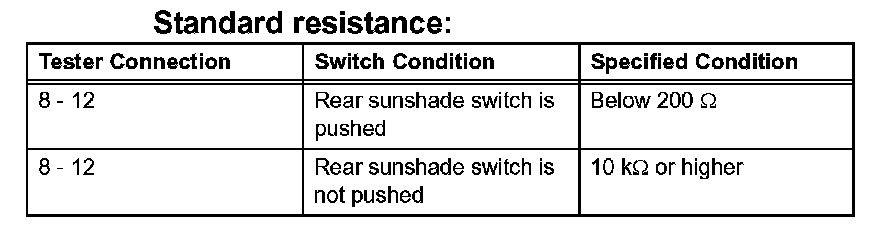

b. Measure the resistance according to the value(s) in the table below.
If the result is not as specified, replace the integration control and panel.
