Rear Sunshade Assembly

REAR SUNSHADE ASSEMBLY

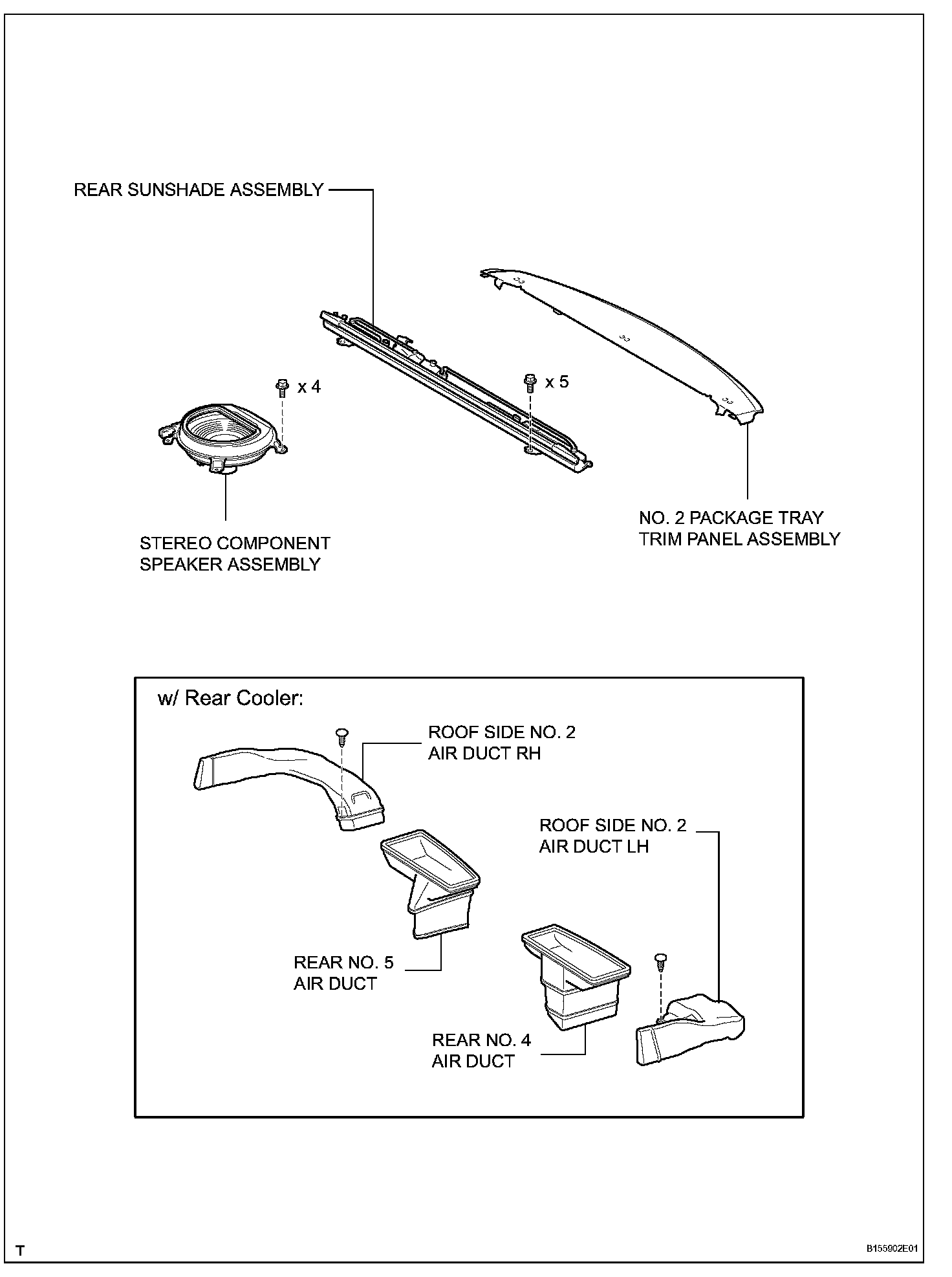

Rear Sunshade Assembly:

Rear Sunshade Assembly:

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)
a. Remove the rear seat.

4. REMOVE REAR SEAT ASSEMBLY (for Power Seat)
a. Remove the rear seat.

5. REMOVE REAR SEAT ASSEMBLY (for Ottoman)
a. Remove the rear seat.

6. REMOVE REAR DOOR SCUFF PLATE LH
a. for Standard Body:
Remove the rear door scuff plate.

b. for Long Body:
Remove the rear door scuff plate.

7. REMOVE REAR DOOR SCUFF PLATE RH
a. for Standard Body:
Remove the rear door scuff plate.

b. for Long Body:
Remove the rear door scuff plate.

8. REMOVE REAR SEAT SIDE GARNISH LH
9. REMOVE REAR SEAT SIDE GARNISH RH
10. REMOVE ROOF SIDE GARNISH INNER LH
11. REMOVE ROOF SIDE GARNISH INNER RH
12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

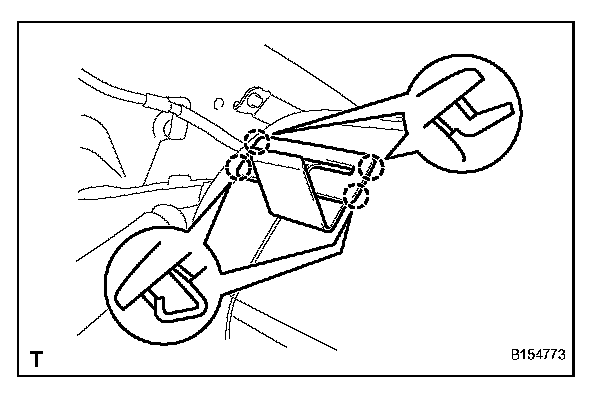

a. except Ottoman Seat:
Using a moulding remover, detach the 4 claws and remove the 3 belt guide.

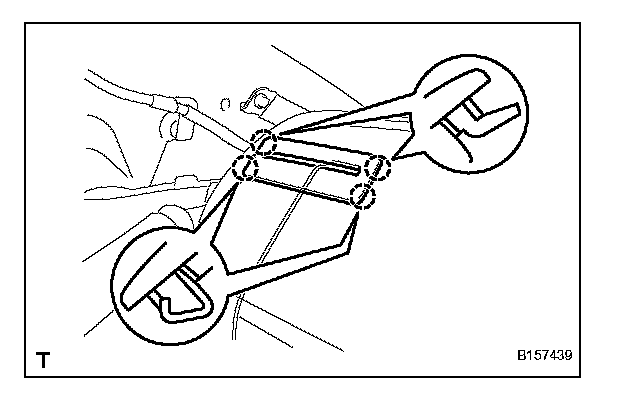

b. for Ottoman Seat:
Using a moulding remover, detach the 4 claws and remove the 2 belt guide.

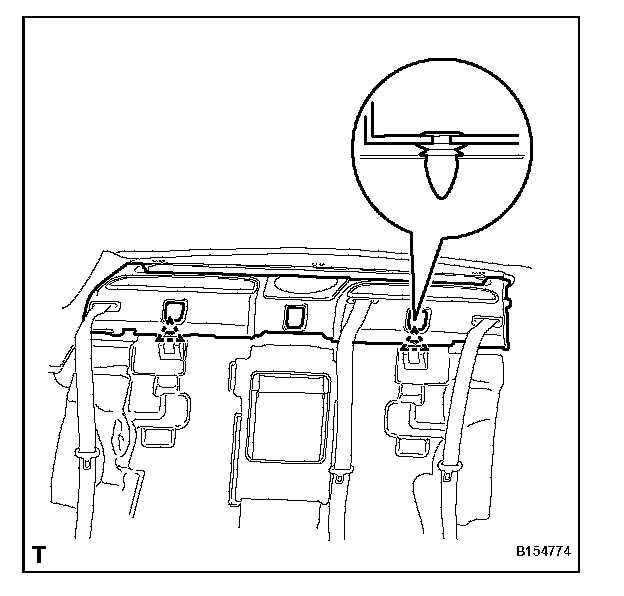

c. Detach the 2 clips of the panel. Then pass the rear seat belt floor anchors through the panel.
d. w/o Rear Cooler:
Remove the panel.

e. w/ Rear Cooler:
Disconnect the solar sensor connector and remove the panel.

13. REMOVE ROOF SIDE NO. 2 AIR DUCT LH (w/ Rear Cooler)
14. REMOVE ROOF SIDE NO. 2 AIR DUCT RH (w/ Rear Cooler)
15. REMOVE REAR NO. 4 AIR DUCT (w/ Rear Cooler)
16. REMOVE REAR NO. 5 AIR DUCT (w/ Rear Cooler)
17. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY

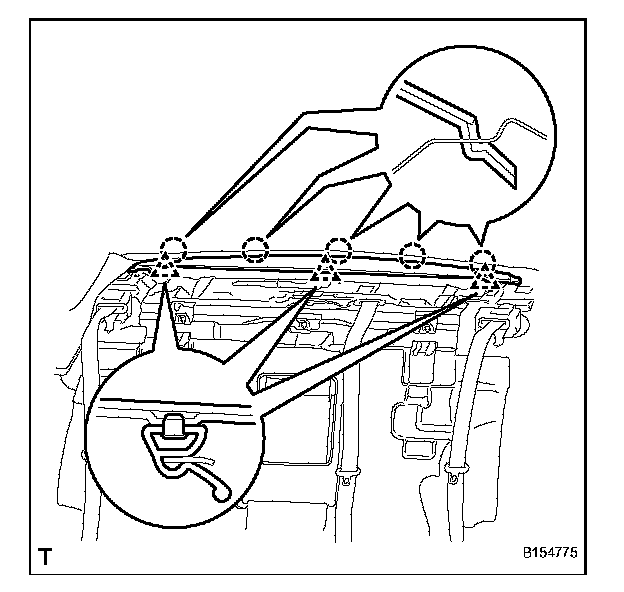

18. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY





a. Detach the 5 claws and 3 clips.

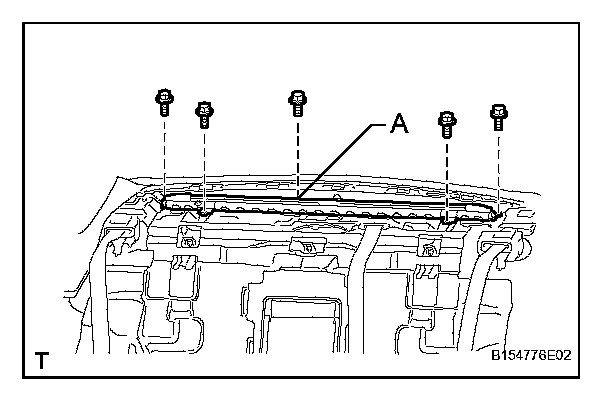

19. REMOVE REAR SUNSHADE ASSEMBLY





a. Remove the 5 bolts.
b. Loosen the bolt labeled A and remove the sunshade.

NOTICE: Do not remove the bolt labeled A.

INSTALLATION

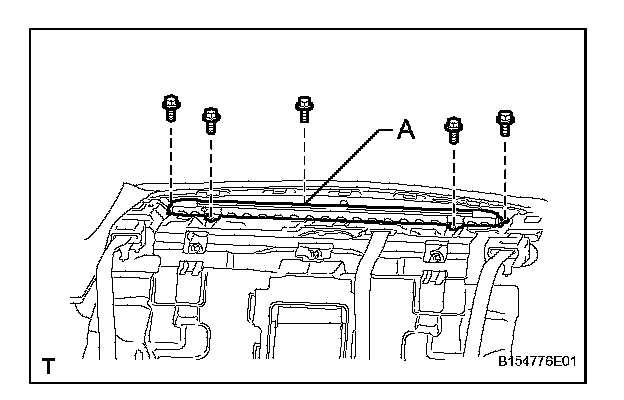

1. INSTALL REAR SUNSHADE ASSEMBLY





a. Tighten the bolt labeled A.
b. Install the sunshade with the 5 bolts.

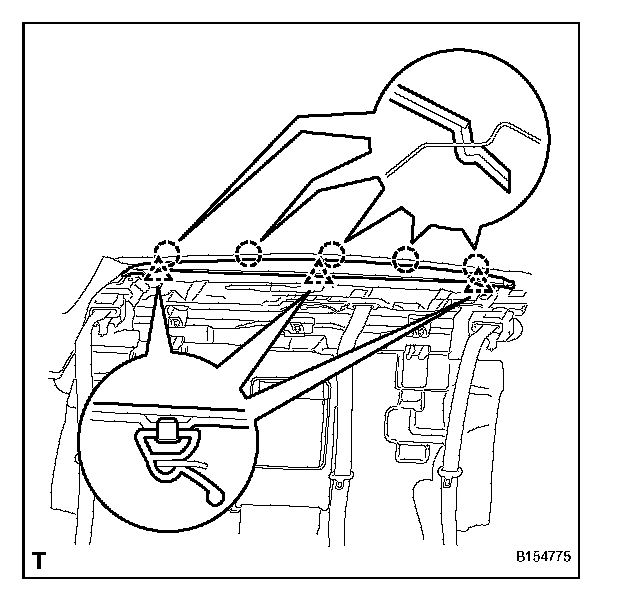

2. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY





a. Attach the 5 claws and 3 clips to install the panel.

3. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY
4. INSTALL REAR NO. 4 AIR DUCT (w/ Rear Cooler)
5. INSTALL REAR NO. 5 AIR DUCT (w/ Rear Cooler)
6. INSTALL ROOF SIDE NO. 2 AIR DUCT LH (w/ Rear Cooler)
7. INSTALL ROOF SIDE NO. 2 AIR DUCT RH (w/ Rear Cooler)
8. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
a. w/ Rear Cooler:
Connect the solar sensor connector.





b. Pass the rear seat belt floor anchors through the panel.
c. Insert the rear part of the panel into the rear sunshade.

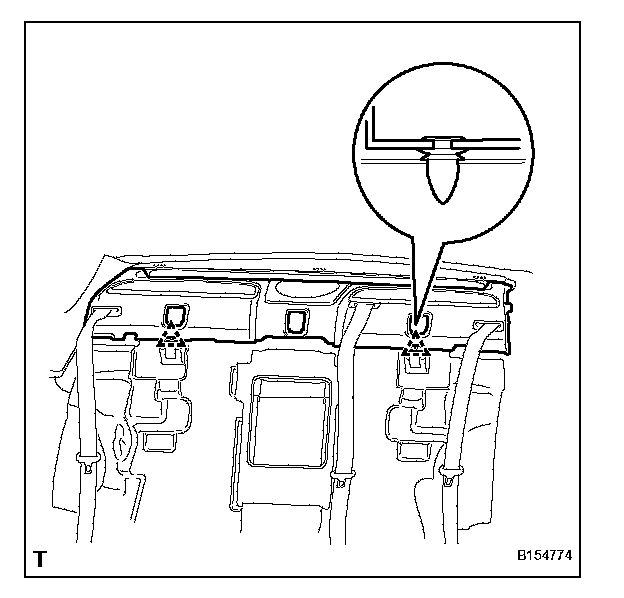

d. Attach the 2 clips and install the package tray trim panel.





e. except Ottoman Seat:
Attach the 4 claws to install the 3 belt guide.

f. for Ottoman Seat:
Attach the 4 claws to install the 2 belt guide.

9. INSTALL ROOF SIDE GARNISH INNER LH
10. INSTALL ROOF SIDE GARNISH INNER RH
11. INSTALL REAR SEAT SIDE GARNISH LH
12. INSTALL REAR SEAT SIDE GARNISH RH
13. INSTALL REAR DOOR SCUFF PLATE LH
a. for Standard Body:
Install the rear door scuff plate.

b. for Long Body:
Install the rear door scuff plate.

14. INSTALL REAR DOOR SCUFF PLATE RH
a. for Standard Body:
Install the rear door scuff plate.

b. for Long Body:
Install the rear door scuff plate.

15. INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)
a. Install the rear seat.

16. INSTALL REAR SEAT ASSEMBLY (for Power Seat)
a. Install the rear seat.

17. INSTALL REAR SEAT ASSEMBLY (for Ottoman)
a. Install the rear seat.

18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
19. INSTALL COWL TOP VENTILATOR LOUVER RH
20. PERFORM INITIALIZATION
a. Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

21. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
