Rear Door Sunshade Assembly

REAR DOOR SUNSHADE ASSEMBLY

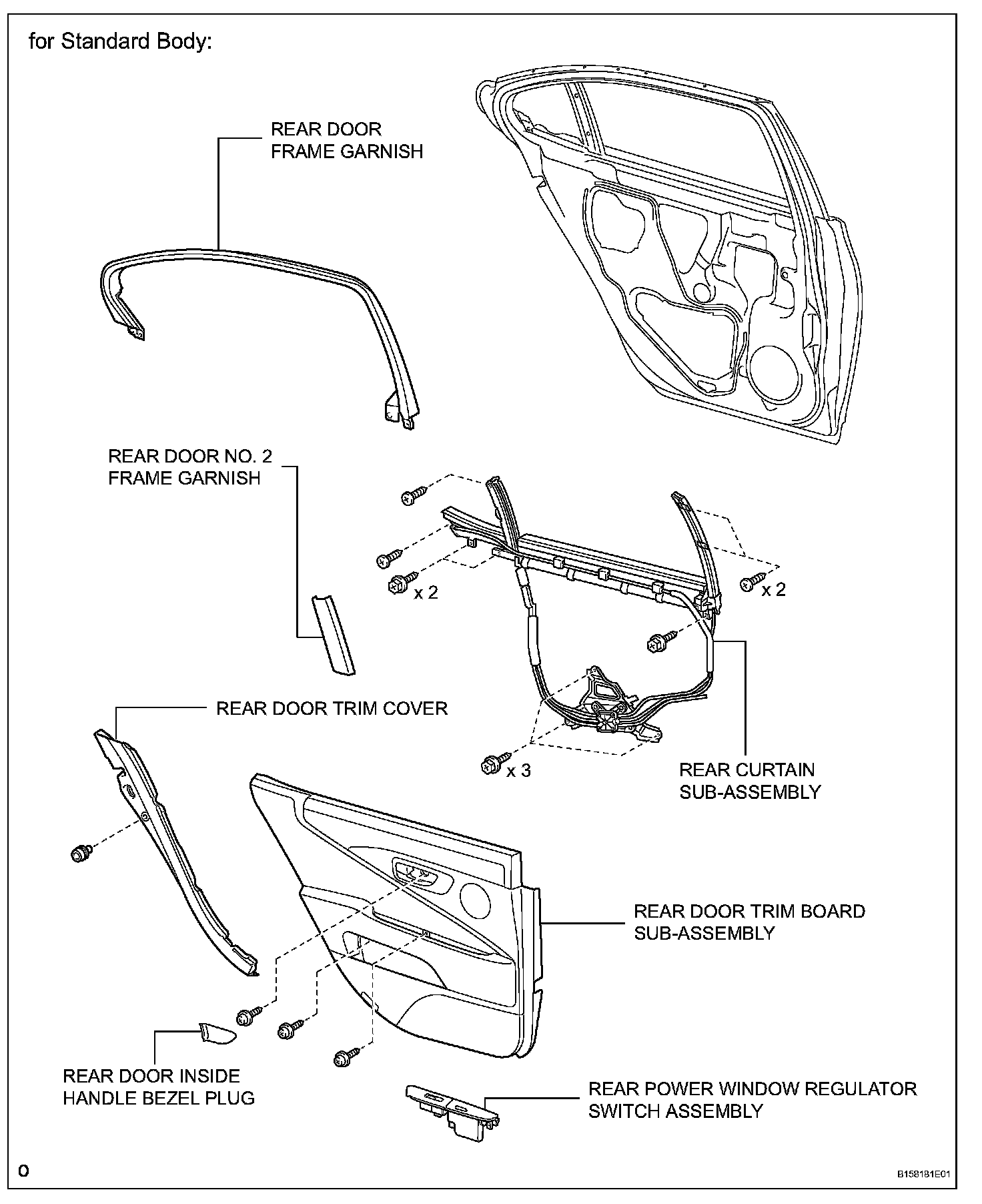

Rear Door Sunshade Assembly:

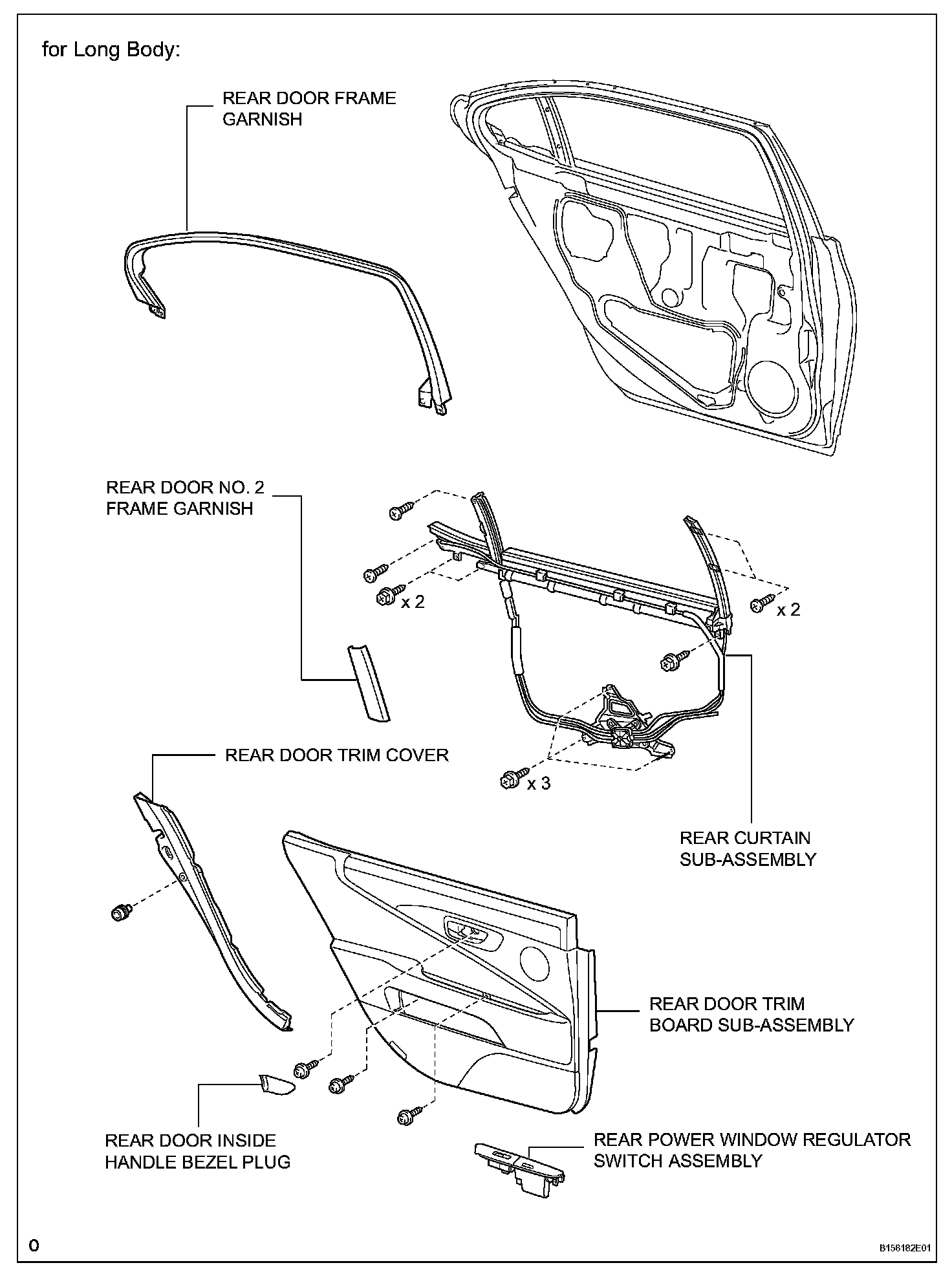

Rear Door Sunshade Assembly:

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH
2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH
3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
4. REMOVE REAR DOOR TRIM COVER LH
5. REMOVE REAR DOOR FRAME GARNISH LH
6. REMOVE REAR DOOR NO. 2 FRAME GARNISH LH
7. REMOVE REAR CURTAIN SUB-ASSEMBLY LH

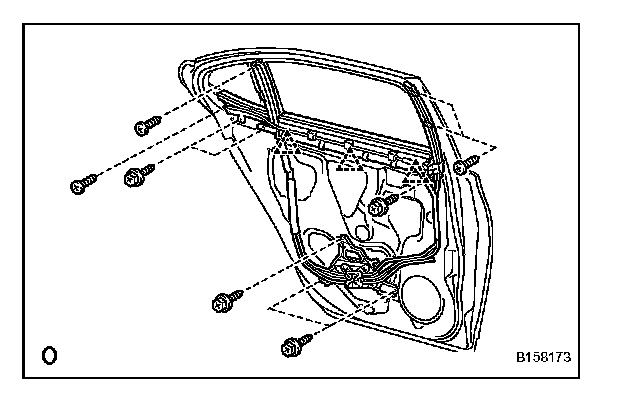

a. for Standard Body:
1. Remove the 10 screws.
2. Detach the 3 clips, disconnect the connector and remove the curtain.

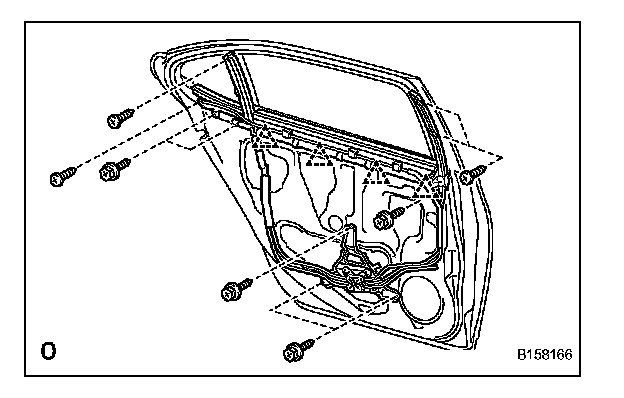

b. for Long Body:
1. Remove the 10 screws.
2. Detach the 4 clips, disconnect the connector and remove the curtain.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL REAR CURTAIN SUB-ASSEMBLY LH

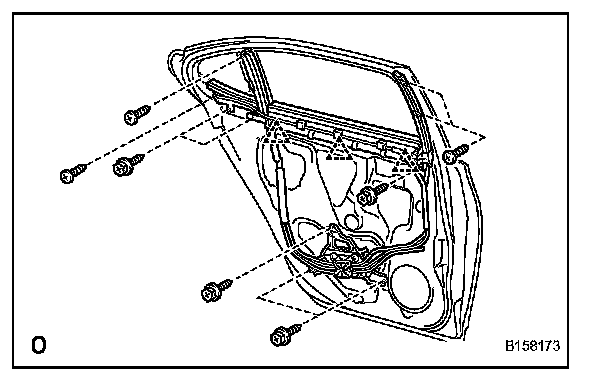

a. for Standard Body:
1. Connect the connector and attach the 3 clips to install the curtain.
2. Install the 10 screws.

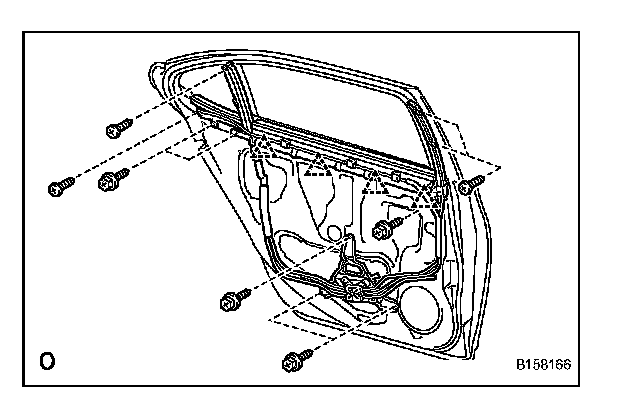

b. for Long Body:
1. Connect the connector and attach the 4 clips to install the curtain.
2. Install the 10 screws.

2. INSTALL REAR DOOR NO. 2 FRAME GARNISH LH
3. INSTALL REAR DOOR FRAME GARNISH LH
4. INSTALL REAR DOOR TRIM COVER LH
5. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
6. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH
7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH
8. PERFORM INITIALIZATION
a. Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
