Step C

Step C:

1. Add EPT foam to glass run rubber.

Foam Dimensions: 7 x 7 x 70 mm (0.07 x 0.07 x 2.76 in.)

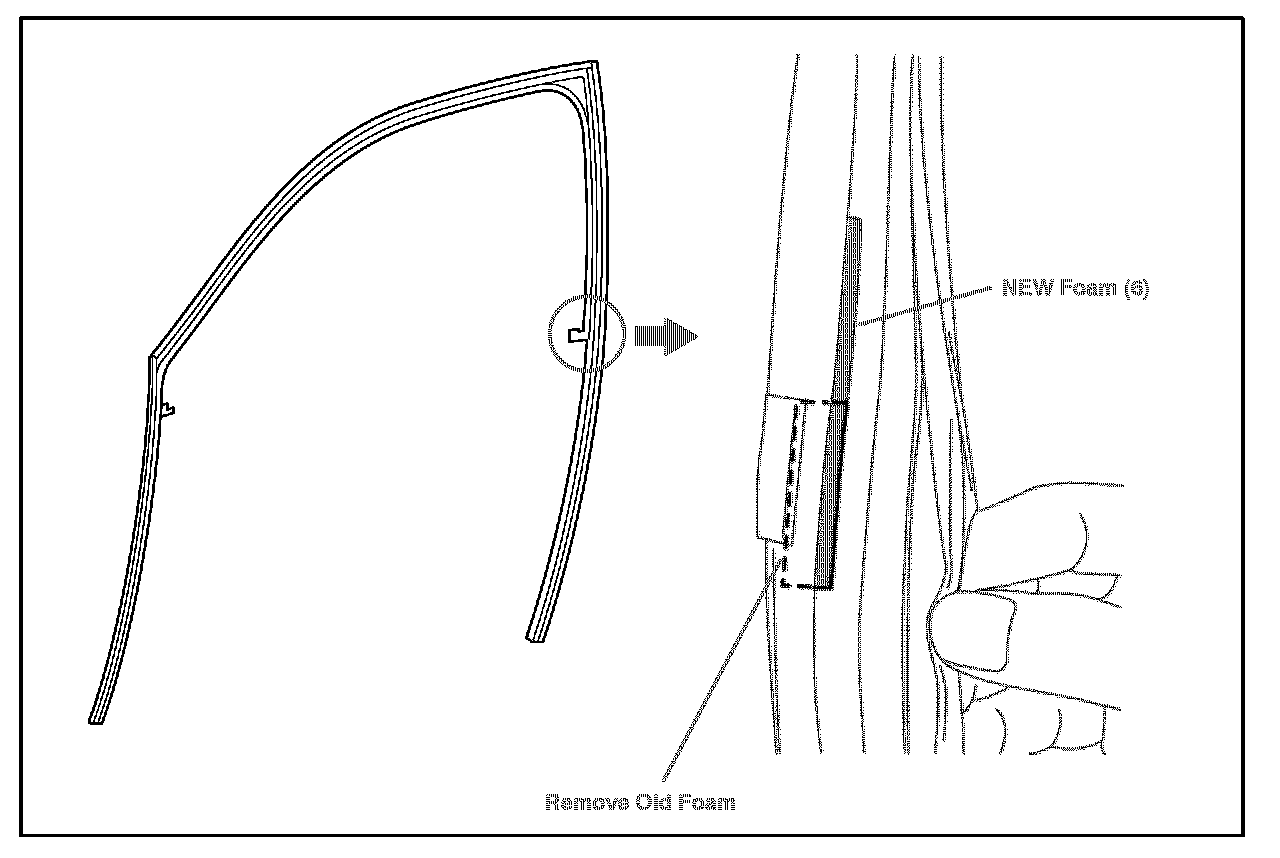

2. Add EPT foam (refer to 6 in the illustration) in front door glass run at the rear lower corner of the window opening.

3. Remove the existing piece of foam behind the glass run at the location shown in the picture above. Attach the new longer piece of foam (refer to 6 in the illustration above).

NOTE:
Position the NEW piece of foam (refer to 6 in the illustration) starting at the lower end of the previous piece of foam.
